    adjustable bandsaw circle cutting jig

    Lookin to build a jig to cut 20" circles but would like to make it ajustable any ideas? has to be bang on when I'm done as I use will be using it to cut frames for glass art work.

  2. #2
    Jon
    Jon is offline Jon has agreed the Seller's Terms of Service
    Administrator Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    12,326
    Thanks
    2,239
    Thanked 2,850 Times in 1,270 Posts
    Hi WoodMan#1 - welcome to HomemadeTools.net

    I'll move this discussion into our Tools in Progress subforum so that you can get some good ideas.

  3. #3
    Carlos B's Avatar
    Join Date
    Mar 2017
    Location
    Canada
    Posts
    94
    Thanks
    75
    Thanked 106 Times in 35 Posts

    Carlos B's Tools
    Wood magazine June/July 2003 has an article "The Ultimate Bandsaw Table System" the system will cut circles up to 32" diameter on a 14 or 16" bandsaw. The accuracy of your circles depends on the accuracy of your build. I think it can still be downloaded from the Internet Archive if you do a search.

    Carlos B

    Its a 12 page article and may still be copyrighted, here's a picture of the jig to help you decide.

    Attachment 17195
    Last edited by Carlos B; 03-28-2017 at 09:00 PM. Reason: add info.

  4. #4
    Jon
    Jon is offline Jon has agreed the Seller's Terms of Service
    Administrator Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    12,326
    Thanks
    2,239
    Thanked 2,850 Times in 1,270 Posts

  5. #5

    Join Date
    Jul 2015
    Posts
    7
    Thanks
    2
    Thanked 1 Time in 1 Post
    If you make an mdf board to fit you band saw and lock in place then fit 6mm inserts into the mdf board in line with the front of the blade at any intervals you like you can then screw in screw in a short 6mm stud in your case it should exactly 10" away from the nearest side of the blade, this will be the radius of your 20" circle. I have set a series of inserts at regular intervals so I can cut circles of a number of diameters by screwing the 6mm stud into the appropiate insert.
    If you need photos I can take some for you
    Good luck
    John Durose

  6. #6

    Join Date
    Dec 2013
    Location
    Wisconsin
    Posts
    8
    Thanks
    0
    Thanked 4 Times in 3 Posts
    I built the jig from wood mag. Works well, although is awkward to clamp on my table. Need to rethink the clamping system.

  7. #7

    Join Date
    Nov 2014
    Location
    Polson MT summer Seattle WA winter
    Posts
    25
    Thanks
    0
    Thanked 8 Times in 5 Posts
    search the internet for [adjustable bandsaw circle cutting jig] or just [adjustable bandsaw circle cutting jig] there are many designs from virtually all the wood working magazines. Pinterest has many for example.

  8. #8

    Join Date
    Nov 2015
    Posts
    4
    Thanks
    0
    Thanked 0 Times in 0 Posts
    See below. My first post of pics.
    Last edited by jimmyb48; 04-01-2017 at 05:37 PM.

  9. #9
    Carlos B's Avatar
    Join Date
    Mar 2017
    Location
    Canada
    Posts
    94
    Thanks
    75
    Thanked 106 Times in 35 Posts

    Carlos B's Tools
    Quote Originally Posted by Partimer View Post
    I built the jig from wood mag. Works well, although is awkward to clamp on my table. Need to rethink the clamping system.
    Had a look at the plan, it looks like the jig is mounted on a Delta 14" saw. Don't know what saw you have but if your saw table is thicker or thinner its a simple matter of matching the side rails (part C & D) to the thickness of your table. Changing the Aluminum clamp fasteners to carriage bolts inserted from above with wing nuts to fasten the clamps might make it easier and faster to add or remove the table. If the problem is something different the system looks easy enough to modify to suit your saw.

    Carlos B

  10. #10

    Join Date
    Nov 2015
    Posts
    4
    Thanks
    0
    Thanked 0 Times in 0 Posts
    See the attached images. I hope this helps. It's much easier than it may look.

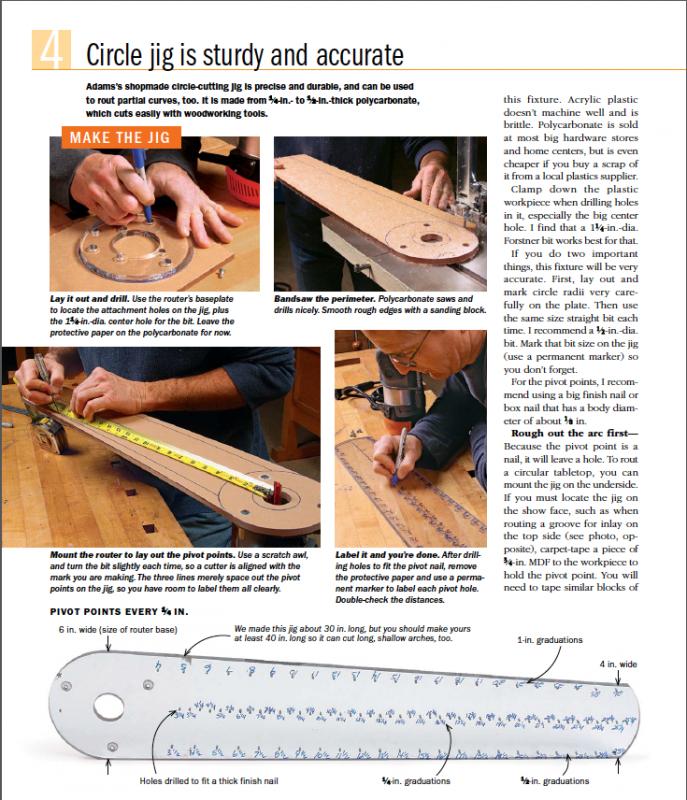

    adjustable bandsaw circle cutting jig-circle-jig-page-1.jpg
    Attachment 17307
