    That would be a great help :-)

    Quote Originally Posted by thehomeengineer View Post
    Thank you for your interest. I have an original D1-4 drawing somewhere but it is a very poor copy. For the nosepiece, I used the main dimensions and had to adapt some to suit my needs. I will see if I can find the original drawing and post on here over the weekend.
    The Home Engineer
    If you can find / post a dimensioned drawing it would be really appreciated, and would make producing a replica much easier. I have been putting off trying to work it all out for a long time - being new to the hobby (in terms of skill not interest) a good drawing would be so helpful, and one less source of error!

    Many thanks for the articles.

    NickP

  2. #12
    thehomeengineer's Avatar
    Join Date
    Nov 2017
    Location
    Berkshire UK
    Posts
    330
    Thanks
    305
    Thanked 641 Times in 192 Posts

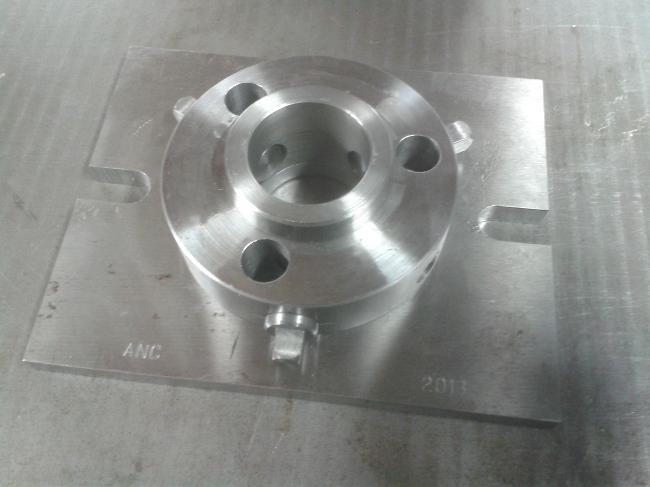

    If it helps this is a link to my website and the D1-4 Plate Practical Engineering

  3. #13

    Join Date
    Jun 2017
    Posts
    6
    Thanks
    61
    Thanked 1 Time in 1 Post
    Many thanks - what a wonderful website - loads of content and some lovely work. Thank you

  4. The Following User Says Thank You to NickP For This Useful Post:

    thehomeengineer (05-04-2018)

  5. #14
    Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    1,805
    Thanks
    289
    Thanked 1,673 Times in 843 Posts
    I used to have some very well detailed prints of lathe spindle noses, which included good quality shop drawings for each style nose and backing plates. I found this it give most of the dimensions but not well detailed
    http://www.pts-canada.com/Catalog_pd...ALOG/K1549.pdf
    This one may be a little better
    http://www.lathes.co.uk/spindlenose/spindlenoses.pdf
    Never try to tell me it can't be done
    When I have to paint I use http://kbs.justoldtrucks.com/

  6. #15

    Join Date
    Jun 2017
    Posts
    6
    Thanks
    61
    Thanked 1 Time in 1 Post
    Thank you Frank - these are most helpful 😉 really must try to make one now. Cheers, NickP

  7. #16
    Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    1,805
    Thanks
    289
    Thanked 1,673 Times in 843 Posts
    Quote Originally Posted by NickP View Post
    Thank you Frank - these are most helpful �� really must try to make one now. Cheers, NickP
    Nick it has been a long time since I had my ANSI code book volumes but I seem to t\remember the ANSI code for spindle noses was B-5 point something like .8 or .9 maybe 1957 or some such.
    If you can lay your hands on a copy there are diagrams as well as dimensions in it like the Machinist bible
