    drilling algnment jig

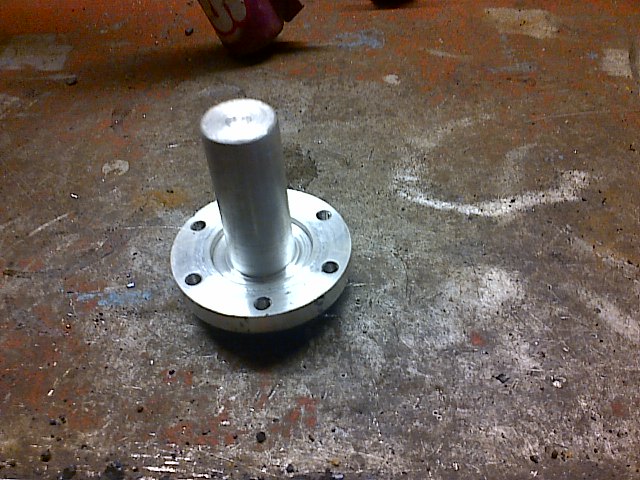

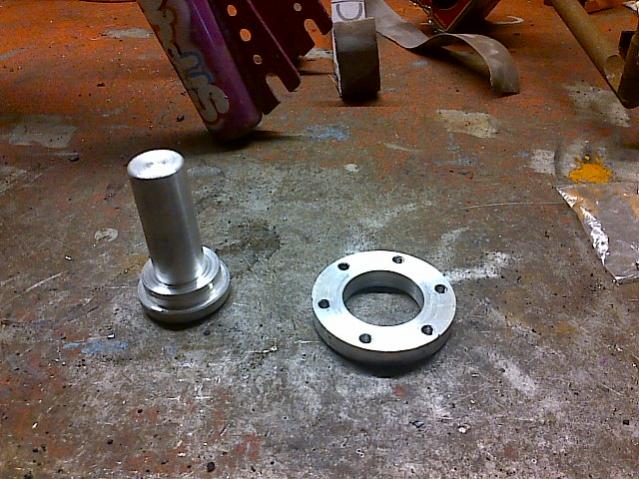

    heres a jig i made from old ally wheel hub from mtb and pin to fit it.drilling algnment jig-phone-pics-089.jpgdrilling algnment jig-phone-pics-090.jpg
    all fits together then 4mm disc fits to it to allow accurate alignment of brake disc mounting holes when building trike axles for kids bikes.
