    Gantry Style CNC Router Part 1 [email protected]@K

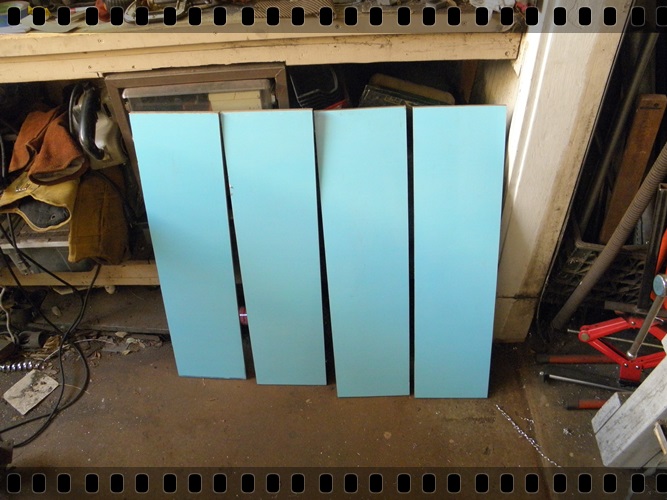

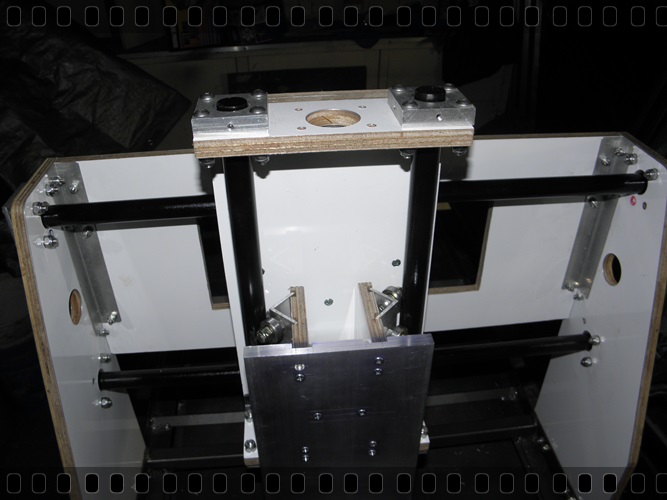

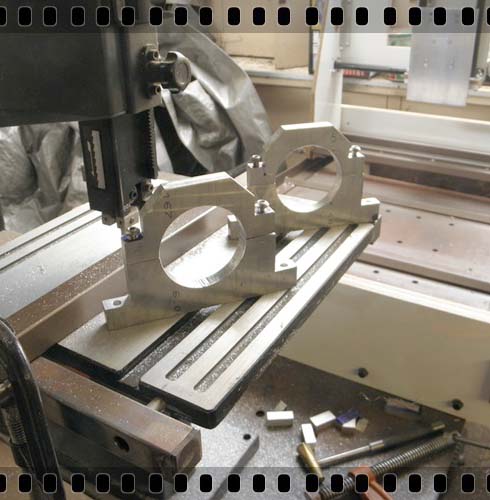

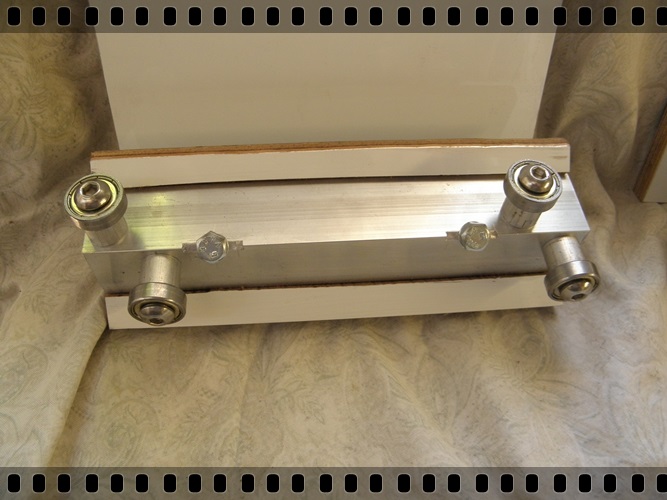

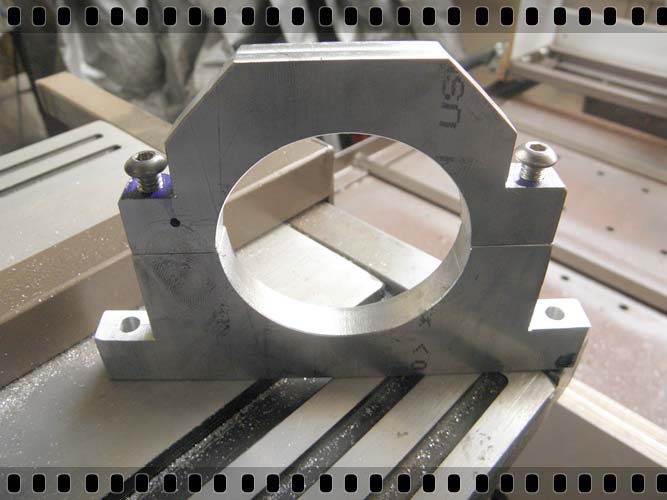

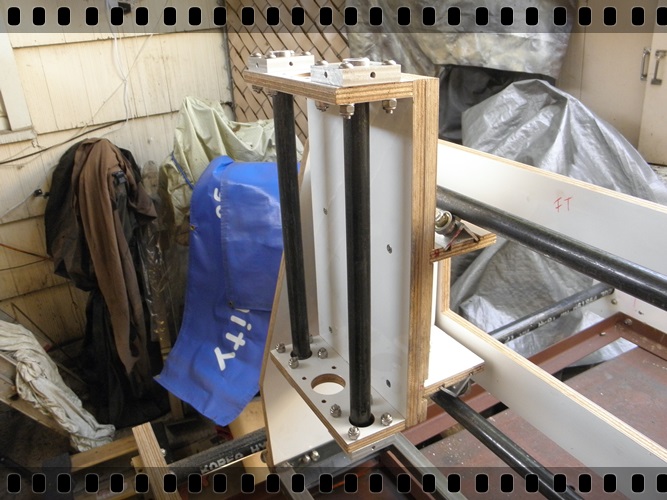

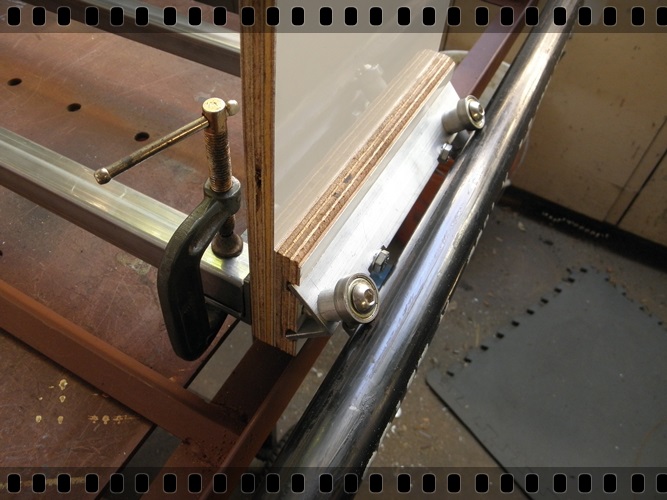

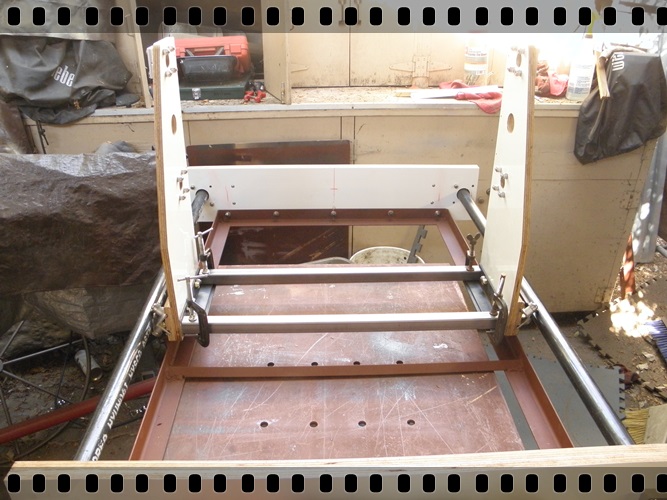

    Gantry Style CNC Router Part 1. Made from double sided aluminum plywood, steel, Aluminum bar.
    I have made many modifications to these plans just so you know.


    These plans are 100% free to down load from CNC ZONE web page and are called Jgro, fantastic set of plans
    what a great guy for giving these plans free.

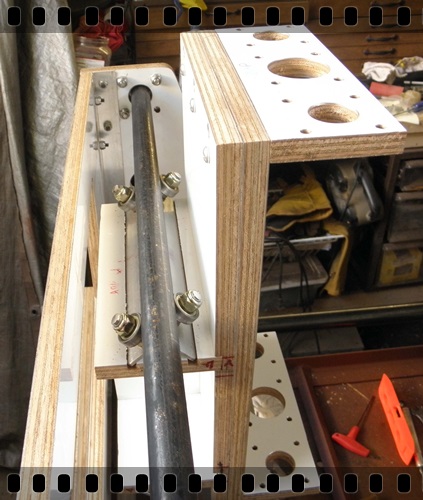

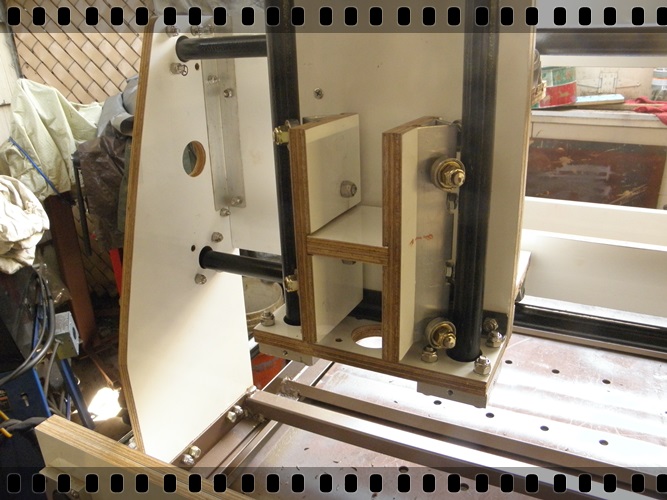

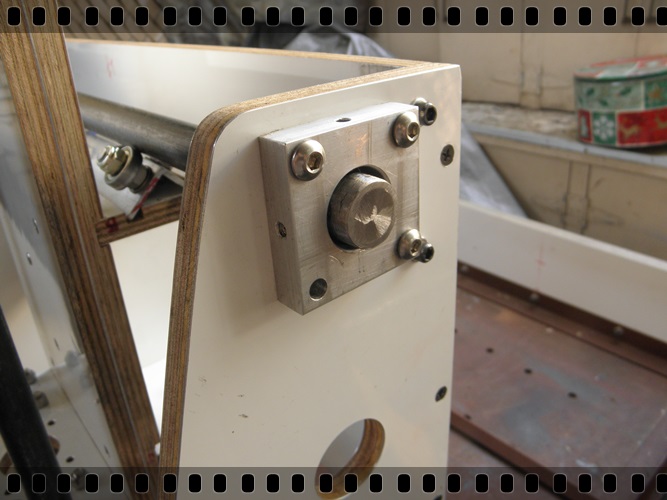

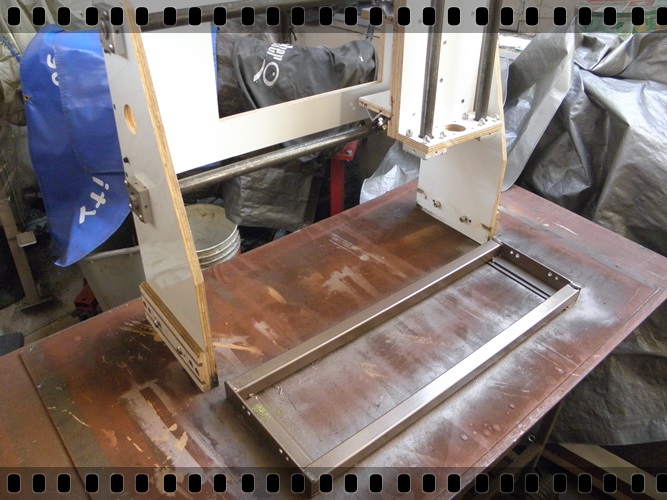

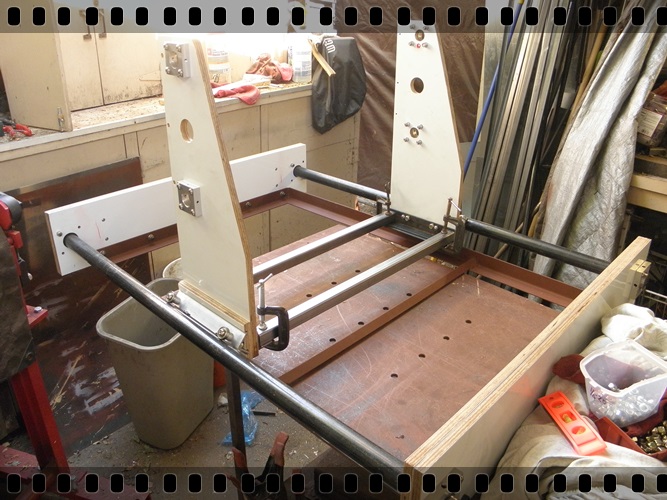

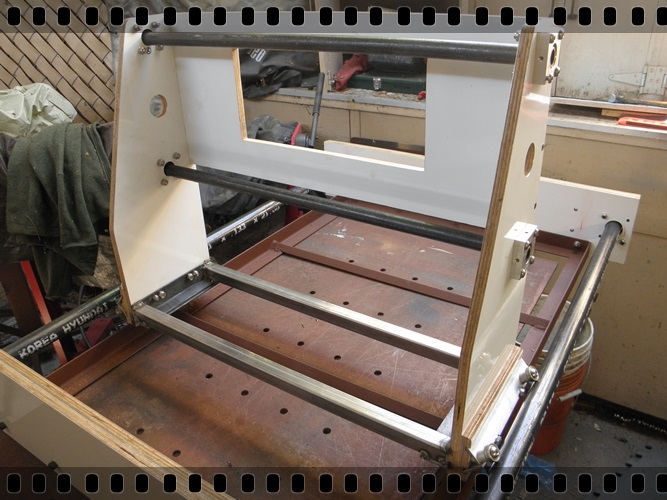

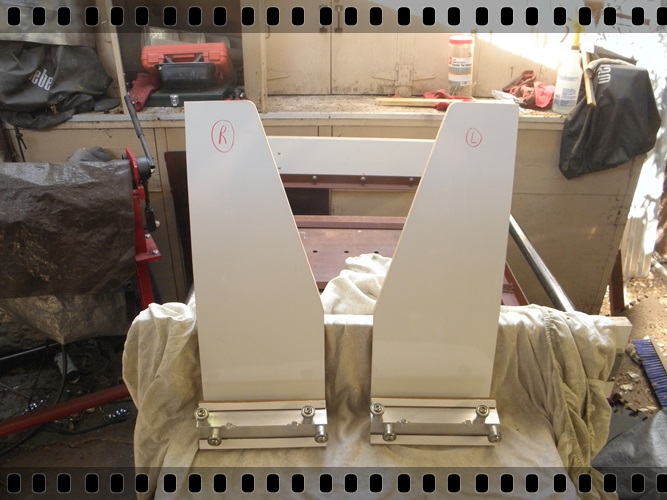

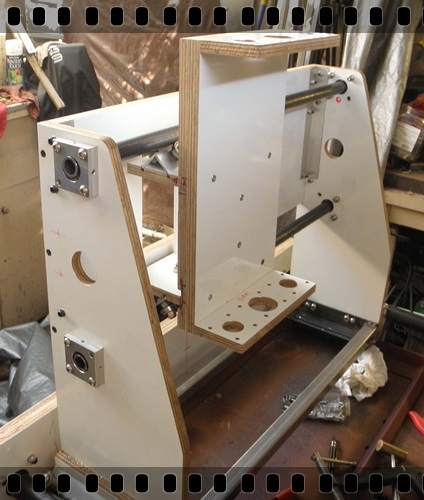

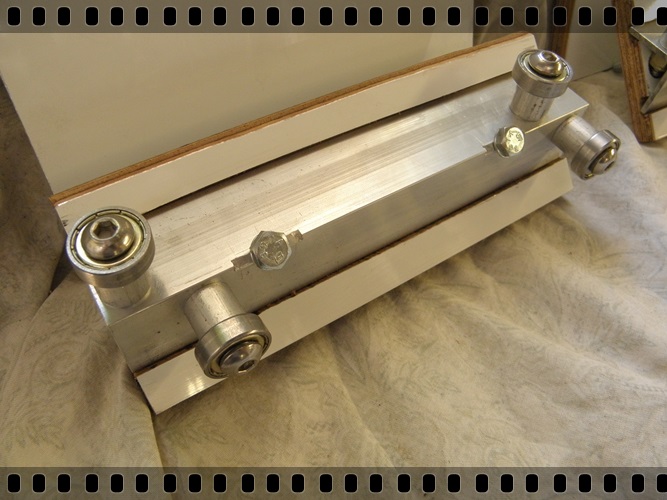

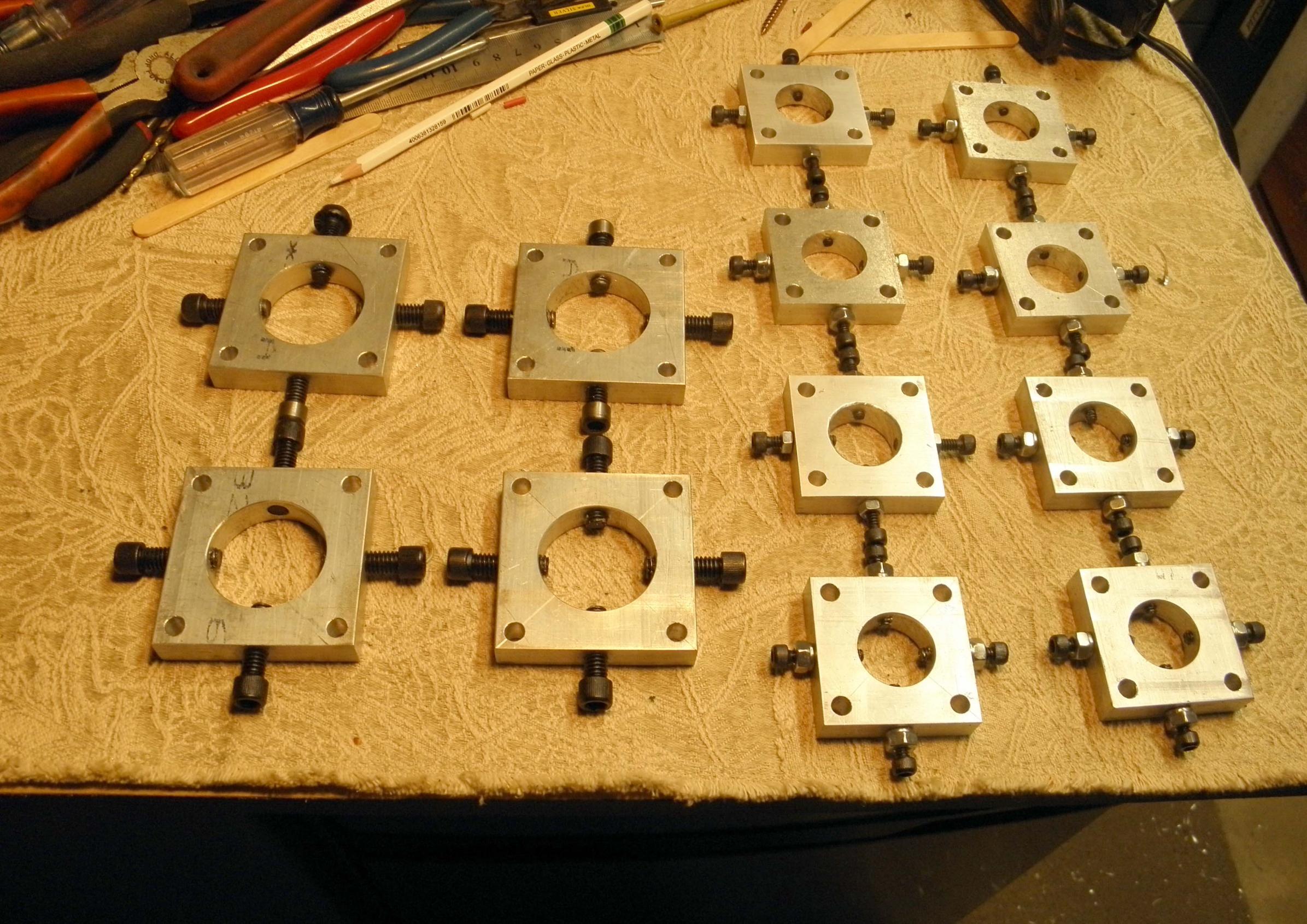

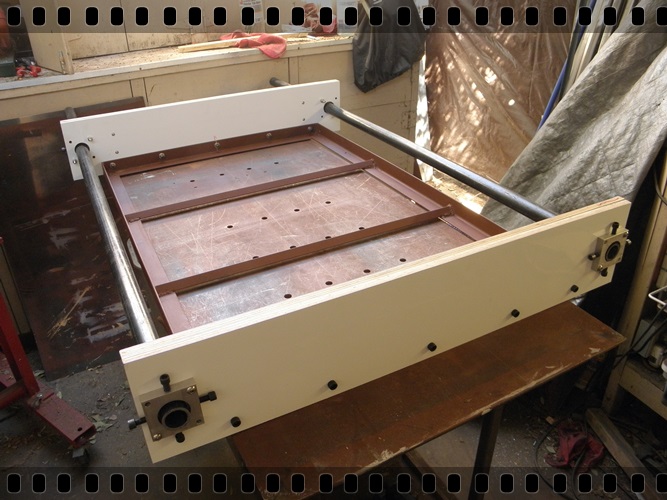

    Gantry Style CNC Router  Part 1  L@@K-011.jpgGantry Style CNC Router  Part 1  L@@K-013.jpgGantry Style CNC Router  Part 1  L@@K-001.jpgGantry Style CNC Router  Part 1  L@@K-001.jpgGantry Style CNC Router  Part 1  L@@K-002.jpgGantry Style CNC Router  Part 1  L@@K-007.jpgGantry Style CNC Router  Part 1  L@@K-008.jpgGantry Style CNC Router  Part 1  L@@K-011.jpgGantry Style CNC Router  Part 1  L@@K-009.jpgGantry Style CNC Router  Part 1  L@@K-003.jpg
    Gantry Style CNC Router  Part 1  L@@K-001.jpgGantry Style CNC Router  Part 1  L@@K-003.jpgGantry Style CNC Router  Part 1  L@@K-008.jpgGantry Style CNC Router  Part 1  L@@K-010.jpg
    Gantry Style CNC Router  Part 1  L@@K-004.jpgGantry Style CNC Router  Part 1  L@@K-008.jpgGantry Style CNC Router  Part 1  L@@K-013.jpgGantry Style CNC Router  Part 1  L@@K-005.jpgGantry Style CNC Router  Part 1  L@@K-004.jpg
