Lathe Toolholder Racks

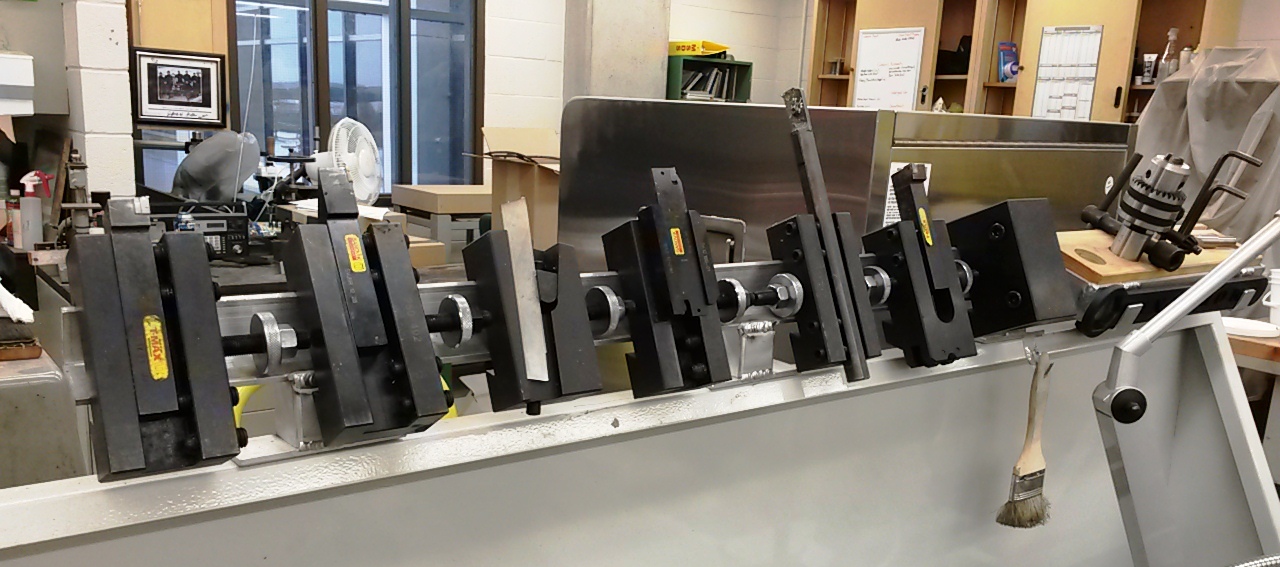

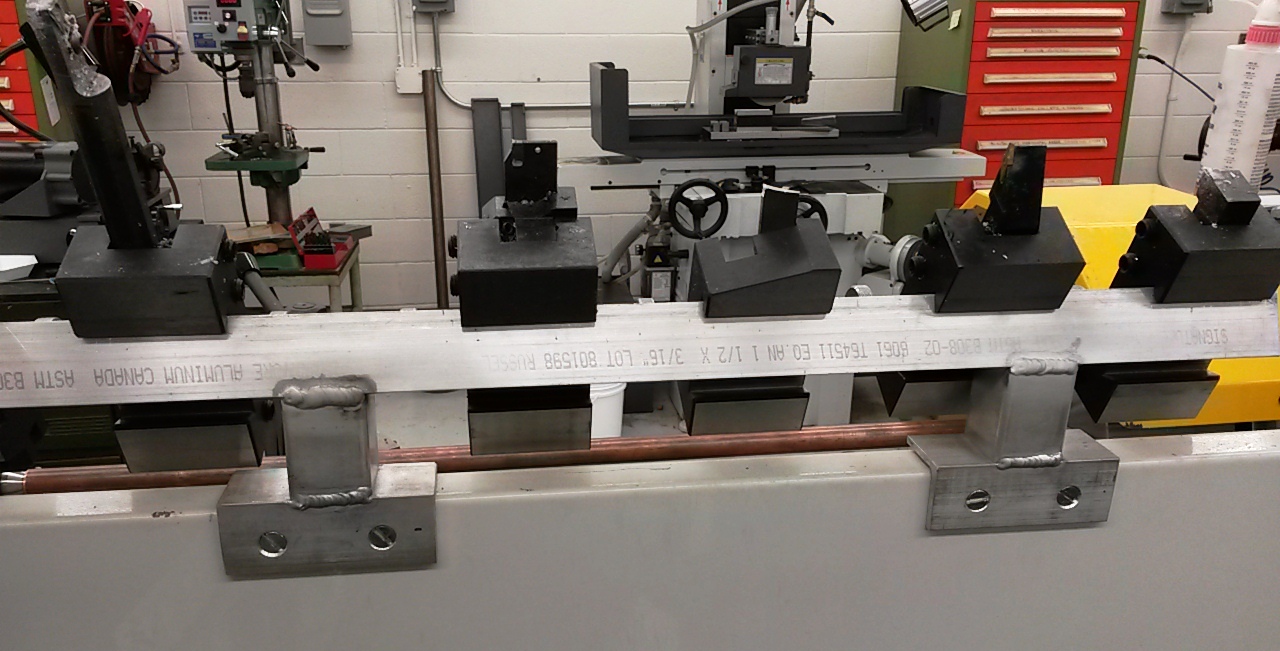

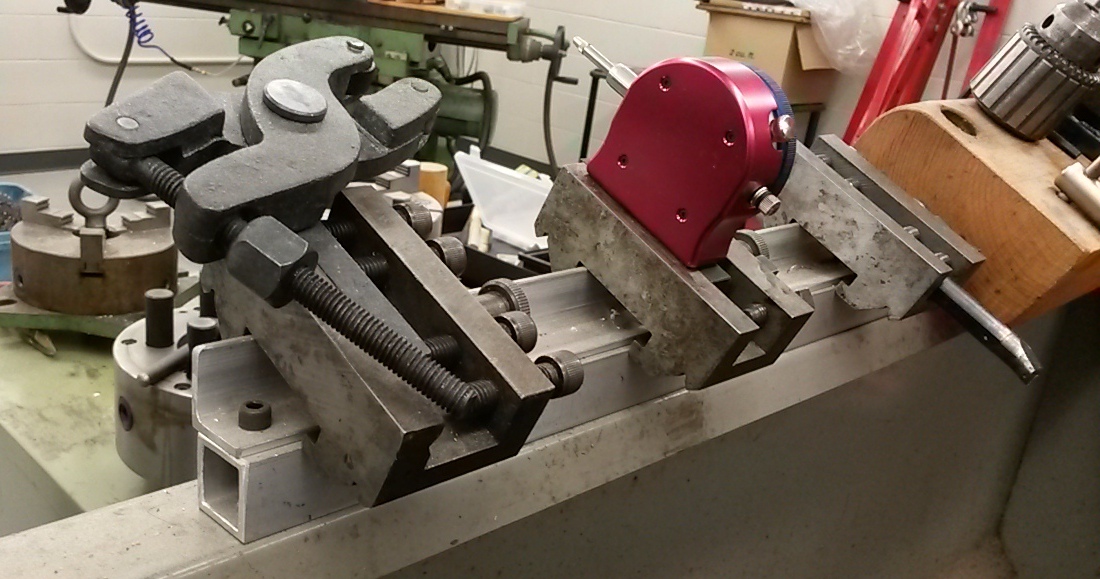

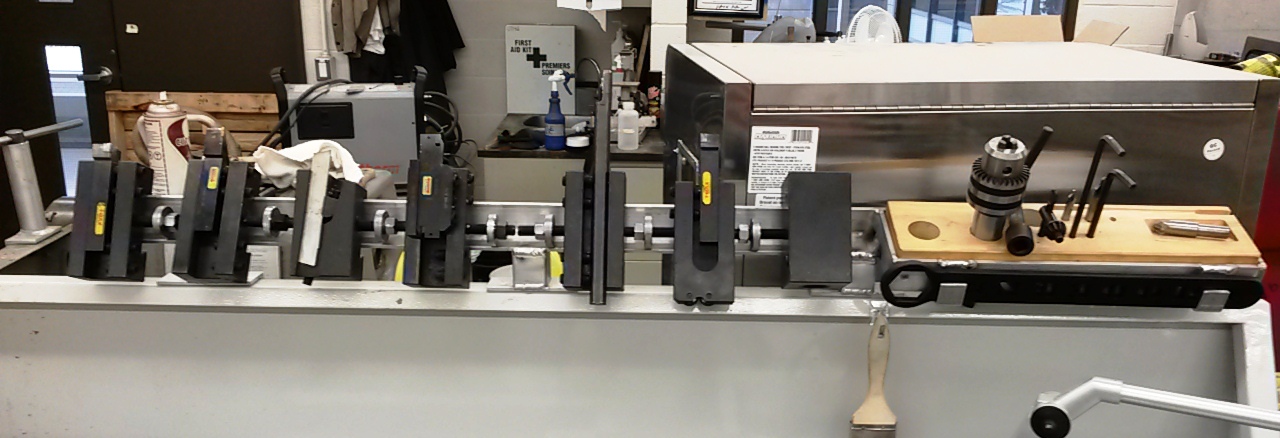

Thought I would post a couple photos of the toolholder racks I built for the lathes at work. The first is dead simple, and is just a piece of aluminum angle bolted through a piece of aluminum square tube to the top of the backsplash. The second has more fabrication involved and is a piece of aluminum angle welded to some standoffs to mount on the backsplash of the larger lathe. I added a rack to hold the tailstock accessories and commonly used wrenches.

Both work very well to keep the holders organized and within easy reach. Hope it helps someone!

Pete

Attachment 20608

Attachment 20609

Attachment 20610

Attachment 20611

Attachment 20614

<!-- BEGIN /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Thanks Responsible! We've added your Lathe Tool Holder to our Storage and Organization category,
as well as to your builder page: Responsible's Homemade Tools. Your receipt:

<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://www.homemadetools.net/homemade-lathe-tool-holder-5"> <img src="/uploads/207231/homemade-lathe-tool-holder-5.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://www.homemadetools.net/homemade-lathe-tool-holder-5">Lathe Tool Holder</a> <span> by <a href="http://www.homemadetools.net/builder/Responsible">Responsible</a></span> </div> <div class="tags">tags: <a href='http://www.homemadetools.net/tag/tool-holder'>tool holder</a> </div> </div> </div> </div>
<!-- END /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->

Nice use of the angle stock; especially on larger rack. No horizontal surfaces for chips to land. I think a QC setup isn't very quick until tools are parked in order they'll be used on a a set of parts. A lot of buyers get a system, then forget the logic of how a machining process benefits from QC tooling. Somehow a New York traffic jam of tool holders comes to mind.

But white walls, lighting AND windows? Who gets a room with those and machine tools too?
Count me envious.

You just had to add a 5th floor view exists......! I'm amused Bender B. Rodriguez is your avatar too.

Thanks Toolmaker51. What you can't see is that the shop is on the 5th floor.(!) I work at a small university, and using this machine shop is part of my regular duties. Pretty mundane work most of the time, with the odd bit of interesting material or jobs. I am pretty lucky!

Pete

I'm intrigued by this

Quote:

---

Originally Posted by Toolmaker51

....I think a QC setup isn't very quick until tools are parked in order they'll be used on a a set of parts. .....

---

Do you re-arrange your rack layout each time you machine a new set of parts? For me, I keep the same tool located in the same position. That way my hand can "usually" go to the correct spot for the tool I want.

Cheers Phil

Well, if there are sufficient parts, I like to stage toolholders in order. I don't run production work in the normal sense, occasionally multiple components for a job. If a DRO is installed, then it works even better. Usually using a dial indicator, so cutters are set to coincide with features, say boring, ring grooves or threading. I use all kinds of holders, somehow a turret works best for one case, QC on others. My favorite QC is the Boni-Feldbach, then Aloris.

If I could afford to change out everything I would go with the Boni Fieldback model 125 which would allow me to have as many as 4 tool holders mounted on the tool post at once or the Aloris index-able
