MILLING TABLE or FIXTURE PLATE CLAMPS

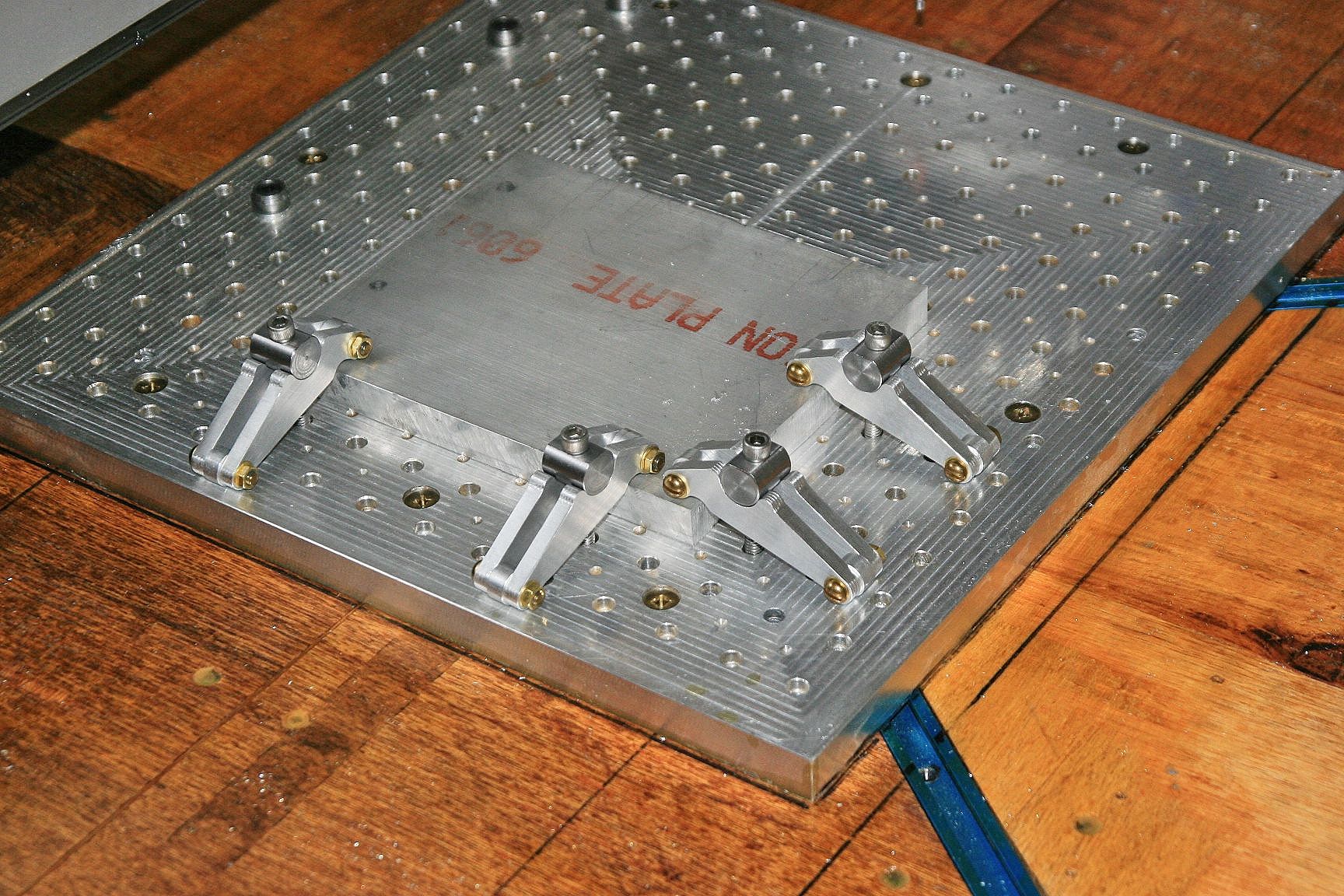

I have made a number of these neat little clamps for my various projects over the years. I cannot take credit for the design as I copied it from an internet source but I no longer have a link for the original. Apart from the side profiles which are CNC cut on my milling machine all other parts are produced on manual machines. Making a few sets in a relaxing afternoon in the workshop! Review the pics and maybe view my short youtube video on cnc'ing the sides.

Gerald

https://www.youtube.com/watch?v=a8UWA2LWW4Q

Thanks backyard_cnc! We've added your Fixture Plate Clamps to our Clamps category, as well as to your builder page: backyard_cnc's Homemade Tools. Your receipt:

<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://www.homemadetools.net/fixture-plate-clamps"><img src="http://www.homemadetools.net/uploads/141835/fixture-plate-clamps.jpeg" /></a></div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://www.homemadetools.net/fixture-plate-clamps">Fixture Plate Clamps</a> <span> by <a href="/builder/backyard+cnc">backyard cnc</a></span> </div> <div class="tags">tags: <a href="http://www.homemadetools.net/tag/clamp">clamp</a>, <a href="http://www.homemadetools.net/tag/fixture">fixture</a>, <a href="http://www.homemadetools.net/tag/plate">plate</a></div> </div> </div> </div>

Nice useful clamps. Also, that's a very nice little american made mill you got there.

Actually I do not need to see another piece of aluminium getting milled. I need to see the clamps doing something.

Ralph

Quote:

---

Originally Posted by Ralphxyz

Actually I do not need to see another piece of aluminium getting milled. I need to see the clamps doing something.

Ralph

---

I see the many uses for the clamps. I just used my imagination as to what they can hold.

yes I can also use my imagination, but if one is going to post something why not show what your tool can do in various usages.

How many pieces of aluminium have you seen milled? How many unique/clever clampings have you seen?

Ralph

Quote:

---

Originally Posted by Ralphxyz

yes I can also use my imagination, but if one is going to post something why not show what your tool can do in various usages.

How many pieces of aluminium have you seen milled? How many unique/clever clampings have you seen?

Ralph

---

I didn't mean any offense... I was only meaning that these types of rocker-clamp, or self-adjusting clamp has been used in the industry for a long time. The OP probably assumed those that can appreciate making them would know what types of jobs they would be used for. The clamps are fairly expensive to buy. A quick search right here on this forum shows user jjr2001 made similar style clamps, and shows them in use on his post. http://www.homemadetools.net/forum/m...n-clamps-66046
Attachment 30562

I have the CAD files to make similar clamps. I scale them up or down according to what is needed. If anyone is interested in the files I can share them.

Thanks, I like to see them holding stuff down. Now what is the advantage of these clamps over regular bar clamps?

Bar clamps are rather inexpensive so why go to the trouble of making bar clamps, besides the fact that they look cool.

Ralph

Quote:

---

Originally Posted by Ralphxyz

Thanks, I like to see them holding stuff down. Now what is the advantage of these clamps over regular bar clamps?
Bar clamps are rather inexpensive so why go to the trouble of making bar clamps, besides the fact that they look cool.

---

Ok, first some terminology. The typical type of clamp used on a mill, and the type I think you're calling a bar clamp, is called a step clamp and looks like this...

https://www.mcmaster.com/step-clamps

Bar clamps look like this...

https://www.mcmaster.com/bar-clamps

and are more often associated with woodworking applications.

The clamp detailed by backyard_cnc has a significant advantage over the typical step clamp used with a staircase block. It doesn't need the staircase so it's easier to set up (no third hand required) and can clamp over a significant height range without need to move to a new step on the staircase. When a height block is required, a simple flat block can be used - much less chance of the clamp slipping off the block.

I'm not sure of the correct name for clamps of this type. Bessey makes them and I've heard them called "Bessey clamps" but a more frequently heard name is "hold down".

Thanks Marv, duh I knew that (clamp terminology).

Now eliminating the staircase block I can start to see the logic.

Ralph
