Thread: My pipe, rod & tubing vise

  1. #1
    Soikkeli Tuomas's Avatar
    Join Date
    Jun 2016
    Location
    Jyväskylä Finland
    Posts
    452
    Thanks
    309
    Thanked 823 Times in 277 Posts

    Tuomas's Tools

    My pipe, rod & tubing vise

    Made a simple vise for clamping round and square objects.

    My pipe, rod & tubing vise-1.jpg
    My pipe, rod & tubing vise-2.jpg
    My pipe, rod & tubing vise-3.jpg



    5 and 8mm steel plates.
    M12 threaded rod, long and regular M12 nuts. Two 40mm long M12 bolts.
    M8 nuts and threaded rod.
    Alumine pipe 8mm ( inner diameter) x 8mm (lenght) pieces with 2mm wall.
    Long M6 bolt and nylock nut for handle.

    This project will continue with the soft jaws and tilting stand builds.

  2. The Following 11 Users Say Thank You to Tuomas For This Useful Post:

    blkadder (08-20-2017), bobs409 (08-25-2017), DDoerschuk (08-26-2017), LMMasterMariner (08-22-2017), NortonDommi (08-21-2017), Paul Jones (08-22-2017), PJs (07-10-2018), rlm98253 (03-07-2018), rossbotics (08-20-2017), Seedtick (08-21-2017), Workshopshed (08-21-2017)

  3. #2
    rossbotics rossbotics's Avatar
    Join Date
    Dec 2013
    Location
    Florida
    Posts
    536
    Thanks
    675
    Thanked 1,002 Times in 276 Posts

    rossbotics's Tools
    Hi there Tuamos
    I would like to comment on you project but your video says it's private
    Comments are always welcome
    Doug



    Tool Plans for Sale by rossbotics




  4. #3
    Soikkeli Tuomas's Avatar
    Join Date
    Jun 2016
    Location
    Jyväskylä Finland
    Posts
    452
    Thanks
    309
    Thanked 823 Times in 277 Posts

    Tuomas's Tools
    Quote Originally Posted by rossbotics View Post
    Hi there Tuamos
    I would like to comment on you project but your video says it's private
    Ooops. Sorry.

    Fixed it.

  5. #4
    rossbotics rossbotics's Avatar
    Join Date
    Dec 2013
    Location
    Florida
    Posts
    536
    Thanks
    675
    Thanked 1,002 Times in 276 Posts

    rossbotics's Tools
    Good work Tuomos,
    you are an excellent fabricator, welder, and you do great looking work, keep it up

    Doug
    Comments are always welcome
    Doug



    Tool Plans for Sale by rossbotics




  6. #5

    Join Date
    Jan 2016
    Location
    Southern tip of Vancouver Island
    Posts
    65
    Thanks
    226
    Thanked 18 Times in 14 Posts
    Tuomas, thank you for your excellent videos. In 3.jpg, what does the yellow tube to the drill press head convey? I assume coolant/cutting oil, but I've not seen the setup before!

  7. #6
    Soikkeli Tuomas's Avatar
    Join Date
    Jun 2016
    Location
    Jyväskylä Finland
    Posts
    452
    Thanks
    309
    Thanked 823 Times in 277 Posts

    Tuomas's Tools
    Quote Originally Posted by rossbotics View Post
    Good work Tuomos,
    you are an excellent fabricator, welder, and you do great looking work, keep it up

    Doug
    Thank you very much!

  8. #7
    Soikkeli Tuomas's Avatar
    Join Date
    Jun 2016
    Location
    Jyväskylä Finland
    Posts
    452
    Thanks
    309
    Thanked 823 Times in 277 Posts

    Tuomas's Tools
    Quote Originally Posted by volodar View Post
    Tuomas, thank you for your excellent videos. In 3.jpg, what does the yellow tube to the drill press head convey? I assume coolant/cutting oil, but I've not seen the setup before!
    Yep. Its for coolant. It works with cutters, coolant comes though the chuck and goes inside the cutter. It has a spring loaded valve, coolant starts to flow when cutter is pressed against the workpiece. Drill is evolution evo mag 2"

  9. The Following 2 Users Say Thank You to Tuomas For This Useful Post:

    Paul Jones (08-22-2017), volodar (07-10-2018)

  10. #8

    Join Date
    Jan 2016
    Location
    Southern tip of Vancouver Island
    Posts
    65
    Thanks
    226
    Thanked 18 Times in 14 Posts
    Thank you, Tuomas. A supplementary question - in the case of a "usual" drill bit, will the coolant flow through the chuck, then to the outside of the tool? Or, does the tool have to be a "hollow bit" (if that's the term) for the coolant feature to work?

  11. #9
    Soikkeli Tuomas's Avatar
    Join Date
    Jun 2016
    Location
    Jyväskylä Finland
    Posts
    452
    Thanks
    309
    Thanked 823 Times in 277 Posts

    Tuomas's Tools
    Quote Originally Posted by volodar View Post
    Thank you, Tuomas. A supplementary question - in the case of a "usual" drill bit, will the coolant flow through the chuck, then to the outside of the tool? Or, does the tool have to be a "hollow bit" (if that's the term) for the coolant feature to work?
    No. There's an support for cutters. Coolant flows through it. If used twistdrills, there's no hole in the adapter, so coolant doesn't come trough.I have used coolant directly from the hose with twistdrills, if necessary. Usually only when drilling austenitic materials.

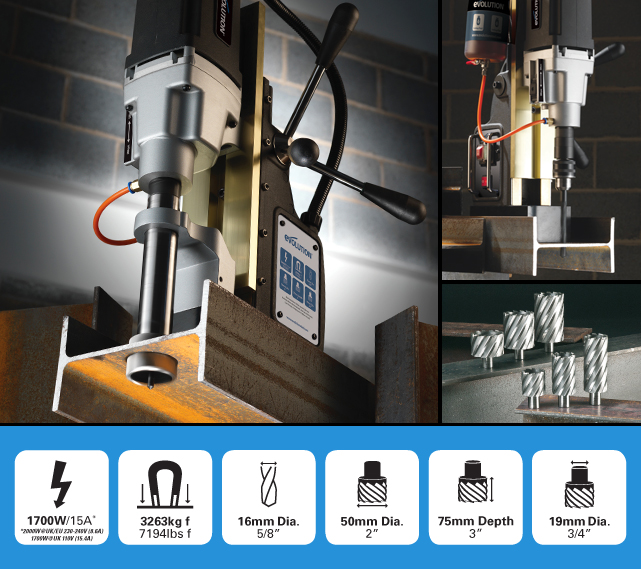

    You can see the support in this picture:

    My pipe, rod & tubing vise-evomag50.jpg

  12. #10

    Join Date
    Jan 2016
    Location
    Southern tip of Vancouver Island
    Posts
    65
    Thanks
    226
    Thanked 18 Times in 14 Posts
    Tuomas, thanks.
