Power transformer
Hi all!
I just built a power transformer for electrostatic headphone amplifier.

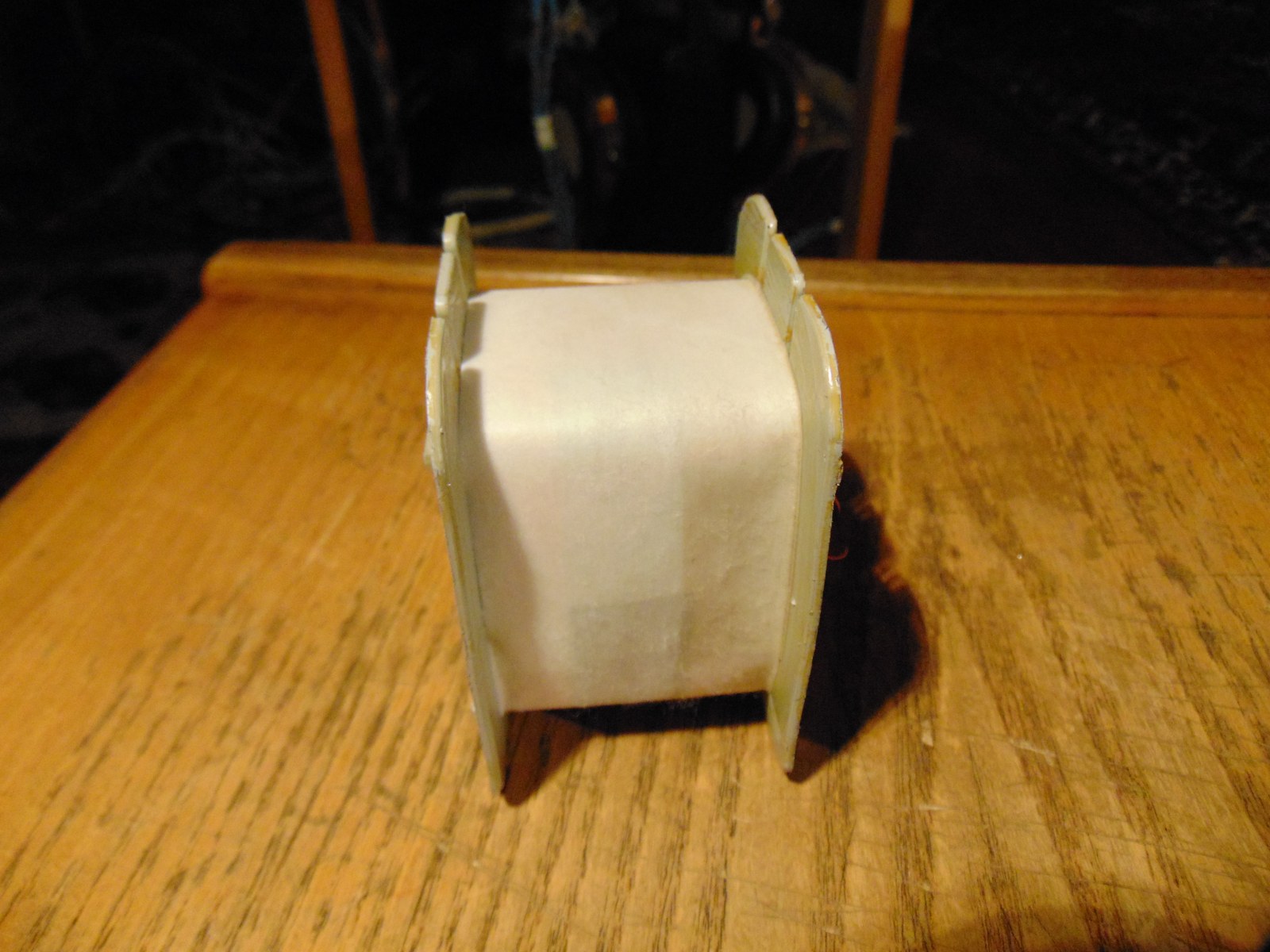

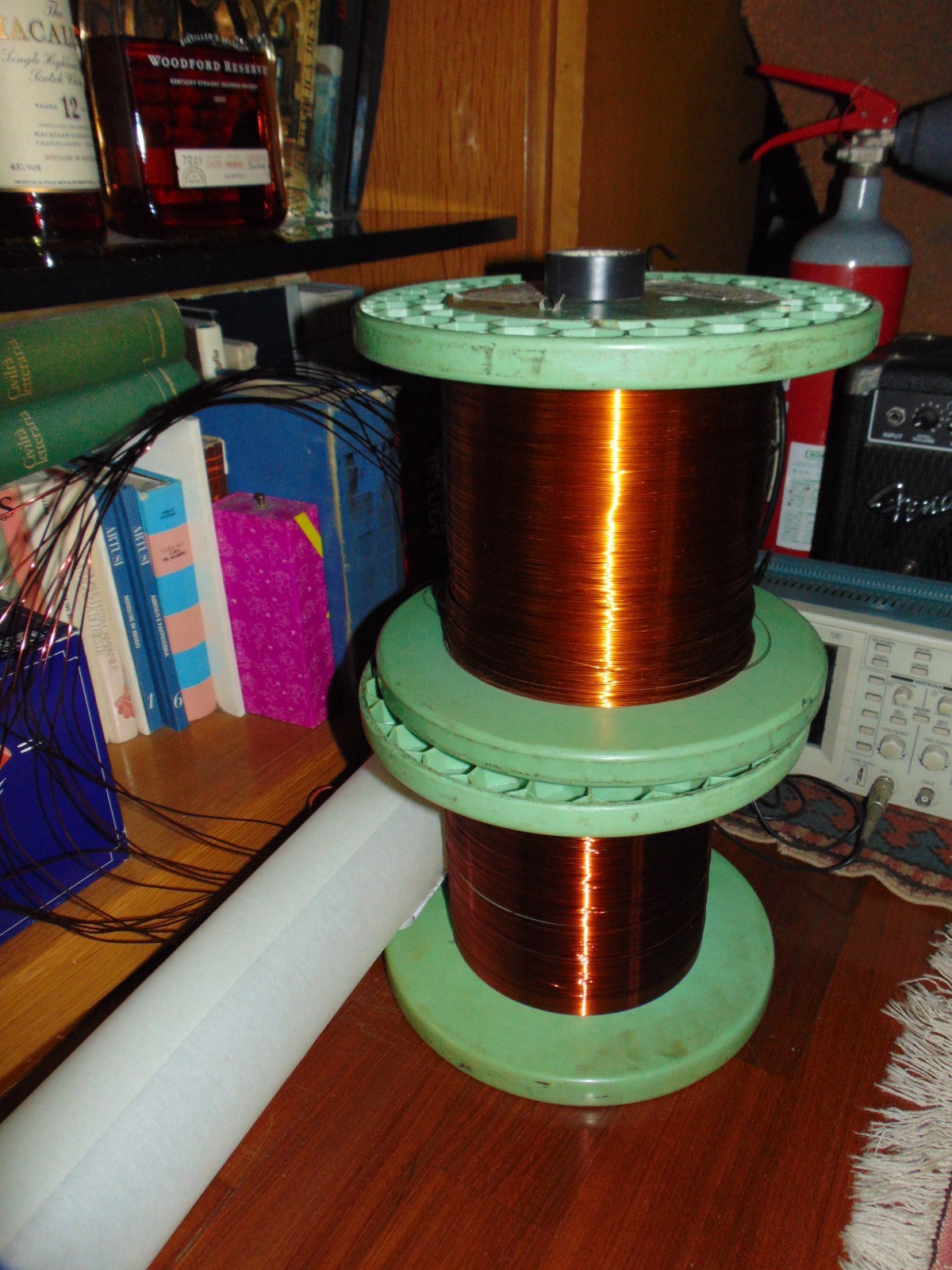

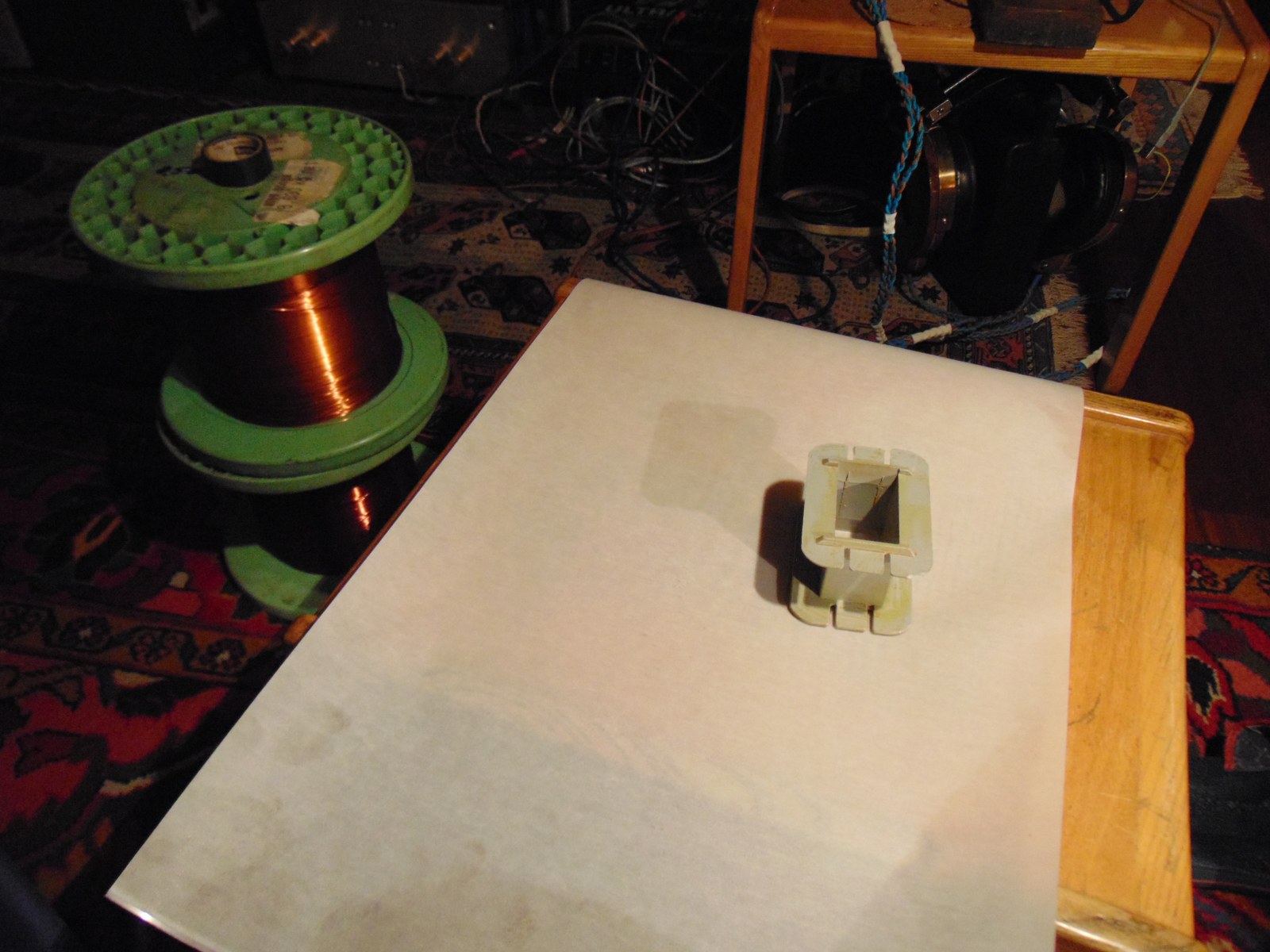

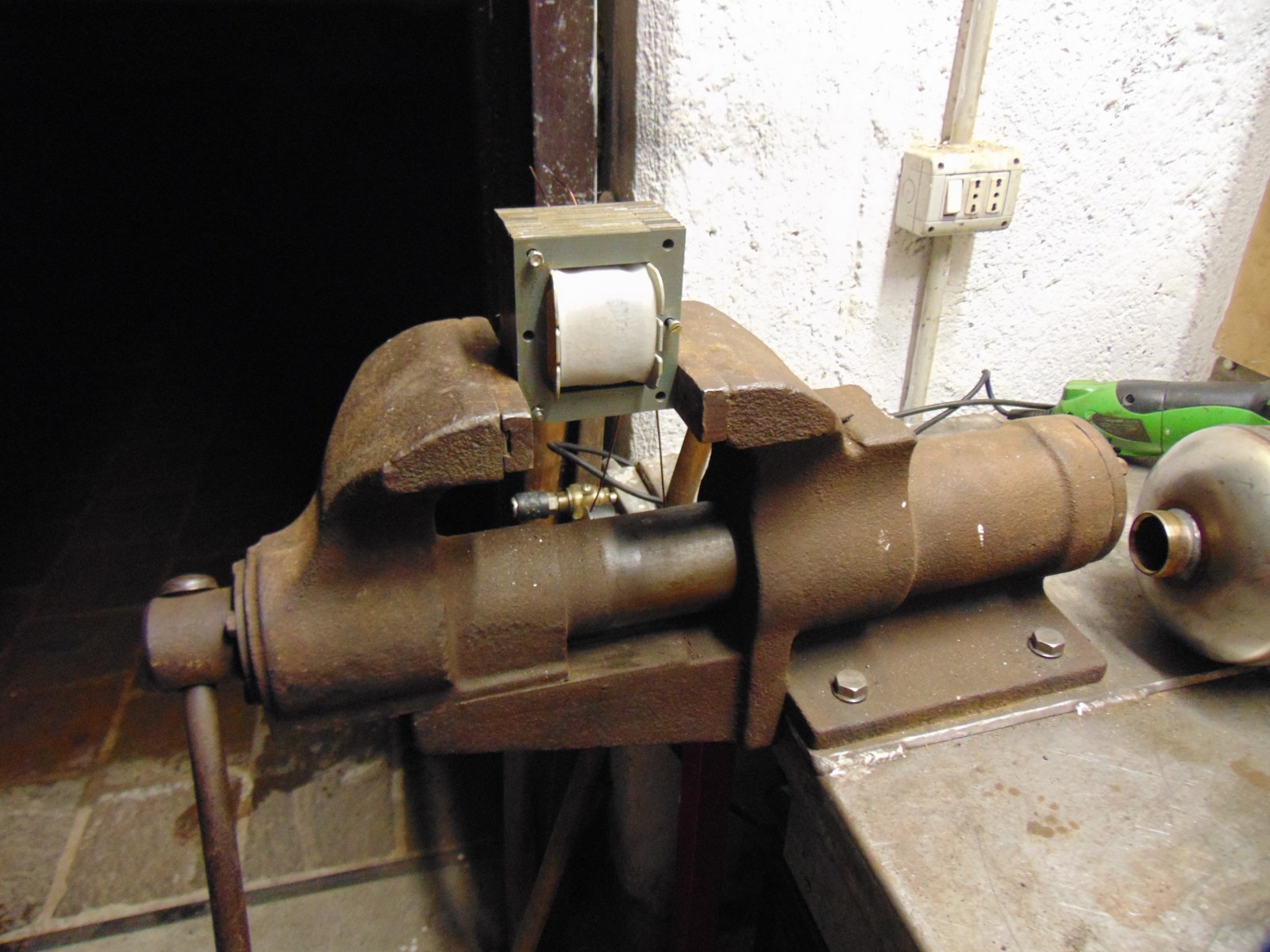

I had a scrap transformer broken, I kept it good the core and the plastic sprocket. I used very good copper with 2 layers of enamel, high temperature, used in electric motor, as insulator a special paper with mylar.
For convenience I used the free software available on the site of Fabrizio Giunchi, a very good tool for power and output transformers, even for custom Irons.

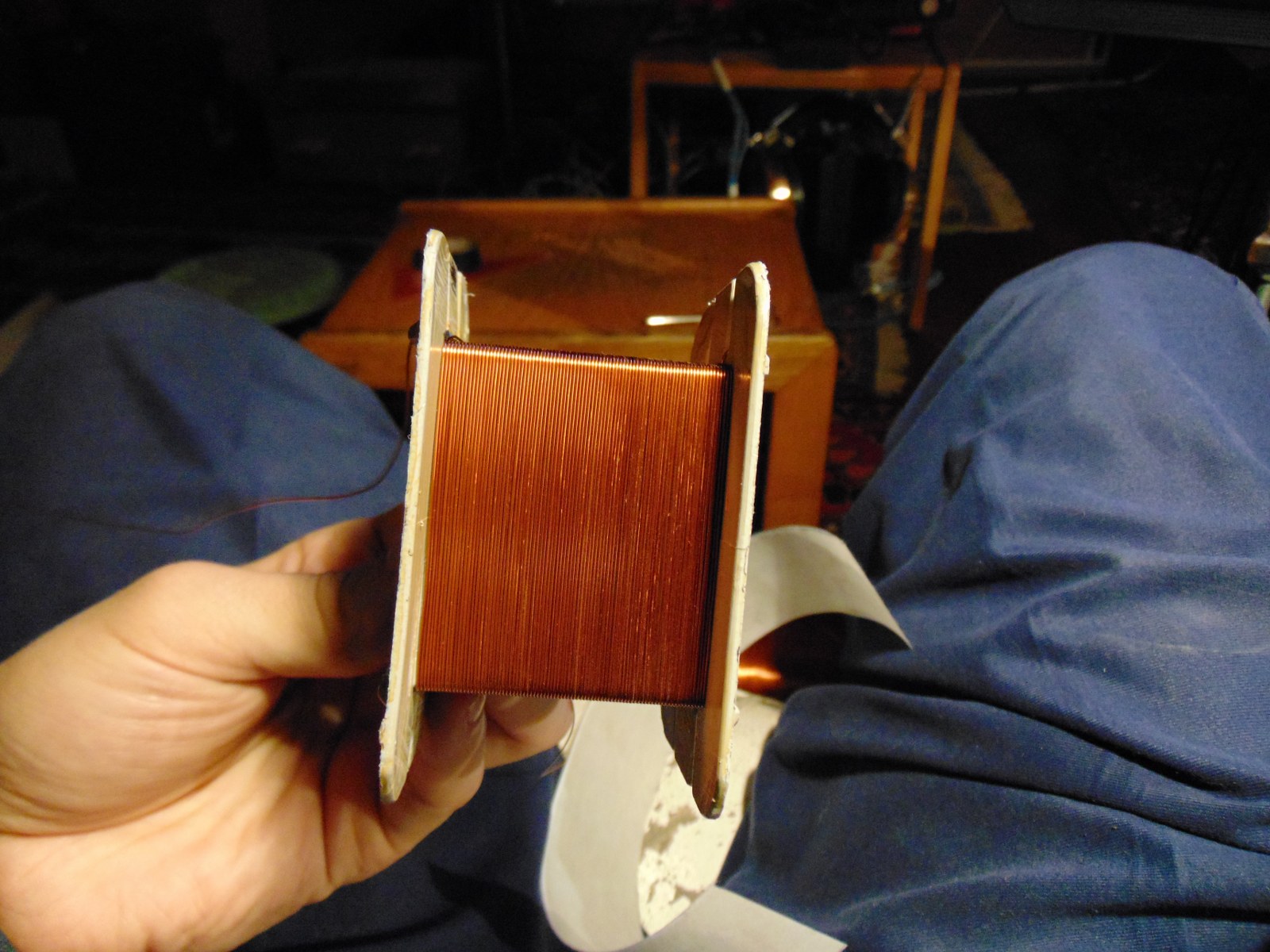

I have no coiler, so I made the winding by hand.

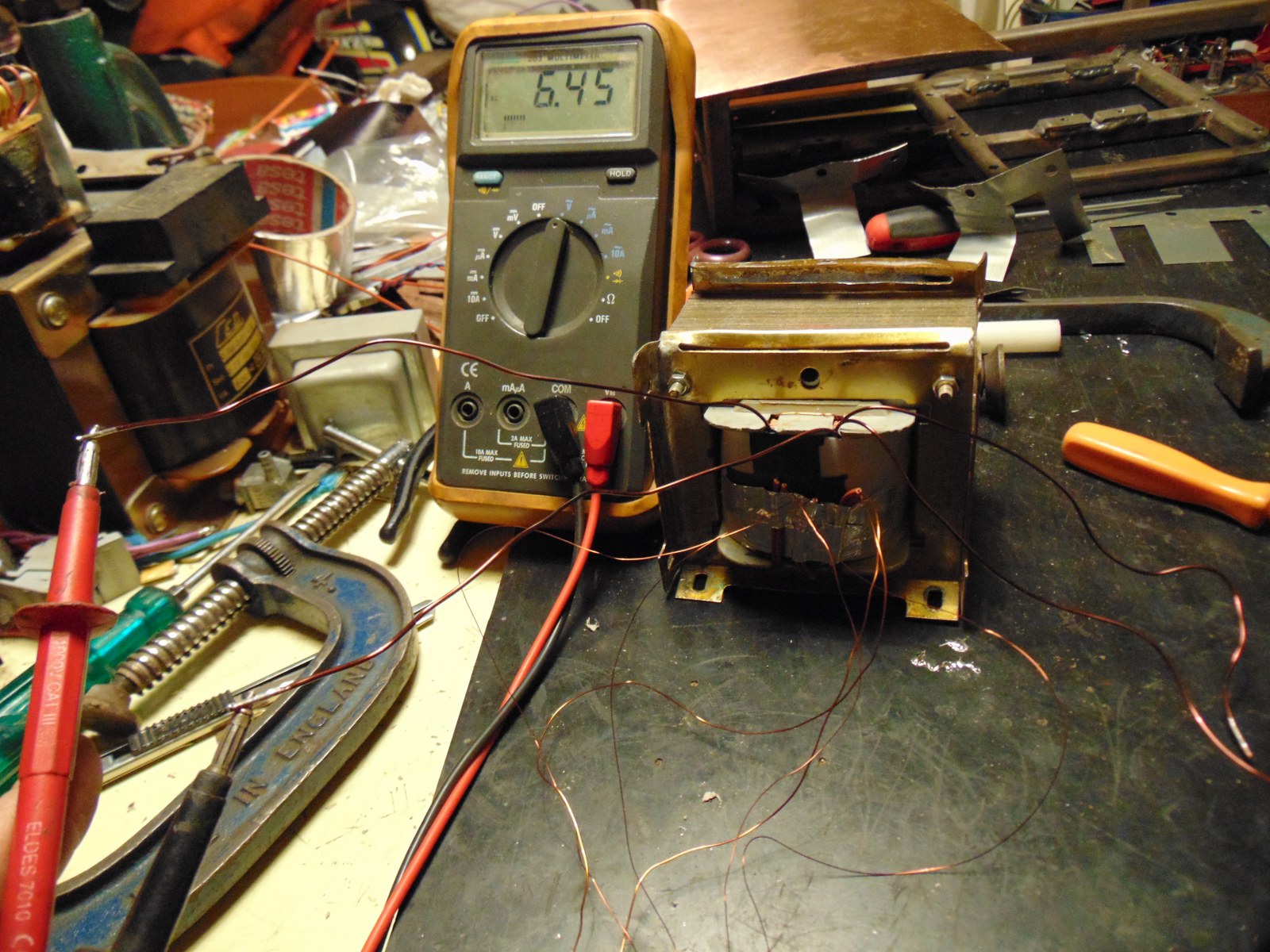

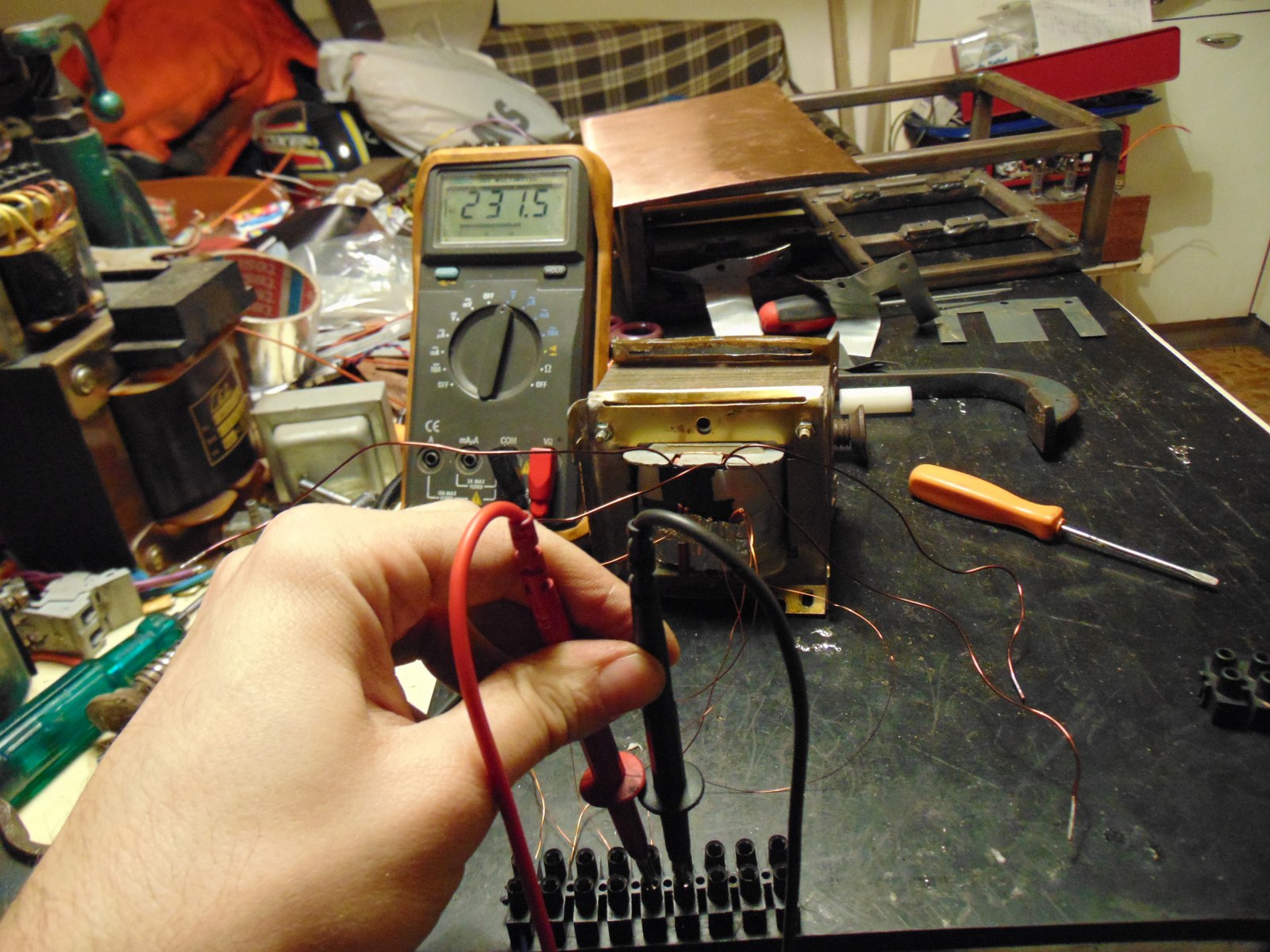

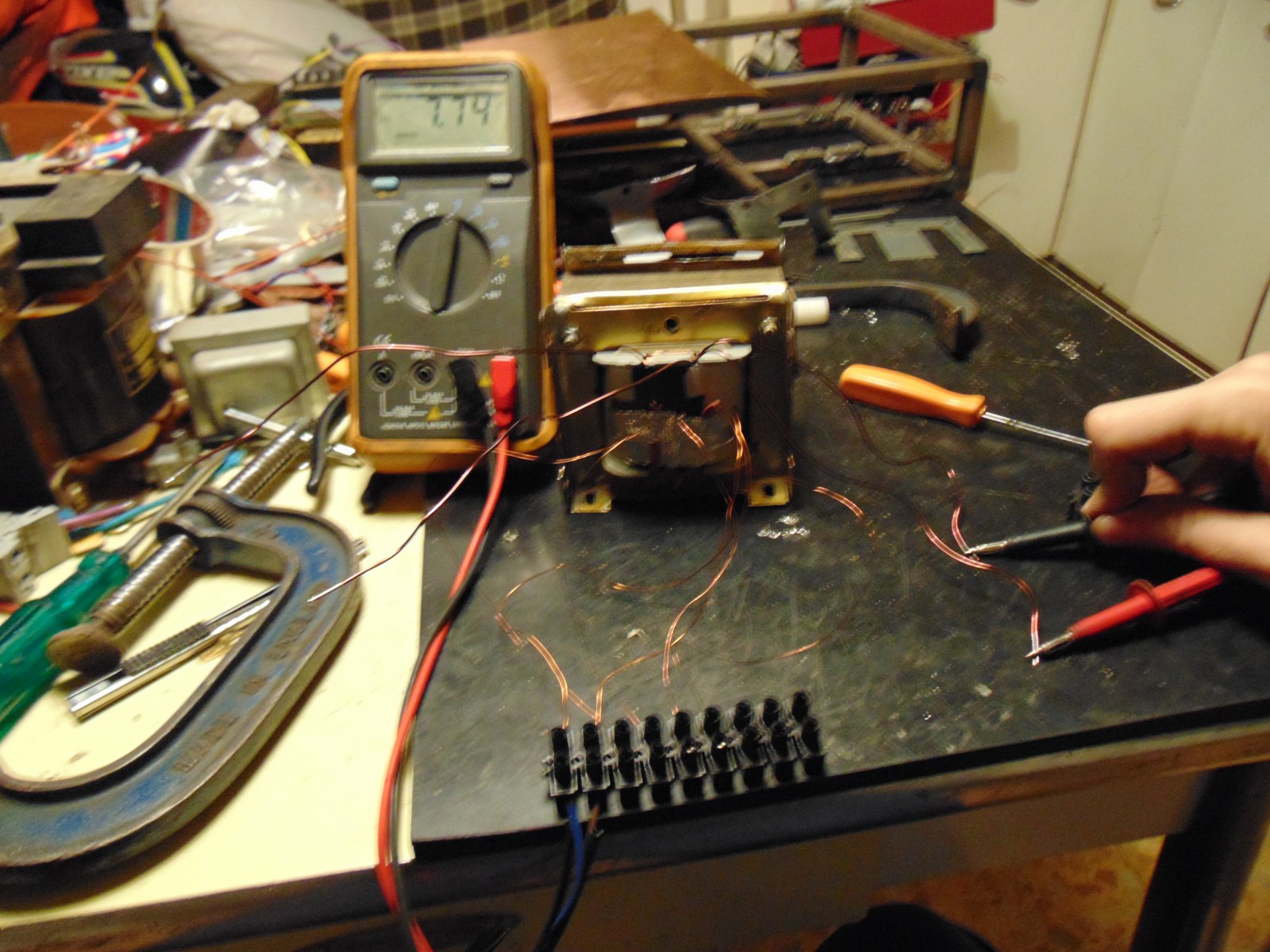

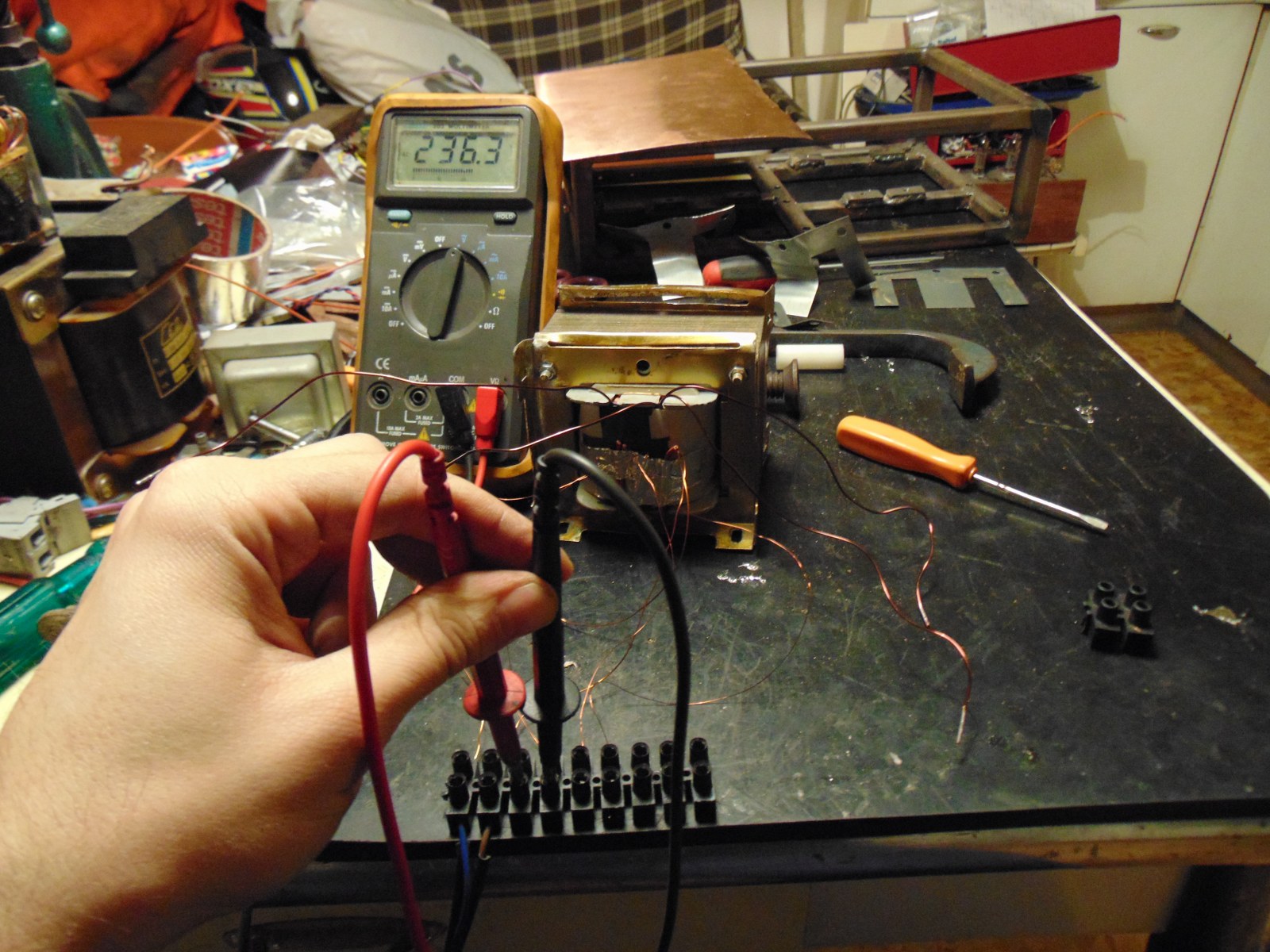

I tested only with no load, voltages are good, 2% of difference between hv secondaries, not a big trouble.
That's the link full of good info about transformer, it's in italian language
Scarica
Attachment 22327 Attachment 22328 Attachment 22329
Attachment 22330 Attachment 22331 Attachment 22332
Attachment 22333 Attachment 22334 Attachment 22335
-
