    Sheet Metal Brake & Rock Crawler 3D-Printed

    I am currently working on a MINI Sheet Metal Bending Table-Top PRESS BRAKE of which I will upload soon and was wondering if anyone would be interested in PDF drawings and a video of the design. Just wanted to know before took the time to make up the mechanical drawings, etc.

    Sheet Metal Brake & Rock Crawler 3D-Printed-mini-sheet-metal-press-brake.jpg

    I Put a lot of TOOLS I have made on this website and thought this time I would put an Update of a 'Just-for-Fun' project helped a friend with because it took a lot of CAD design time, 3D-Printing, and tools to make.

    WEBSITE LINK with PHOTOS:
    https://ctmprojectsblog.wordpress.co...ng-solidworks/

    Just Having Fun!! More REAL Tools soon :-)

    Sheet Metal Brake & Rock Crawler 3D-Printed-3d-printing-microcrawler.jpg

    CHEERS!!

  2. The Following 3 Users Say Thank You to MetalDesigner For This Useful Post:

    jonesboys (12-05-2015), kbalch (11-18-2015), PJs (11-17-2015)

  3. #2
    Content Editor DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,087
    Thanks
    334
    Thanked 636 Times in 577 Posts
    Amazing RC projects you have on your site! Just curious, why didn't your client not just go with a kit?

  4. #3
    MetalDesigner's Avatar
    Join Date
    Sep 2013
    Location
    Las Vegas ~ @MetalDesigner Twitter
    Posts
    95
    Thanks
    45
    Thanked 157 Times in 61 Posts

    MetalDesigner's Tools
    Thank you for the note and great question :-)

    I think it started out as 'just-for-fun' retirement project as a way to make customs parts for himself and in the process to try to learn more about a new technology (3D-Printing) ... and it ended up being a great way for him to learn how to use SolidWorks CAD Software by seeing how I made the STL files for 3D-Printing.
    Lots of people want the kits and custom parts but they are too expensive to just give them away so he provides a place on Shapeways.com or his website to buy them.

    As for me, 3 years ago 3D-Printing wasn't as prevalent as it is now in Home Workshops for making little parts, so I wanted to learn more about it so this project was a great excuse to learn. Since then I have used my little cheapo 3D-Printed to make lots of little shop items...

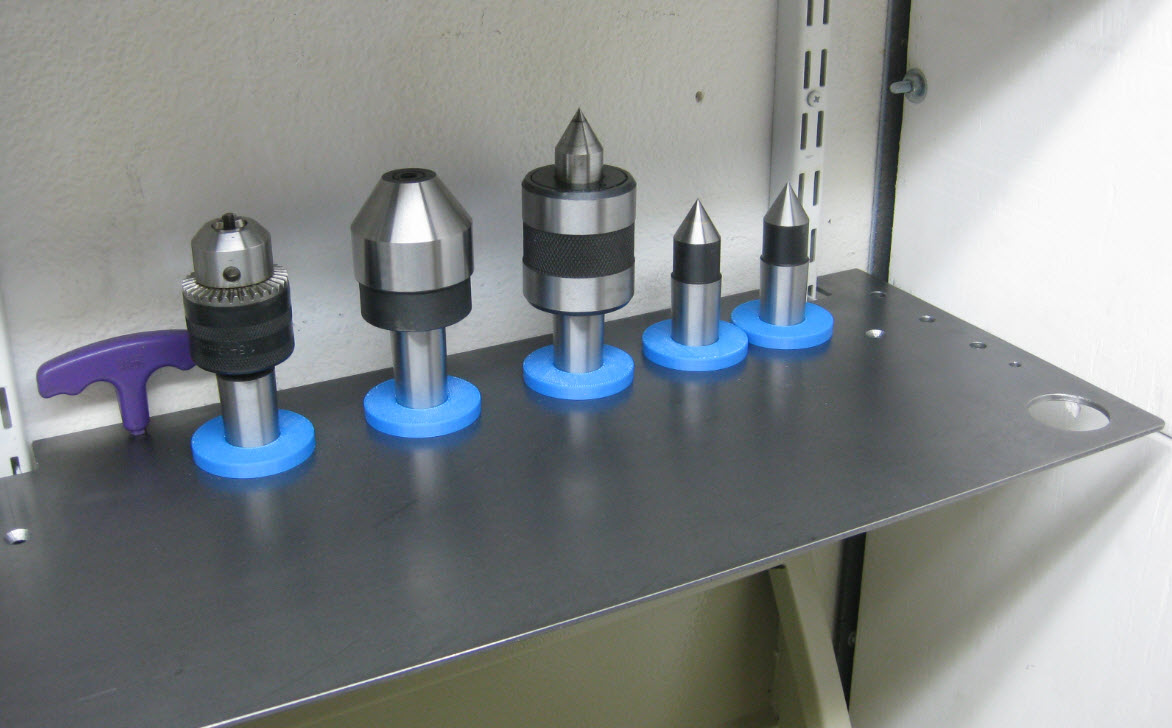

    Lathe Shelf Inserts:
    https://ctmprojectsblog.wordpress.co...3-abs-inserts/
    Sheet Metal Brake & Rock Crawler 3D-Printed-mt-3-tooling-3dprinted-inserts-1.jpg

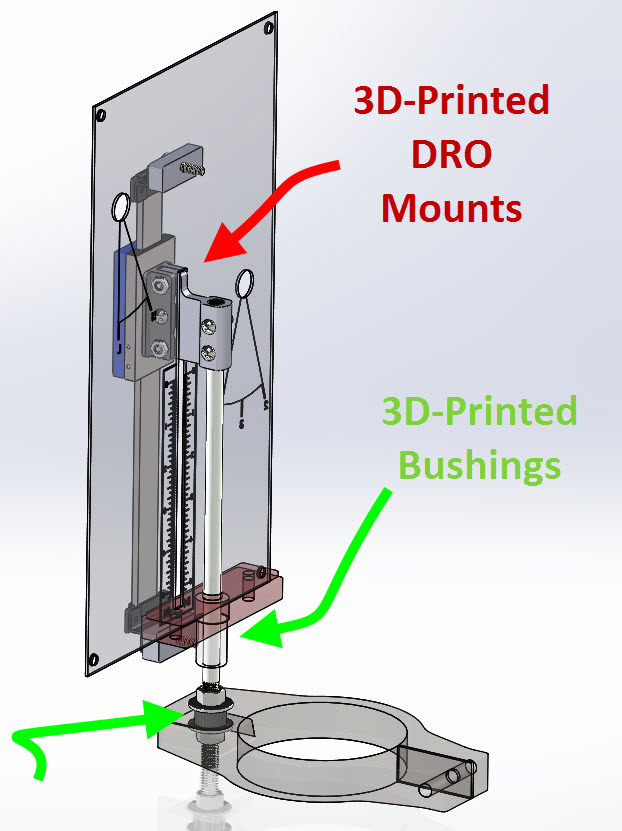

    Milling Machine DRO Mounts:
    https://ctmprojectsblog.wordpress.co...gital-readout/
    Sheet Metal Brake & Rock Crawler 3D-Printed-3d-printed-bushings.jpg

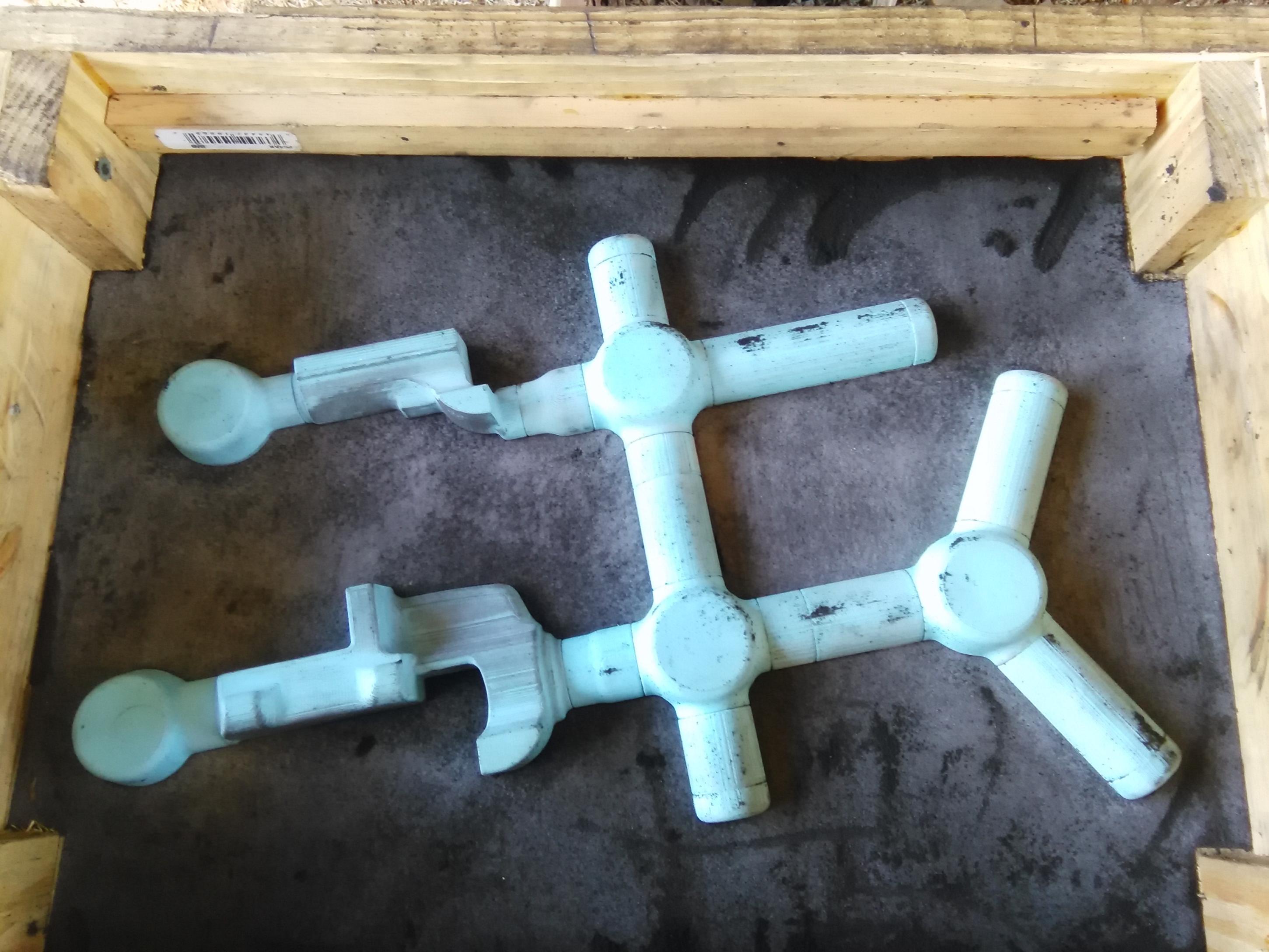

    3D-Printed Patterns for Metal Casting ... I will be posting the metal cast items in the future :-)
    Sheet Metal Brake & Rock Crawler 3D-Printed-sand-casting-06.jpg

    CHEERS!!

  5. The Following 3 Users Say Thank You to MetalDesigner For This Useful Post:

    DIYer (11-17-2015), kbalch (11-18-2015), PJs (11-18-2015)

  6. #4
    Content Editor DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,087
    Thanks
    334
    Thanked 636 Times in 577 Posts
    Amazing stuff. I was into RC for a short time, so I appreciate that aspect of your work. Nowadays, I've been wanting to get into 3D printing but have little in the way of time or money to get into it.

  7. #5
    Paul Jones's Avatar
    Join Date
    May 2014
    Location
    Yorba Linda, California
    Posts
    1,132
    Thanks
    4,838
    Thanked 1,208 Times in 596 Posts

    Paul Jones's Tools
    You have a very interesting website full of detailed photos and lots of good information. Thanks for the link.

  8. #6
    Content Editor DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,087
    Thanks
    334
    Thanked 636 Times in 577 Posts
    Thanks MetalDesigner! We've added your Lathe Shelf Inserts to our Storage and Organization category, as well as to your builder page: MetalDesigner's Homemade Tools. Your receipt:


  9. #7
    Content Editor DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,087
    Thanks
    334
    Thanked 636 Times in 577 Posts
    Thanks MetalDesigner! We've added your Milling Machine DRO Mounts to our Miscellaneous category, as well as to your builder page: MetalDesigner's Homemade Tools. Your receipt:


  10. #8
    Content Editor DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,087
    Thanks
    334
    Thanked 636 Times in 577 Posts
    Thanks MetalDesigner! We've added your 3D Printed Casting Patterns to our Forging and Casting category, as well as to your builder page: MetalDesigner's Homemade Tools. Your receipt:


  11. The Following User Says Thank You to DIYer For This Useful Post:

    MetalDesigner (11-23-2015)

  12. #9
    MetalDesigner's Avatar
    Join Date
    Sep 2013
    Location
    Las Vegas ~ @MetalDesigner Twitter
    Posts
    95
    Thanks
    45
    Thanked 157 Times in 61 Posts

    MetalDesigner's Tools
    Thank you for the nice note Paul. Quite a complement coming from someone like yourself that has so much to offer on this Website. Wish I could post more projects; however, most are for other people that don't want all of their secret designs shown *grin* ... So I was happy to get your note that you (and hopefully others) enjoy the 'Just-for-Fun' Project Website with items like:

    https://ctmprojectsblog.wordpress.co...et-jack-by-18/

    https://ctmprojectsblog.wordpress.co...omized-clamps/

    https://ctmprojectsblog.wordpress.co...ng-attachment/

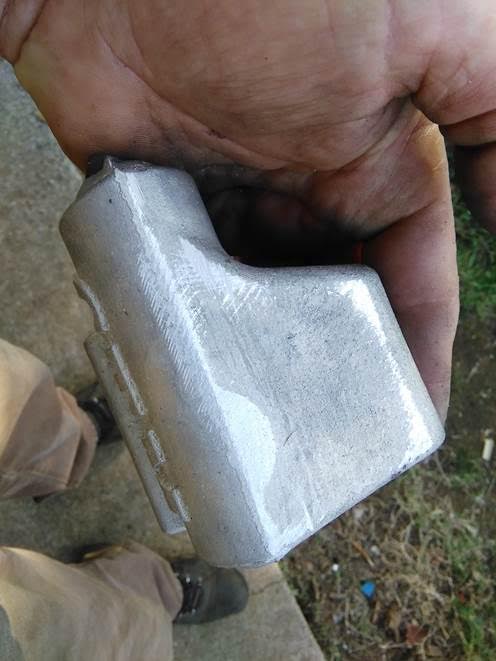

    Will be posting some Aluminum, Brass, and Cast Iron "Metal Casting" items in the future made from "3D-Printed Patterns" drawn with SolidWorks ... I just need to finish the machining of some of the test items to have enough photographs... but here are some teaser photos *smile*

    Sheet Metal Brake & Rock Crawler 3D-Printed-slotter-top.jpg

    Sheet Metal Brake & Rock Crawler 3D-Printed-core-example.jpg

    CHEERS!!
