    Probably the original shop. Virtually identical to the ones on the Coral Sea & the Alabama. When you're out in the middle of "the pond" it's a little difficult to get deliveries from McMaster.

    One may note the dead center in the rack of tools behind the head of the lathe.
    Last edited by Dr Stan; 10-02-2017 at 11:16 PM.

  2. #22

    Join Date
    Feb 2014
    Posts
    60
    Thanks
    0
    Thanked 13 Times in 10 Posts
    Quote Originally Posted by Frank S View Post

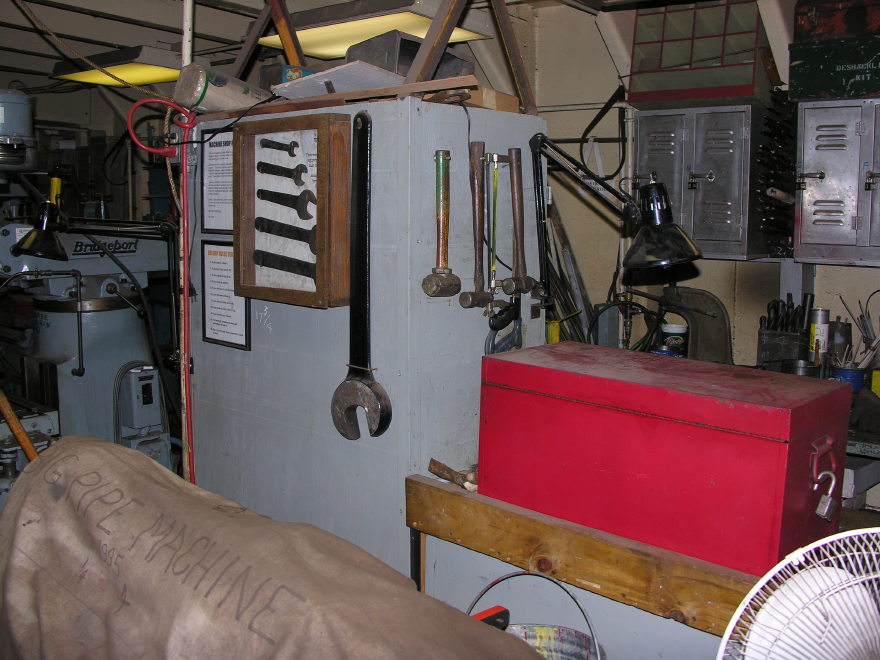

    Ron in this picture also from the John W Brown liberty ship machine shop on the left side you can see a Bridgeport mill it looks to be a J head
    Attachment 19918

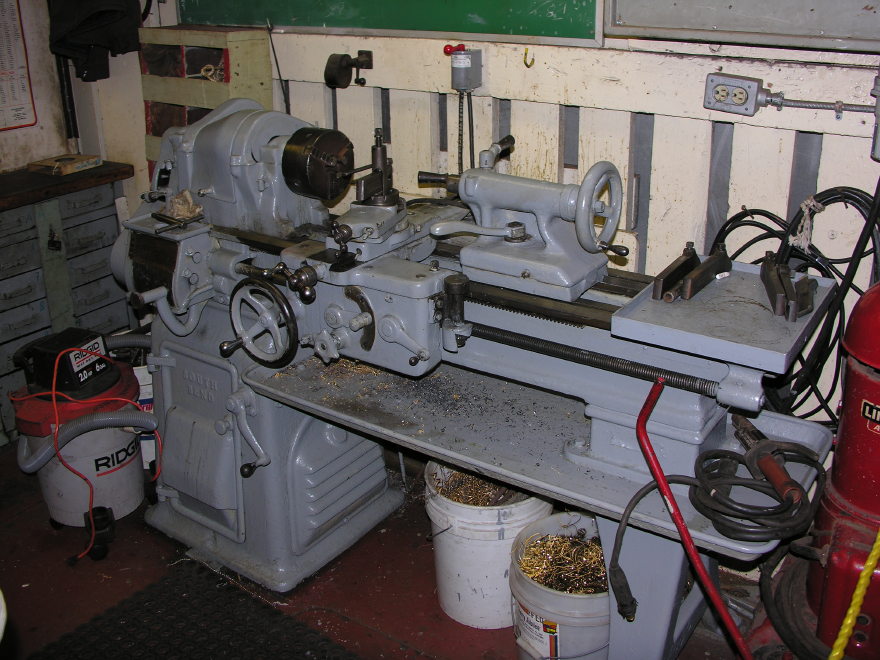

    the Lathe is Southbend
    Attachment 19919
    In all likely hood the Bridgeport is a later addition. WWII destroyers and the like had a lathe with a milling attachment rather than a stand alone mill.

  3. #23
    Seedtick's Avatar
    Join Date
    May 2014
    Location
    Central Arkansas
    Posts
    2
    Thanks
    2,770
    Thanked 1 Time in 1 Post
    Quote Originally Posted by Jon View Post
    Lathe on the USS Missouri, a Virginia-class attack submarine Iowa-class battleship. Fullsize 4,000px wide pic: https://s3-us-west-1.amazonaws.com/h...e_fullsize.jpg .






    Anyone know about the effect of sea motion on machining? Is it minimized in such a large sub? Worse above the water surface?

    Check out the drill chuck in tail stock of that behemoth of a lathe. Someone had a sense of humor.
    Greg
    Last edited by Seedtick; 10-03-2017 at 01:30 PM.

  4. #24
    Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    1,149
    Thanks
    2,433
    Thanked 1,153 Times in 657 Posts

    Toolmaker51's Tools
    Quote Originally Posted by Seedtick View Post
    Check out the drill chuck in tail stock of that behemoth of a lathe. Greg
    Agreed, not even a #14N Jacobs. But in reference to scale, note arm of the radial drill and tilting work table in the foreground. Or the face plate resting near the far end of the lathe. Whether USS Enterprise, a FFG, or a repair ship, even experienced hands are surprised by the range of machine tools and tooling that Machinery Repairmen have access to. It got even better in the yards.
    Having referenced it before, I wish I could share pages of the auction catalog from Long Beach Naval Shipyard, CA. I knew that location like back of my hand, still amazes me nearly 20 years later.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  5. #25
    Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    2,781
    Thanks
    519
    Thanked 2,436 Times in 1,207 Posts

    Frank S's Tools
    If you will notice there are more than 1 face plates 1 is hiding behind the steady rest and is much smaller in diameter probably just small enough to be used without having to pull the gap bridge and judging by the size of the drill bit it looks to be about 3 1/2 inches or more with a MT 5 or 6 shank
    I have a 2 3/4 " that has the shank turned down from MT 5 to MT 4 it looks huge in my index but that thing is a lot bigger than mine.
    Last edited by Frank S; 10-03-2017 at 01:42 AM.
    Never try to tell me it can't be done
    When I have to paint I use http://kbs.justoldtrucks.com/

  6. #26
    mklotz mklotz's Avatar
    Join Date
    Aug 2015
    Location
    LA, CA, USA
    Posts
    1,579
    Thanks
    104
    Thanked 2,967 Times in 1,029 Posts

    mklotz's Tools
    I really wish the Navy had not abandoned the ship naming conventions of WWII - states for battleships, cities for cruisers, fish for submarines, etc.. I'm particularly annoyed by the practice of naming carriers for presidents. IMO, we've never had a president who deserves to have any ship named for him. [I wouldn't mind naming barges after a few of them but that's my limit.]

    The Missouri (BB63) is a particularly historic ship and its name should remain singular. The same for all the other Iowa class battleships.

    The Iowa (BB61) is now permanently moored as a museum ship here in LA harbor. Unfortunately, when I toured it a few years ago, neither the machine shop or the engine room were open to the public.

    It's interesting to me that all the Iowa class ships have been preserved as museums rather than being broken up. Can it be that the Navy thinks there may yet arise more situations where an offshore heavy artillery platform could be useful?
    ---
    Regards, Marv


    Home Shop Freeware
    http://www.myvirtualnetwork.com/mklotz

  7. #27
    Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    1,149
    Thanks
    2,433
    Thanked 1,153 Times in 657 Posts

    Toolmaker51's Tools
    Quote Originally Posted by mklotz View Post
    I really wish the Navy had not abandoned the ship naming conventions of WWII - states for battleships, cities for cruisers, fish for submarines, etc.. I'm particularly annoyed by the practice of naming carriers for presidents. IMO, we've never had a president who deserves to have any ship named for him. [I wouldn't mind naming barges after a few of them but that's my limit.]

    The Missouri (BB63) is a particularly historic ship and its name should remain singular. The same for all the other Iowa class battleships.

    The Iowa (BB61) is now permanently moored as a museum ship here in LA harbor. Unfortunately, when I toured it a few years ago, neither the machine shop or the engine room were open to the public.

    It's interesting to me that all the Iowa class ships have been preserved as museums rather than being broken up. Can it be that the Navy thinks there may yet arise more situations where an offshore heavy artillery platform could be useful?


    Some naming conventions have historical significance. However it s time to be on the road for work and a simultaneous interview enroute....so I'll continue when stationary.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  8. #28

    Join Date
    Feb 2014
    Posts
    60
    Thanks
    0
    Thanked 13 Times in 10 Posts
    Quote Originally Posted by mklotz View Post
    It's interesting to me that all the Iowa class ships have been preserved as museums rather than being broken up. Can it be that the Navy thinks there may yet arise more situations where an offshore heavy artillery platform could be useful?
    I certainly hope not. In any case so many nations have missiles capable of taking out large ships such as carriers & battleships at a distance they are obsolete.

  9. #29
    mklotz mklotz's Avatar
    Join Date
    Aug 2015
    Location
    LA, CA, USA
    Posts
    1,579
    Thanks
    104
    Thanked 2,967 Times in 1,029 Posts

    mklotz's Tools
    Quote Originally Posted by Dr Stan View Post
    I certainly hope not. In any case so many nations have missiles capable of taking out large ships such as carriers & battleships at a distance they are obsolete.
    The Missouri was used to shell targets and launch missiles as recently as 1991 in occupied Kuwait. Anti-missile defenses become continually more sophisticated and the most recent improvements are always kept secret. Who can say where and how the next small-scale conflict will evolve?

    As to the obsolete nature of carriers, I'm sure the Navy will be disappointed to learn that they spent $13 billion on the USS Gerald Ford for no good reason.
    ---
    Regards, Marv


    Home Shop Freeware
    http://www.myvirtualnetwork.com/mklotz

  10. #30
    Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    2,781
    Thanks
    519
    Thanked 2,436 Times in 1,207 Posts

    Frank S's Tools
    Quote Originally Posted by Dr Stan View Post
    I certainly hope not. In any case so many nations have missiles capable of taking out large ships such as carriers & battleships at a distance they are obsolete.
    That may well be but I can think of several instances in 4 wars where members of my family were sure proud to have them sitting off shore lobbing their munitions and in the last mission their tomahawks My father in WWII & Korea 3 of my uncles in WWII, my eldest first cousin at Con Thien in March of 69 and his nephew in Kuwait in 91 Heck I would have felt more secure on a couple of short incursions in 72 & 73 had the New Jersey been on station myself
    While it is true that a vessel, any vessel for that matter is a sitting duck in the water when it comes to cruse missiles or Ariel bombardment their presents represents a seance of security for ground troops especially when refitted with updated technologies.
    However now it is almost possible for any tech savy teenager to create a rudimentary form of Target identification and acquisition tracking device rendering just about anything moving slower than a pleasure yacht in high winds subject to being locked on
    Never try to tell me it can't be done
    When I have to paint I use http://kbs.justoldtrucks.com/
