This is an attachment for the bigger tailstock on my watchmaker lathe. I mostly copied a Schaublin accessory, but added features from a more complete Lorch turret tailstock.
It just advances by hand but the stop shaft rotates with the turret, and fully retracting the ram disengages the indexing pin which then resets with a spring when it advances.
The sockets are 1/2”.
Attachment 26480
Attachment 26481 Attachment 26482
Attachment 26483 Attachment 26484
Attachment 26485 Attachment 26486
<!-- BEGIN /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Thanks threesixesinarow! We've added your Tailstock Turret to our Lathe Accessories category,
as well as to your builder page: threesixesinarow's Homemade Tools. Your receipt:
<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://www.homemadetools.net/homemade-tailstock-turret-3"> <img src="/uploads/219048/homemade-tailstock-turret-3.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://www.homemadetools.net/homemade-tailstock-turret-3">Tailstock Turret</a> <span> by <a href="http://www.homemadetools.net/builder/threesixesinarow_2">threesixesinarow</a></span> </div> <div class="tags">tags: <a href='http://www.homemadetools.net/tag/tailstock'>tailstock</a> </div> </div> </div> </div>
<!-- END /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Nice work, good job, came out well
Doug
Thanks, Doug - I’m still learning how to set it up and use it, but it works, and hopefully it’ll be durable. I made the stop shaft journal and bearing tapered so they can be adjusted, and a lot of the parts in it are hardened, including drill bushing inserts in the indexing holes.
Attachment 26527
A Boley I hadn’t seen before, with a more compact stop arrangement.
From Watchmakers Lathes at lathes.co.uk
Attachment 26878
Very slick setup. Guess I'll have to put on the thinking cap and see if I can't round up something like this on the old Grizzly I've got.
Nice job! :thumbsup:
Walkman
Thanks, Walkman,
mars-red has a couple videos on youtube showing the construction of a very nice 6-station turret with the same kind of flat design, on about the same scale.
https://youtu.be/xe3ACUzET7Y
It’s a good choice there, and here because it doesn’t take much extra room lengthwise - my lathe is only something like 5 or 6” between centers. It’s less flexible, too, the ram on mine can retract completely and its front end is very close to the tool shank sockets.
Even with four stations it’s a tight fits for tools, though, and some tools and combinations won’t work at all.
threesixesinarow,
You have done a very nice looking job on the turret! You are also a very productive builder!
Keep up the good work.
Thanks, Dick,
It’s a few years old. It’s nice to use even just with a center drill and a dead center.
I considered getting a cheap morse taper tailstock turret for my mini lathe for a long time but hesitated because of the combination of their big overhang with the unreliable tailstock, as well as the extra steps for indexing the turret and stops. Now that I have a better tailstock for it, I plan to rebore the old one and convert it to a simple lever feed like what’s on a Taig but I’m still not sure whether it’ll be up to the task.
threesixesinarow
How do you intend to set the tailstock up for boring to ensure perfect alignment?
The new longer bed profile’s a bit different than the old one so I’ll at least need to fit the tailstock base to it - but I’m not sure how adjustable that will need to be for drilling.
To bore it, between centers, I’ll probably just push or drag it with a pad between it and the carriage. Maybe with a weight on top?

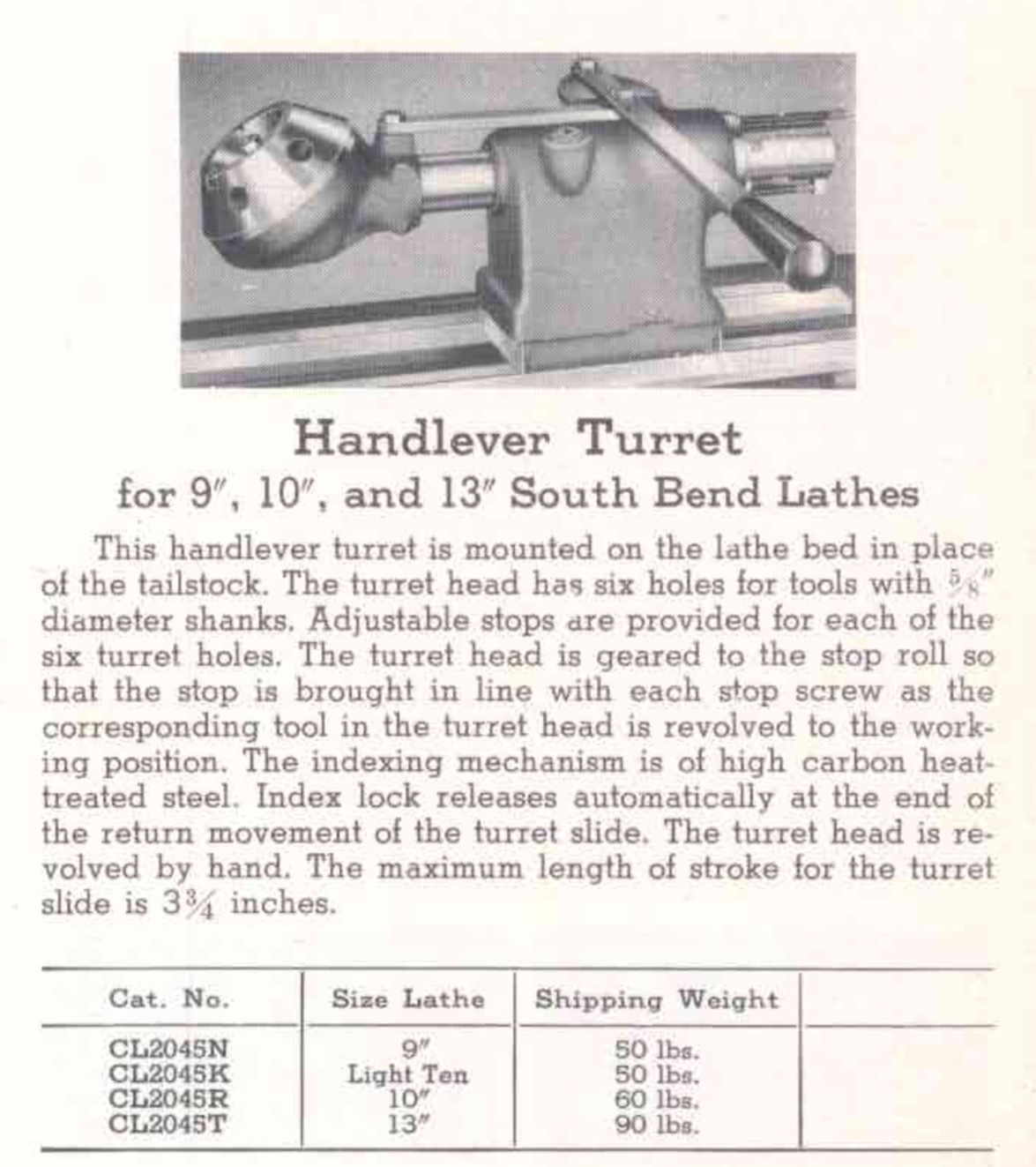

Mine will probably be solid but South Bend, and I think Atlas, made lever tailstock turrets with stops on the back like on the Lorch, but with the stop shaft running through the center of the ram.
Attachment 28688
threesixesinarow
I considered doing that at one time also, but never carried it out. Perhaps it was because I did not want to buy a second tailstock to have at hand while I worked on improving my old one.
I’ve used a steady rest with a bushing instead of the tailstock for turning to gain some working length.
