Beam Square

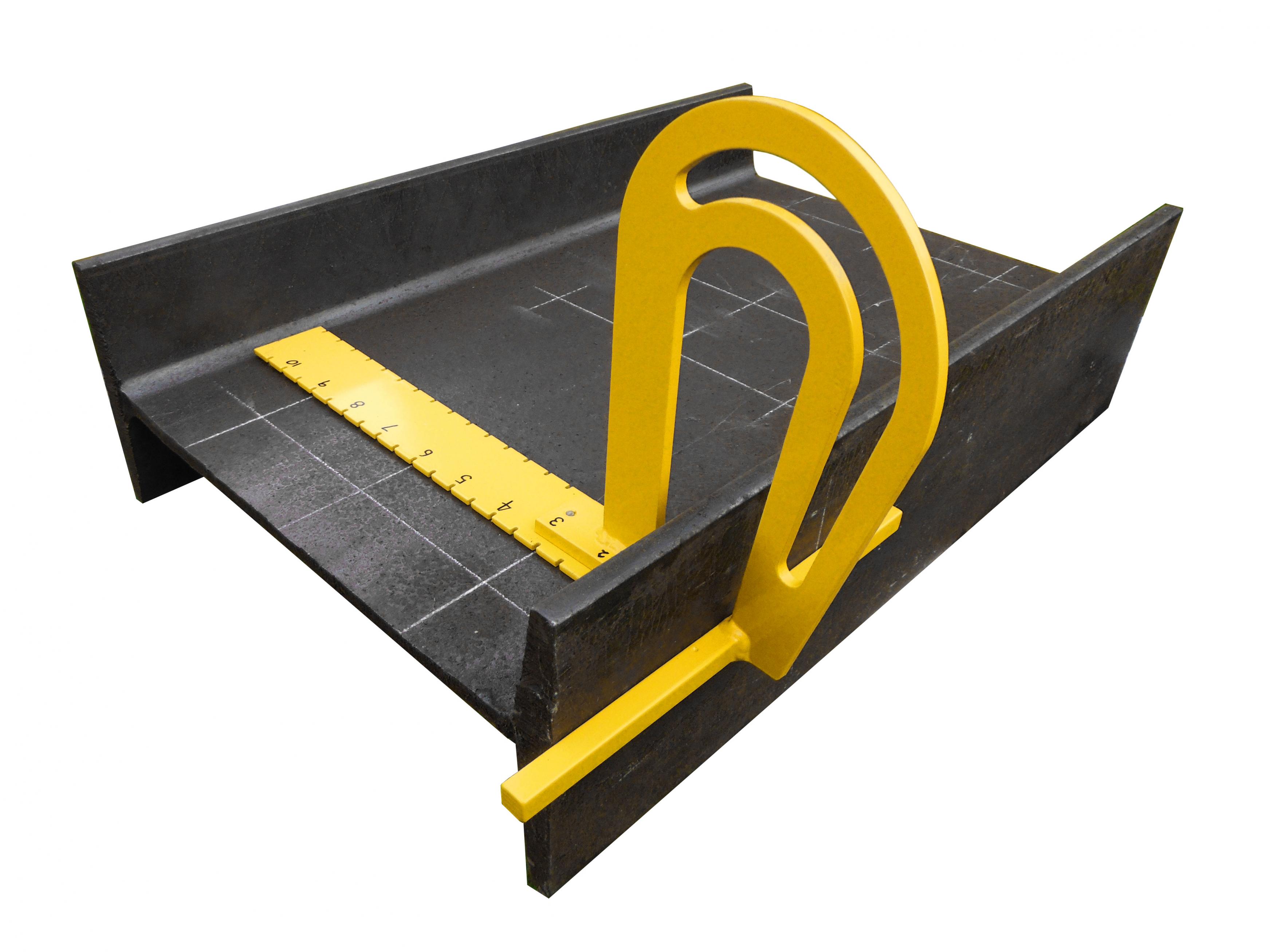

Beam Square, structural steel layout tool. Home made? Not so much......;)

Attachment 6798

Hi Beam Square - welcome to HomemadeTools.net :welcome:

Did you build this? How did the design and construction process go?

very well. Built a fixture to hold it together before welding

Hi Beam Square,

Welcome! :welcome:

That's one slick-looking layout tool! Was it a CAD design or did you prototype by eye? Are you building them yourself?

Any other homemade tools on your build horizon?

Ken

Is this your first commercial tool build? I ask because a lot of our guys are building tools that are high-quality enough to be candidates for commercial manufacture.

Yea I sell these on eBay. And yes I drafted it uo in AutoCad some years ago. It's all laser cut
