Bevel gear cutting - GIF

Bevel gear cutting.

<video controls autoplay loop>
<source src="https://diqn32j8nouaz.cloudfront.net/bevel_gear_cutting.mp4" type="video/mp4">
Your browser does not support the video tag.
</video>


Previously:

https://www.homemadetools.net/forum/...595#post101995
https://www.homemadetools.net/forum/...3767#post99994
https://www.homemadetools.net/forum/...158#post100892
https://www.homemadetools.net/forum/...3224#post98386
https://www.homemadetools.net/forum/...1633#post74805
https://www.homemadetools.net/forum/...2482#post45335
https://www.homemadetools.net/forum/...4358#post79804
https://www.homemadetools.net/forum/...7842#post86354
https://www.homemadetools.net/forum/...8594#post87797
https://www.homemadetools.net/forum/...3577#post99487

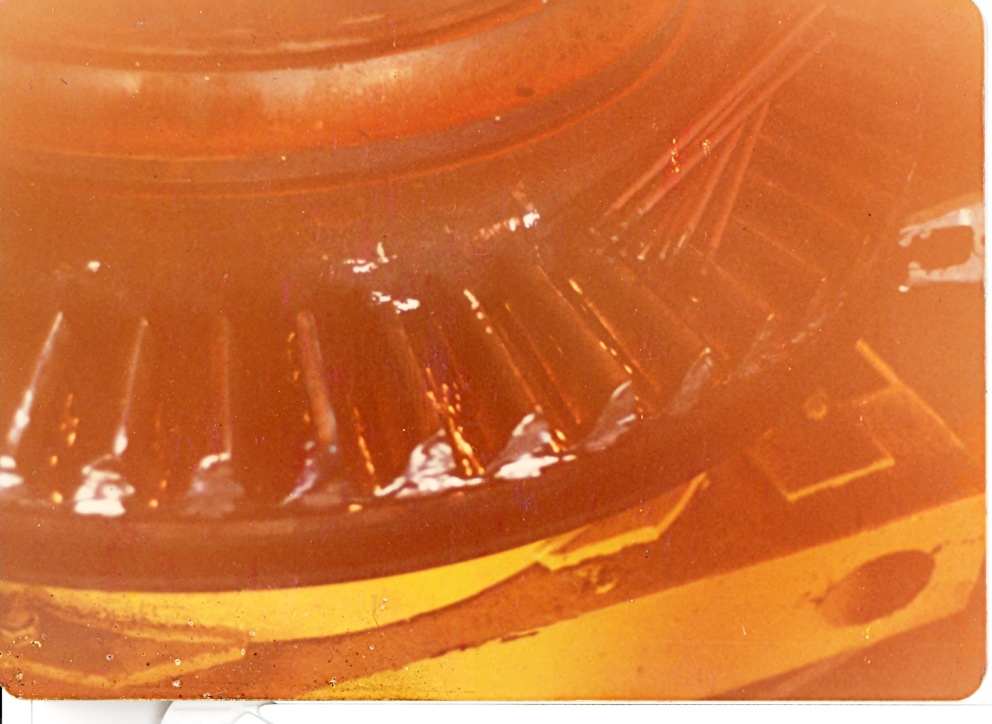

I didn't have the luxury of a CNC when I was rebuilding the ring and pinion gears in dril rig rotary tables.
Attachment 22682
I had to weld up the teeth then grind by hand until the profile was correct

Modern CNC, you can't beat it. I love the deburring, that is attention to detail.
What will the replacement machines in 20 years be doing? Maybe they'll be in DIY garages because additive manufacture will take over industrial production? Things are changing fast.

I want one!!

Ralph

I think Tony is correct Large production manufacture will be mostly full on robotic CNC and anything on a smaller scale or special order is going to be relegated to anyone who has enough room for a vertical or horizontal CNC machining center. As recent as 25 years ago there were very few jobber shop machine shops like t he one I used to have with the capability of doing 1 off or limited runs on manual machines, and even fewer home guys who had their own small machine shops in their garages. Skip ahead to today shops like mine was are virtually non existent without at least 1 or 2 CNC machines in them. Home garages everywhere have lathes and many have DRO on them I even know a few guys who have full on CNC machining centers in their 1 car garages now.

Thinking about additive manufacturing it just occurred to me that it is nothing new. Welded up structures have been around for a long time and are a prime example of additive manufacturing. Maybe not as news worthy as the various forms of 3D printing but just as valid an example.

Quote:

---

Originally Posted by tonyfoale

Thinking about additive manufacturing it just occurred to me that it is nothing new. Welded up structures have been around for a long time and are a prime example of additive manufacturing. Maybe not as news worthy as the various forms of 3D printing but just as valid an example.

---

Tony we have a tendency to view 3d printing as a relatively new concept in serious manufacturing and most tend to think of plastics when talking about the process. some even view 3d metal printing as being almost science fiction. But in truth the concept and practice has been around on a much more primitive scale for a 1000 years or more. Think glass blowing where the craftsman would create an object then add to it bit by bit until he had the desired shape and thickness True no computer aided deposit was used but the process is identical a heat source is applied then material is deposited where needed over and over the computer is the craftsman doing the sculpturing.Thew same holds true with metal a blacksmith would add super heated metal in his forge to the item he was making then he had to pound it to achieve proper fusion. advance a 1000 years and take my apprenticeship years for example we did much the same thing only as the apprentice often it was my job to stick weld an area until it was built up enough to be heated up then pounded into shape sometimes I would sit for hours on end welding up worn areas on plow share tips then they would be heated and beat smooth. Later after I bought my little lathe we would build up sfafts or other things with weld then I would turn them back to original shape Advance a few more years to when I got my first wire welder now I could build up areas even more precise flat areas could be pad welded to near perfection requiring very little if any further processing. shafts could be rotated while being built up requiring very little turning in the lathe my brain serving as the computer, my eyes the optical sensors, my hands the manipulators for the nozzle.things still had to be turned in the lathe upon completion though.
Advance to my years in Kuwait I made a welding grinding lathe a stub was chucked the wire gun was mounted and traveled following a template pattern a grinder followed cleaning and finishing behind the welding process once the part in this case an ornamental ball was complete it was removed from the chuck and quenched completely finished still no computer but the next step would have merely needed the addition of a few servo motors and a computer with "G" code programmed into it So yes additive manufacturing could become and is becoming DIY. In some cases I would venture to say it is already here we just don't have Picard's replicator to make a cup of tea El Gray hot yet. But even that it almost a reality since scientists in the med field are growing synthetic cartilage using actual human cells in labs.

Gleason Works the pride of Rochester NY. I hope they can remain in business, it is real tough in NY (terrible state government) for manufactures of any type.
