Circuit breaker cutaway.
Fullsize image: https://s3-us-west-1.amazonaws.com/h...y_fullsize.jpg
https://s3-us-west-1.amazonaws.com/h...er_cutaway.jpg
Previously:
https://www.homemadetools.net/forum/...520#post122895
https://www.homemadetools.net/forum/...2846#post97291
https://www.homemadetools.net/forum/...1676#post94385
https://www.homemadetools.net/forum/...3020#post97850
https://www.homemadetools.net/forum/...8846#post88189
-Cutaway before use, that is... Nice.

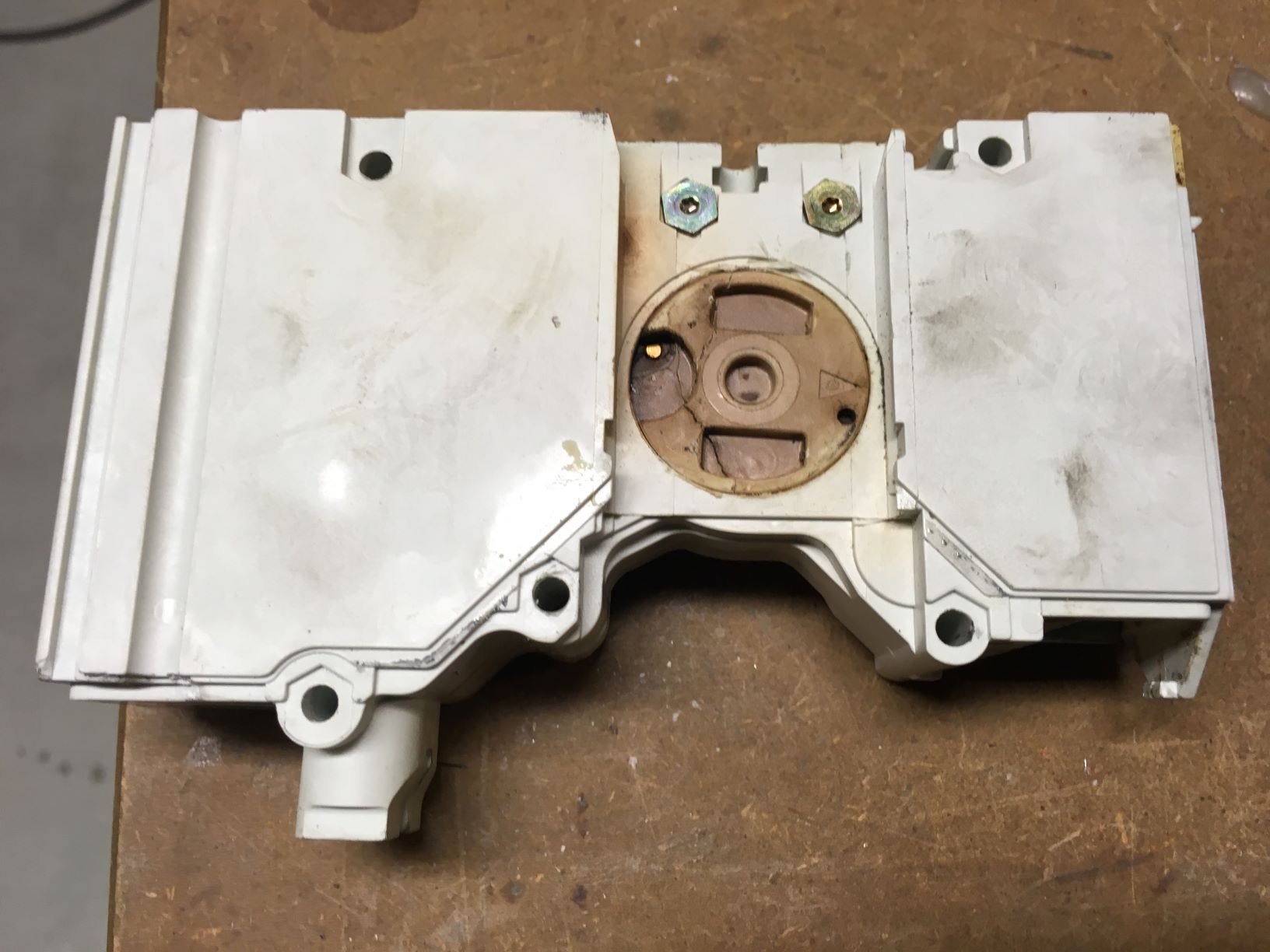

This is another <200 Amps 400 VAC 3-phase circuit breaker (exploded view) after final use:
Attachment 32056 Attachment 32057

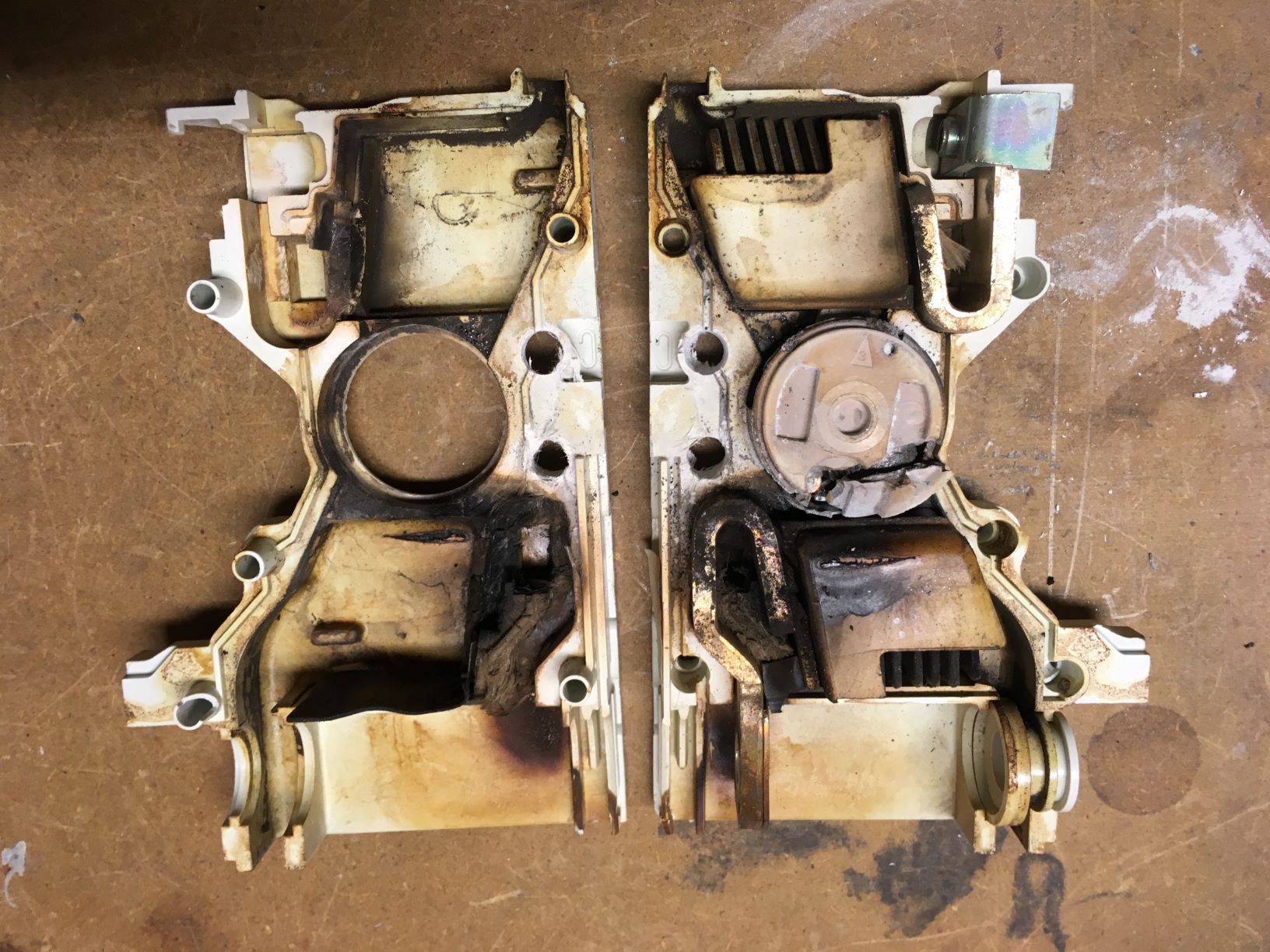

Pretty decent exterior, right? Opening up by drilling out the rivets shows the mayhem...
Attachment 32058 Attachment 32059

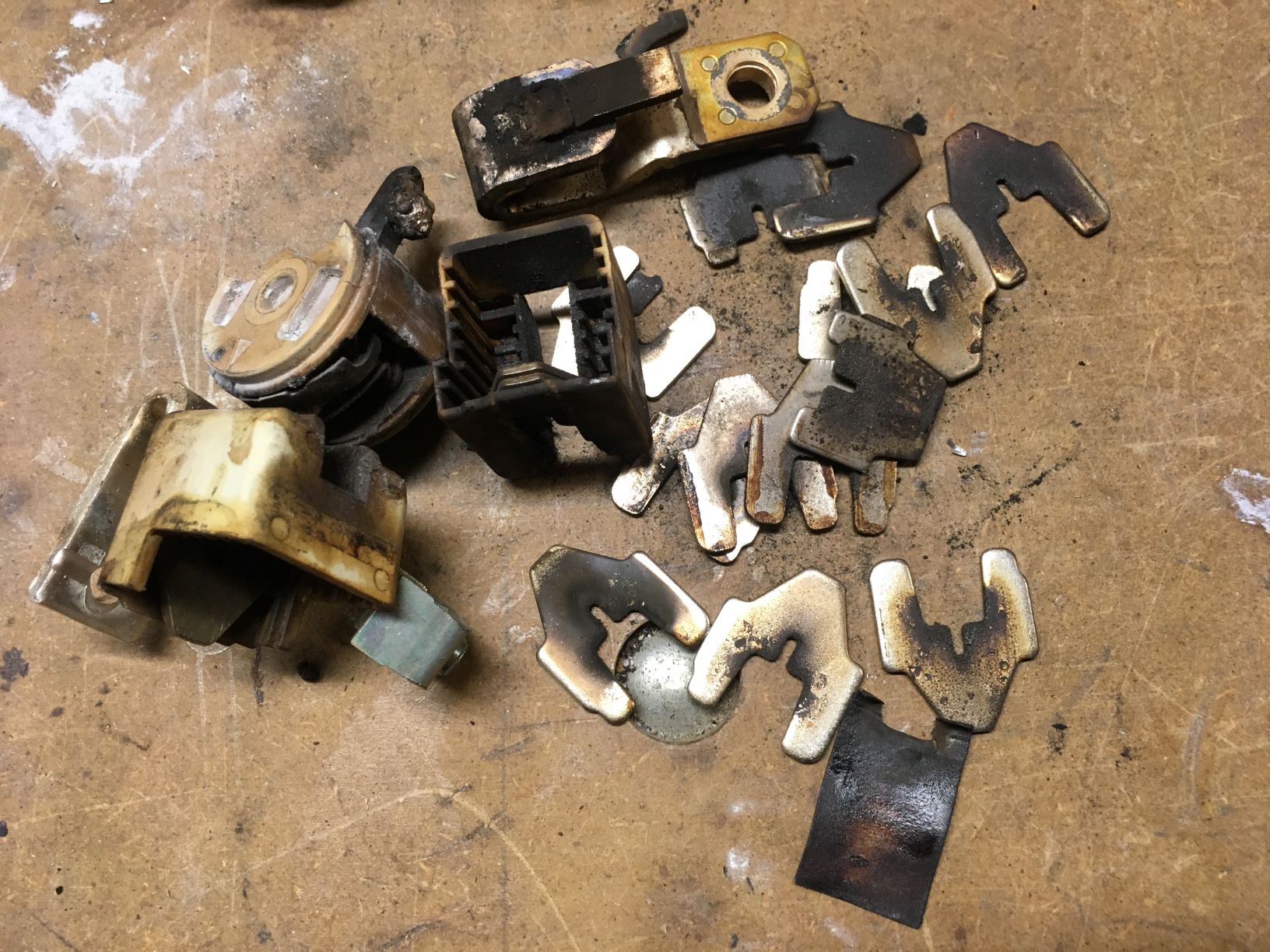

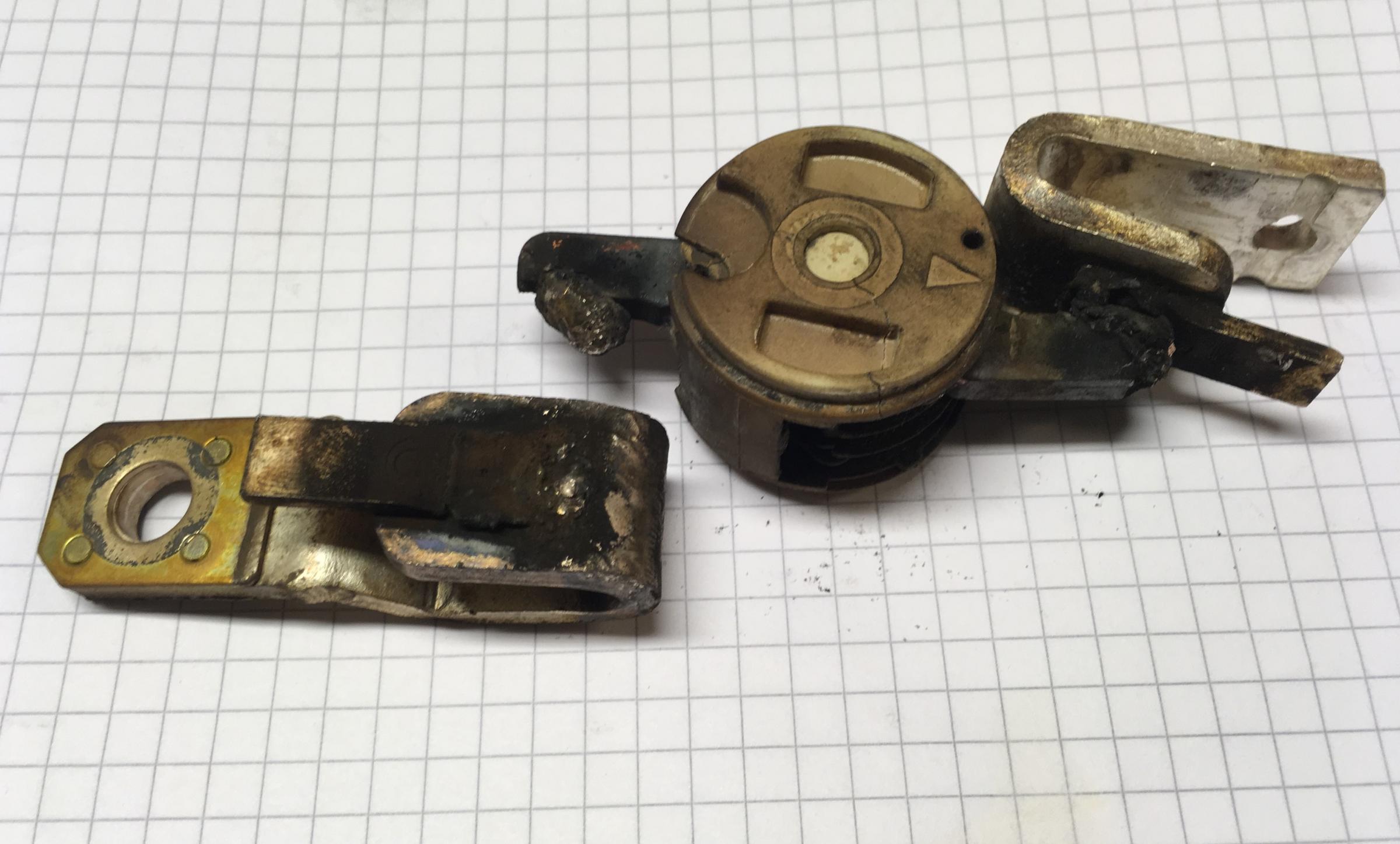

Note the impressive copper blob on the contact point, the heat witness marks & oxidation of the flash arrestors.
"-Just another day at the office."
Cheers
Johan
