Circuits to reuse washing machine motors to drive workshop tools

The 3/4 horse power universal motors used in washing machines are an abundant source of power for all kinds of workshop tools, from a small lathe to a disc sander :rocker: The problem is we can't just hook them up to their rated voltage without some kind of control circuit:headshake:. At no-load speeds the motor goes so fast it damages itself.

In the past I have used a few different control circuits to control these motors. The most recent is used in the multi purpose rotary tool I have been making http://machine.construction/rotary_tool In this I use a closed loop Arduino based circuit that uses a PID algorithm to try and match your desired set speed, with the actual measured rpm of the washing machine motor. This was a relatively complicated circuit, and in the video I show how to make it and compare it to the more simple triac based circuits.

https://youtu.be/xI6CF2nYf_g?list=PL...VESNmEvzn5y3Nf

My washing machine (LG brand) has a multi-phase motor with the armature bolted right to the drum (no belts or gears). I think it's driven as a stepper from the sound and the low speed torque.

Be an interesting motor to salvage for things like rotary tables. I wonder if the drive electronics are separable from the processor?

Quote:

---

Originally Posted by jdurand

My washing machine (LG brand) has a multi-phase motor with the armature bolted right to the drum (no belts or gears). I think it's driven as a stepper from the sound and the low speed torque.

Be an interesting motor to salvage for things like rotary tables. I wonder if the drive electronics are separable from the processor?

---

That is really interesting. Sounds like it would make a reasonable motor for some kind of CNC application if you could untangle it from the drum, and get a handle on the control board?

At the moment it's doing our laundry, so I may have to wait a while for spousal approval of an autopsy. :)

<!-- BEGIN /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Thanks bongodrummer! We've added your Electric Motor Control Circuit to our Electronics category,
as well as to your builder page: bongodrummer's Homemade Tools. Your receipt:

<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://www.homemadetools.net/homemade-electric-motor-control-circuit"> <img src="/uploads/224156/homemade-electric-motor-control-circuit.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://www.homemadetools.net/homemade-electric-motor-control-circuit">Electric Motor Control Circuit</a> <span> by <a href="http://www.homemadetools.net/builder/bongodrummer">bongodrummer</a></span> </div> <div class="tags">tags: <a href='http://www.homemadetools.net/tag/motor'>motor</a>, <a href='http://www.homemadetools.net/tag/controller'>controller</a> </div> </div> </div> </div>
<!-- END /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->

Quote:

---

Originally Posted by jdurand

At the moment it's doing our laundry, so I may have to wait a while for spousal approval of an autopsy. :)

---

Yep. A motordectomy is sure to be noticed.

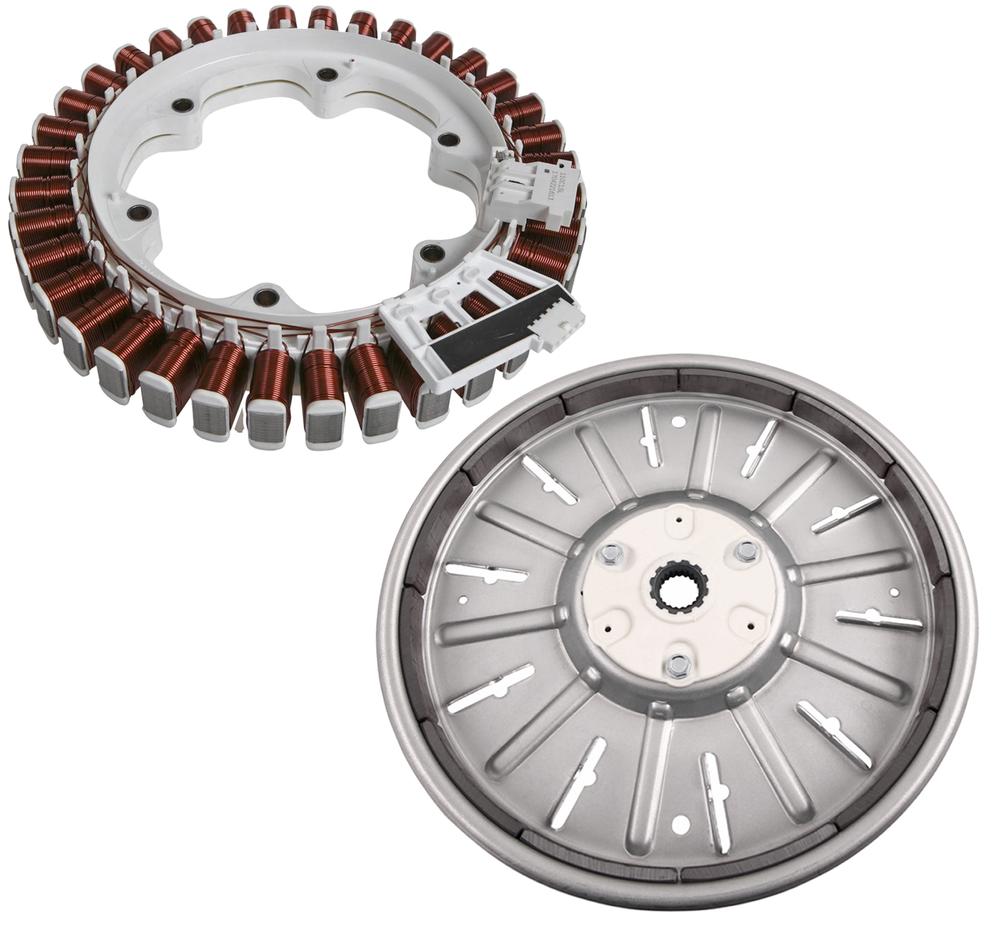

I found a picture of the motor from a repair parts place
