A 4-jaw chuck accepts rectangular and circular and odd shaped parts. The 4 jaws can be adjusted individually. That permits many tricks or inventions.
For example:
1. A simple fly cutter of round stock with a small boring bar clamped excentrically to the 4 jaw chuck.
Suitable just for facing.
2. Boring, however, requires a finely adjustable ‚thing’ that can be clamped to the 4 jaw chuck.
The ‚thing’ forgoes a nice but nasty dovetail and shows the usefullness of ‚disc springs’.
Thanks for sharing - excellent drawings in the pdf as well.
Clever and fast use of a disk spring, avoiding dovetail cutting entirely for this makeshift boring head.
Coincidentally I'm into another upcoming metrology project where I'll need a zero backlash differential screw as well
(same solution as in this post: https://www.homemadetools.net/forum/...022#post134042):
Special RH thread M6 x 0,75 mm and standard RH thread M4 x 0,70 mm, will give a LH screw with a 0,05 mm pitch...

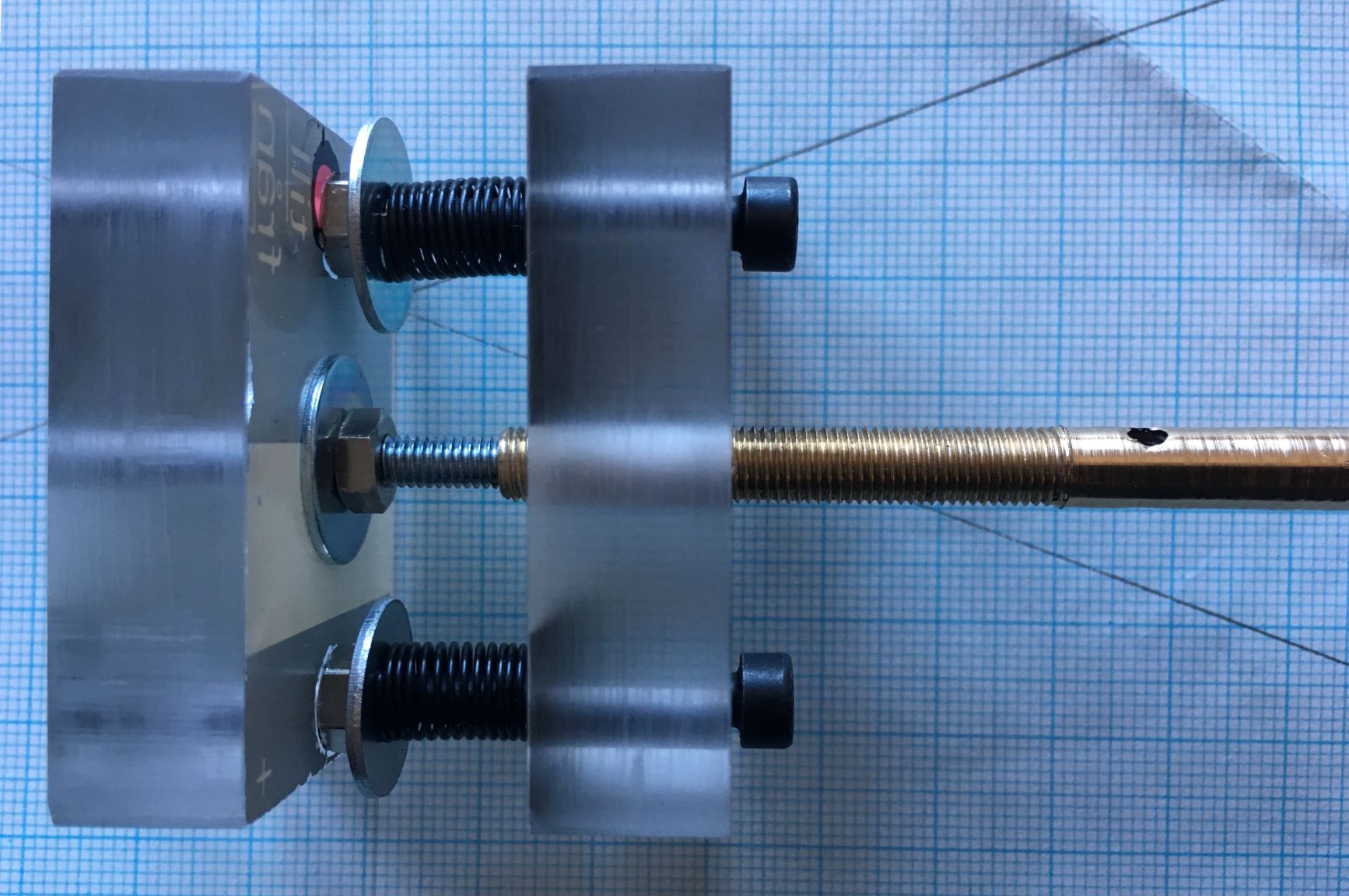

Proof-of-concept "acrylic vise":
Attachment 40209
ATB
Johan
