    Is this a commercially available vice or a "one-off"?

    173 Best Homemade Tools eBook

  2. #12
    Supporting Member WmRMeyers's Avatar
    Join Date
    Dec 2014
    Posts
    439
    Thanks
    80
    Thanked 176 Times in 116 Posts

    WmRMeyers's Tools
    Quote Originally Posted by Nitrous View Post
    Is this a commercially available vice or a "one-off"?
    Neither, at the moment. They WERE commercially available a century ago, and may be again.

    Bill

  3. #13

    Join Date
    Dec 2017
    Posts
    158
    Thanks
    100
    Thanked 28 Times in 22 Posts
    Quote Originally Posted by Toolmaker51 View Post
    Eloquently put!
    I'm itching to get back into working on instead of gathering materials. Started about 2-1/2 years ago, then on hold a year.....attacking a different way now.
    Sounds like a good collaborative project.
    A number of us arrange to each build enough parts for a vise or two per participant.

    That way on person builds say ten bases, another builds twenty jaws, a third builds x number of large pivots, etc.

    Everyone makes one type of part, trying to equalize the costs and labor between the different parts.

    Once everything is made all the parts are distributed and everyone gets a vise.

    Should be possible with the skills here. Fitment might be tough, but still possible with todays accuracy.

    Logistics would be the biggest issue, shipping costs, and agreement on the distribution of labor/material costs.

    It's nice to dream though...

  4. #14
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    3,825
    Thanks
    5,766
    Thanked 2,407 Times in 1,496 Posts

    Toolmaker51's Tools
    It's done in Europe all the time, some towns focus on it, ie Eibar Spain. The general term is 'cottage industry'.
    You were thinking farther outside the sphere (Frank S's visualization; infinite points of reference compared to a box). My central goal is an operative Toolroom facing the public, and some manufacturing from within.
    Collaborative manufacture takes a group of tricks. It starts with the distribution of equipment, and proximity to shipping points, relatively easy compared to inspection and assembly. Real impasse is funding, worst hurdle of all.

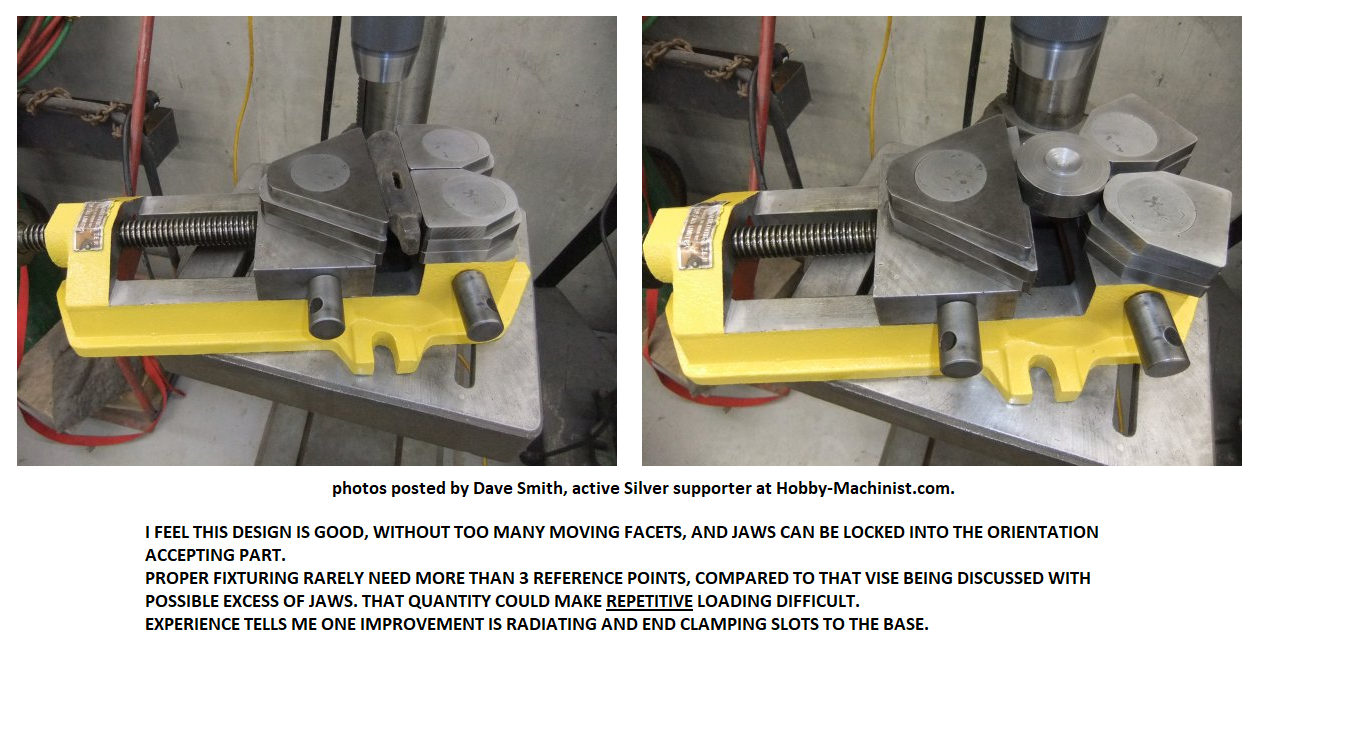

    Recent as 70's-80's, an articulating vise was available, with 3 pivots. It was the "Morton" and expensive enough that I put off getting at least one. Equipped better now, making a proper DIY is not insurmountable
    Fractal vise - GIF, video, and patent-morton.png
    One thing remains, articulating jaws are suited to short run or prototypes, conforming jaws work best with long run jobs.
    Last edited by Toolmaker51; Jun 30, 2021 at 08:30 PM.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  5. The Following User Says Thank You to Toolmaker51 For This Useful Post:

    Moldyjim (Jul 1, 2021)

  6. #15
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    7,718
    Thanks
    1,004
    Thanked 6,202 Times in 2,963 Posts

    Frank S's Tools
    Quote Originally Posted by Moldyjim View Post
    Sounds like a good collaborative project.
    A number of us arrange to each build enough parts for a vise or two per participant.

    That way on person builds say ten bases, another builds twenty jaws, a third builds x number of large pivots, etc.

    Everyone makes one type of part, trying to equalize the costs and labor between the different parts.

    Once everything is made all the parts are distributed and everyone gets a vise.

    Should be possible with the skills here. Fitment might be tough, but still possible with todays accuracy.

    Logistics would be the biggest issue, shipping costs, and agreement on the distribution of labor/material costs.

    It's nice to dream though...
    First we would have to discuss which measurement system we are going to use Afterwards fitment should be no problem
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  7. #16

    Join Date
    Dec 2017
    Posts
    158
    Thanks
    100
    Thanked 28 Times in 22 Posts
    Quote Originally Posted by Frank S View Post
    First we would have to discuss which measurement system we are going to use Afterwards fitment should be no problem
    Snort,
    Yeah, we wouldn't want to hit Mars prematurely....

    In the words of the great mid 20th century philosopher, Maxwell Smart. "Missed it by that much..."

  8. #17
    Supporting Member metric_taper's Avatar
    Join Date
    Mar 2017
    Location
    Marion, Iowa
    Posts
    445
    Thanks
    131
    Thanked 192 Times in 117 Posts

    metric_taper's Tools

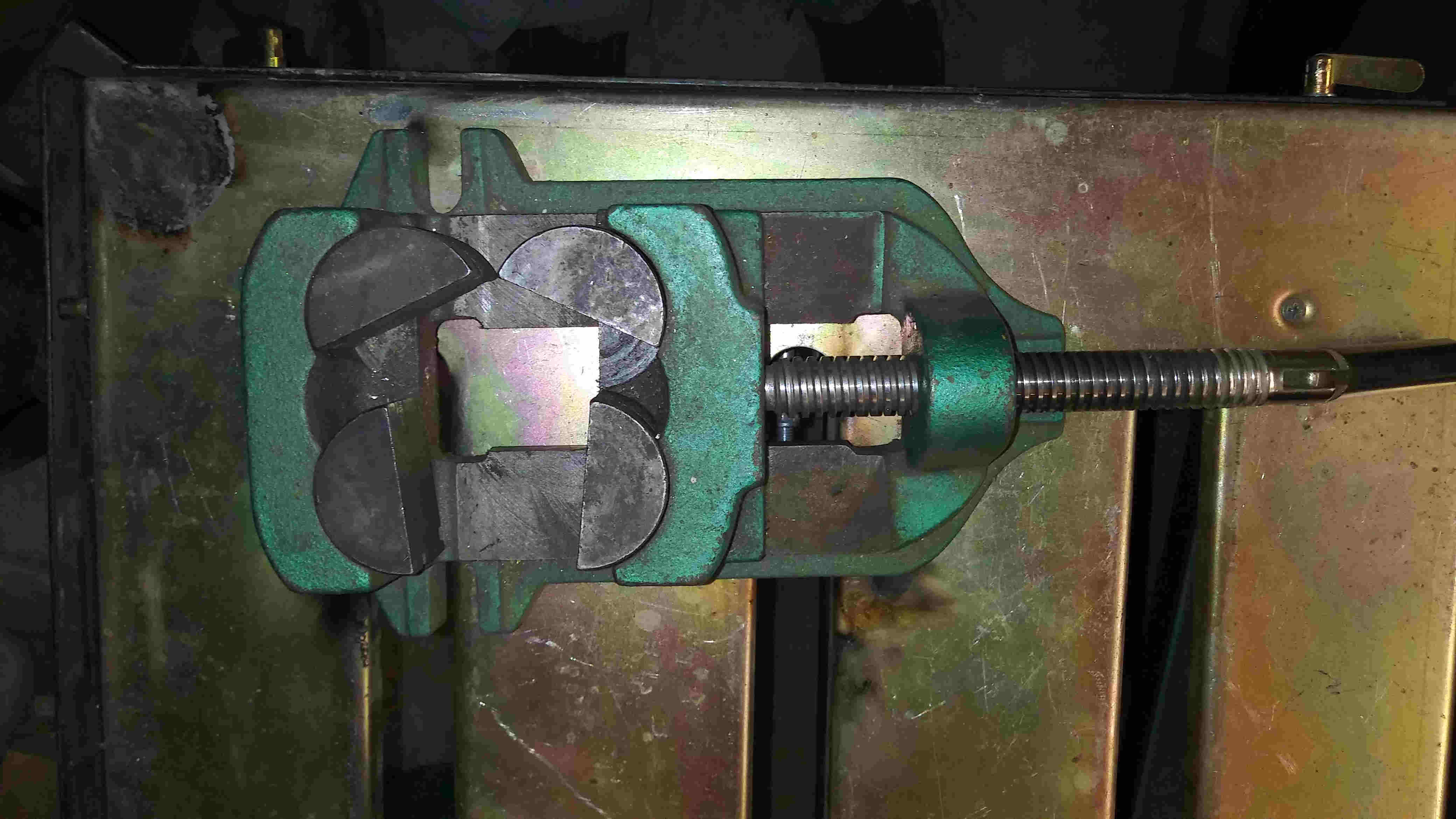

    So here is my cheap "Servo style" (I think that's what they called it) drill press vise;
    Fractal vise - GIF, video, and patent-servo-vise.jpg
    This came from the local home supply story 25 years ago. I've not seen them since then. Quick search ebay could not find one.
