Gantry Style CNC Router Part 1 L@@K

Printable View

Sep 17, 2016, 07:42 PM
Captainleeward

19 Attachment(s)

Gantry Style CNC Router Part 1 L@@K

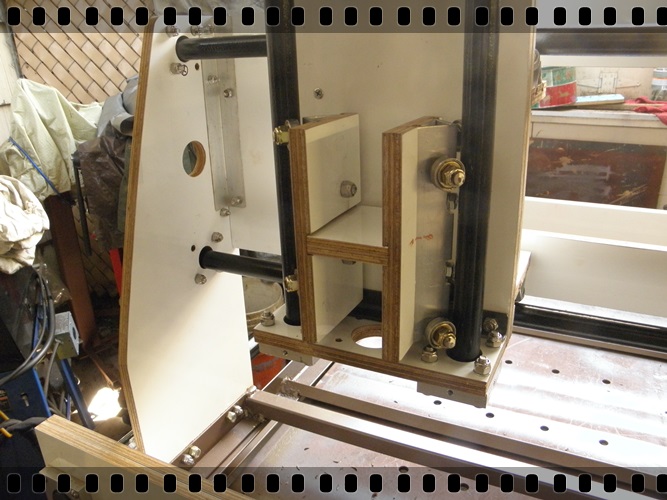

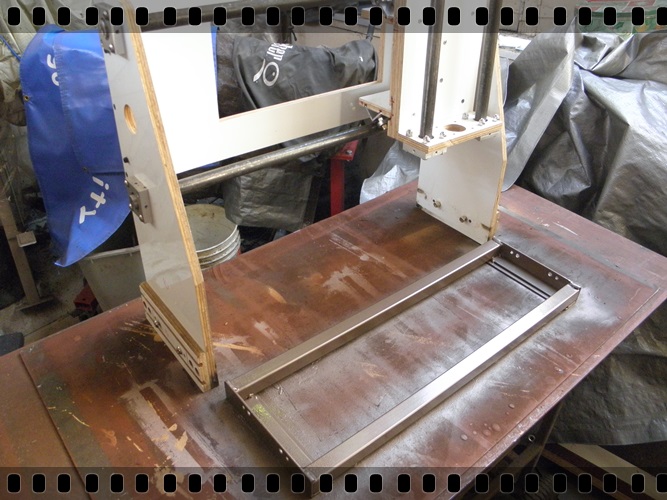

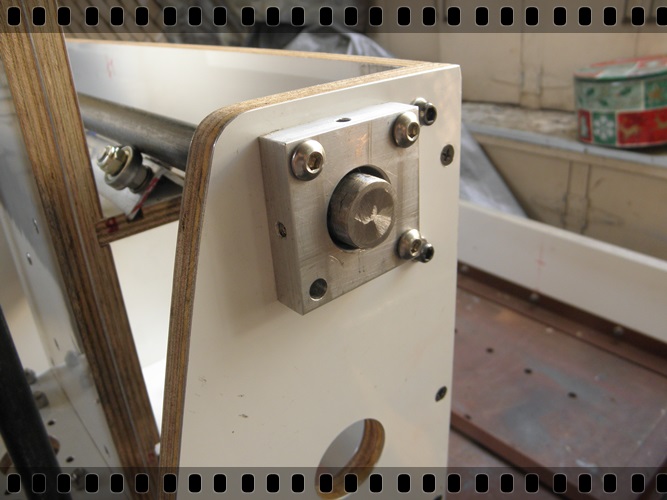

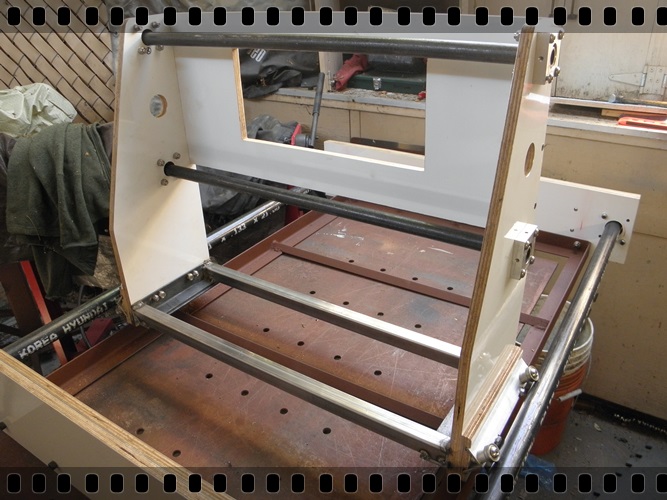

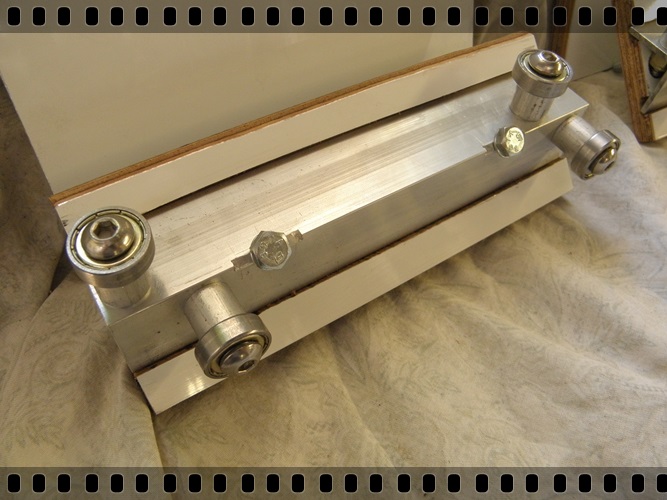

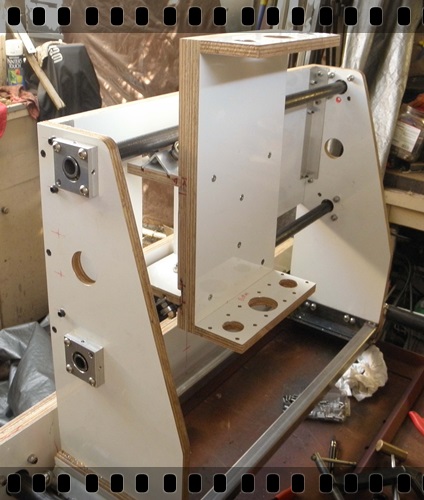

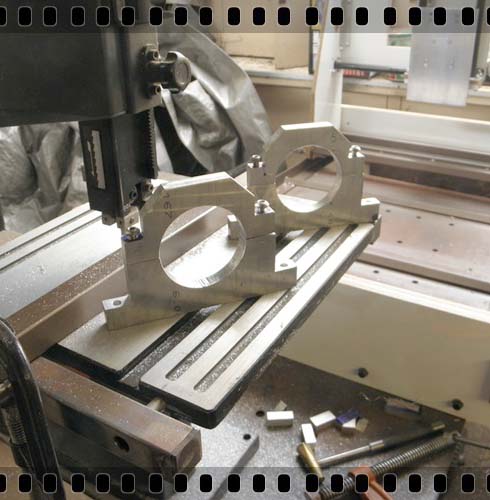

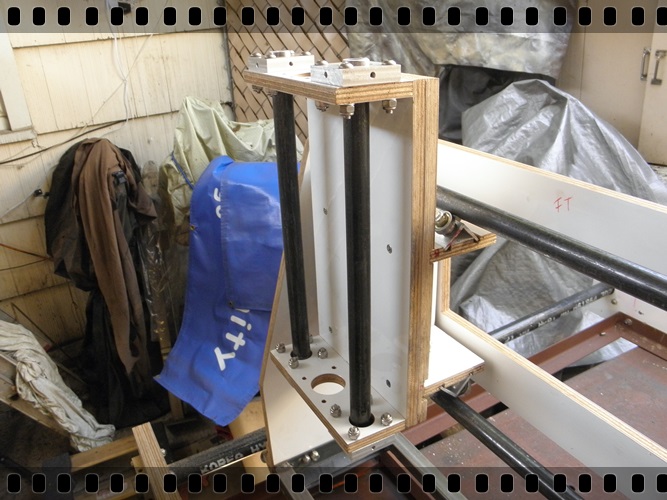

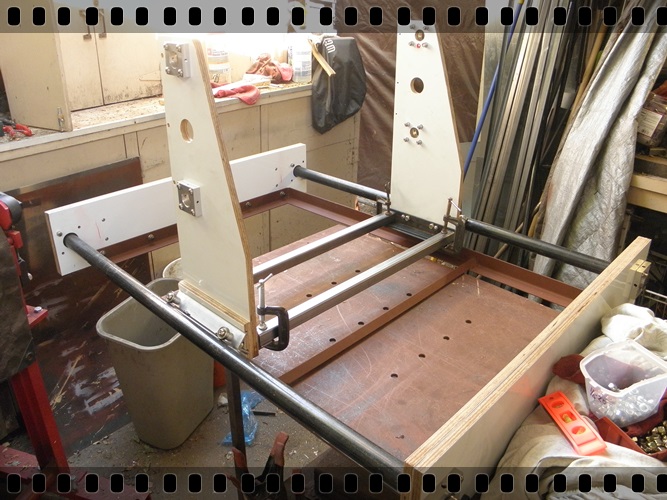

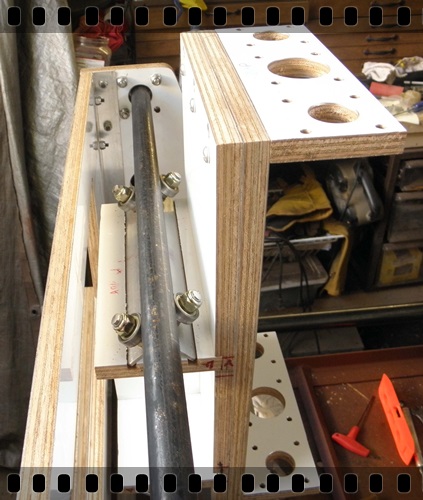

Gantry Style CNC Router Part 1. Made from double sided aluminum plywood, steel, Aluminum bar.
I have made many modifications to these plans just so you know.

These plans are 100% free to down load from CNC ZONE web page and are called Jgro, fantastic set of plans
what a great guy for giving these plans free.
