Shay No. 11 geared steam locomotive crankshaft and bevel gear drive linkage.
<video controls autoplay loop> <source src="https://diqn32j8nouaz.cloudfront.net/shay_no11_crankshaft.mp4" type="video/mp4"> Your browser does not support the video tag. </video>
Previously:
https://www.homemadetools.net/forum/...705#post147886
Did all steam locomotoves operate in that manner, or just some of them?
Very few actuallyQuote:
Originally Posted by tlnixon

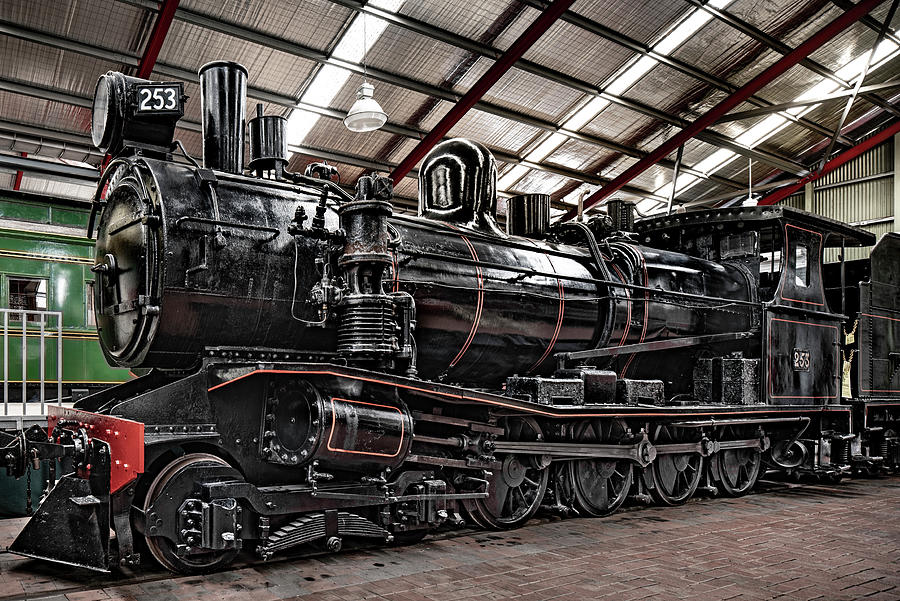

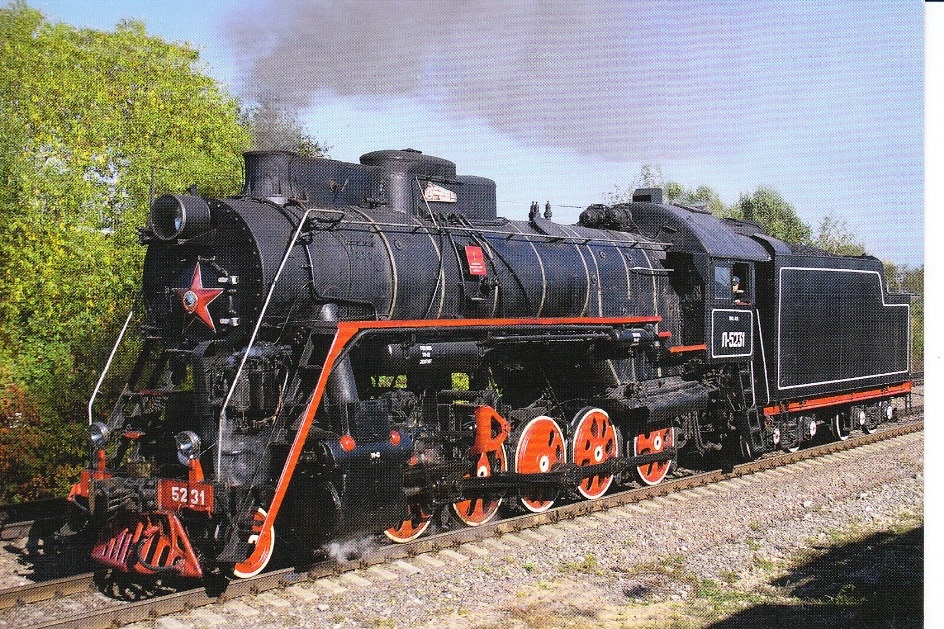

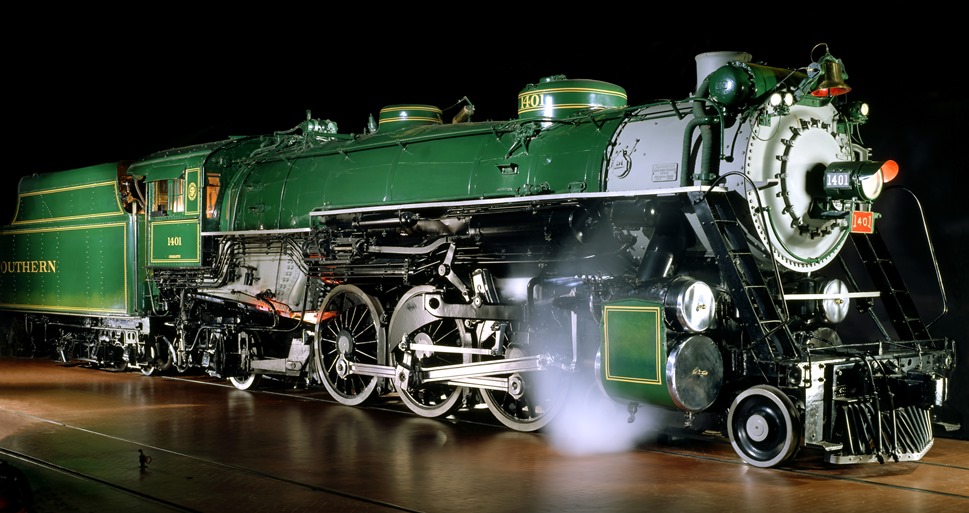

most would look more like these
Attachment 45518
Attachment 45519
Attachment 45520
The idea behind geared locomotives is to drive as many wheels as possible to improve the tractive effort. This makes them attractive for use in difficult terrain as in logging and mining.Quote:
Originally Posted by tlnixon
There are three classes of geared locos...
SHAY
Two or three cylinder vertical engine driving longitudinal side gear shaft. Boiler offset to side opposite engine.
HEISLER
Two cylinders in a V-configuration under centralized boiler. Engines drive a centrally mounted driveshaft that is geared to wheels.
CLIMAX
Similar to Heisler but engines point forward at an angle of 45 deg to vertical.
