    these days tin dies are about 4" dia, these days we know how to do lots of stuff we knew how to differently long ago.
    or they could be machining tires for trains.....

    186 More Best Homemade Tools eBook

  2. #292
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,479
    Thanks
    8,123
    Thanked 40,332 Times in 11,793 Posts
    Contouring lathe with electronic follower. Carnegie-Illinois Steel Corporation. Homestead, PA 1953.

    Fullsize image: https://diqn32j8nouaz.cloudfront.net...r_fullsize.jpg


    2,000+ Tool Plans
    New plans added on 12/02/2024: Click here for 2,609 plans for homemade tools.

  3. The Following 4 Users Say Thank You to Jon For This Useful Post:

    baja (Dec 15, 2020), jimfols (Dec 13, 2020), Toolmaker51 (Dec 13, 2020), volodar (Dec 22, 2020)

  4. #293
    Supporting Member
    Join Date
    Sep 2012
    Location
    Hinchinbrook QLD
    Posts
    324
    Thanks
    44
    Thanked 139 Times in 85 Posts
    Quote Originally Posted by Jon View Post
    with_electronic_follower
    Or thats just the biggest parting tool I've ever seen!

  5. #294
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,336
    Thanks
    7,044
    Thanked 3,012 Times in 1,901 Posts

    Toolmaker51's Tools
    Quote Originally Posted by 12bolts View Post
    Or thats just the biggest parting tool I've ever seen!
    That observation is not far from reality. The good old day's before CNC...
    Expanding the view reveals the tracer pattern, lower left of machinist's feet. The V has an involute-like form, so the stylus is radiused; smaller than where they converge, fillet where they meet parallel sides, and where those meet outer diameter. Many tracers are hydraulic only, depth controlled by crossfeed, first passes
    don't create full contour. In mill profiling the cutter is most often ball end. Lathe work then, works likewise, with a radiused tip bit, either case is to scale of pattern and stylus. Roughing was accomplished by changing stylus or cutter size accordingly, as most patterns were 1:1, but ratios work too.
    Since parting is still profiling, it's not uncommon to chamfer edges with same cutter before depth gets too far along, using the compound. best results are when [you guessed correctly] parting tool has small corner radii and square face.
    Sincerely,
    Toolmaker51
    ...we'll learn more by wandering than searching...

  6. The Following 2 Users Say Thank You to Toolmaker51 For This Useful Post:

    marksbug (Dec 15, 2020), volodar (Dec 22, 2020)

  7. #295
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,479
    Thanks
    8,123
    Thanked 40,332 Times in 11,793 Posts
    Reconditioning a 12,000 ton press. United States Steel Corporation. 1944.

    Fullsize image: https://diqn32j8nouaz.cloudfront.net...s_fullsize.jpg

    New plans added on 12/02/2024: Click here for 2,609 plans for homemade tools.

  8. #296
    Supporting Member marksbug's Avatar
    Join Date
    Apr 2016
    Posts
    1,940
    Thanks
    776
    Thanked 383 Times in 309 Posts
    nowdays it's almost like everything is disposable... or if it's been there long enough it's replaced with better and old sent to aisa.

  9. #297
    C Tucker's Avatar
    Join Date
    Jan 2019
    Posts
    39
    Thanks
    1
    Thanked 17 Times in 9 Posts

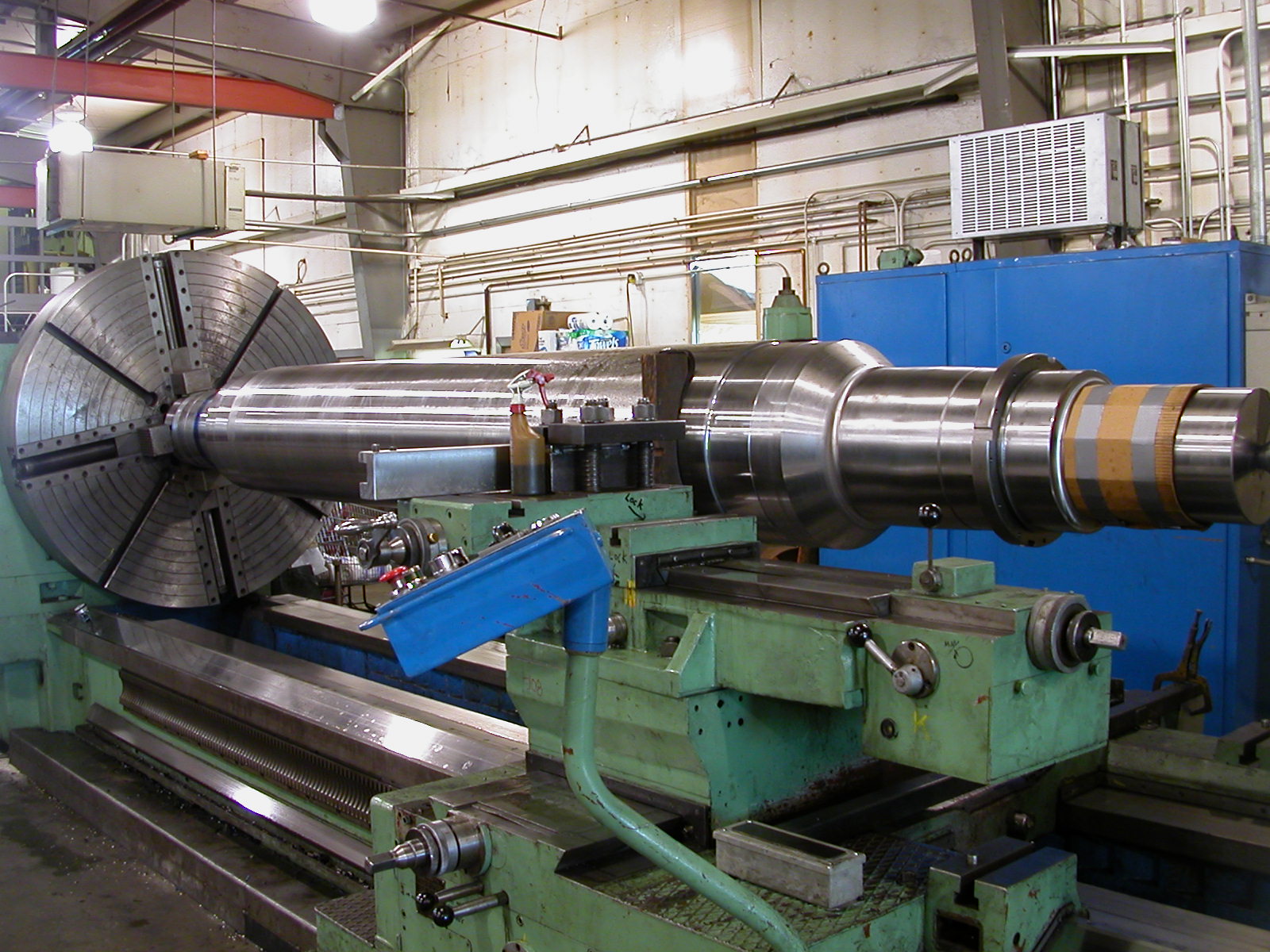

    That big lathe looks a lot like the Poreba I used to run once in awhile. Ours wasn't a tracer, but it had a 60 inch chuck and was 40 feet between centers, with 2 saddles. High-quality black-and-white photographs of large old machines and tools-dscn4465.jpg

  10. The Following 2 Users Say Thank You to C Tucker For This Useful Post:

    marksbug (Dec 21, 2020), volodar (Dec 22, 2020)

  11. #298
    Supporting Member marksbug's Avatar
    Join Date
    Apr 2016
    Posts
    1,940
    Thanks
    776
    Thanked 383 Times in 309 Posts
    that would wear me out just cleaning every night.

  12. #299
    C Tucker's Avatar
    Join Date
    Jan 2019
    Posts
    39
    Thanks
    1
    Thanked 17 Times in 9 Posts
    We had one guy that never cleaned up. If he was making a LOT of chips, he always got the gofer guy to scoop chips for him. When I had to follow him, I always wrote the time spent on my card as "clean up after xxxx".

  13. #300
    Supporting Member marksbug's Avatar
    Join Date
    Apr 2016
    Posts
    1,940
    Thanks
    776
    Thanked 383 Times in 309 Posts
    I remember those guys. we did have one machine that stayed covered in cast iron shavings.it pissed off the boss when he saw it ,till I explaned to him that is I leave the shavings there the machine wont rust...if I remove them it will...then I told him I clean it almost every day.as I was cleaning it before every use. when I left there after about 2o years that machine still looked good.a few months lator it was not quite the same..and somewhat. I miss running that shop...well I miss the equipment.
