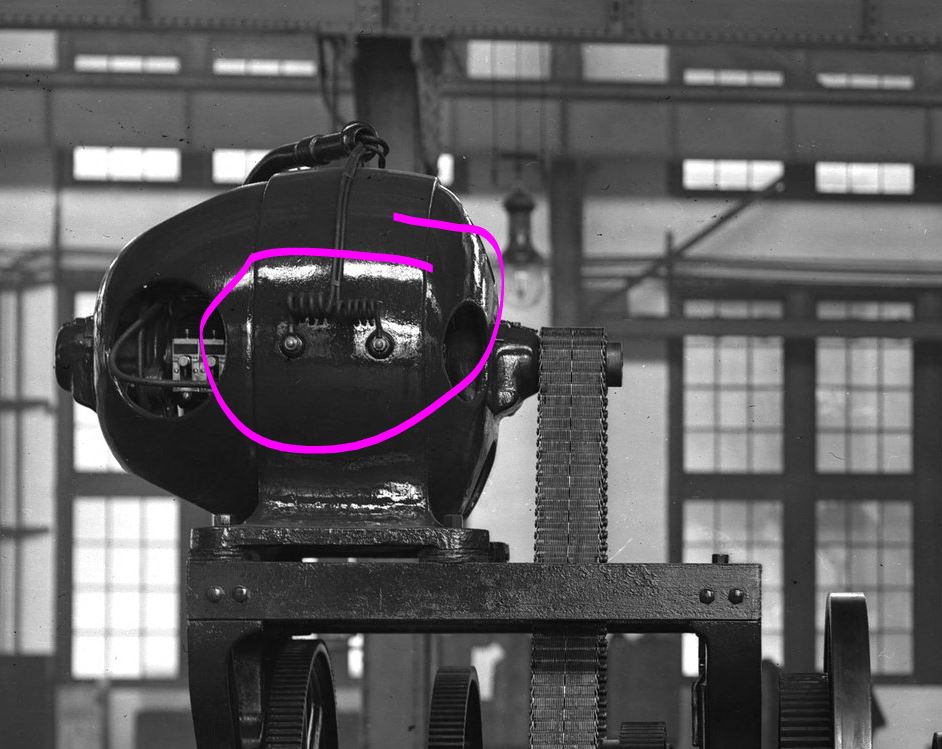

    Such attention to detail!

    High-quality black-and-white photographs of large old machines and tools-detail.jpg

    173 Best Homemade Tools eBook

  2. #472
    Supporting Member
    Join Date
    Sep 2012
    Location
    Hinchinbrook QLD
    Posts
    305
    Thanks
    41
    Thanked 126 Times in 78 Posts
    Not likely to get accidently touched. 42" lathe. That is 7-8 feet from the floor and would require you to lean in over the headstock and feed shaft.

  3. #473
    Supporting Member McDesign's Avatar
    Join Date
    Sep 2016
    Posts
    256
    Thanks
    5
    Thanked 118 Times in 63 Posts

    McDesign's Tools
    I mean the twin coils are "sexy" - that's an engineering term that means "extra effort was given to make this object aesthetically pleasing".

  4. #474
    Supporting Member NortonDommi's Avatar
    Join Date
    Jul 2014
    Location
    North Island, New Zealand.
    Posts
    694
    Thanks
    1,373
    Thanked 364 Times in 221 Posts

    NortonDommi's Tools
    There used to be a fantastic book in the local library called 'Victorian Engineering' and it had many full plate photographs of machines, buildings, bridges, canal locks etc and what always struck me as a young fella was the use of curves, arches and 'unneeded' decoration in all.
    Everything seemed to be a work of art tat not only looked right but looked beautiful as well.

  5. #475
    Supporting Member McDesign's Avatar
    Join Date
    Sep 2016
    Posts
    256
    Thanks
    5
    Thanked 118 Times in 63 Posts

    McDesign's Tools
    I know - I hate how everything in the modern world has been "value-engineered" such that there's no room for beauty.
    The 1880 hand-cranked apple-peeler that we still use is a thing of beauty; many castings, even freakin' hearts in the main gear wheel for spokes. Our modern equivalent looks like it wouldn't last ten years. We've got a cider press as well; heavy iron castings; looks like it will last a thousand years.

  6. #476
    Supporting Member
    Join Date
    Oct 2018
    Posts
    150
    Thanks
    279
    Thanked 63 Times in 41 Posts
    The curves served a purpose. With cast iron being brittle the curves gave just enough give to prevent things from breaking. This was from the moment it was cast because even the cooling process set up stresses. With steel the material is elastic enough you can make everything straight and let the steel take the strain. It might warp but it is unlikely to just snap.

  7. #477
    Supporting Member NeiljohnUK's Avatar
    Join Date
    Dec 2017
    Posts
    262
    Thanks
    27
    Thanked 105 Times in 73 Posts

    NeiljohnUK's Tools
    Quote Originally Posted by McDesign View Post
    I mean the twin coils are "sexy" - that's an engineering term that means "extra effort was given to make this object aesthetically pleasing".
    Engineered that way, the 'coils' helped alleviate vibrational stress fracturing and ensured if/when the end did fracture there was enough 'spare' to remake the end.

  8. The Following 2 Users Say Thank You to NeiljohnUK For This Useful Post:

    cmarlow (Jul 12, 2021), Toolmaker51 (Jul 18, 2021)

  9. #478
    Supporting Member Floradawg's Avatar
    Join Date
    Jul 2018
    Location
    Flora, MS
    Posts
    247
    Thanks
    181
    Thanked 44 Times in 37 Posts

    Floradawg's Tools
    Right. Handwheels are usually cast with spokes that are curved so that as the casting cools the spokes don't have stress that can cause them to possibly snap.
    Stupid is forever, ignorance can be fixed.

  10. #479
    Supporting Member
    Join Date
    Mar 2020
    Posts
    59
    Thanks
    0
    Thanked 5 Times in 4 Posts
    The exposed dry gears of the lathe engine is scary!

  11. #480
    Supporting Member
    Join Date
    Jul 2020
    Posts
    30
    Thanks
    1
    Thanked 28 Times in 15 Posts
    I found two books on eBay, Victorian Engineering by LTC Rolt and Victorian Engineering and Science by Anthony Wilson so I ordered both (used) for $15 and change. I hope one of these is the book you mentioned. I just also found (and ordered) another called "Wonders of Victorian Engineering: An Illustrated E... by Andrews" and another I may 0rder as well.
    I also highly recommend reading books on such subjects of The Great Eastern (ship) and the Brooklyn Bridge, two of the most fascinating Victorian era engineering feats I've read up on.
    Another fascinating subject is the accurate re-creation of a 150 hp Case steam traction engine by a young man who obtained copies of the original prints from Case and spent a million and a half dollars and thousands of man hours building a replica so accurate that it has some of the same problems as the originals (of which none of the nine originals survive). It is scheduled to be at the Tri-State Antique Engine & Threshers Assn. in Bird City, Kansas from July 29-31 this year. It's a show I've been associated with for decades and I'm really looking forward to seeing that engine run. There are you-tube videos of it. Its HUGE! I understand it to cost over $18,000 to get it there and home! I'm involved mostly in the letterpress print shop and somewhat in the blacksmith shop. I have one of my Linotypes in the print shop which is running (usually) to demonstrate that technology.
