Thread: Home Made Filing Machine or Die Filer

  1. #1
    Supporting Member brianhw's Avatar
    Join Date
    Dec 2015
    Posts
    41
    Thanks
    4
    Thanked 185 Times in 26 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    brianhw's Tools

    Home Made Filing Machine or Die Filer

    I made this Filing Machine from a scrap Stihl saw and various scrap bits and pieces recently and have just posted it on my YouTube channel to supplement all my other videos. All reasonable questions answered. You can see the (approximately 7 minute) video by by clicking the arrowhead below:-


  2. The Following 16 Users Say Thank You to brianhw For This Useful Post:

    Andyt (05-03-2018), bobs409 (03-30-2018), extropic (12-14-2017), farzink (01-29-2017), H.L (06-20-2016), jjr2001 (06-20-2016), Jon (06-16-2016), Mark Fogleman (06-20-2016), Neil Jensen (06-20-2016), Okapi (09-13-2016), Paul Jones (06-19-2016), rlm98253 (12-13-2017), Scotsman Hosie (04-22-2018), SRCowan (12-16-2017), Tuomas (06-16-2016), will52100 (12-16-2017)

  3. #2
    Content Editor
    Supporting Member
    DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,091
    Thanks
    476
    Thanked 1,026 Times in 944 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)


    Thanks brianhw! We've added your Filing Machine to our Metalworking category,
    as well as to your builder page: brianhw's Homemade Tools. Your receipt:




  4. #3
    Jon
    Jon is offline Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    17,195
    Thanks
    4,203
    Thanked 18,481 Times in 5,366 Posts
    Mentioned
    0 Post(s)
    Tagged
    5 Thread(s)
    Congratulations brianhw - your Filing Machine is the Tool of the Week!

    You'll be receiving one of our official HomemadeTools.net T-shirts:


    Home Made Filing Machine or Die Filer-white-tshirt-front.jpgHome Made Filing Machine or Die Filer-white-tshirt-back.jpg
    Home Made Filing Machine or Die Filer-black-tshirt-front.jpgHome Made Filing Machine or Die Filer-black-tshirt-back.jpg

    We've also added the wrench-on-pedestal award to the awards showcase in your postbit, visible beneath your username:


    Just PM me your details (size, black/white color choice, and mailing address) and we'll get your award sent out.

    Congratulations and nice job.

  5. #4
    Supporting Member McDesign's Avatar
    Join Date
    Sep 2016
    Posts
    80
    Thanks
    3
    Thanked 36 Times in 23 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    What about pressure on the back side of the tooth on the return stroke? I understand that wears files quickly.

    Was wondering - been hand-filing a lot lately -

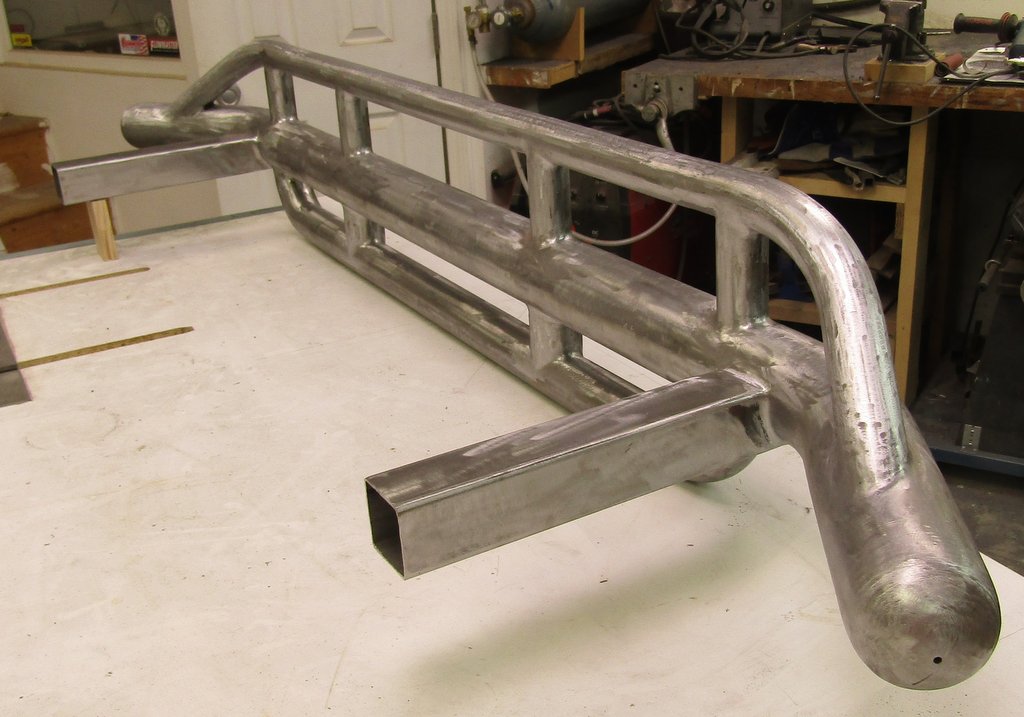

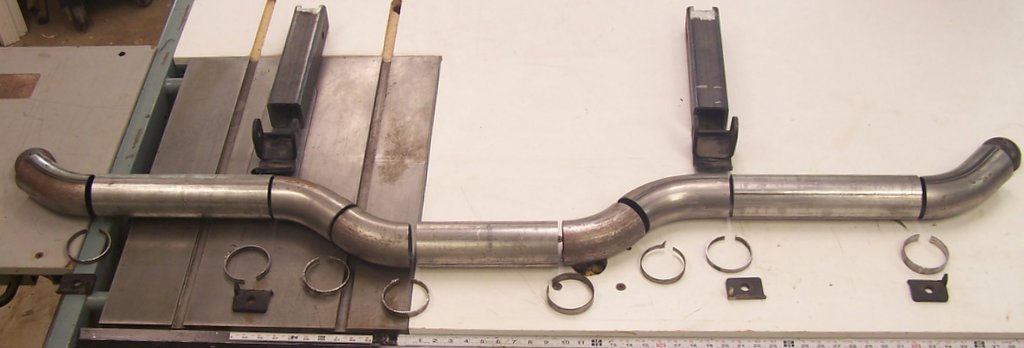

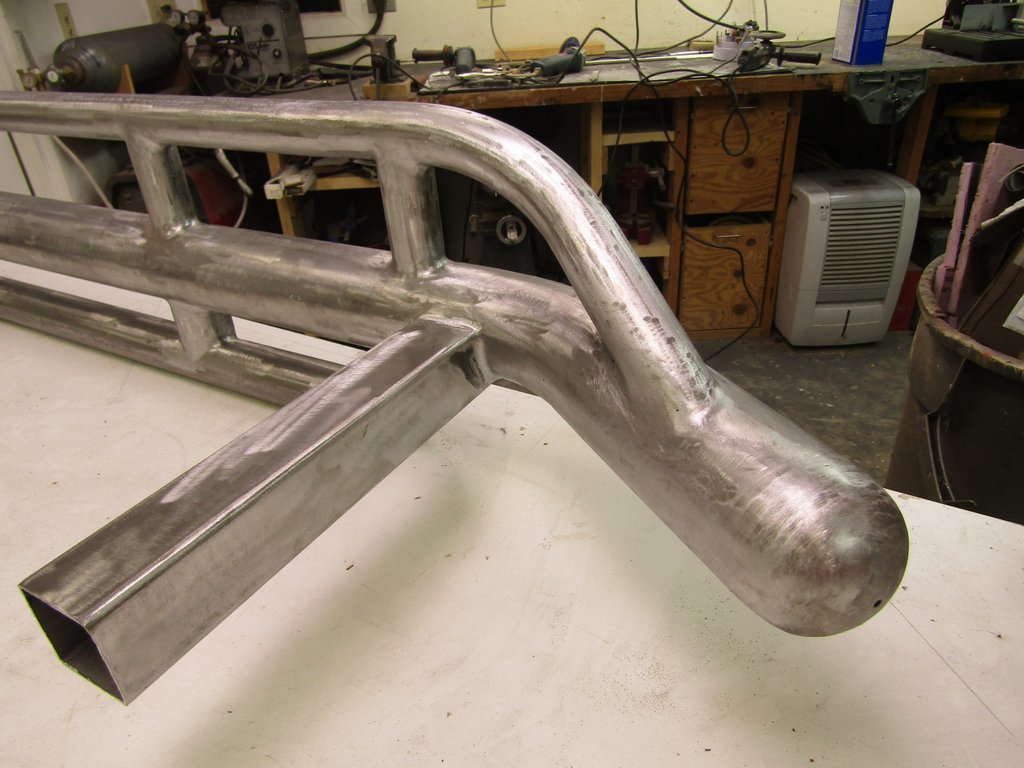

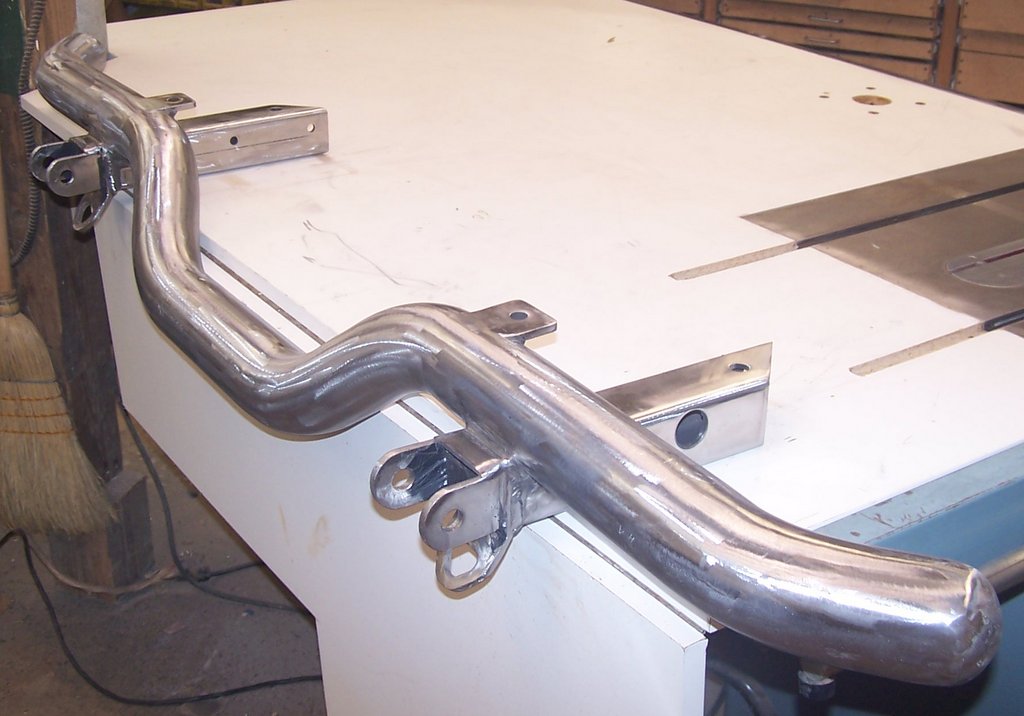

    Attached Thumbnails Attached Thumbnails Home Made Filing Machine or Die Filer-100_0979.jpg   Home Made Filing Machine or Die Filer-img_0292.jpg   Home Made Filing Machine or Die Filer-img_0293.jpg   Home Made Filing Machine or Die Filer-100_0718.jpg   Home Made Filing Machine or Die Filer-img_0208.jpg

    Home Made Filing Machine or Die Filer-100_0677.jpg

  6. #5
    Supporting Member brianhw's Avatar
    Join Date
    Dec 2015
    Posts
    41
    Thanks
    4
    Thanked 185 Times in 26 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    brianhw's Tools
    Yes, McDesign, ideally it should have a fore and aft movement like the better quality jig saws, but this was impractical to construct and in use it doesn't seem to have any noticeable adverse effects on the files. 'Rubbing wear' on files on the back stroke is widely greatly exaggerated, I think.

  7. The Following User Says Thank You to brianhw For This Useful Post:

    olderdan (12-14-2017)

  8. #6
    Supporting Member olderdan's Avatar
    Join Date
    Jun 2016
    Location
    Devon UK
    Posts
    565
    Thanks
    1,122
    Thanked 1,052 Times in 347 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    olderdan's Tools
    I have used an industrial floor standing filing machine with adjustable stroke maxing out at 6 inches, mainly used for profiling templates.
    As I recall it had a purely linear action with no back stroke relief.

  9. #7
    Supporting Member mklotz's Avatar
    Join Date
    Aug 2015
    Location
    LA, CA, USA
    Posts
    1,986
    Thanks
    161
    Thanked 3,849 Times in 1,304 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    mklotz's Tools
    If you're interested in adding backstroke relief to a filing machine Google motion picture projector film advance mechanisms.

    A given frame of the film must sit stationary in the gates for a short period of time while the advance mechanism pulls back and reaches down/up for a new frame to replace the stationary one being projected.

    There are many mechanical arrangements for doing this push/pull, backoff, rise/fall, reengage sequence. I'm familiar with a D-drive implementation and another based on the Reuleaux triangle (of rotary engine fame) but there are probably dozens others.
