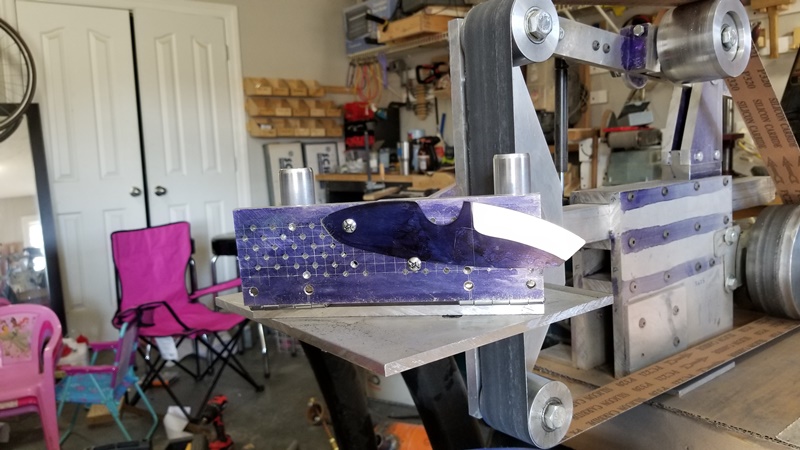

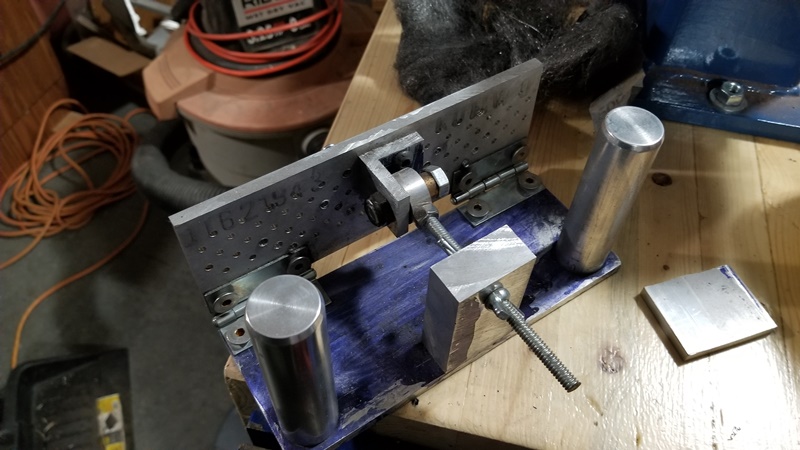

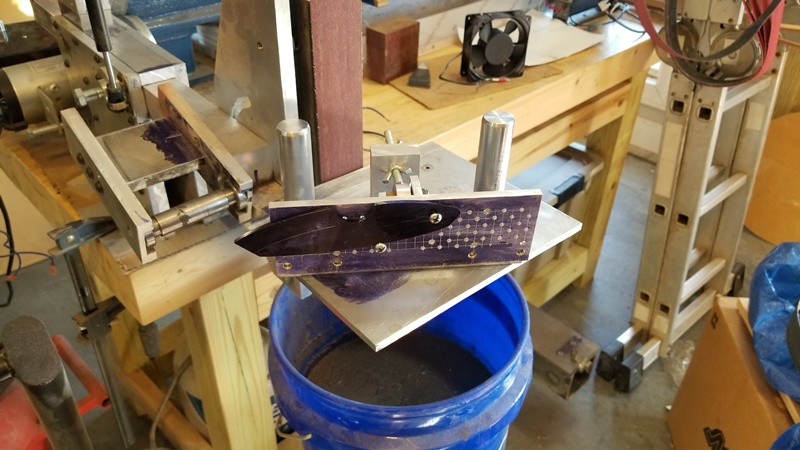

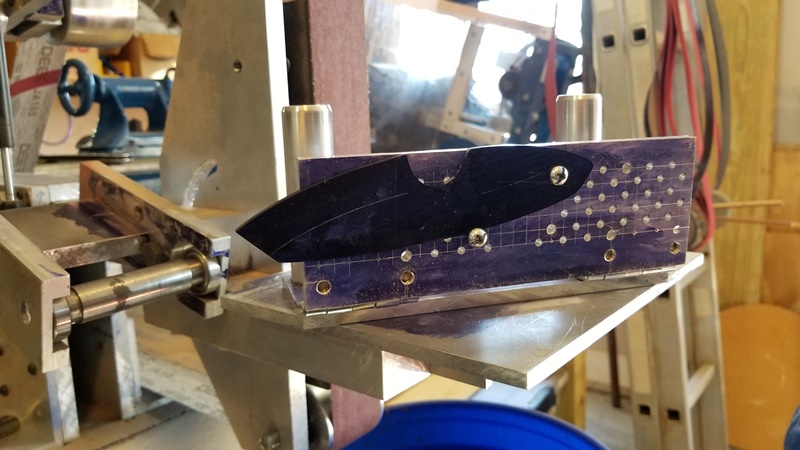

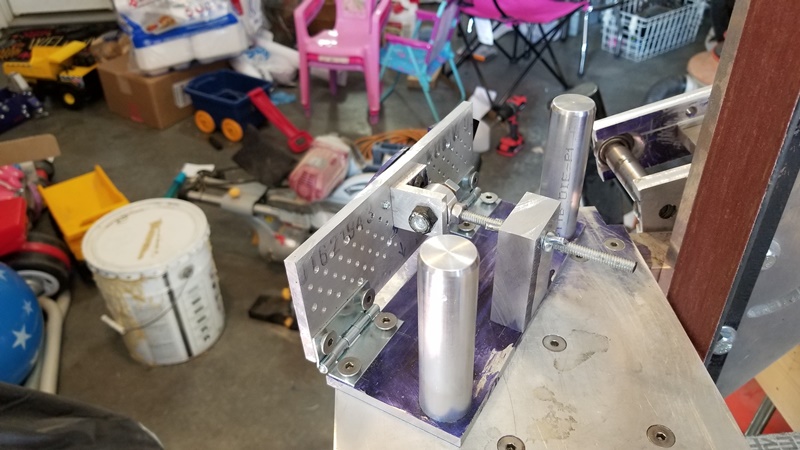

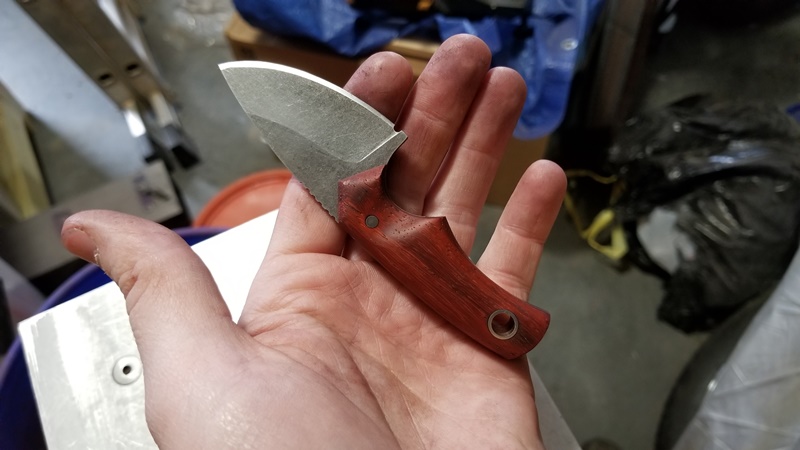

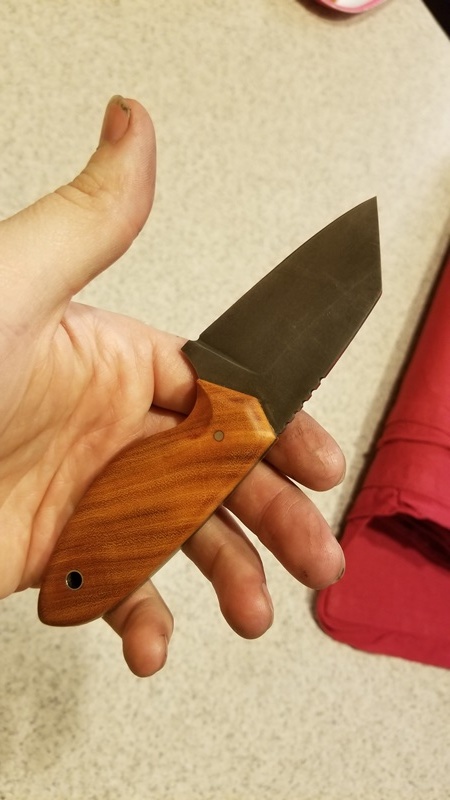

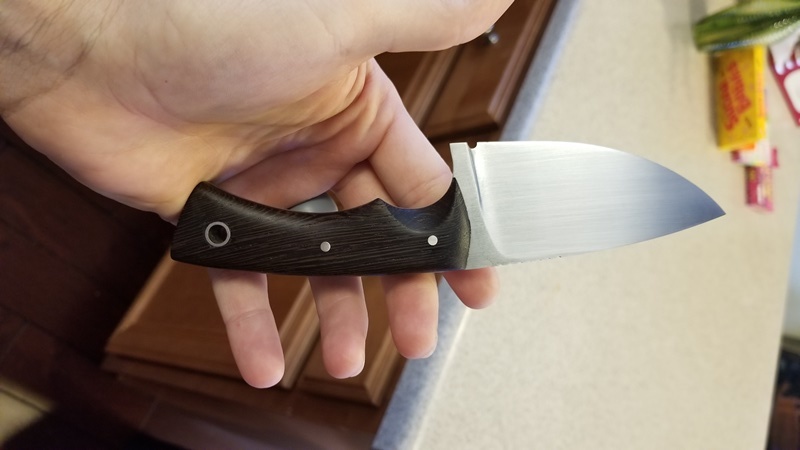

This is a knife bevel grinding jig that I made for my 2x72 belt grinder. It is adjustable. It is made from (2) 1/4" sheets of aluminum. The front plate is drilled and tapped to hold knifes in different orientations. The angle is set with 2 wing nuts that jam against the rear vertical.
