Mini Lathe 4” 4Jaw Modification

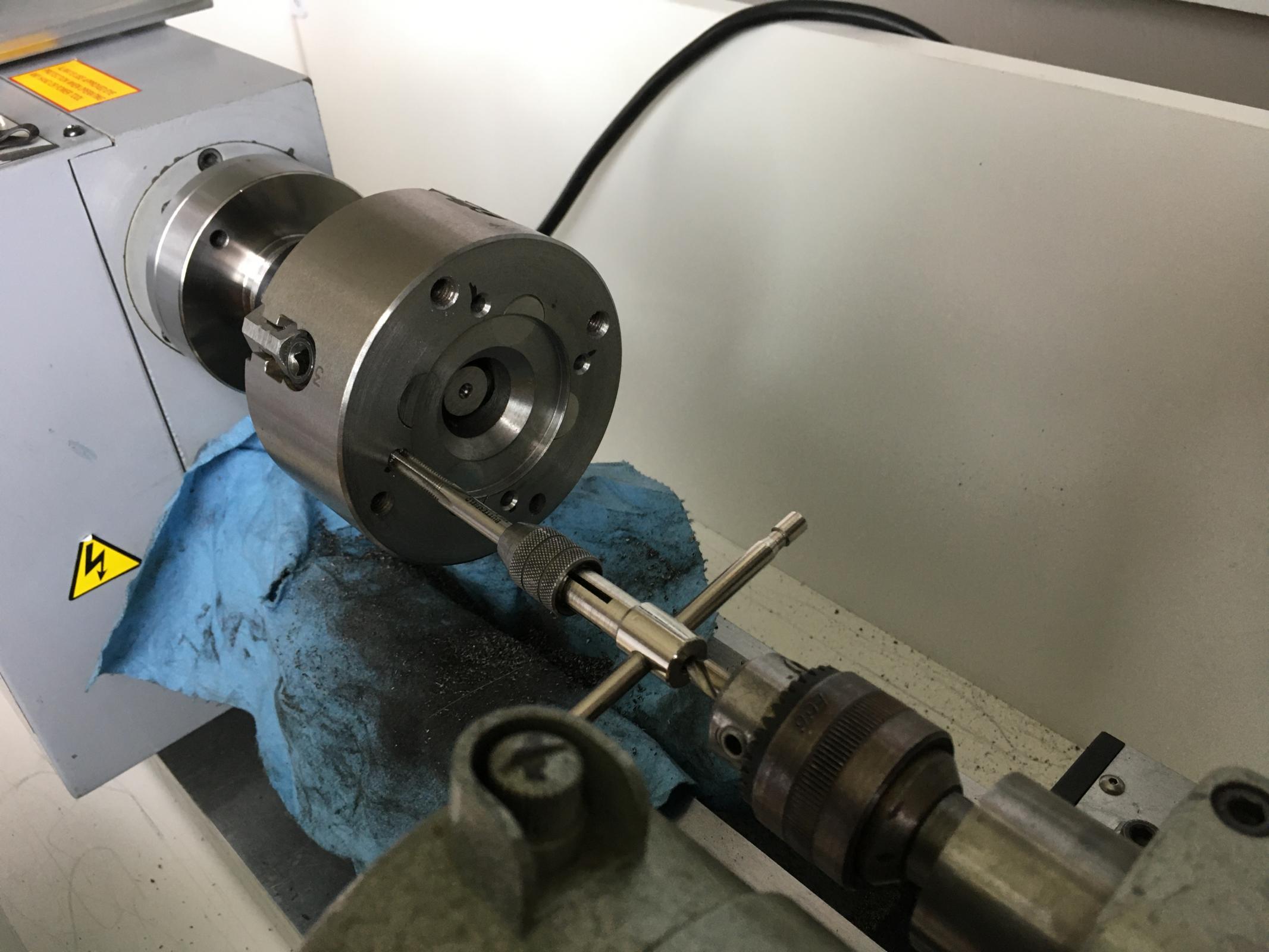

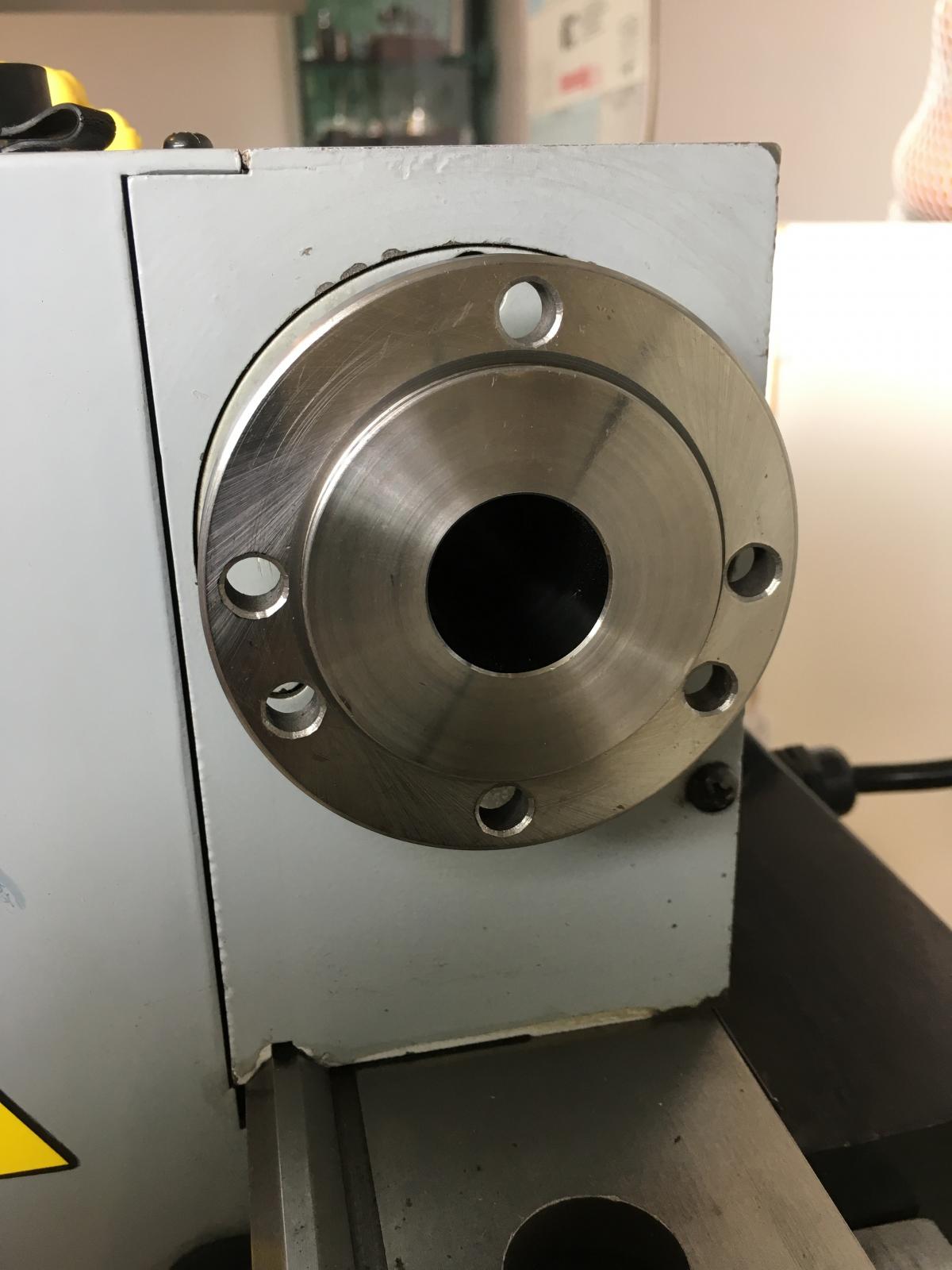

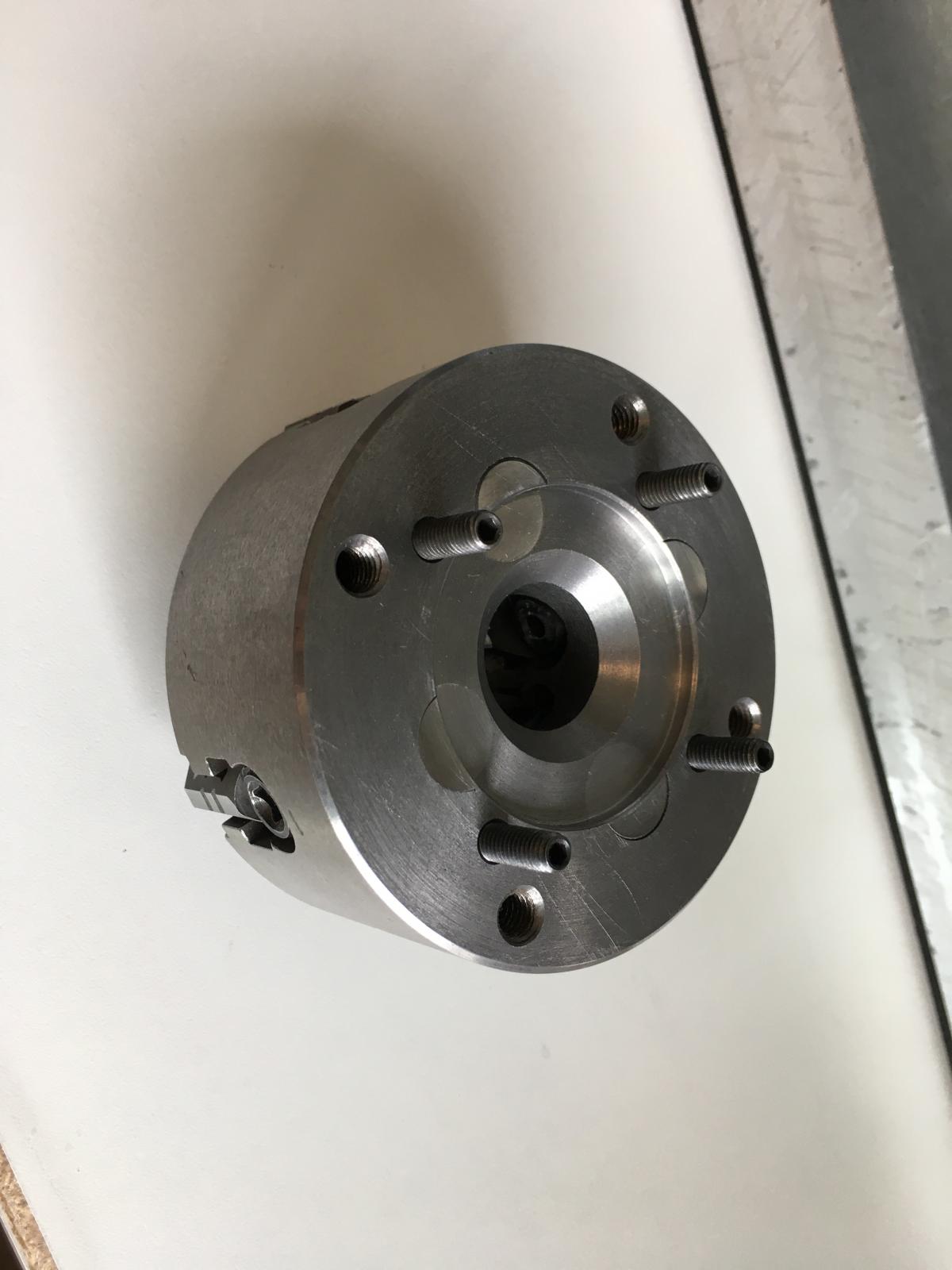

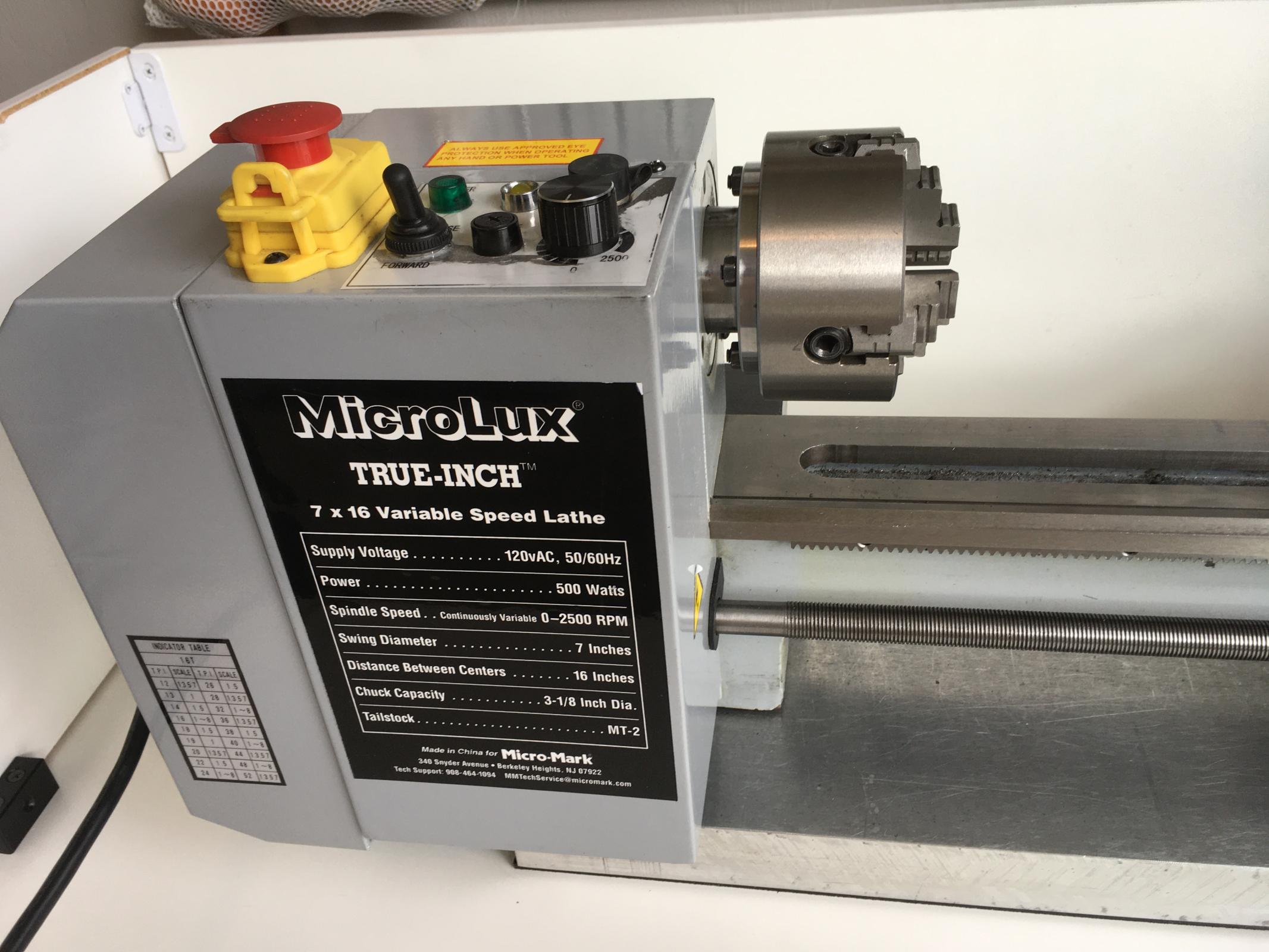

Attachment 39102Attachment 39102Attachment 39099Attachment 39098Attachment 39096I modified my 4” 4 jaw chuck for my mini lathe. I was able to eliminate the adapter plate and machine out the back end of the chuck to allow direct mounting of the chuck. I added four new M6 mounting studs to fit the the spindle flange 4 hole mounting pattern. The overall chuck stack up thickness was reduced from 2-3/4” to 1-7/8”. The job went very well and I encountered no difficulty. The weight was reduced from 8.5 pounds to 6 pounds.[IMG]google drive[/IMG]Attachment 39093Attachment 39095Attachment 39096Attachment 39097Attachment 39098

Nice work, getting rid of rotating mass and a good thing to be able to use all the bed length you can.

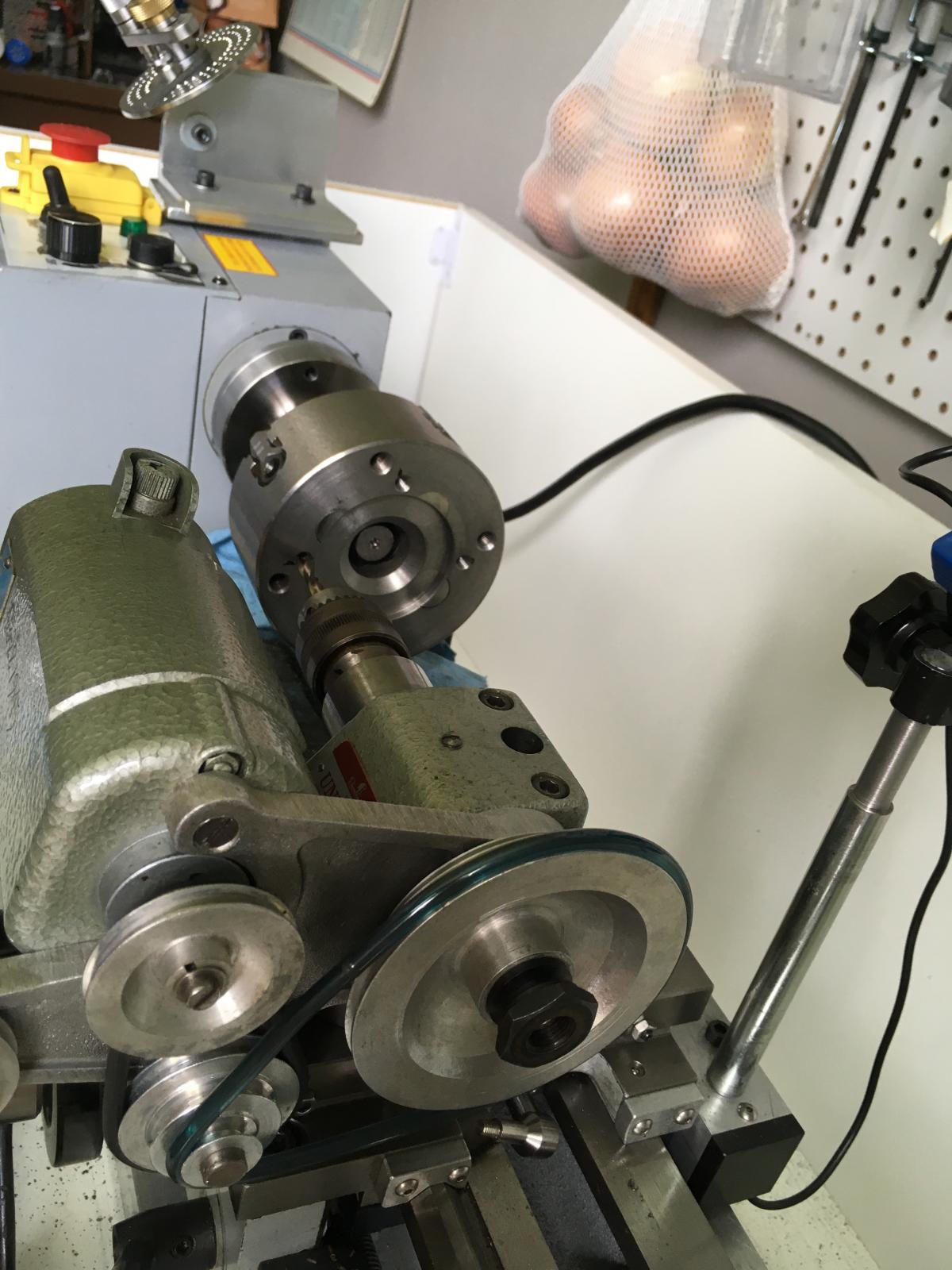

A pic (or link to another HMT post?) of your cross slide (Unimat?) tailstock arrangement

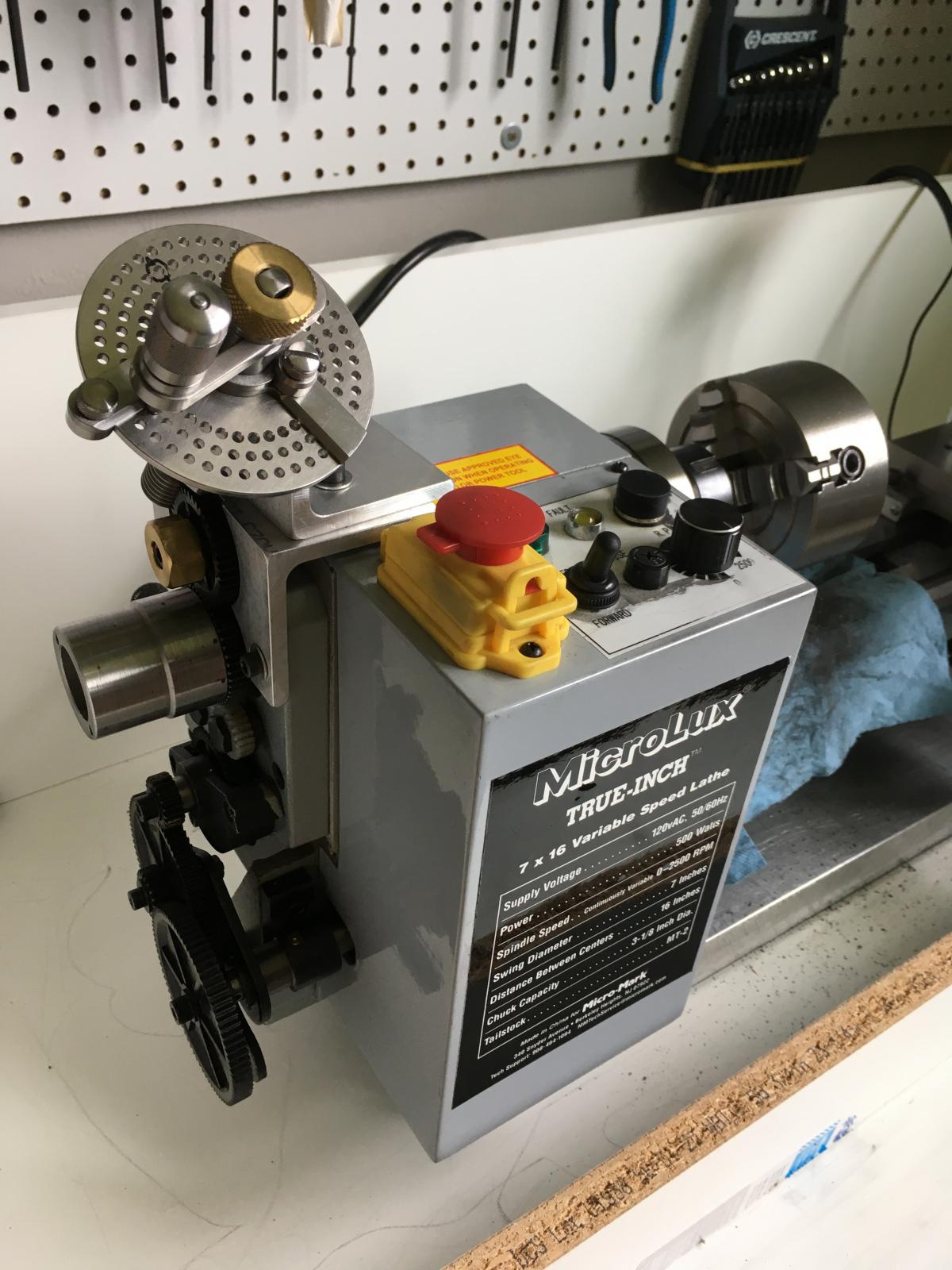

as glimpsed in lower right corner of your last pic would be much appreciated.

Keep up the good work and ATB

Johan

<!-- BEGIN /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Thanks old_toolmaker! We've added your Lathe Chuck Modification to our Lathes category,
as well as to your builder page: old_toolmaker's Homemade Tools. Your receipt:

<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/homemade-lathe-chuck-modification"> <img src="/uploads/248312/homemade-lathe-chuck-modification.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/homemade-lathe-chuck-modification">Lathe Chuck Modification</a> <span> by <a href="https://www.homemadetools.net/builder/old_toolmaker">old_toolmaker</a></span> </div> <div class="tags">tags: <a href='https://www.homemadetools.net/tag/lathe'>lathe</a>, <a href='https://www.homemadetools.net/tag/chuck'>chuck</a>, <a href='https://www.homemadetools.net/tag/modification'>modification</a> </div> </div> </div> </div>
<!-- END /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->

DYI Swede,
Thank you for your nice comments!
I had some issues with posting the pictures. I will try to get a few more sometime today.

The issue I have is with the size of the image file. I am going to use an app to reduce the size in Mb to under 2 Mb.
I am looking for a good app.

Dick, I use a free download viewer, that lets you resize the photo, and then save it to what ever directory you want.
https://www.irfanview.com/
There's a choice of 32 or 64 bit programs. It will install, then any jpg you select will be opened. Then if you click on the top tool bar "Image", "Resize/Resample" you can select the downsample. Then save as to where you want it kept, I usually write to same directory, and change the name, so I don't overwrite the original.

Quote:

---

Originally Posted by old_toolmaker

The issue I have is with the size of the image file. I am going to use an app to reduce the size in Mb to under 2 Mb.
I am looking for a good app.

---

A decent online tool is here Simple Image Resizer, resize online images without losing quality

Windows 10 Photos app does this easily and well: https://www.groovypost.com/howto/use...resize-images/

Also Irfanview for just about any version of Windows lets you set the desired file size. https://www.irfanview.com

Thanks for the help with resizing photos.

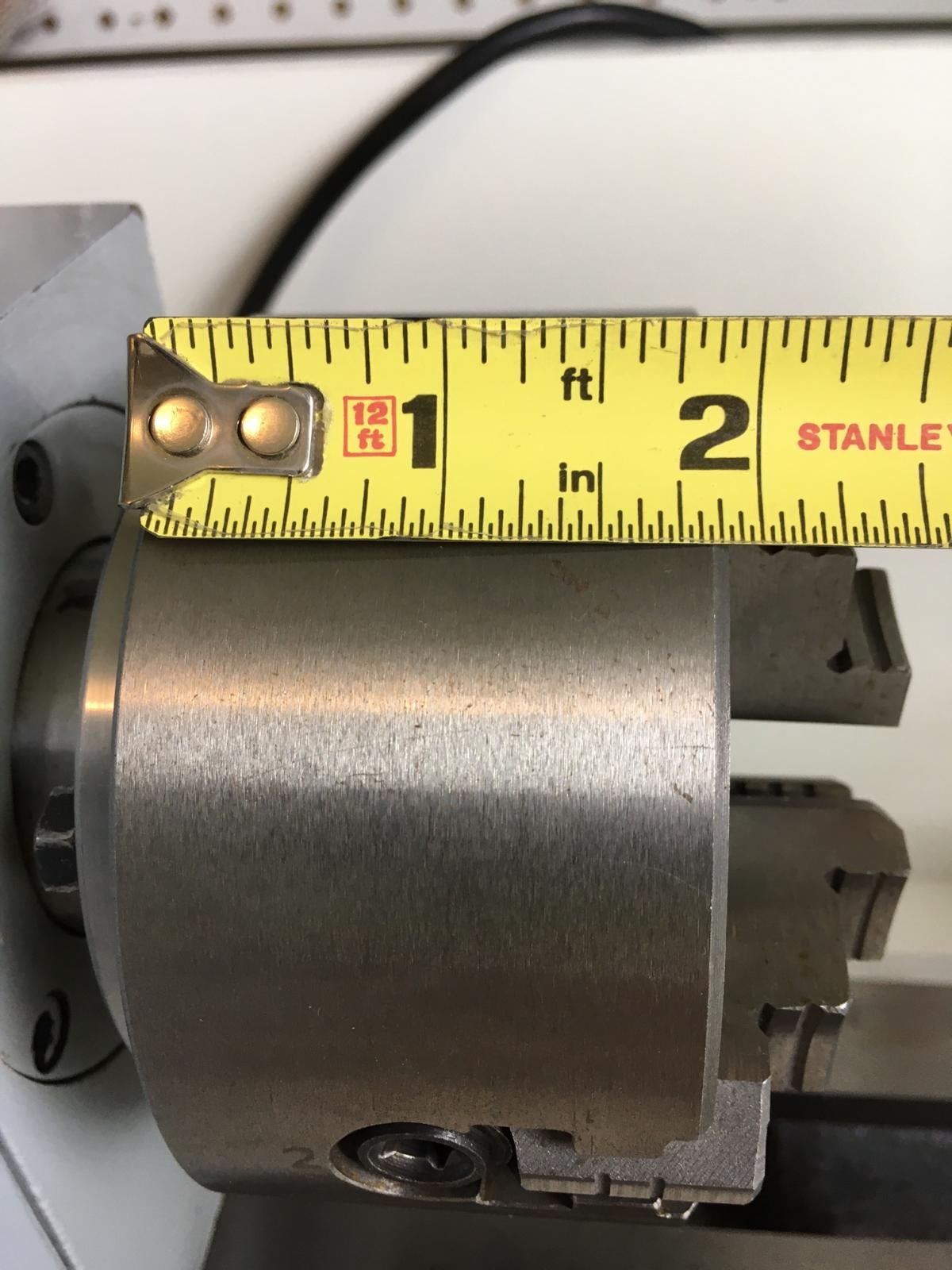

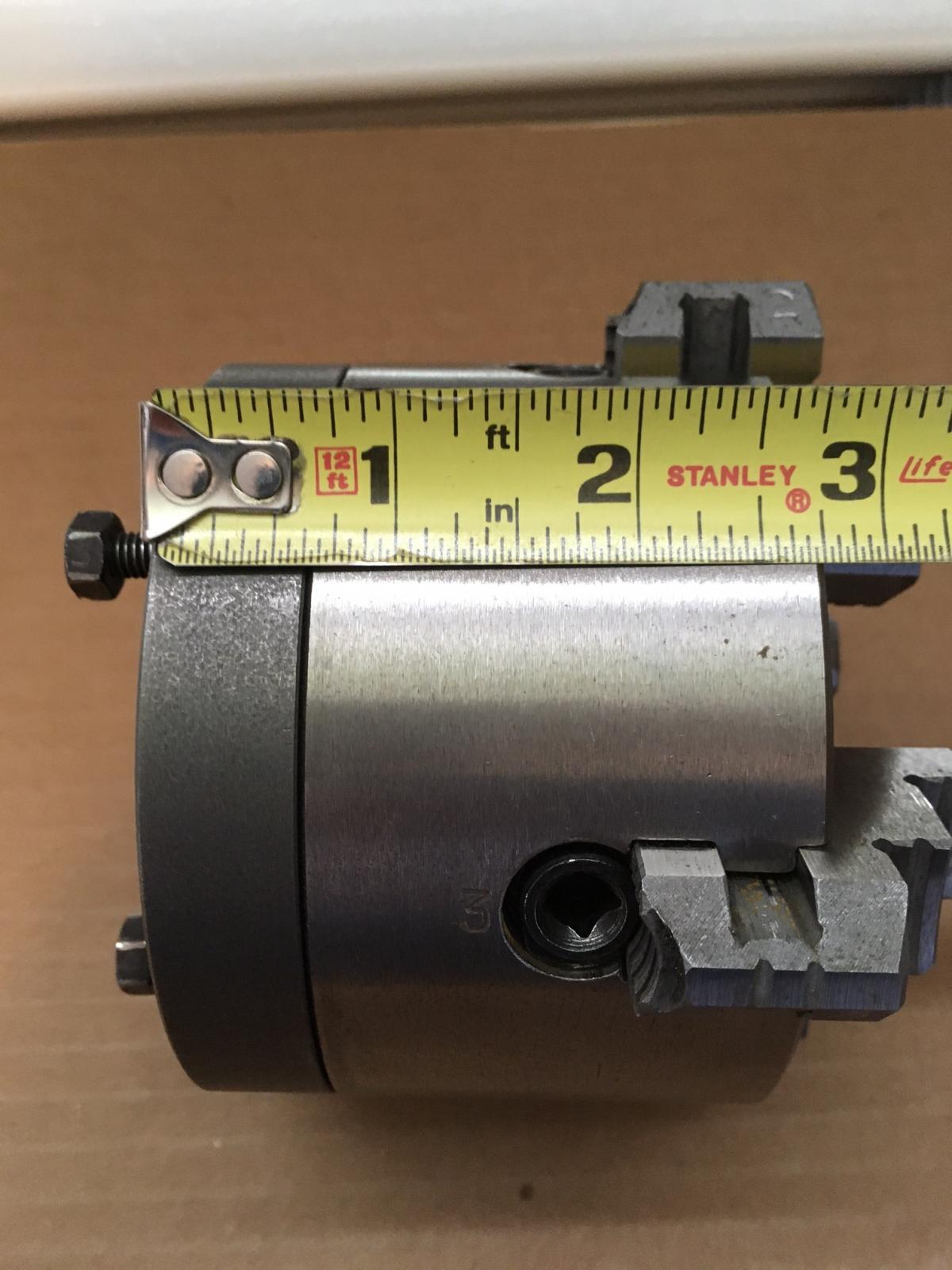

I have attached 2 new photos. I hope this shows the before and after dimensions.
