My automatically retractible interior threading tool

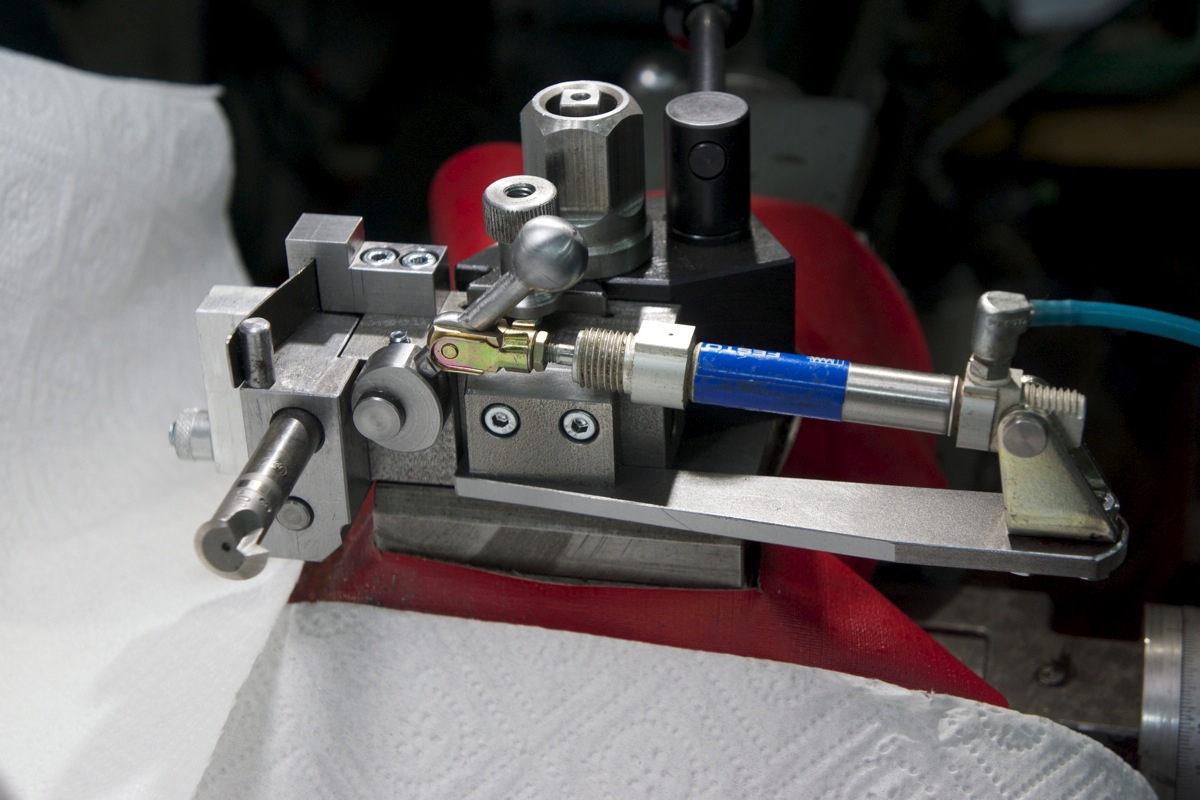

Here is my last creation on a Tripan 111 basis, an interior threading tool with manual or pneumatic retraction of the tool, the command of the pneumatic device is simply made with a bistable ditributor commanded with a pneumatic mini Festo detector.
Attachment 3919

And you can see all pictures of the system here : porte-outil de filetage intérieur à dégagement automatisé | lecollectionneur.ch | Pierre_G.

This is the final version after a lot of different models which have always something not perfect for my use, here is the still improvable version but yet it makes the job as I need and want !

Thanks Okapi! I've added your Interior Threading Tool to our Lathe Accessories category, as well as to your builder page: Okapi's Homemade Tools. Your receipt:

<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://www.homemadetools.net/interior-threading-tool"><img src="http://www.homemadetools.net/uploads/122411/interior-threading-tool.jpeg" /></a></div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://www.homemadetools.net/interior-threading-tool">Interior Threading Tool</a> <span> by <a href="/builder/Okapi">Okapi</a></span> </div> <div class="tags">tags: <a href="http://www.homemadetools.net/tag/lathe">lathe</a>, <a href="http://www.homemadetools.net/tag/threading">threading</a></div> </div> </div> </div>

Thanks kbalch for your attention.:hattip:

Well thought out and executed. I should take a refresher course in pneumatics. Totally forgot the programming part.

Al

It's very easy to use, you need just a bistable disributor, a pneumatic command on the lathe when you're at the end of the threading and a push button for the return of the tool in usable position, but you can make that mecanically as I've made my exterior automatic threading tool.

That's a fascinating build! Thanks for posting.

Hi
As I've made a lot of modifications, some new pictures are coming.
Have a nice day and thanks for your interest.
Pierre

The link with all my Tripan tools specially made for my use : http://www.lecollectionneur.ch/po-tripan/
