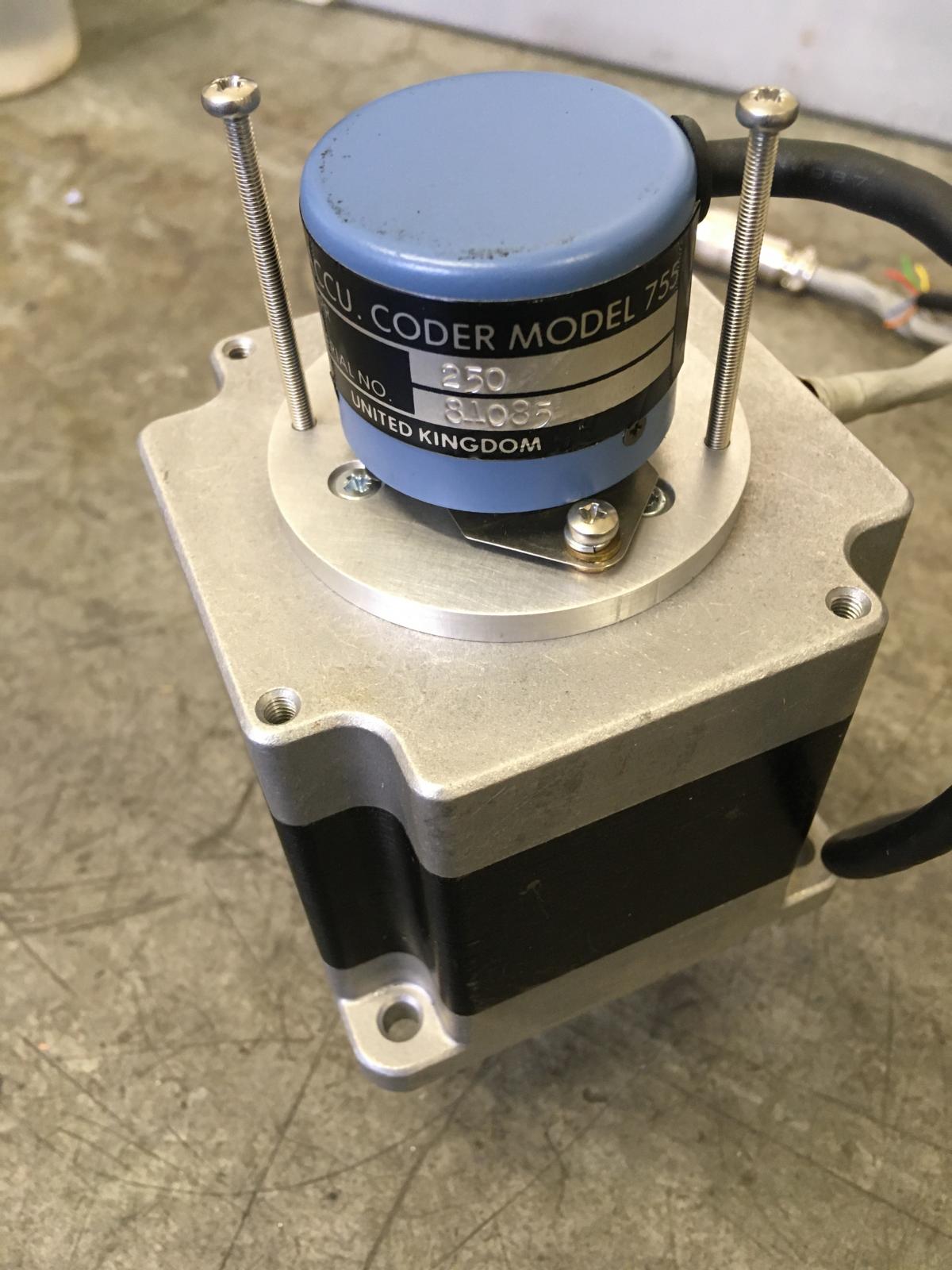

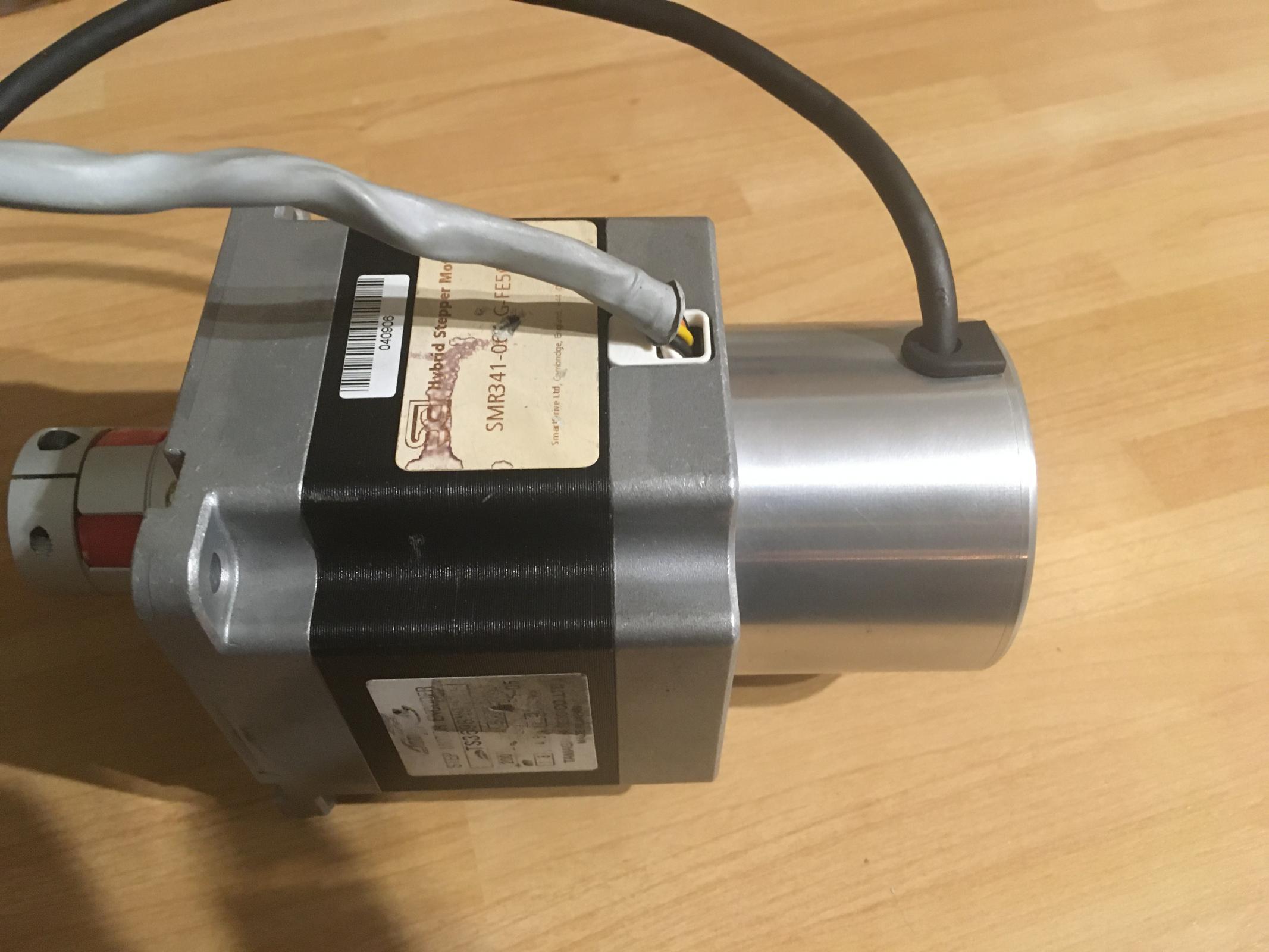

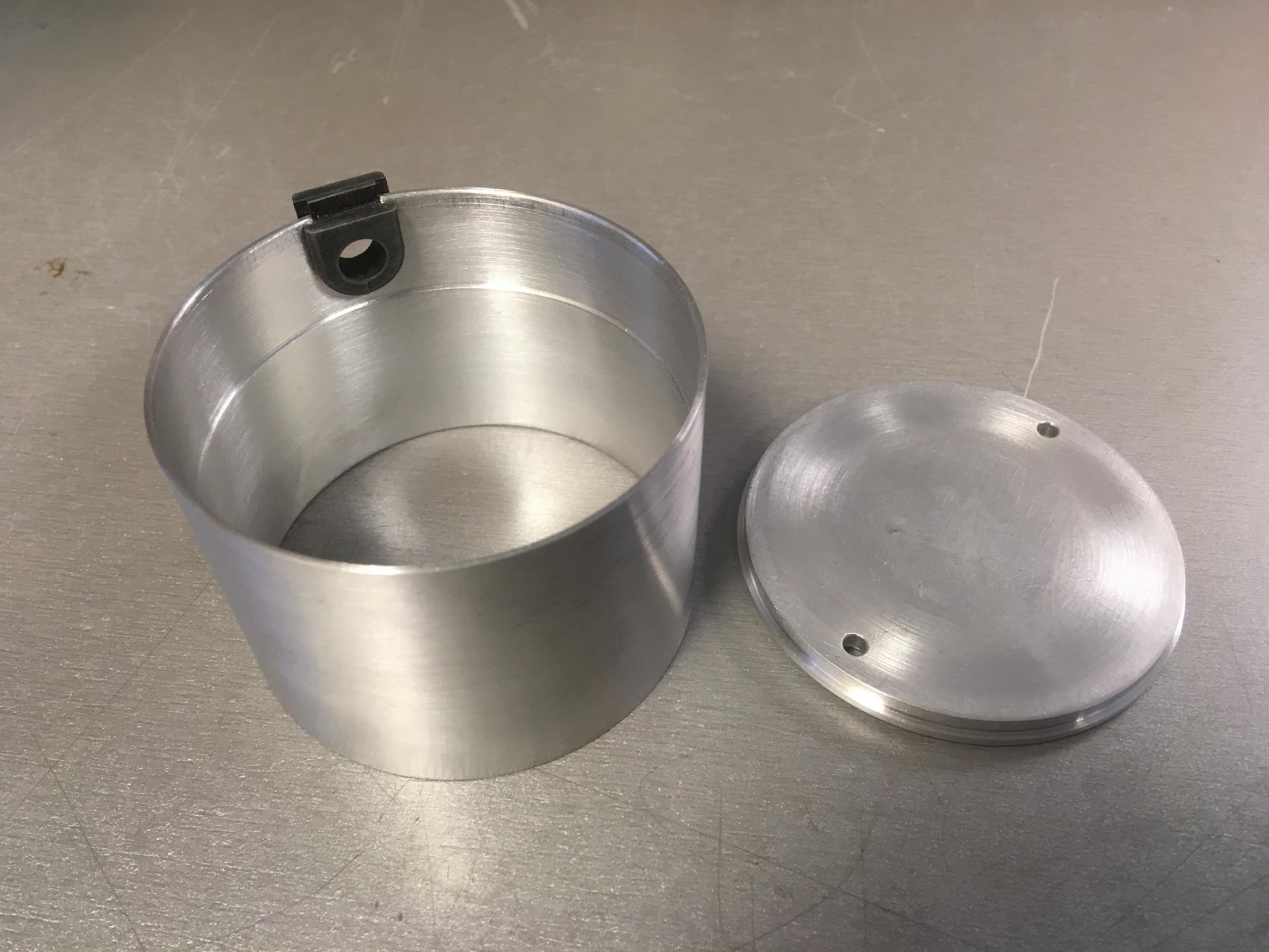

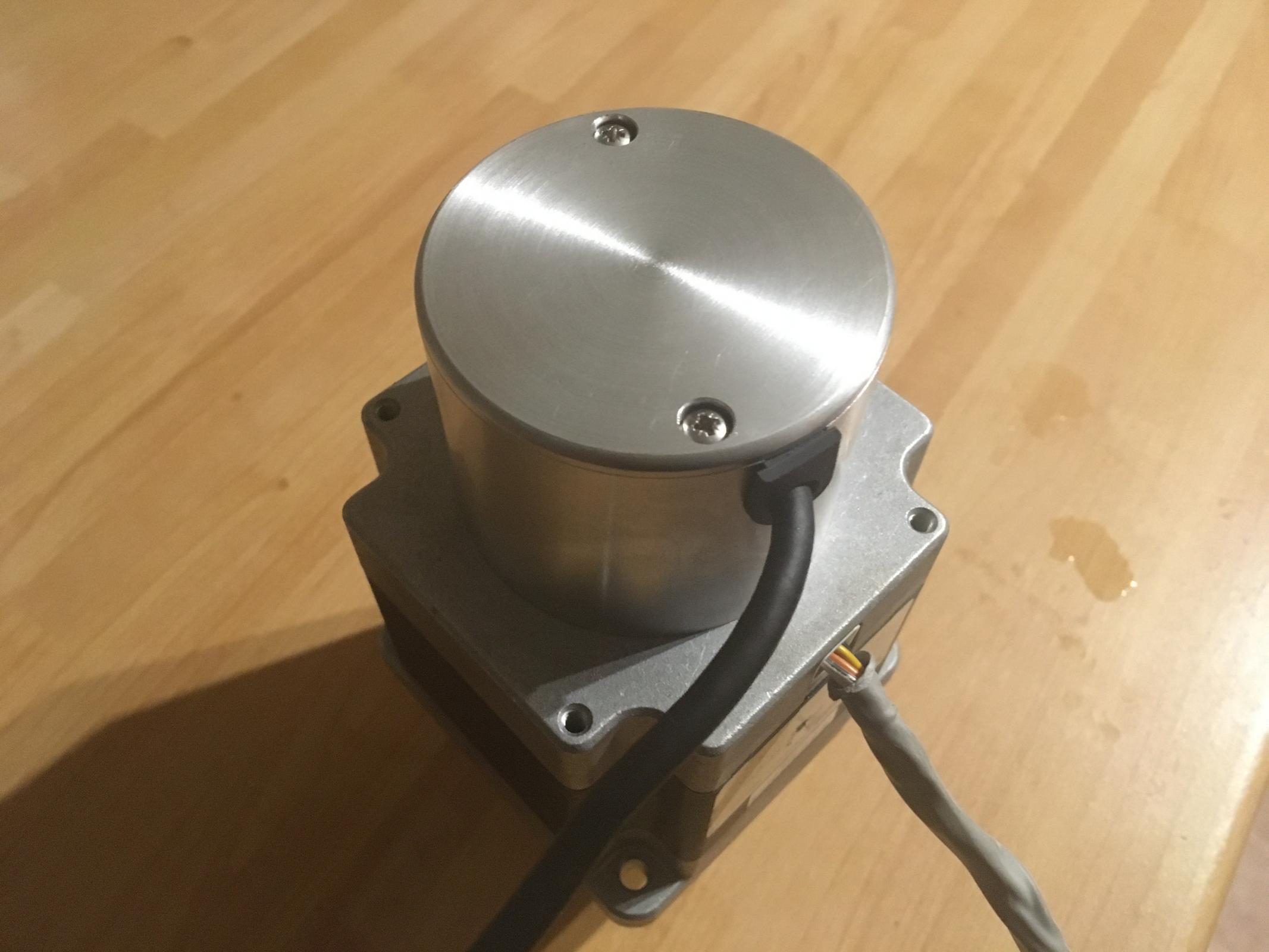

This is a two piece aluminium cover to protect a stepper motor encoder, when it is finally fitted to the rotary table project I am currently working on.
Attachment 32268 Attachment 32269 Attachment 32270 Attachment 32274
thank you for viewing
The Home Engineer
<!-- BEGIN /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Thanks thehomeengineer! We've added your Stepper Motor Cover to our CNC category,
as well as to your builder page: thehomeengineer's Homemade Tools. Your receipt:
<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/homemade-stepper-motor-cover"> <img src="/uploads/228158/homemade-stepper-motor-cover.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/homemade-stepper-motor-cover">Stepper Motor Cover</a> <span> by <a href="https://www.homemadetools.net/builder/thehomeengineer">thehomeengineer</a></span> </div> <div class="tags">tags: <a href='https://www.homemadetools.net/tag/cnc'>CNC</a>, <a href='https://www.homemadetools.net/tag/motor'>motor</a> </div> </div> </div> </div>
<!-- END /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Cool. With my friends we are assessing to develop a board to control a stepper motor with encoder feedback to make a closed loop driver, what driver are you planning to use?
Hi
I was very lucky to be given a expensive controller but I have used a cheap Micro-step Driver Controller TB6600 from Ebay. I am going to build a CNC mill (eventually:confused:) so will use the better controller on that project for a fourth axis.
To control the counts of the encoder I have used an Arduino Nano and the rest is driven via an Arduino Mega. I wish I could take credit for all the work but I have a great 4th year electronics apprentice working in our Lab at the moment and with out his input and help with the programming and wiring issues I have come up against, this project would probably be in a bottom draw or a cupboard, never to be seen again. To see the stepper motor move and the encoder count is fantastic :thumbsup:.
Until I made a catastrophic error in wiring the encoder to the motor supply and blowing the two chips on the encoder PCB:brickwall:.
At the time of writing this we are changing the chips (when I say we, I mean the royal we :smash:)
I think we will overcome this miner little incident by replacing the two blown chips with new ones. Again when I say miner incident I was so cross with myself as it was all working yesterday and only needed tidying up and a coupling making to join the stepper motor to rotary table.
Not sure Claudio HG if this has answered your question :headscratch:
Yes it had, and even has added a good conversational feeling :)Quote:
Originally Posted by thehomeengineer
Cheers from the Alps, Claudio.
