    V Twin Solenoid Motor

    I made this some time ago, but it just always makes me smile and so ran it tonight and made a short video



    Some more details of the solenoid v-twin are here along with some still images of the detailed design.

    It doesn't generate much torque, but would be interesting to re-design as a more powerful motor

    186 More Best Homemade Tools eBook

  2. The Following 7 Users Say Thank You to editor@glue-it.com For This Useful Post:

    baja (Apr 25, 2020), Jon (Apr 24, 2020), Karl_H (Apr 25, 2020), KustomsbyKent (Apr 24, 2020), mklotz (Apr 24, 2020), Slim-123 (Apr 24, 2020), Tonyg (Apr 25, 2020)

  3. #2
    Supporting Member baja's Avatar
    Join Date
    Dec 2017
    Posts
    249
    Thanks
    7,599
    Thanked 81 Times in 59 Posts

    baja's Tools
    That would be a 2-stroke?

    2000 Tool Plans

  4. #3
    Supporting Member editor@glue-it.com's Avatar
    Join Date
    Apr 2017
    Location
    UK
    Posts
    291
    Thanks
    40
    Thanked 476 Times in 136 Posts

    editor@glue-it.com's Tools
    Quote Originally Posted by baja View Post
    That would be a 2-stroke?

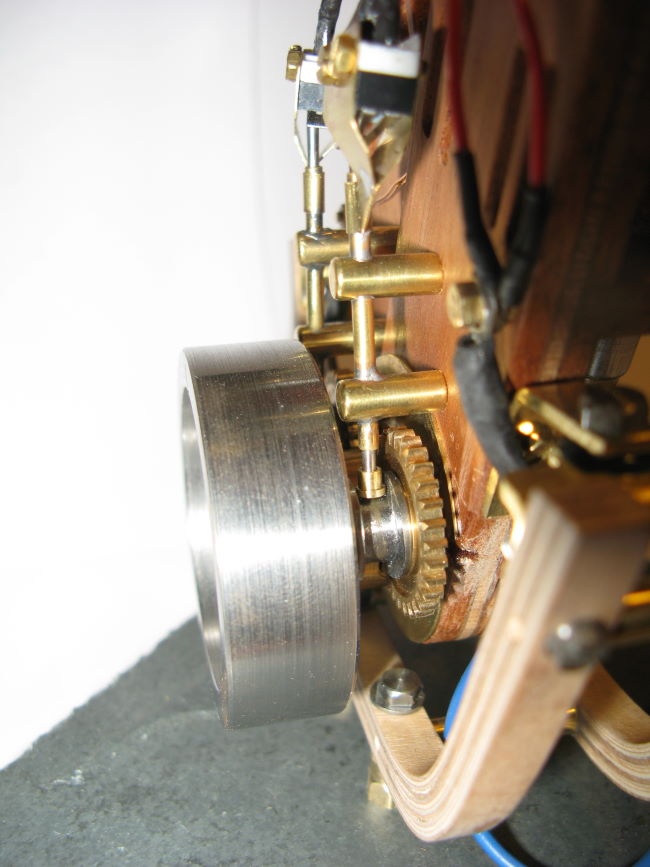

    Hello Baja, this is actually a 4 stroke, the switches are driven from cams that are geared 2:1 from the crankshaft. Hopefully the image below helps:

    V Twin Solenoid Motor-img_7840.jpg

  5. The Following 2 Users Say Thank You to editor@glue-it.com For This Useful Post:

    baja (Apr 26, 2020), ridley (Apr 25, 2020)

  6. #4
    Supporting Member baja's Avatar
    Join Date
    Dec 2017
    Posts
    249
    Thanks
    7,599
    Thanked 81 Times in 59 Posts

    baja's Tools
    Nice attention to detail.

  7. The Following User Says Thank You to baja For This Useful Post:

    editor@glue-it.com (Apr 27, 2020)

  8. #5
    Supporting Member editor@glue-it.com's Avatar
    Join Date
    Apr 2017
    Location
    UK
    Posts
    291
    Thanks
    40
    Thanked 476 Times in 136 Posts

    editor@glue-it.com's Tools

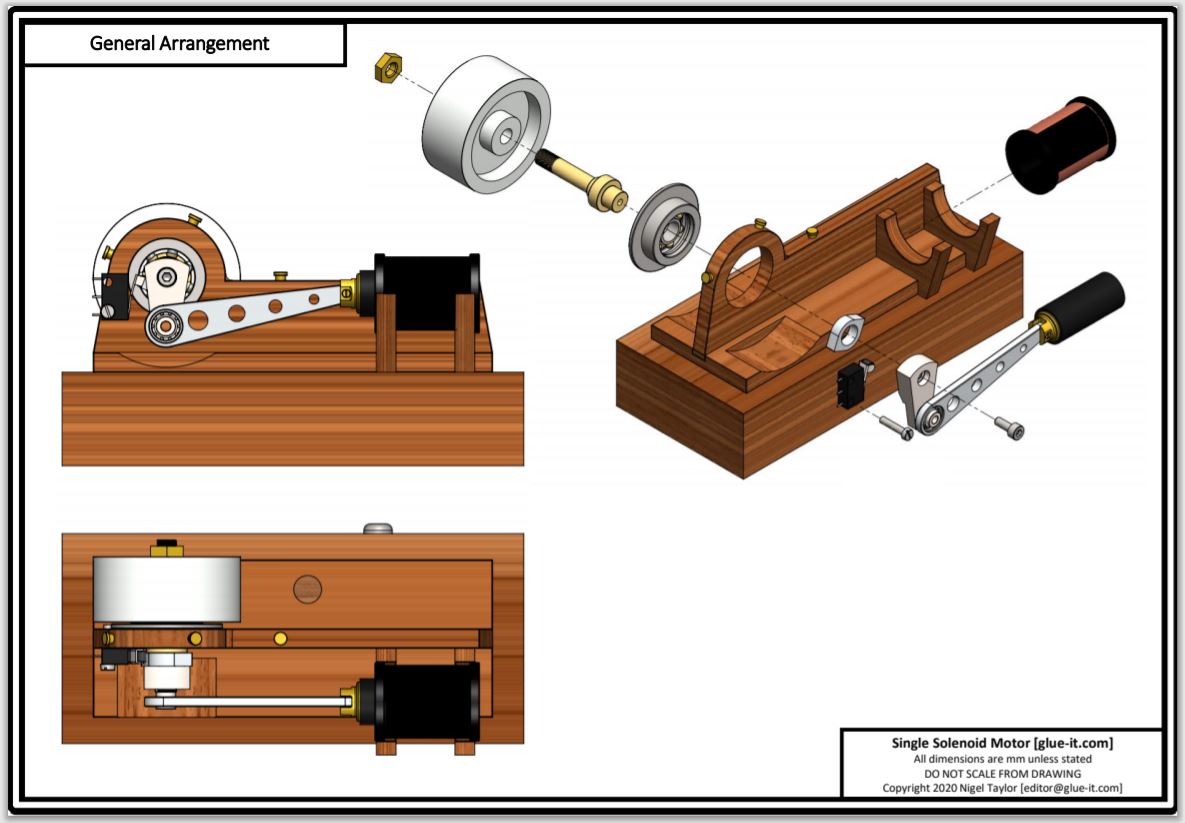

    I've finally managed to complete the plans for this motor/executive toy

    V Twin Solenoid Motor-single-piston-solenoid-motor.jpg

  9. The Following User Says Thank You to editor@glue-it.com For This Useful Post:

    baja (May 11, 2020)

  10. #6
    Supporting Member editor@glue-it.com's Avatar
    Join Date
    Apr 2017
    Location
    UK
    Posts
    291
    Thanks
    40
    Thanked 476 Times in 136 Posts

    editor@glue-it.com's Tools
    A short video of this little model solenoid motor running


    So simple to make and great fun if you're just wanting to get back into machining something

  11. The Following 3 Users Say Thank You to editor@glue-it.com For This Useful Post:

    baja (May 17, 2020), FEM2008 (May 18, 2020), GedB (May 18, 2020)

  12. #7
    Supporting Member editor@glue-it.com's Avatar
    Join Date
    Apr 2017
    Location
    UK
    Posts
    291
    Thanks
    40
    Thanked 476 Times in 136 Posts

    editor@glue-it.com's Tools
    Sat watching my model solenoid motor on the desk and thought that this is a great example that shows the bearing fundamental train frequency, so had to video it in slow motion to share with you all.



    Also, note that the switch is following the cam very closely with little bounce

  13. #8
    Supporting Member editor@glue-it.com's Avatar
    Join Date
    Apr 2017
    Location
    UK
    Posts
    291
    Thanks
    40
    Thanked 476 Times in 136 Posts

    editor@glue-it.com's Tools
    Thought I would talk through how this strange little electric motor works:


  14. The Following User Says Thank You to editor@glue-it.com For This Useful Post:

    Floradawg (Aug 27, 2021)

  15. #9
    Supporting Member editor@glue-it.com's Avatar
    Join Date
    Apr 2017
    Location
    UK
    Posts
    291
    Thanks
    40
    Thanked 476 Times in 136 Posts

    editor@glue-it.com's Tools
    I've been looking at improvements to the solenoid motor. The first thing I tried was magnetic confinement, I think you will agree this improves it.



    I have a few more ideas on the list, but please do add more and I will see what I can do.

  16. The Following 4 Users Say Thank You to editor@glue-it.com For This Useful Post:

    FEM2008 (Aug 24, 2021), Floradawg (Aug 27, 2021), Inner (Aug 25, 2021), johncg (Aug 25, 2021)

  17. #10
    Supporting Member editor@glue-it.com's Avatar
    Join Date
    Apr 2017
    Location
    UK
    Posts
    291
    Thanks
    40
    Thanked 476 Times in 136 Posts

    editor@glue-it.com's Tools

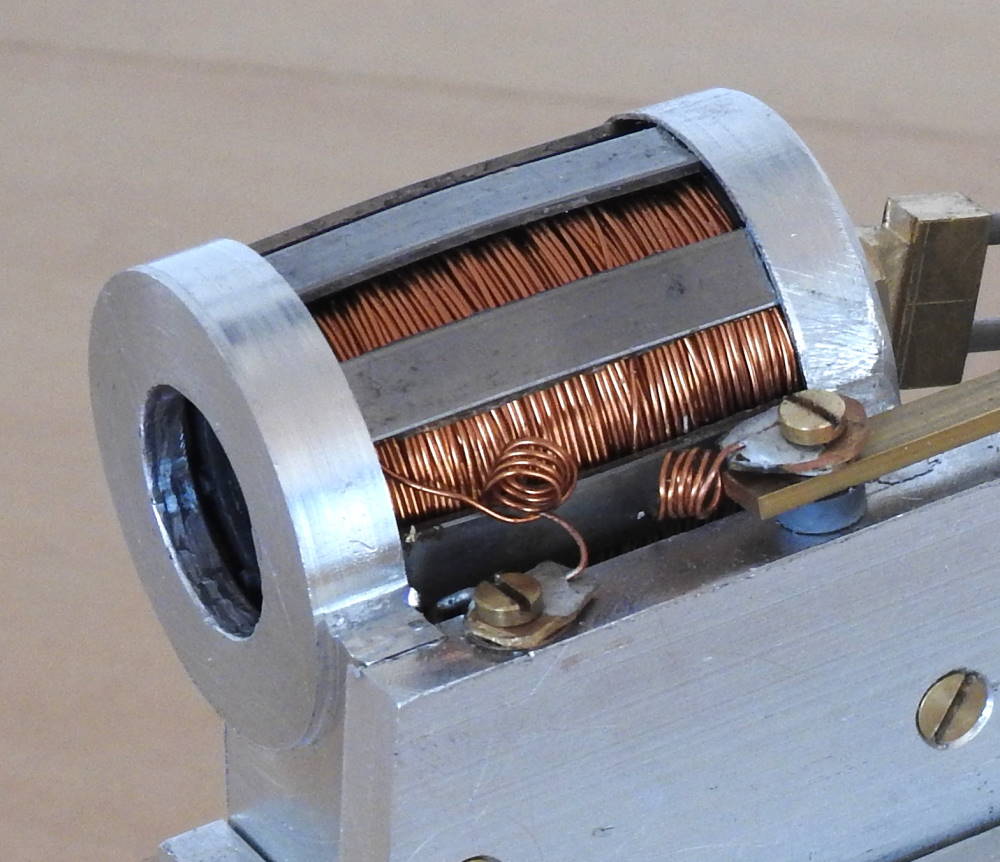

    Sometimes people take your design and improve it. Henk Kaan used my plans for the solenoid motor and selected different materials to produce a sharper looking model.

    V Twin Solenoid Motor-henk-kaan-solenoid-01.jpg

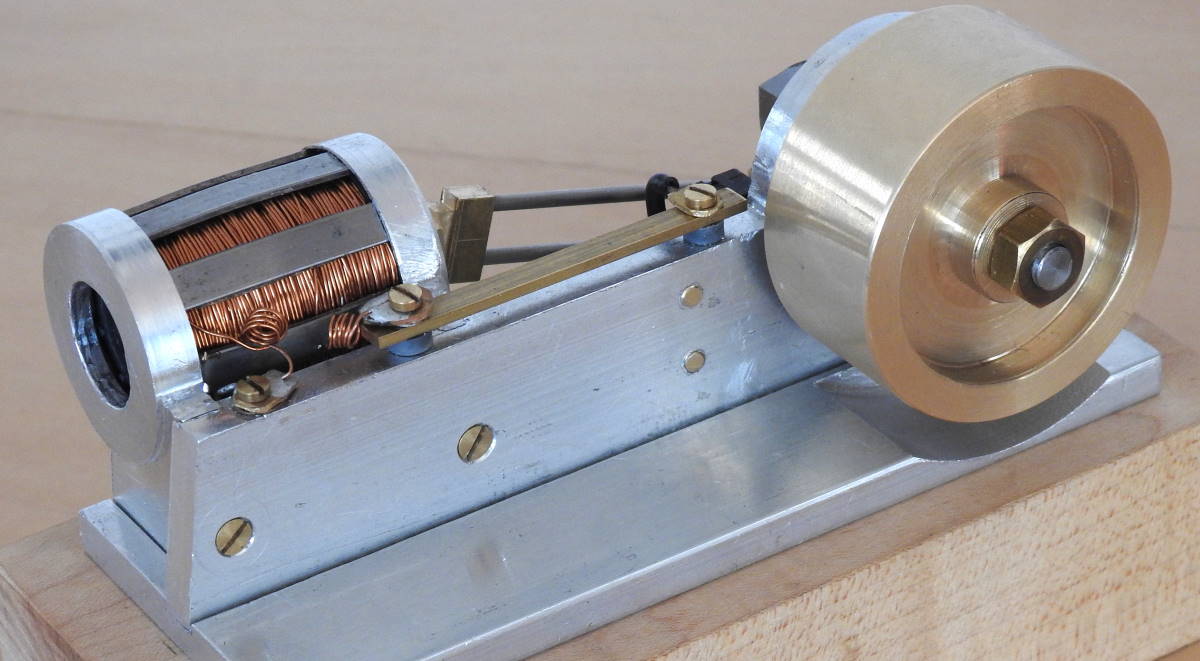

    More details of Henk's material selection and build.

    V Twin Solenoid Motor-henk-kaan-solenoid-02.jpg

    This little machine is a great desktop toy and easy to make over a weekend, especially a rainy weekend.

  18. The Following User Says Thank You to editor@glue-it.com For This Useful Post:

    baja (Jan 7, 2023)
