Free 173 Best Homemade Tools eBook:
Become a founding member: 500+ tool plans, full site access, and more.

User Tag List

Page 1 of 2 1 2 LastLast
Results 1 to 10 of 16

Thread: WIP - Magnifier Lamp

  1. #1
    Supporting Member Workshopshed's Avatar
    Join Date
    Mar 2013
    Location
    North London, UK
    Posts
    204
    Thanks
    126
    Thanked 140 Times in 87 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Workshopshed's Tools

    WIP - Magnifier Lamp

    A little project I'm currently working on, a magnifier lamp. The base is wood, the arms wood and aluminium and the head will be 3D printed. I've got 24 bright white LEDs to go around the outside and a x3 lens from a cheap magnifying glass. I've also a smaller x5 magnifier that I might make an adapter for.

    WIP - Magnifier Lamp-design.jpg

    WIP - Magnifier Lamp-render2.jpg

    WIP - Magnifier Lamp-leds.jpg

    WIP - Magnifier Lamp-parts.jpg

    WIP - Magnifier Lamp-2015-02-15-18.20.51-1.jpg
    Andy from Workshopshed
    "Making and repairing things in a shed at the bottom of the garden"
    workshopshed.com

  2. The Following User Says Thank You to Workshopshed For This Useful Post:

    kbalch (02-16-2015)

  3. #2
    kbalch's Avatar
    Join Date
    Jun 2012
    Location
    Clermont, FL
    Posts
    5,034
    Thanks
    2,275
    Thanked 522 Times in 376 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Hey Andy,

    That looks great! When it's all done, post the link to the project page on your site and I'll get it added here.

    Ken

  4. #3
    Supporting Member Workshopshed's Avatar
    Join Date
    Mar 2013
    Location
    North London, UK
    Posts
    204
    Thanks
    126
    Thanked 140 Times in 87 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Workshopshed's Tools
    Quote Originally Posted by kbalch View Post
    When it's all done, post the link to the project page on your site and I'll get it added here.
    Will do. Another quick picture.

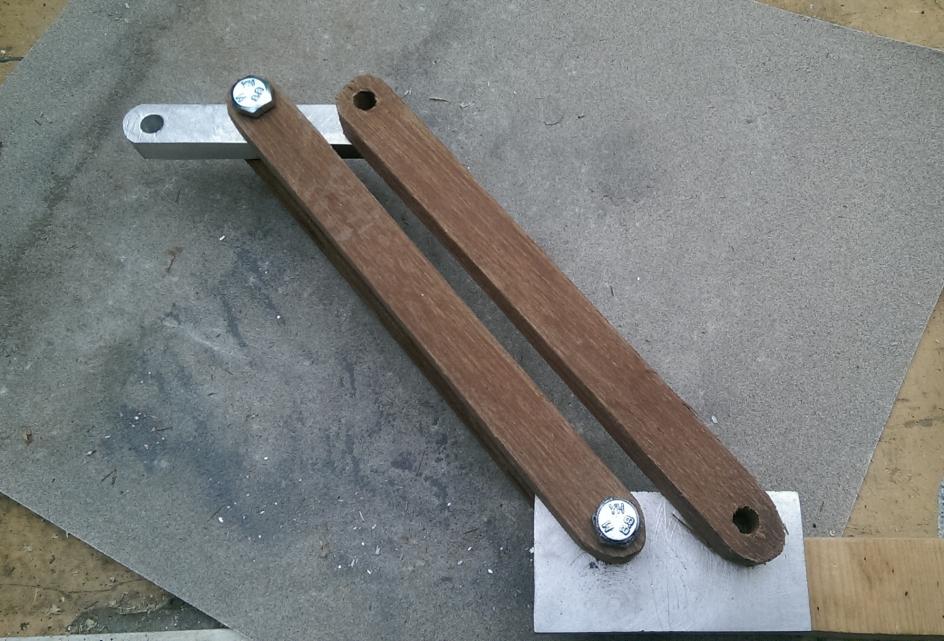

    WIP - Magnifier Lamp-arms.jpg
    Andy from Workshopshed
    "Making and repairing things in a shed at the bottom of the garden"
    workshopshed.com

  5. #4
    Supporting Member Hotz's Avatar
    Join Date
    Feb 2013
    Location
    South of Brazil.
    Posts
    360
    Thanks
    157
    Thanked 72 Times in 50 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Hotz's Tools
    Very good work ..

    Sorry my mistakes in english.
    to share your tip >>> http://www.homemadetools.net/forum/tool-tips-tricks/ <<<

  6. #5
    Content Editor
    Supporting Member
    DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,089
    Thanks
    574
    Thanked 1,387 Times in 1,248 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Looks good! The 3D-printed head is interesting. Do post up the project when you're done.

  7. #6
    Supporting Member Workshopshed's Avatar
    Join Date
    Mar 2013
    Location
    North London, UK
    Posts
    204
    Thanks
    126
    Thanked 140 Times in 87 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Workshopshed's Tools
    WIP - Magnifier Lamp-imag1046_1.jpg

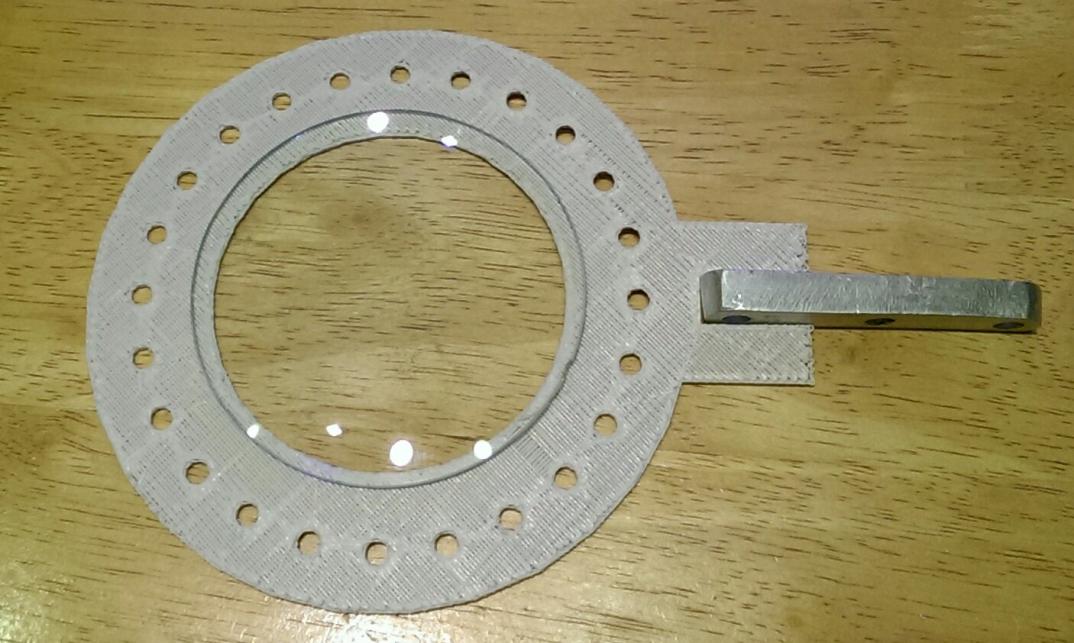

    I started a test print yesterday and it's right on my limits regarding size, it's also going to be a very long print duration if I print it in good quality. So best not to start at 8pm!
    Andy from Workshopshed
    "Making and repairing things in a shed at the bottom of the garden"
    workshopshed.com

  8. #7
    Content Editor
    Supporting Member
    DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,089
    Thanks
    574
    Thanked 1,387 Times in 1,248 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    The final print of the head would be thicker, I assume? I'm really interested because a magnifying light is one of the projects on my list.

  9. #8
    Supporting Member Workshopshed's Avatar
    Join Date
    Mar 2013
    Location
    North London, UK
    Posts
    204
    Thanks
    126
    Thanked 140 Times in 87 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Workshopshed's Tools
    Yes, it should be about 12mm, I was trying to print it too quickly so the edges had gone all wobbly.
    Andy from Workshopshed
    "Making and repairing things in a shed at the bottom of the garden"
    workshopshed.com

  10. The Following User Says Thank You to Workshopshed For This Useful Post:

    DIYer (02-18-2015)

  11. #9
    Supporting Member Workshopshed's Avatar
    Join Date
    Mar 2013
    Location
    North London, UK
    Posts
    204
    Thanks
    126
    Thanked 140 Times in 87 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Workshopshed's Tools
    Andy from Workshopshed
    "Making and repairing things in a shed at the bottom of the garden"
    workshopshed.com

  12. #10
    Supporting Member jere's Avatar
    Join Date
    Feb 2015
    Posts
    200
    Thanks
    183
    Thanked 116 Times in 69 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    jere's Tools
    I like the adjustable arms those could be usefully for quite a few different things

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
