Homemade Reveal and Measuring Gauges


Reveal and Measuring Gauges

186 More Best Homemade Tools eBook
TOOL:
Reveal and Measuring Gauges
PLANS:
None. For all tools with plans, click here.
BUILDER:
Serge on atelierdubricoleur.wordpress.com
DESCRIPTION:

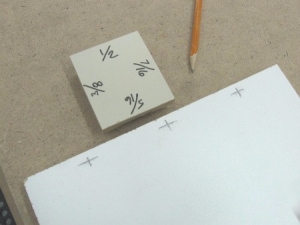

Homemade reveal and measuring gauges intended to facilitate the process of locating screws. Comprised of MDF blocks rabbeted at different widths. Also doubles as a height gauge.
RATING:
(1)
Post a comment
login / register
Nov 01, 2015 4:55 PM
Altair
Simple and easy to use. Slip it flush and you're done.
Read all comments
Rate this build:
CATEGORIES:
Height and Depth Gauges
TAGS:
gauge, layout, height gauge
LEVEL OF DETAIL (1-5):
2
