Free 173 Best Homemade Tools eBook:

User Tag List

Results 1 to 8 of 8

Thread: 18-cylinder radial airplane engine cutaway - photo

  1. #1
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    17,158
    Thanks
    4,195
    Thanked 18,345 Times in 5,327 Posts
    Mentioned
    0 Post(s)
    Tagged
    5 Thread(s)

    18-cylinder radial airplane engine cutaway - photo


  2. The Following 2 Users Say Thank You to Jon For This Useful Post:

    baja (10-03-2019), jimfols (10-02-2019)

  3. #2
    Supporting Member jimfols's Avatar
    Join Date
    Sep 2015
    Location
    Ontario Calif USA
    Posts
    223
    Thanks
    386
    Thanked 94 Times in 61 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Here's a video of a radial engine made out of wood. The guy did an excellent job of explaining how they work.
    What I found especially well done is his explanation of the cam rings.
    Rather long at 9:58 but well worth the money. The cam rings start at 5:15.

    Jim

  4. The Following User Says Thank You to jimfols For This Useful Post:

    Frank S (10-02-2019)

  5. #3
    Supporting Member IntheGroove's Avatar
    Join Date
    May 2019
    Location
    Lake Tahoe
    Posts
    97
    Thanks
    2
    Thanked 28 Times in 24 Posts
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)
    Those are a marvel of engineering. The 36 cylinder engine was something to behold...

  6. #4
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    4,891
    Thanks
    721
    Thanked 3,936 Times in 1,950 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Frank S's Tools
    Not an engine in the same class as a radial but the Sherman tank engine called the Chrysler multibank engine was also a marvel of engineering by taking 5 Chrysler flat head 6 cylinder engines then arranging them in a radial fashion around a single output shaft. Oiling was a nightmare as it had to be a dry sump. the 2 engine blocks mounted at a down angle had a tendency to trap oil in the cylinders behind the pistons. When the engine sat for periods of time the retained oil behind the pistons would seep around the rings into the combustion chamber. which could cause the engine to lock up the next time it was started. I only ever worked on 1 of those but I seem to remember an automatic compression release to vent not only the compression but allow any oil in the combustion side of the cylinders to drain away.
    Jon is so good at locating these things maybe he can be persuaded to find a cut away of one of them.
    Never try to tell me it can't be done
    When I have to paint I use http://kbs.justoldtrucks.com/

  7. #5

    Join Date
    Jul 2019
    Posts
    20
    Thanks
    0
    Thanked 5 Times in 3 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    WOW, awesome model with excellent explanation. There were some crazy smart people back in the day!

  8. #6
    Supporting Member jdurand's Avatar
    Join Date
    May 2019
    Location
    Los Gatos, California, USA & Goryachy Klyuch, Krasnodar Krai, Russia
    Posts
    342
    Thanks
    44
    Thanked 184 Times in 98 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    jdurand's Tools
    Are the crank shafts geared to each other in that center hub so they the hub doesn't twist? Never seen that part disassembled.

  9. #7
    Supporting Member IAMSatisfied's Avatar
    Join Date
    Apr 2017
    Location
    The desolate ranch country of Northeastern corner of New Mexico, USA
    Posts
    154
    Thanks
    124
    Thanked 84 Times in 45 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by Jon View Post
    18-cylinder radial airplane engine cutaway.
    I wonder how many castings comprise this one engine? I can imagine how complex the pattern making process was at the foundry that cast the engine parts. Very impressive engineering.

  10. #8
    Supporting Member IAMSatisfied's Avatar
    Join Date
    Apr 2017
    Location
    The desolate ranch country of Northeastern corner of New Mexico, USA
    Posts
    154
    Thanks
    124
    Thanked 84 Times in 45 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by jdurand View Post
    Are the crank shafts geared to each other in that center hub so they the hub doesn't twist? Never seen that part disassembled.

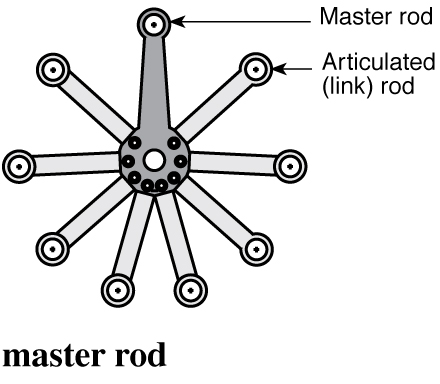

    There's only one crankshaft, and the thing that prevents any twisting is called the master rod (which I believe is what you're calling the center hub). It is shown & described @ 4:37 in the wooden model video.

    18-cylinder radial airplane engine cutaway - photo-master-rod.jpg

    http://www.datwiki.net/images2/Master-rod.jpg


    Post your reply!
    Join 42,532 of us and get 100+ tool plans, tool eBooks, build guides, and much more.



    59 Best Homemade VisesTube Bender Build Guide
    Last edited by IAMSatisfied; 10-06-2019 at 06:15 AM.

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
