    1966 NASA Mobility Test Article - photos

    An engineer demonstrates a Mobility Test Article (MTA) at NASA's Marshall Space Flight Center (MSFC) as he goes down a slope onto soft earth. This unit, weighing 1/6th as much as an actual vehicle, was built by the Bendix Corporation and was one of the concepts of a possible Lunar Roving Vehicle (LRV). The data provided by the MTA helped in designing the Lunar Roving Vehicle (LRV), developed under the direction of MSFC. The LRV was designed to allow Apollo astronauts a greater range of mobility during lunar exploration missions.
    Fullsize image: https://diqn32j8nouaz.cloudfront.net...1_fullsize.jpg



    Fullsize image: https://diqn32j8nouaz.cloudfront.net...2_fullsize.jpg



    More: https://images.nasa.gov/details-6640853

    Previously:

    NASA chainmail tire - GIF
    NASA mobile launcher moving after recent hurricane - GIF
    NASA X-4 Bantam plane that can be broken in two - photo
    NASA technology to fold airplane wings in flight - video
    NASA Mate/Demate device to lower space shuttle onto carrier aircraft - GIF and photo
    NASA satellite launch fails caused by metals fraud - DOJ legal document
    1960s NASA before PowerPoint and using ladders to do math - photos

    186 More Best Homemade Tools eBook
    Last edited by Jon; Nov 19, 2019 at 09:25 PM.

  2. The Following 2 Users Say Thank You to Jon For This Useful Post:

    baja (Oct 26, 2019), Seedtick (Oct 25, 2019)

  3. #2
    Supporting Member jdurand's Avatar
    Join Date
    May 2019
    Location
    Krasnodar Krai, Russian Federation
    Posts
    1,467
    Thanks
    127
    Thanked 765 Times in 424 Posts

    jdurand's Tools
    Just be sure to make the wheel "treads" out of something stronger than you think is needed, the Mars rover wound up with lots of wheel damage from sharp rocks.

    2,000+ Tool Plans

  4. #3
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    26,246
    Thanks
    8,073
    Thanked 39,953 Times in 11,675 Posts
    Quote Originally Posted by jdurand View Post
    Just be sure to make the wheel "treads" out of something stronger than you think is needed, the Mars rover wound up with lots of wheel damage from sharp rocks.
    Good call. I also didn't know that those raised treads are called grousers. You can see one of the grousers detached in the wheel in the right-hand side of the photo.

    Fullsize image: https://diqn32j8nouaz.cloudfront.net...r_fullsize.jpg


    More:

    https://www.jpl.nasa.gov/news/news.php?feature=6785
    https://mars.nasa.gov/resources/7809...tear/?site=msl

  5. #4
    Supporting Member jdurand's Avatar
    Join Date
    May 2019
    Location
    Krasnodar Krai, Russian Federation
    Posts
    1,467
    Thanks
    127
    Thanked 765 Times in 424 Posts

    jdurand's Tools

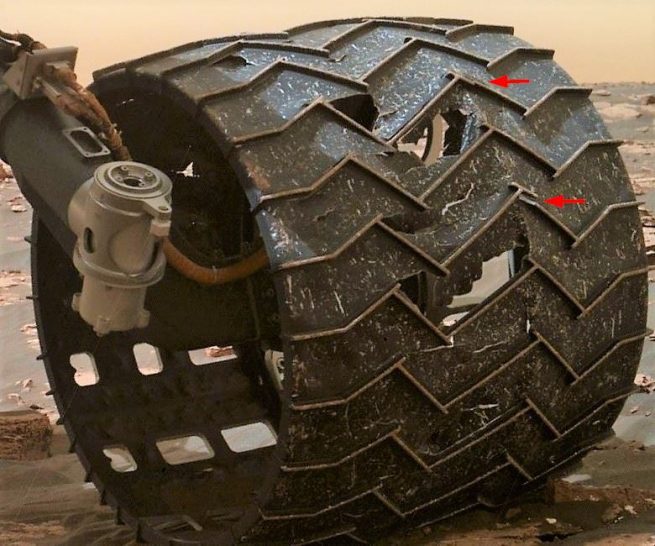

    It got even worse
