    2 drill jigs and lathe bits storage

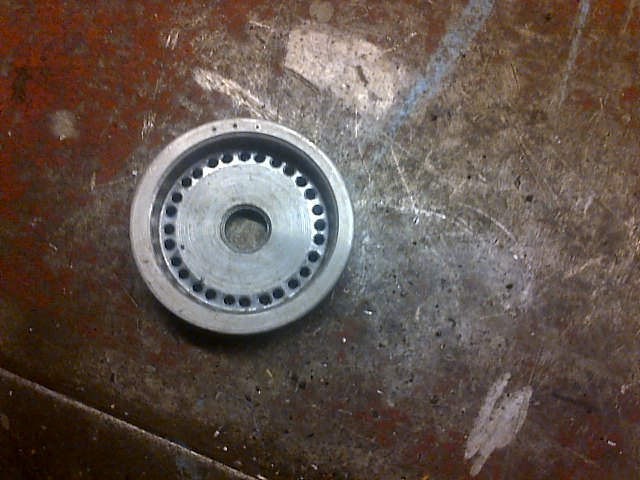

    first up is a jig i made for drilling the flanges on some bike axles for trikes i was building my kids.
    i drilled it 28 holes so when i spoke the pair up ill end up with 56 spoke wheels on there.

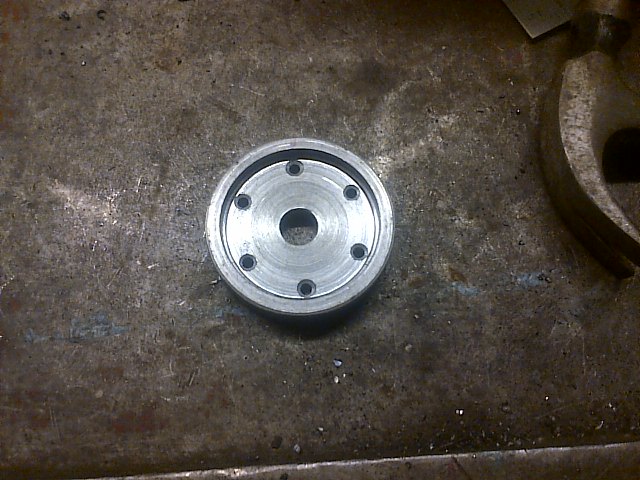

    second is a jig for drilling flanges to hold brake discs onto the axle trikes.

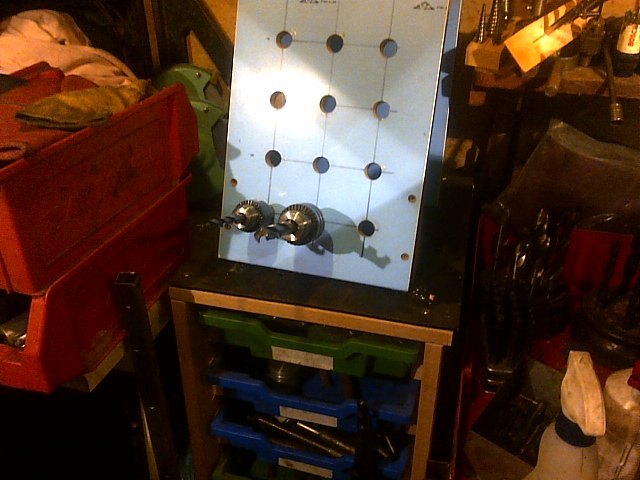

    finally is a board i drilled out to fit the spare drill chucks and other bits that fit in tailstock of lathe.
    its a couple of old drawer fronts screwed together so front one sits at angle.
    Attached Thumbnails Attached Thumbnails 2 drill jigs and lathe bits storage-jig2.jpg   2 drill jigs and lathe bits storage-jig1.jpg   2 drill jigs and lathe bits storage-l.jpg
