Inside several couplers, I want to install a pin on one side and a corresponding hole on the opposite side. All holes must be the same distance from the center. I don’t want to measure anything.
If you are interested in how I did it, please, click here
Your comments are welcome. All of us are smarter than any one of us.
Thanks,
Rick
<!-- BEGIN /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Thanks rgsparber! We've added your Drill Guide to our Drilling and Drill Presses category,
as well as to your builder page: rgsparber's Homemade Tools. Your receipt:
<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/homemade-drill-guide-21"> <img src="/uploads/256294/homemade-drill-guide-21.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/homemade-drill-guide-21">Drill Guide</a> <span> by <a href="https://www.homemadetools.net/builder/rgsparber">rgsparber</a></span> </div> <div class="tags">tags: <a href='https://www.homemadetools.net/tag/drilling'>drilling</a>, <a href='https://www.homemadetools.net/tag/guide'>guide</a> </div> </div> </div> </div>
<!-- END /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Rick,
You said that the pieces slipped "radially", I think that you meant tangentially or circumferentially.
I struggled with the proper terminology for this alignment. The center of my cylindrical tool is aligned with the center of the cylindrical part. Since it could be off along any radius, I figured that was radial alignment. I am not qualified to say that if this is clear to my readers.Quote:
Originally Posted by tonyfoale
Rick
Rick,
Maybe this will clarify the usual terminology for the two types of displacement.

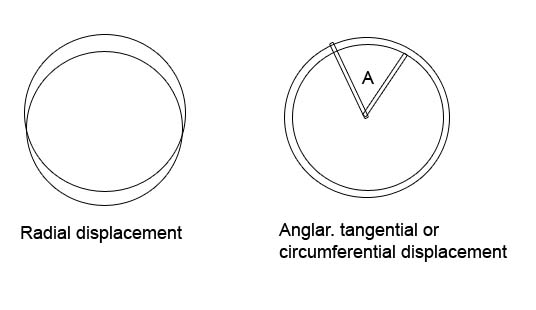

Attachment 43720
Radially is ALONG a radius.
Angularly, tangentially or circumferentially is an angular displacement "A" of any radius about the axis.
Ah, then I am preventing radial displacement.
Rick
Then I totally missed the point of your post. I shall re-read and try to do better.Quote:
Originally Posted by rgsparber
