    Audio and data connector identification guide - photo


    186 More Best Homemade Tools eBook

  2. The Following 8 Users Say Thank You to Altair For This Useful Post:

    albertq (Mar 25, 2024), clydeman (Aug 28, 2021), Floradawg (Aug 27, 2021), kboy0076 (Mar 25, 2024), nova_robotics (Aug 24, 2021), techcollect (Aug 25, 2021), Toolmaker51 (Aug 25, 2021), uv8452 (Aug 25, 2021)

  3. #2
    Supporting Member
    Join Date
    Sep 2018
    Posts
    2,120
    Thanks
    9,978
    Thanked 1,133 Times in 609 Posts

    nova_robotics's Tools
    This is good info. And as companion to this guide check out http://www.pinouts.ru for how to wire each of these connectors.

    2000 Tool Plans

  4. The Following 3 Users Say Thank You to nova_robotics For This Useful Post:

    NortonDommi (Aug 25, 2021), Toolmaker51 (Aug 25, 2021), uv8452 (Aug 25, 2021)

  5. #3
    Supporting Member NortonDommi's Avatar
    Join Date
    Jul 2014
    Location
    North Island, New Zealand.
    Posts
    990
    Thanks
    1,800
    Thanked 524 Times in 315 Posts

    NortonDommi's Tools
    Amazing! I have spent a few hours today tracing a problem with the video output of my computer. Here are a couple of other descriptions.

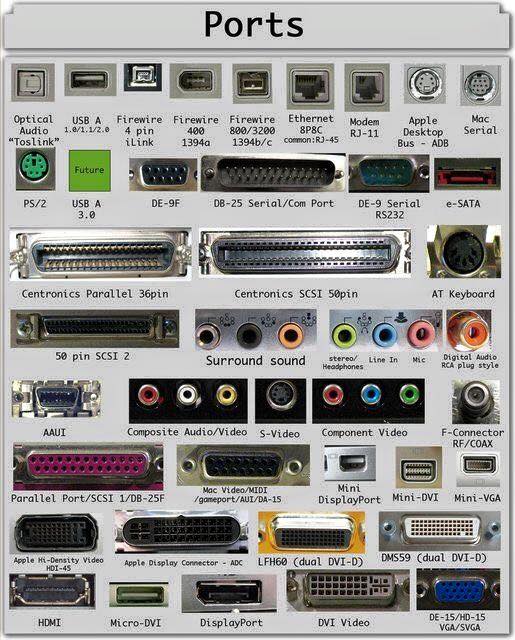

    Audio and data connector identification guide - photo-16-types-ports.jpg
    Can't upload the .pdf of the full page so here is the link: https://www.electronicshub.org/types-of-computer-ports/

  6. The Following 4 Users Say Thank You to NortonDommi For This Useful Post:

    clydeman (Aug 28, 2021), Floradawg (Aug 27, 2021), Toolmaker51 (Aug 25, 2021), uv8452 (Aug 25, 2021)

  7. #4
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    5,330
    Thanks
    7,041
    Thanked 2,977 Times in 1,892 Posts

    Toolmaker51's Tools
    Checking now, is variety of connectors deemed plethora, cornucopia, surfeit, abundance (overabundance), excess, glut, deluge, myriad or simply more than you can shake a stick at?
    However extensive, it remains less variety than shelves consumed in printer cartridges...
