    Curved barrels for firearms

    A curved-barrel firearm design, intended for urban combat. Originally developed by the Germans in WWII, and then experimented with by the Russians. Available in 30°, 45°, 60°, and 90° bends.

    The first example was the Krummlauf, a barrel attachment for the German Sturmgewehr 44:


    Then the Soviets experimented with this concept on a PPSh-41:


    The curved barrel attachments had extremely short lifespans, around 150-300 rounds, depending on the angle of the barrel. Bullets would also occasionally shatter in the barrel, producing a dangerous shotgun-like effect.

    Forgotten Weapons covering the Krummlauf barrel:


    This concept is similar to the WWI-era trench warfare periscope rifle, which was essentially a rifle modified to be sighted with a periscope.

    A 1915 WWI photo of a periscope rifle and its inventor:


    The modern era equivalent is the CornerShot, invented by Amos Golan of the Israeli Defense Forces for hostage rescue, although now available in the civilian market. Interestingly, it's more similar to the periscope-style WWI version. The barrel doesn't curve; various handguns can be inserted into the CornerShot, which can then be angled. Targets can also be viewed around a corner via a video camera attached to the CornerShot.




    186 More Best Homemade Tools eBook
    New plans added on 12/02/2024: Click here for 2,609 plans for homemade tools.

  2. The Following 3 Users Say Thank You to Jon For This Useful Post:

    Djulus (Mar 29, 2017), Scotsman Hosie (Jun 23, 2019), Toolmaker51 (Mar 25, 2017)

  3. #2
    Supporting Member mklotz's Avatar
    Join Date
    Aug 2015
    Location
    LA, CA, USA
    Posts
    3,536
    Thanks
    362
    Thanked 6,564 Times in 2,162 Posts

    mklotz's Tools
    And, if you bend the barrel far enough, you get the Darwin 38 special...


    Remember those Bugs Bunny cartoons where Bugs bends Elmer Fudd's shotgun barrel into a U? I can remember as a little kid wondering if that would really work. Mythbusters did a segment where they were able to successfully fire through 90 degrees.

    2,000+ Tool Plans
    Last edited by mklotz; Jul 11, 2017 at 12:14 PM.
    ---
    Regards, Marv

    Failure is just success in progress
    That looks about right - Mediocrates

  4. The Following User Says Thank You to mklotz For This Useful Post:

    Toolmaker51 (Mar 25, 2017)

  5. #3
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,656
    Thanks
    2,194
    Thanked 9,159 Times in 4,377 Posts

    Frank S's Tools
    ROFL I particularly like the Darwin .38 I know a few I'd like to send one of those as a Christmas present along with a free range pass for them to familiarize themselves with it

    A few major problems with those gadget laden corner shot firearms are, first off the 3 to 5 extra pounds of hardware it requires to make the thing functional reduces an individuals ability to carry a substantial amount of ammo which had he not been laden down with the gimmick gadget he would be able to carry enough ammo for a sustained fire fight. Next targets are rarely stationary plus most combatants you may face in an urban type battle zone will present you with only the briefest exposed silhouette trying to locate them through a view screen with a limited field of focus will be most difficult. Should the camera view be wide range then your eyes must search the entire field of vision then process all of this information on a tiny little screen, which as anyone who has ever tried to use their smart phone in the bright sunlight is not next to impossible it is impossible cubed. Your best chance for a kill shot is to take as low of a supported firing position as possible or a well camouflaged one then use something to draw their fire slightly away from that position like placing your helmet on a stick that you can partially expose at about normal standing height when they stick their head out to get a shot you place a round right along side the barrel of their weapon, even if you place it right down the bore of their weapon is just fine. He won't be returning fire with that weapon

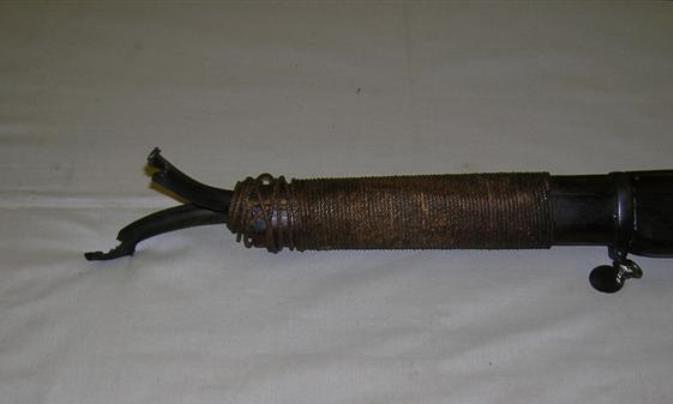

    Curved barrels for firearms-axe33.jpg
