Cutting gear teeth using a shaper - GIF

Cutting gear teeth using a shaper.

<video controls autoplay loop> <source src="https://diqn32j8nouaz.cloudfront.net/large_bevel_gear_cutting_teeth.mp4" type="video/mp4"> Your browser does not support the video tag. </video>


Previously:

https://www.homemadetools.net/forum/...008#post194959
https://www.homemadetools.net/forum/...732#post193933
https://www.homemadetools.net/forum/...405#post189008
https://www.homemadetools.net/forum/...310#post188630
https://www.homemadetools.net/forum/...011#post184017
https://www.homemadetools.net/forum/...458#post162192

I have heard it said that the only thing you cannot make with a shaper is a profit.

Quote:

---

Originally Posted by Karl_H

I have heard it said that the only thing you cannot make with a shaper is a profit.

---

Well profit may not be the only thing but it sure is high on the list in today's world at least. but time was if you didn't have a shaper in your machine shop you wern't considered a fully equipped shop

Is it just my eyes of is the edge of the tooth a bit wavy? The space between the teeth also looks too narrow. Perhaps this is a rough cutting process to finish later?

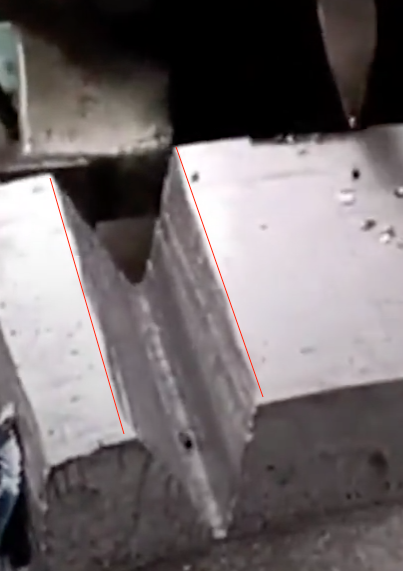

Attachment 41584


There has to be some serious pressure on that cutter when it gets to full depth.

Quote:

---

Originally Posted by hemmjo

Is it just my eyes of is the edge of the tooth a bit wavy? The space between the teeth also looks too narrow. Perhaps this is a rough cutting process to finish later?

Attachment 41584


There has to be some serious pressure on that cutter when it gets to full depth.

---

You are correct the sides are wavy because they will be finish ground in the final process.
the cutter only slices away small amounts each pass the gear is rotated left and right in decreasing amounts as the cut deepens until the cut profile is nearly complete
