Thread: Fuse replacement guide - photo

  1. #1

  2. The Following 5 Users Say Thank You to Altair For This Useful Post:

    baja (10-25-2020), clydeman (10-19-2020), jimfols (10-19-2020), neilbourjaily (10-19-2020), nova_robotics (10-19-2020)

  3. #2
    Supporting Member bruce.desertrat's Avatar
    Join Date
    Nov 2017
    Posts
    484
    Thanks
    254
    Thanked 416 Times in 228 Posts

    bruce.desertrat's Tools
    Where does a penny fit in this scheme?

  4. #3
    Supporting Member Drew1966's Avatar
    Join Date
    Oct 2016
    Posts
    299
    Thanks
    364
    Thanked 110 Times in 68 Posts
    Looks pretty accurate.

  5. #4
    Supporting Member jdurand's Avatar
    Join Date
    May 2019
    Location
    Los Gatos, California, USA & Goryachy Klyuch, Krasnodar Krai, Russia
    Posts
    1,072
    Thanks
    89
    Thanked 570 Times in 312 Posts

    jdurand's Tools
    Wire wrap wire soldered to the ends of a glass cartridge fuse is good for a couple of amps. I've used that more than once until the proper fuse could be found.

  6. #5
    Supporting Member IntheGroove's Avatar
    Join Date
    May 2019
    Location
    Lake Tahoe
    Posts
    565
    Thanks
    41
    Thanked 216 Times in 139 Posts

    IntheGroove's Tools

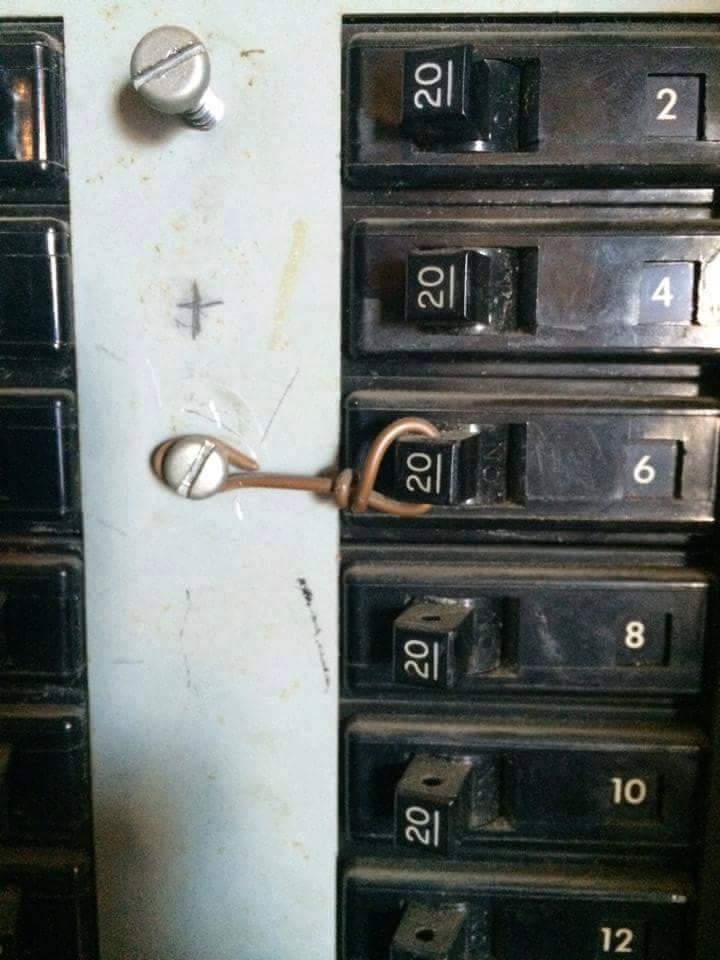

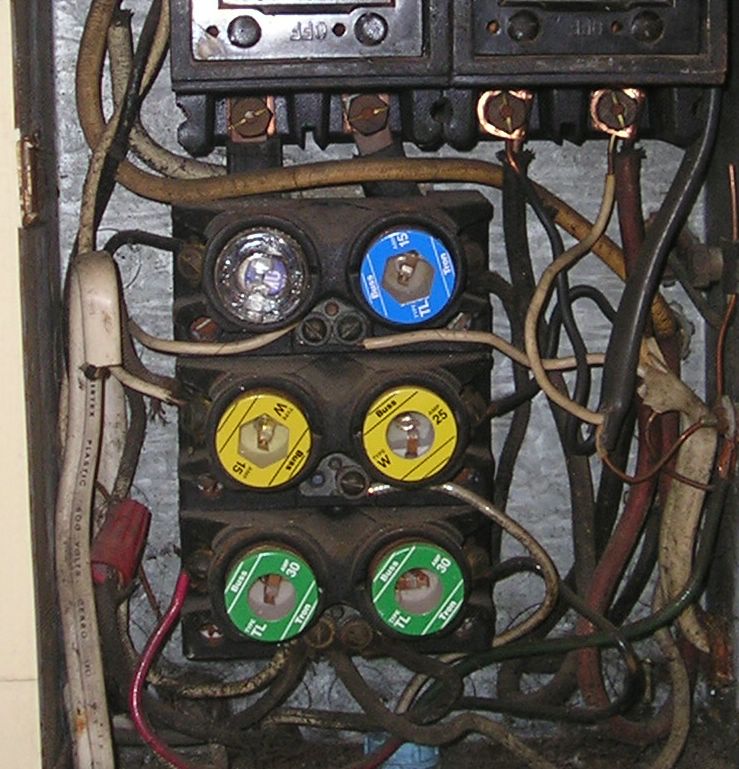

    Fuses and circuit breakers, who needs them...
    Fuse replacement guide - photo-fuse-box-double-taps.jpgFuse replacement guide - photo-tedpklb.jpg

  7. #6
    Supporting Member
    Join Date
    Sep 2018
    Posts
    185
    Thanks
    559
    Thanked 55 Times in 45 Posts

    nova_robotics's Tools
    Quote Originally Posted by IntheGroove View Post
    Fuses and circuit breakers, who needs them...
    Click image for larger version.

Name:	fuse-box-double-taps.jpg
Views:	81
Size:	127.0 KB
ID:	36943Click image for larger version.

Name:	TeDpkLb.jpg
Views:	52
Size:	63.2 KB
ID:	36944
    I'm pretty sure you can pin a breaker in place and it'll still trip. At least modern ones. I think Big Clive did a video about it.

  8. #7
    Supporting Member jdurand's Avatar
    Join Date
    May 2019
    Location
    Los Gatos, California, USA & Goryachy Klyuch, Krasnodar Krai, Russia
    Posts
    1,072
    Thanks
    89
    Thanked 570 Times in 312 Posts

    jdurand's Tools
    The old ones wouldn't, which is why the redesign.

    Back in the dim past when everyone was monochrome, my father and I did some side work upgrading fuse boxes to higher amperage breaker boxes for neighbors. We were down in the basement of one house (where the boxes were in these houses) and had pulled the main fuses. We were about to start removing wires when the homeowner's kid came home, asked why we were working in the dark down there and flicked on the light switch. The lights came on.

    We froze, backed away and started investigating how this was wired. Well, some of the circuits went through the main fuses, just not all of them.

    Several years later when we moved, I was maintaining the facilities at a small church with dual compressors on the evaporator wired in parallel. One day they had someone service the HVAC system without telling me, the guy unwired stuff, replaced a part, and put the wires back without minding phase (3Ф). Turned it on and BLAM (luckily a small bit blew up). Of course I was blamed.
