    Gears turning in the same direction - GIF

    Gears turning in the same direction.




    Previously:

    Fibonnacci spiral gears - GIF
    Planetary gear set with square sun gear - GIF
    Direction changing gears GIF
    Hyperboloidal worm gear - GIF
    Cam gear GIF

    186 More Best Homemade Tools eBook
    New plans added on 12/09/2024: Click here for 2,621 plans for homemade tools.

  2. The Following 5 Users Say Thank You to Altair For This Useful Post:

    carloski (Jul 9, 2022), JoeVanGeaux (May 8, 2021), johncg (May 8, 2021), NortonDommi (May 7, 2021), nova_robotics (May 7, 2021)

  3. #2
    Supporting Member
    Join Date
    Oct 2016
    Posts
    1,113
    Thanks
    25
    Thanked 347 Times in 244 Posts

    old kodger's Tools
    Do they actually qualify as gears? And, what's the application?

    2,000+ Tool Plans

  4. #3
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,668
    Thanks
    2,207
    Thanked 9,169 Times in 4,381 Posts

    Frank S's Tools
    Quote Originally Posted by old kodger View Post
    Do they actually qualify as gears? And, what's the application?
    I don't know it they actually qualify as gears, but if they were laid in the horizontal plane and made longer with several more flighting pitches then the apparatus could be used for rolling dough balls
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  5. #4
    Supporting Member JoeVanGeaux's Avatar
    Join Date
    Jun 2018
    Location
    Magnolia, TX
    Posts
    168
    Thanks
    160
    Thanked 58 Times in 44 Posts
    I searched the 'net (mostly Thingiverse) and can't find any STL or SCAD files to make this. I'd be interested in stacking sections to make a longer model as Frank suggested to see if it can move round things - not dough balls coz those go right in the oven!

    I call this a "transport gear" arrangement but a search of that term turned up nothing, nada, zip!!

    So, all I have left is a somewhat mesmerizing video to look at while my wife snaps her fingers in front of my face to steal my attention.

  6. #5
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,668
    Thanks
    2,207
    Thanked 9,169 Times in 4,381 Posts

    Frank S's Tools

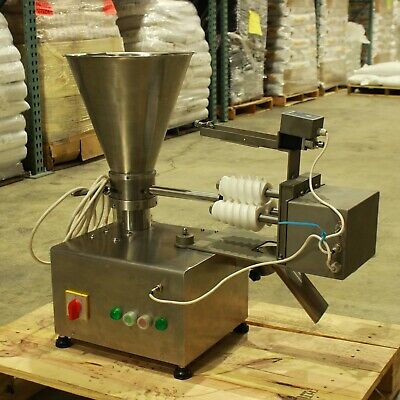

    here is the closest similar thing I have found
    not exactly the same though as there are 3 spiral helix shafts on this machine
    Gears turning in the same direction - GIF-s-l400.jpg
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  7. #6
    Supporting Member JoeVanGeaux's Avatar
    Join Date
    Jun 2018
    Location
    Magnolia, TX
    Posts
    168
    Thanks
    160
    Thanked 58 Times in 44 Posts
    The more I stare at the video in the OP, I'm less convinced it would behave as a good way to transport spherical objects. Maybe it would, but I'm getting disoriented from staring at the video too long! lol

    What I was intitially thinking was what I'd seen in an episode of "How Its Made" that illustrated glass marbles beinge shaped from blobs of molten glass dropped between two rotating auger-looking pieces.

  8. #7
    Supporting Member IntheGroove's Avatar
    Join Date
    May 2019
    Location
    Lake Tahoe
    Posts
    2,120
    Thanks
    197
    Thanked 956 Times in 581 Posts

    IntheGroove's Tools
    Some machines do nothing. That could be one of them...

  9. The Following User Says Thank You to IntheGroove For This Useful Post:

    marksbug (May 12, 2021)

  10. #8
    Supporting Member marksbug's Avatar
    Join Date
    Apr 2016
    Posts
    1,940
    Thanks
    776
    Thanked 383 Times in 309 Posts
    and gets paid extra for doing nothing....
