    Lego bridge girder machine - GIF

    It's hard to beat the Lego Liebherr LR 11000 crane, but here we have a Lego bridge girder machine. I believe this is technically known as a "launching gantry".



    Here's a real-life version of this machine, the legendary SLJ900/32:




    More:

    https://www.youtube.com/channel/UC2v...aOPQUXw/videos
    https://en.wikipedia.org/wiki/Launching_gantry

    Previously:

    Lego Liebherr LR 11000 crane
    Giant wooden lego blocks - photos

    186 More Best Homemade Tools eBook
    New plans added on 12/13/2024: Click here for 2,629 plans for homemade tools.

  2. The Following 7 Users Say Thank You to Jon For This Useful Post:

    almarghi (Aug 21, 2018), Harvey Melvin Richards (Aug 25, 2018), HobieDave (Mar 14, 2020), PJs (Aug 22, 2018), Seedtick (Aug 21, 2018), thevillageinn (Aug 25, 2018), will52100 (Aug 22, 2018)

  3. #2
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,681
    Thanks
    2,212
    Thanked 9,172 Times in 4,383 Posts

    Frank S's Tools
    Those bridge girder machines are some cool works of are and real feats of engineering.
    I designed and built a post tension form for bridge girders that were to be cast on sight for a highway being built in Afghanistan
    Not anywhere near the size of the girders being placed in the video My girder form was for single girders at 37 meters long

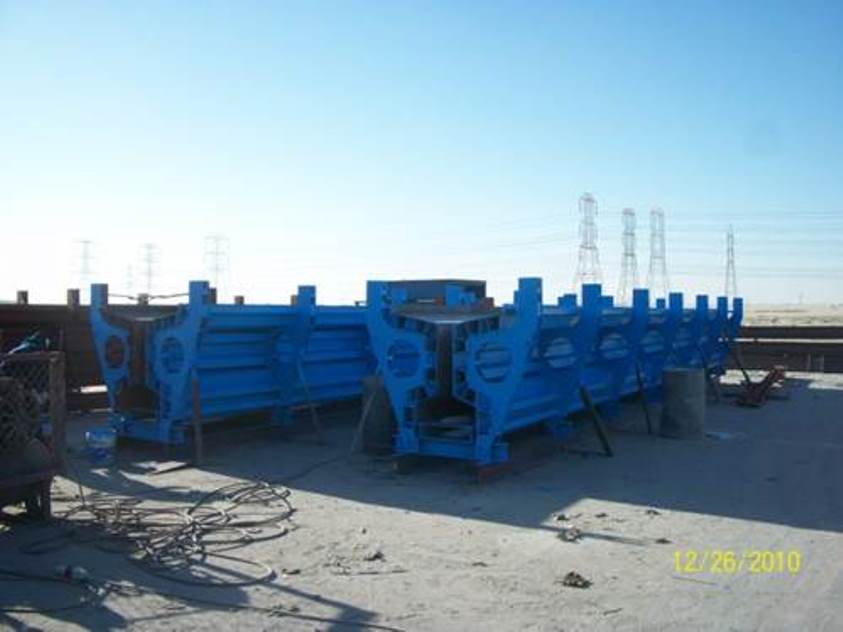

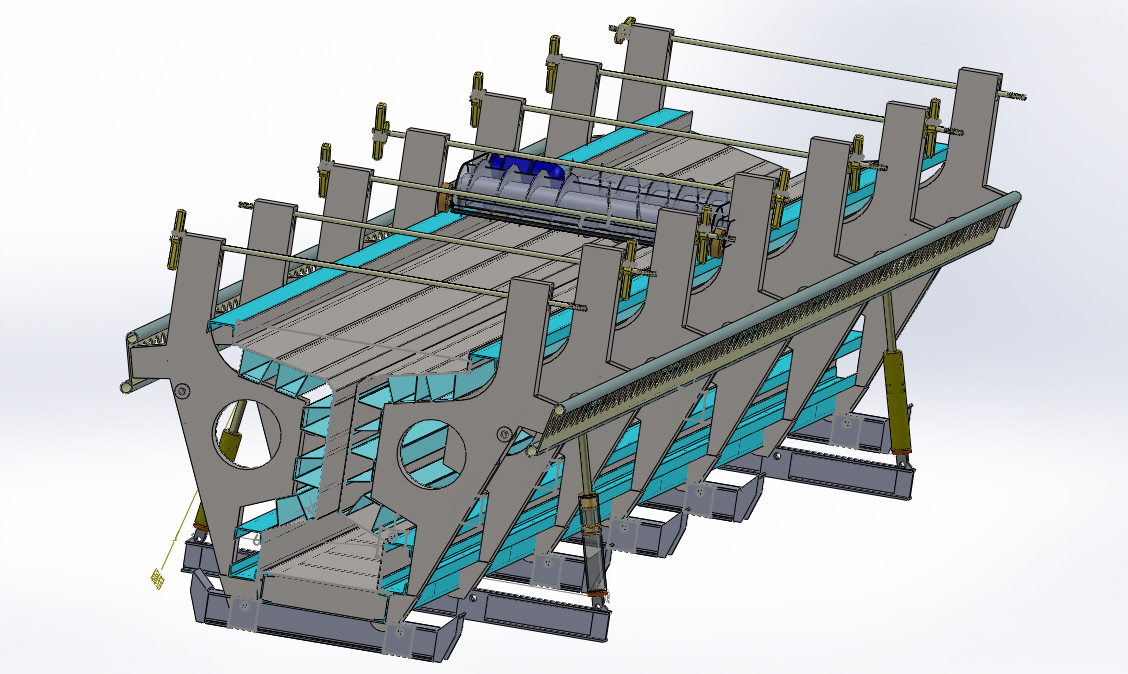

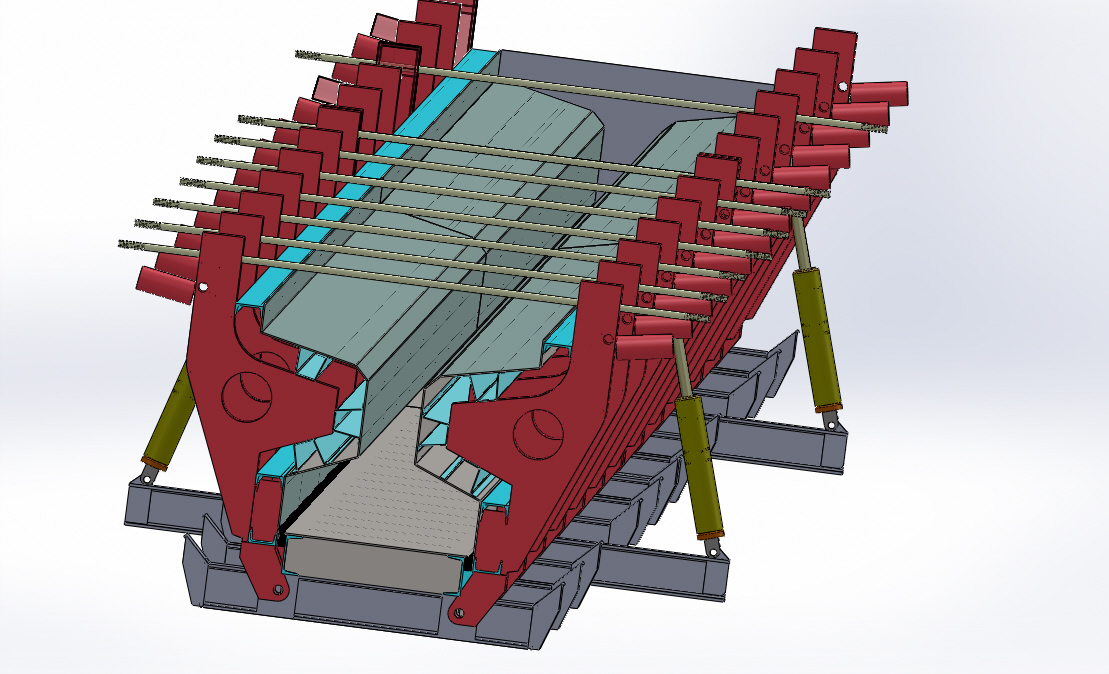

    Here is a couple of photos of the drawings and 1 actual photo of the form
    Lego bridge girder machine - GIF-post-tention-hyd-girder-form3.jpg
    Lego bridge girder machine - GIF-post-tention-hyd-girder-form-24-100-modified.jpg
    Lego bridge girder machine - GIF-picture51.jpg

    2,000+ Tool Plans
    Last edited by Frank S; Aug 21, 2018 at 07:27 PM.
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  4. The Following User Says Thank You to Frank S For This Useful Post:

    ranald (Jun 15, 2019)

  5. #3
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,681
    Thanks
    2,212
    Thanked 9,172 Times in 4,383 Posts

    Frank S's Tools
    I also designed this machine to walk roof girders the length of a building
    Don't know if it was ever built the beams were going to be 40 meters in length and they needed to make 200 of them to be the roof beams of 3 buildings

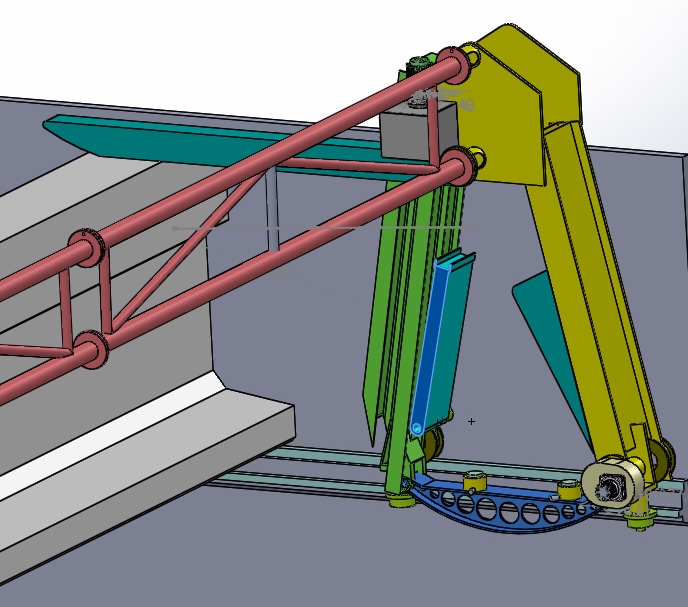

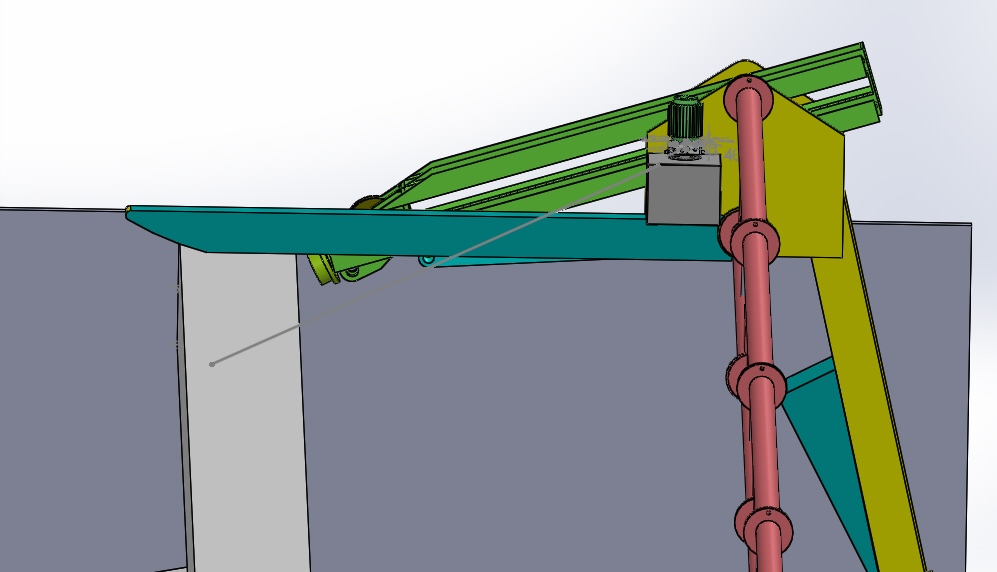

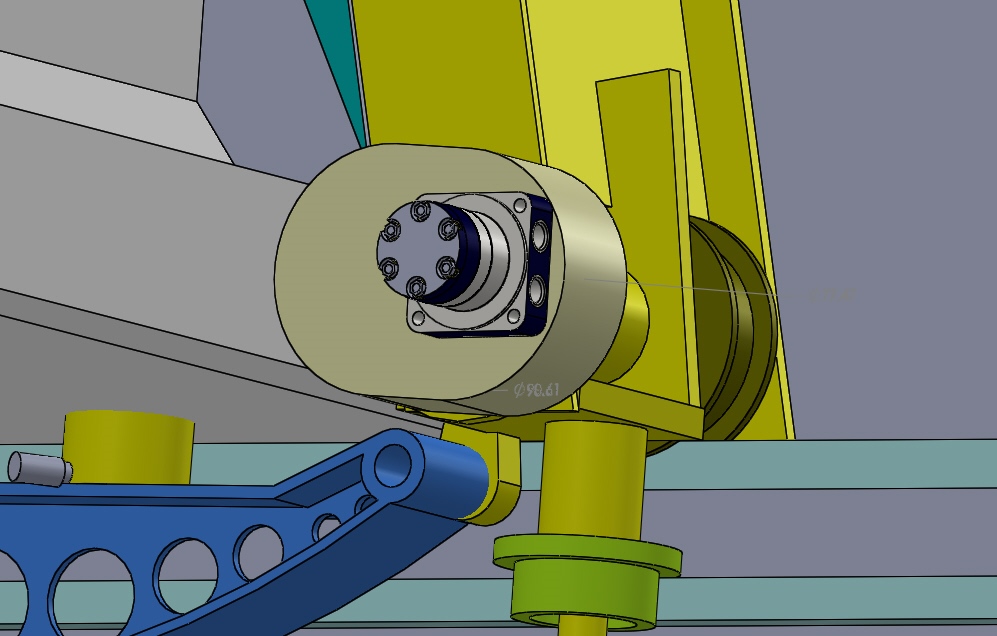

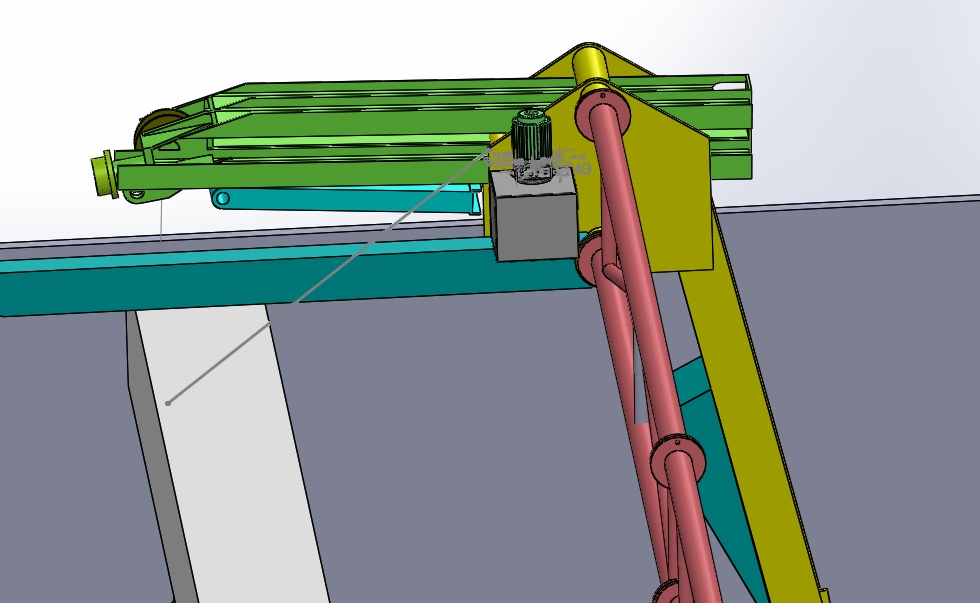

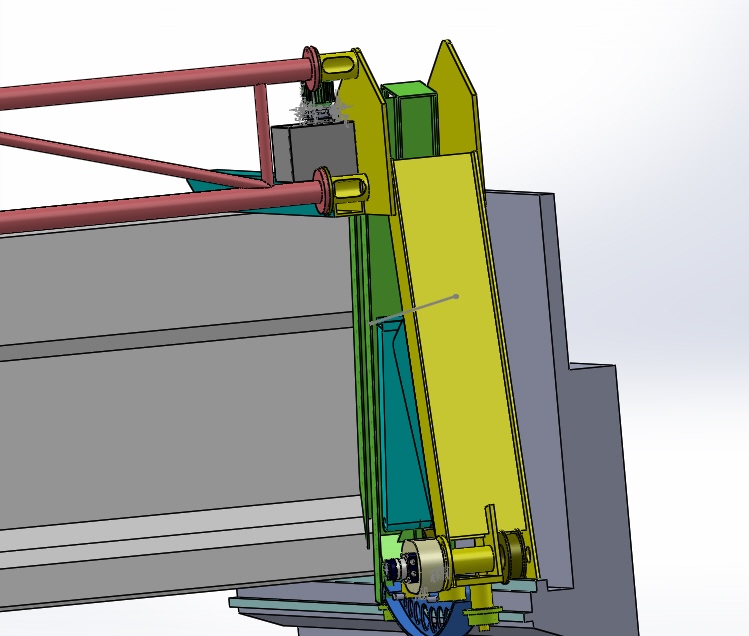

    Lego bridge girder machine - GIF-beam-transport-machine-1.jpg
    Lego bridge girder machine - GIF-beam-transport-machine-2.jpg
    Lego bridge girder machine - GIF-beam-transport-machine-3.jpg
    Lego bridge girder machine - GIF-beam-transport-machine-4.jpg
    Lego bridge girder machine - GIF-beam-transport-machine-5.jpg
    Lego bridge girder machine - GIF-beam-transport-machine-7.jpg
    Lego bridge girder machine - GIF-beam-transport-machine-6.jpg

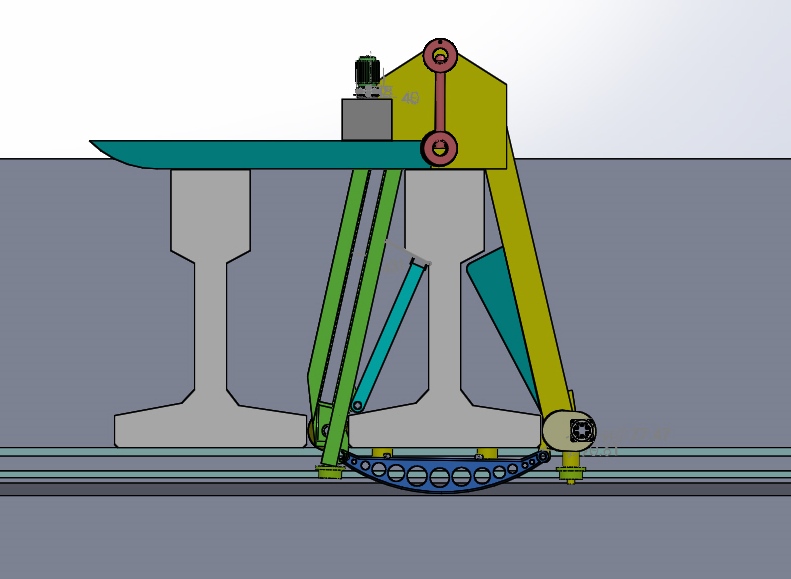

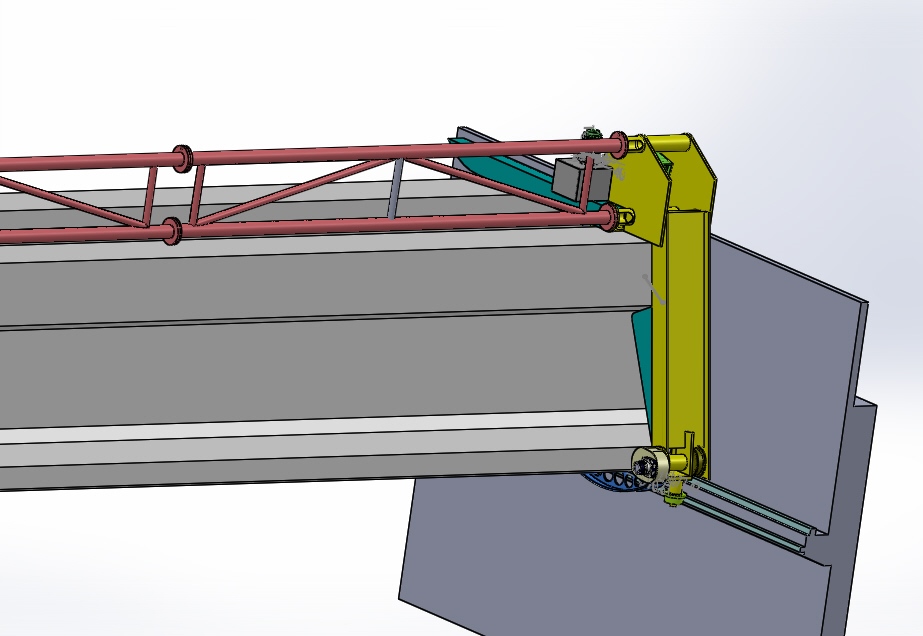

    the idea was to make a machine that would roll along temporary rails the beams would be placed on the rails of 1 end of the building then the machine would be connected on each end the beam would serve as the main bridging structure the pipe lattice was only to carry hydraulic lines and hold the machine together while it returned to be placed over another beam a small girder would be placed under the ends of the beam and 2 hydraulic pucks would lift it off of the rails just enough to clear for transport the crown of the beam would be captured with struts made into the machine to stabilize it
