    Is it one big single cylinder two-stroke diesel?

  4. #3
    Supporting Member sossol's Avatar
    Join Date
    Oct 2012
    Location
    Lafayette, Indiana
    Posts
    219
    Thanks
    491
    Thanked 244 Times in 106 Posts
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)

    sossol's Tools
    Quote Originally Posted by nova_robotics View Post
    Is it one big single cylinder two-stroke diesel?
    Basically. There's no crankshaft or crankcase, but the fundamentals are there.


    Neil

  5. The Following User Says Thank You to sossol For This Useful Post:

    nova_robotics (07-18-2020)

  6. #4
    Supporting Member jdurand's Avatar
    Join Date
    May 2019
    Location
    Los Gatos, California, USA & Goryachy Klyuch, Krasnodar Krai, Russia
    Posts
    985
    Thanks
    86
    Thanked 543 Times in 296 Posts
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)

    jdurand's Tools

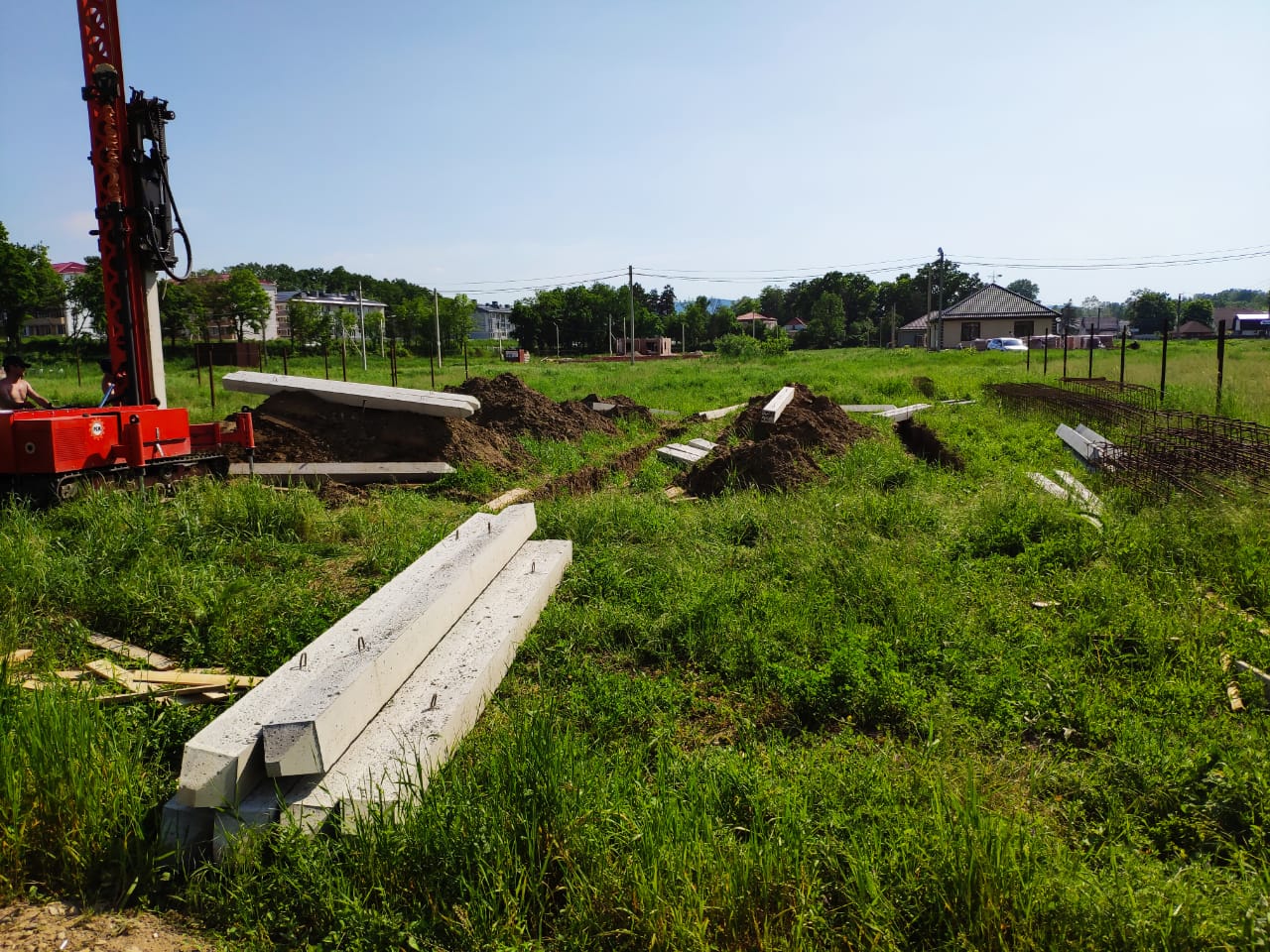

    Here's the mini driver used for our new house
    https://yadi.sk/i/VWMcWN8CxfPxSA

    piles out of ground
    Link belt diesel powered pile driver hammer - video-2019-05-17_piles-04.jpeg

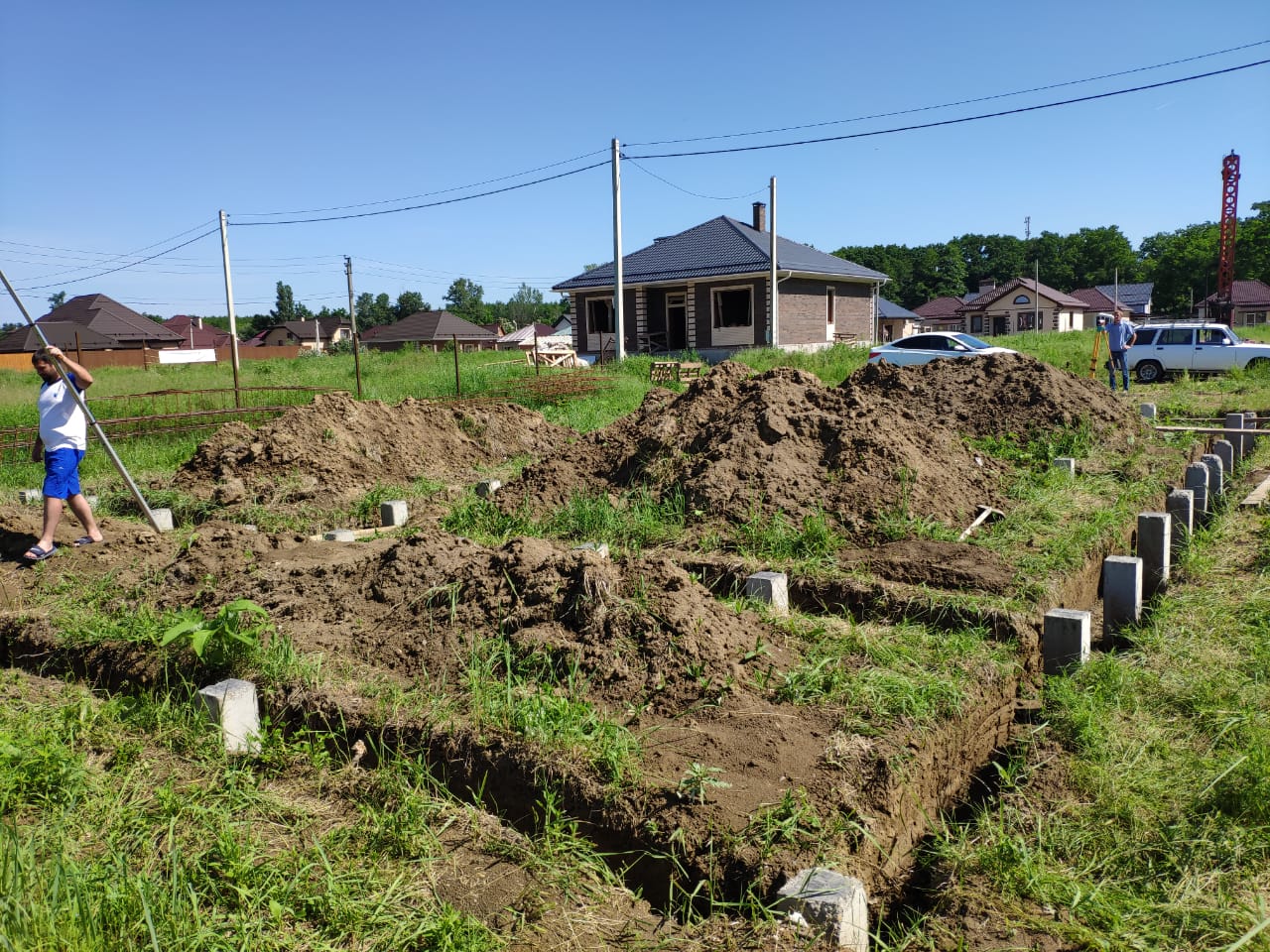

    And the final array
    Link belt diesel powered pile driver hammer - video-2019-05-21_piles-04.jpeg

  7. #5
    Supporting Member Paul Alciatore's Avatar
    Join Date
    Mar 2014
    Location
    Beaumont, TX
    Posts
    215
    Thanks
    6
    Thanked 103 Times in 56 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Paul Alciatore's Tools
    This brings back one of my childhood memories. Back in the early 50s I attended a parochial grammar school in the New Orleans area and they were building a new church building right outside my classroom window. The ground there was very soft and organic: piles were an absolute necessity for any structure beyond a one story home and even some of them would sink if piles had not been used. The pile driver that they used was a lot like the one in the video. It may even have been the same model. It's operation was exactly like the one in the video.

    They used steel reinforced, concrete piles that were poured on site. The piles used three sections of steel tube/pipe, probably 40 to 50 feet long each. The second and third sections were welded on to the previous section once it was in the ground. Then the re-bar reinforcement assembly was dropped in and the concrete truck backed up and filled it with concrete.

    The first, hollow steel section for the pile was brought into position and when the pile driver's head was dropped onto it from a distance of just a foot or so, the ground was so soft that the section of the pile would just zip down by more than half it's length, probably 30 feet or more. Just a few strokes with the pile driver's head was enough to sink it all the way. And that was the ground we were walking on, the ground that my house stood on a couple of blocks away. Only towards the end of when the second section of the pile was being driven did the strokes sink the pile for less than a full foot on each stroke. Even as a eight or nine year old, this made a tremendous impression on my mind. And yes, that church still stands today. I guess they knew what they were doing.
    Paul A.
