Thread: Low-cost Open-Source Voltage and Current Monitor for Gas Metal Arc Weld 3-D Printing

  1. #1
    Supporting Member MOST's Avatar
    Join Date
    Aug 2017
    Posts
    59
    Thanks
    8
    Thanked 67 Times in 28 Posts

    MOST's Tools

    Low-cost Open-Source Voltage and Current Monitor for Gas Metal Arc Weld 3-D Printing

    Arduino open-source microcontrollers are well known in sensor applications for scientific equipment and for controlling RepRap 3-D printers. Recently low-cost open-source gas metal arc weld (GMAW) RepRap 3-D printers have been developed. The entry-level welders used have minimal controls and therefore lack any real-time measurement of welder voltage or current. The preliminary work on process optimization of GMAW 3-D printers requires a low-cost sensor and data logger system to measure welder current and voltage. This paper reports on the development of a low-cost open-source power measurement sensor system based on Arduino architecture. The sensor system was designed, built and tested with two entry-level MIG welders. The full bill of materials and open source designs are provided. Voltage and current were measured while making step-wise adjustments to the manual voltage setting on the welder. Three conditions were tested while welding with steel and aluminum wire on steel substrates to assess the role of electrode material, shield gas and welding velocity. The results showed that the open source sensor circuit performed as designed and could be constructed for <$100 in components representing a significant potential value through lateral scaling and replication in the 3- D printing community.

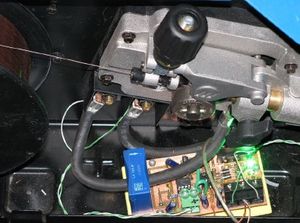

    Low-cost Open-Source Voltage and Current Monitor for Gas Metal Arc Weld 3-D Printing-300px-power-weld.jpg

    For more information, visit:
    Low-cost Open-Source Voltage and Current Monitor for Gas Metal Arc Weld 3-D Printing - Appropedia: The sustainability wiki

    Download paper at link below:
    https://www.academia.edu/15282691/Lo...d_3-D_Printing

  2. The Following User Says Thank You to MOST For This Useful Post:

    Paul Jones (08-04-2017)

  3. #2
    Content Editor
    Supporting Member
    DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,088
    Thanks
    579
    Thanked 1,416 Times in 1,270 Posts


    Thanks MOST! We've added your Voltage and Current Monitor to our Measuring and Marking category,
    as well as to your builder page: MOST's Homemade Tools. Your receipt:
