    Melting rock using a Fresnel lens - GIF

    Melting rock using a large Fresnel lens.




    Previously:

    Melting a wrench with electricity - GIF
    Melting a machine gun barrel by firing 700 rounds through it - GIF
    Melting a padlock - GIF

    173 Best Homemade Tools eBook

  2. The Following 3 Users Say Thank You to Altair For This Useful Post:

    nova_robotics (Nov 24, 2021), RetiredFAE (Nov 24, 2021), Sleykin (Nov 28, 2021)

  3. #2
    Supporting Member
    Join Date
    Sep 2018
    Posts
    679
    Thanks
    2,720
    Thanked 247 Times in 159 Posts

    nova_robotics's Tools
    I was doing this! I bought a few different Moon simulants, and Mars simulant, and we started melting regolith simulant into structural shapes. We also made fibreglass, which turned out surprisingly easy to make. The objective was to go after a contract with the CSA (Canadian Space Agency). CSA said the idea was stupid and they'd rather truck concrete to Mars and the Moon, seriously.

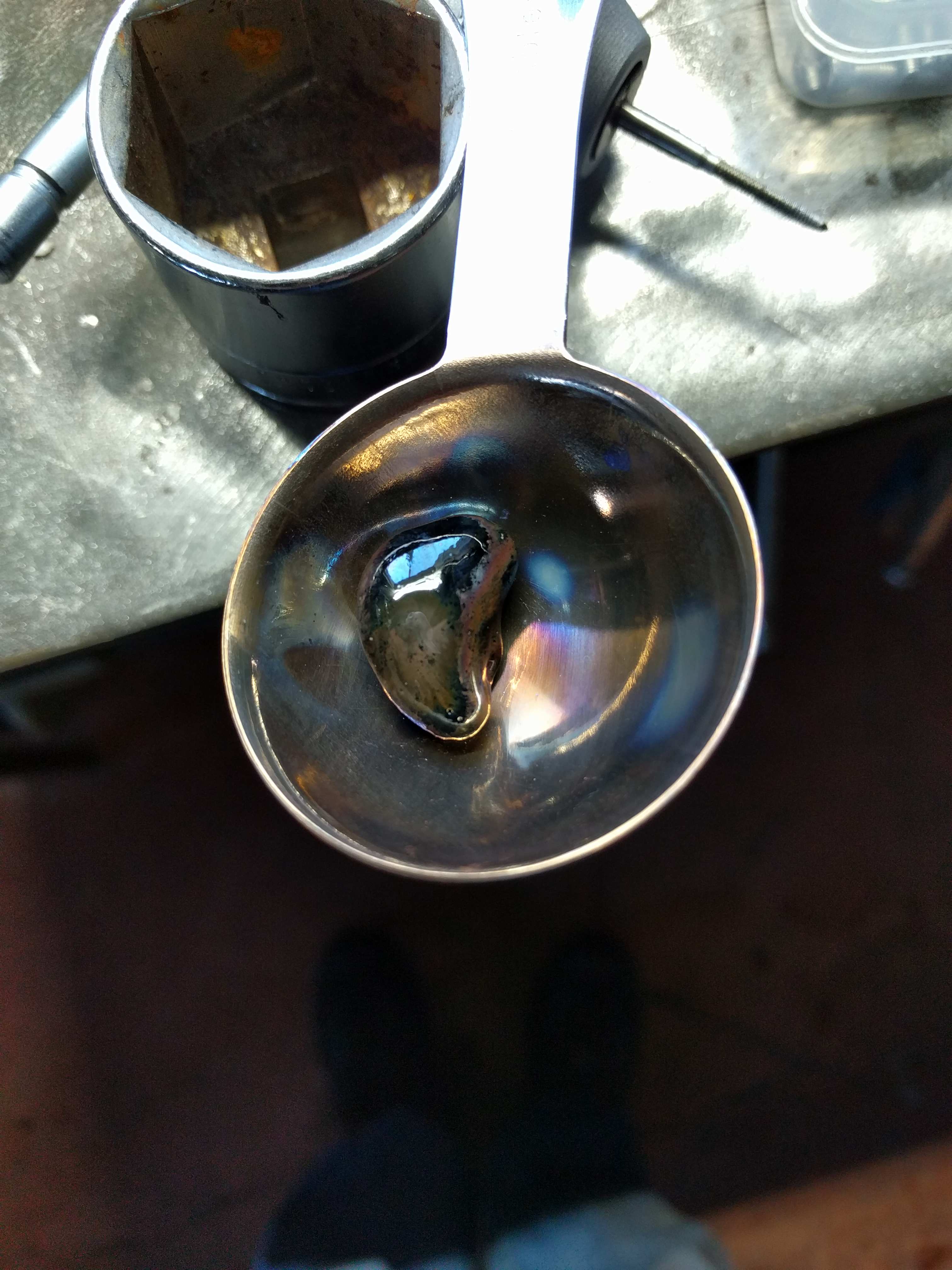

    Melting rock using a Fresnel lens - GIF-img_20181118_132625.jpg

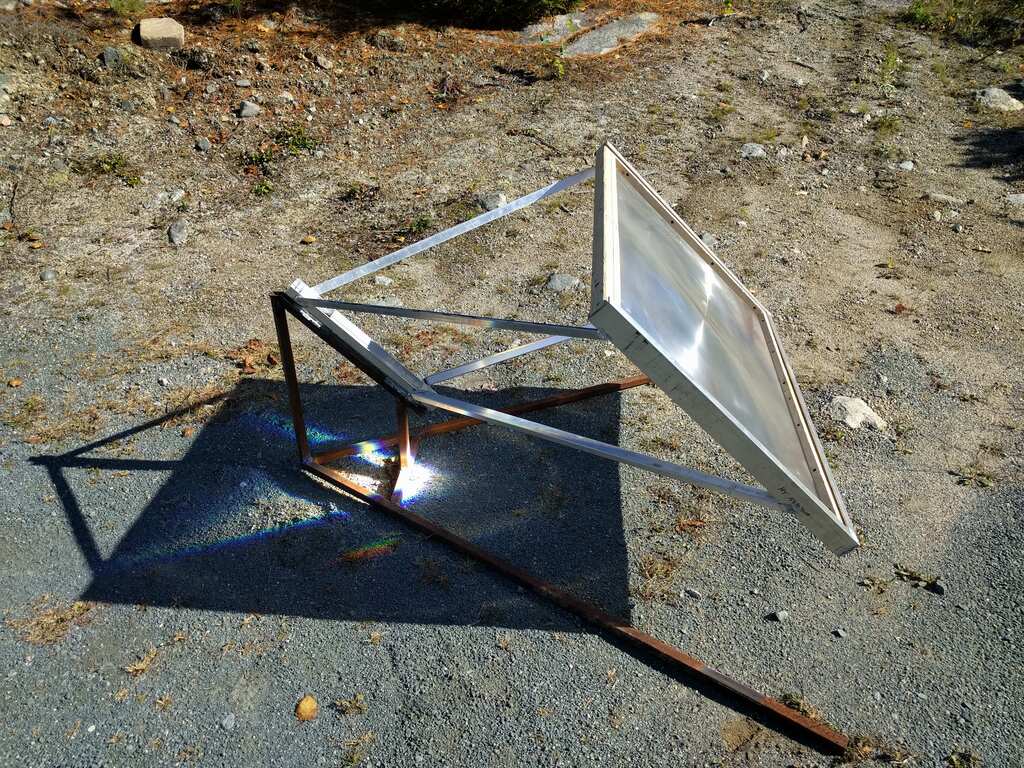

    Melting rock using a Fresnel lens - GIF-img_20181014_142629.jpg

  4. The Following User Says Thank You to nova_robotics For This Useful Post:

    Altair (Nov 25, 2021)

  5. #3
    Supporting Member
    Join Date
    Apr 2014
    Posts
    196
    Thanks
    20
    Thanked 98 Times in 51 Posts

    Gadgeteer's Tools
    To quote Paris Hilton, "That's hot!."

  6. #4
    Supporting Member hemmjo's Avatar
    Join Date
    Feb 2017
    Posts
    1,055
    Thanks
    52
    Thanked 602 Times in 359 Posts

    hemmjo's Tools
    Inspired by the Solar Challenger in the early 80's, I had the 8th grade students in my class build a parabolic reflector. It was an 4' diameter dish. Made of fiberglass and epoxy resin over a plaster form. It was made in 8 segments bolted together. Covered with Chrome Mylar donated by one of the dads who worked at Dupont. We had to make a few extra as the first few attempts were not very good. But the last few were awesome.

    After it was completed, we took it outside. We had to instantly stop testing as the brightness of the focal point was way too intense. After borrowing a class set of welding goggles from other schools, we went back out another day. The first test was piece of black construction paper. We never even saw flames, it just disappeared. A common 2 x 4 would instantly burst into flames. It would heat a piece of 1/4" steel to bright red in a very short time. We never tried to melt rock.

    One of my goals as a teacher was always to make kids impressed with the things that could actually do, if they wanted to.

    We did the math on the reflector, not taking into account the surface imperfections. Four foot diameter is about 12.5 square feet. 3 inch diameter target is about 0.05 square feet. That is a magnification of about 250 times. Once again not taking into consideration the surface defects of the "homemade" reflector.

    I regret I have no photos of the project.

    I wish I still had the dish, but I gave it to a science teacher when I retired.

  7. The Following User Says Thank You to hemmjo For This Useful Post:

    Sleykin (Nov 28, 2021)

  8. #5
    Supporting Member odd one's Avatar
    Join Date
    Apr 2020
    Location
    WNC
    Posts
    83
    Thanks
    108
    Thanked 26 Times in 18 Posts
    That's the kind of teaching and experimenting that I remember most fondly in school and had the most impact on me. I was very fortunate to have several of those teachers, Safety standards were much more relaxed back then....thank god. Fire, explosions and huge electrical arcs tend to grab the attention of impressionable minds. Sure you made a lasting impact on several of those kids as well.
