I realised that the commercial optical centre I have is too large, the base was just too wide and so limits how close you can get to a feature that protrudes from a surface.
So, I decided to make a small optical centre punch.

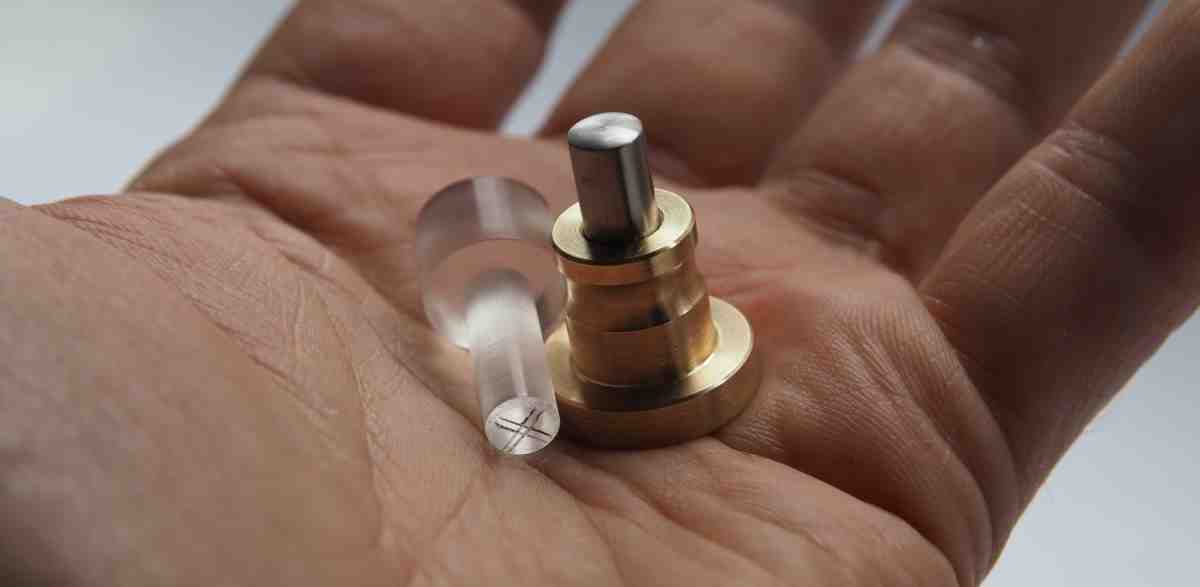

Attachment 40062
It has turned out so well that today I sat down and drew up some plans - optical centre punch.
<!-- BEGIN /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Thanks editor@glue-it.com! We've added your Miniature Optical Center Punch to our Measuring and Marking category,
as well as to your builder page: editor@glue-it.com's Homemade Tools. Your receipt:
<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="https://www.homemadetools.net/homemade-miniature-optical-center-punch"> <img src="/uploads/249689/homemade-miniature-optical-center-punch.jpeg"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="https://www.homemadetools.net/homemade-miniature-optical-center-punch">Miniature Optical Center Punch</a> <span> by <a href="https://www.homemadetools.net/builder/editor%40glue-it.com">editor@glue-it.com</a></span> </div> <div class="tags">tags: <a href='https://www.homemadetools.net/tag/punch'>punch</a> </div> </div> </div> </div>
<!-- END /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
So there are no plans or procedures to make this without paying? Didn't realize forum has become a "marketplace.
Nor any images to show how it works...
The cost of the plans was set as roughly equivalent to a coffee or a beer - a token that I think most would offer in return for plans. If it offends I can just remove it.Quote:
Originally Posted by Nick79

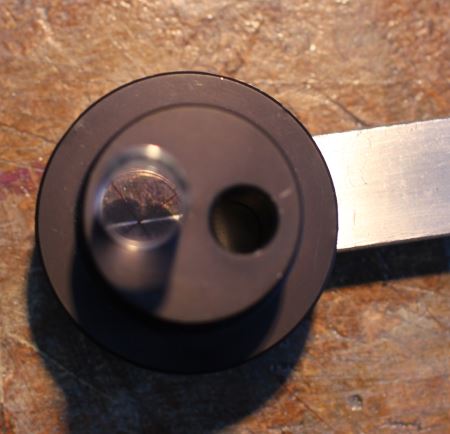

I will see if I can get an image of this working, not easy, but I did get an image of the larger Soba Optical Centre:Quote:
Originally Posted by BuffaloJohn
Attachment 40077

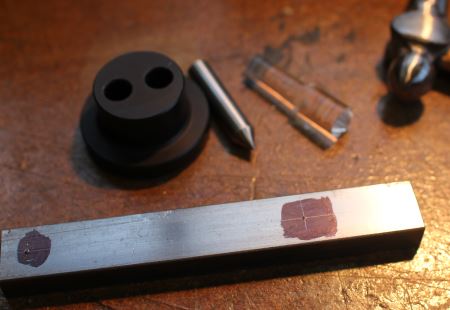

Here are the parts and the beam that was marked up and then centre punched:
Attachment 40078
The steps to using it are:
1. Place the base on the workpiece
2. Put the optical centre into the base
3. Align the cross-hairs / circle / dot (different options are described in the plans) on the marks on the workpiece
4. Whilst holding the base in place
5. Remove the optical centre
6. Insert the hardened centre
7. Tap the top of the hardened centre once with a small hammer
8. Done
Re: "Didn't realize forum has become a "marketplace"
I have been a member of this forum for a number of years and have bought plans for a number of projects. I thought that was the purpose of the forum.
Ralph
