    Cool Pipe center DIY



    Had a round 5" laminated steel laying around and decided to make a pipe center....

    For the axle, used a drill chuck arbor MT02 to JT4. Machined Jacobs taper to 25mm the internal diameter of my bearing.

    The bearing used is from a car front wheel. It's a double row angular contact ball bearing. It can handle axial and radial loads, It's preloaded (no free play), has good seal and it is cheap. The one I used has 25mm internal diameter, 55mm external and 45mm long.



    Machined the 5" steel with 4 jaw chuck since this is the biggest I have. First back side was made with bearing case. Pressed bearing and axle. So, I machined most of the taper (35).



    ***Now comes the odd part***
    For the two finishing pass, I mounted the pipe center in tailstock and driven it by a threaded bar (see pics) This way I ensured best concentricity.




  2. The Following 14 Users Say Thank You to Cascao For This Useful Post:

    baja (11-09-2019), bobs409 (09-11-2017), Frank S (09-11-2017), LMMasterMariner (09-11-2017), mwmkravchenko (03-17-2018), nashty1 (03-14-2018), NickP (03-15-2018), NortonDommi (09-12-2017), olderdan (09-12-2017), Paul Jones (09-13-2017), rossbotics (09-16-2017), Seedtick (09-11-2017), Toolmaker51 (09-11-2017), Tule (09-12-2017)

  3. #2
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    6,285
    Thanks
    796
    Thanked 4,915 Times in 2,399 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Frank S's Tools
    nice I made one similar to that a long time ago but it was only 3" diameter
    Never try to tell me it can't be done
    When I have to paint I use http://kbs.justoldtrucks.com/

  4. The Following User Says Thank You to Frank S For This Useful Post:

    Cascao (09-12-2017)

  5. #3
    Supporting Member
    Join Date
    Feb 2017
    Posts
    98
    Thanks
    10
    Thanked 52 Times in 34 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Cascao - Turning a workpiece in a tailstock bearing mount is really cool. We think of a lathe as a tool that transmits power through the workpiece mounting. But the main purpose of the mounting(s) is to achieve circular and runout accuracy under cutting forces. How you get the rotational power to the workpiece is whatever way is convenient and won't produce unwanted torsional or lateral vibrations in the system.
    If you are faced with cutting a circular or cylindrical or even tapered surface on a very large or unwieldy work piece think out of the box and consider the very basics of the cutting process. And th same line of thinking can be extended to other shapes or straight lines.
    This isn't my original thinking here. I base what I say in a past read of the ideas of a real machinist. Seems it might have been in one of Guy Lautard's Machinist Bedside Readers; but I'm not sure. By the way, Lautard's readers, essentially collections of fascinating essays on unusual machining experiences make fascinatin reading. I highly recommend them. Ed Weldon

  6. The Following 3 Users Say Thank You to Ed Weldon For This Useful Post:

    Cascao (09-12-2017), NickP (03-15-2018), Paul Jones (09-13-2017)

  7. #4
    Supporting Member LMMasterMariner's Avatar
    Join Date
    Jan 2016
    Location
    Dubrovnik, Croatia
    Posts
    211
    Thanks
    535
    Thanked 449 Times in 117 Posts
    Mentioned
    0 Post(s)
    Tagged
    1 Thread(s)

    LMMasterMariner's Tools

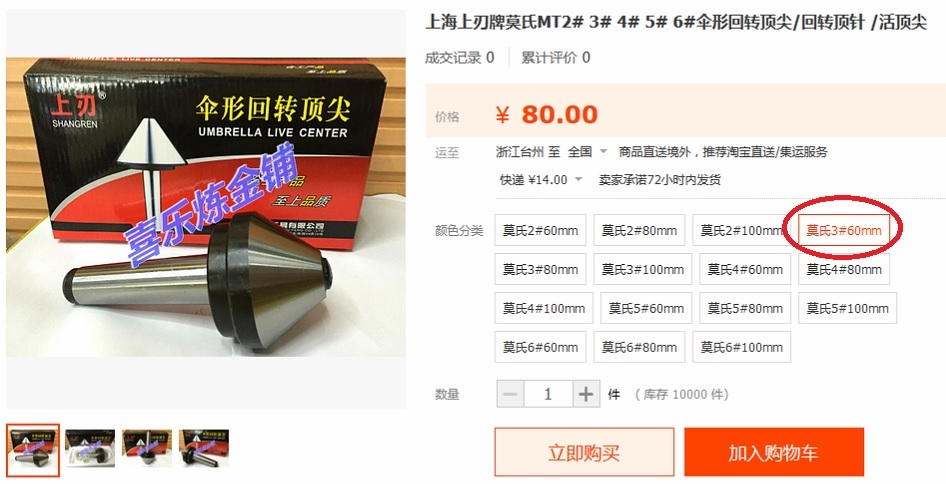

    Very simple approach to fabricate bull nose live center. I would make it the same way now when I saw what you did, but already bought one 60 mm diameter made in China and they call it umbrella live center. Thanks for sharing.
