    Power transformer

    Hi all!
    I just built a power transformer for electrostatic headphone amplifier.

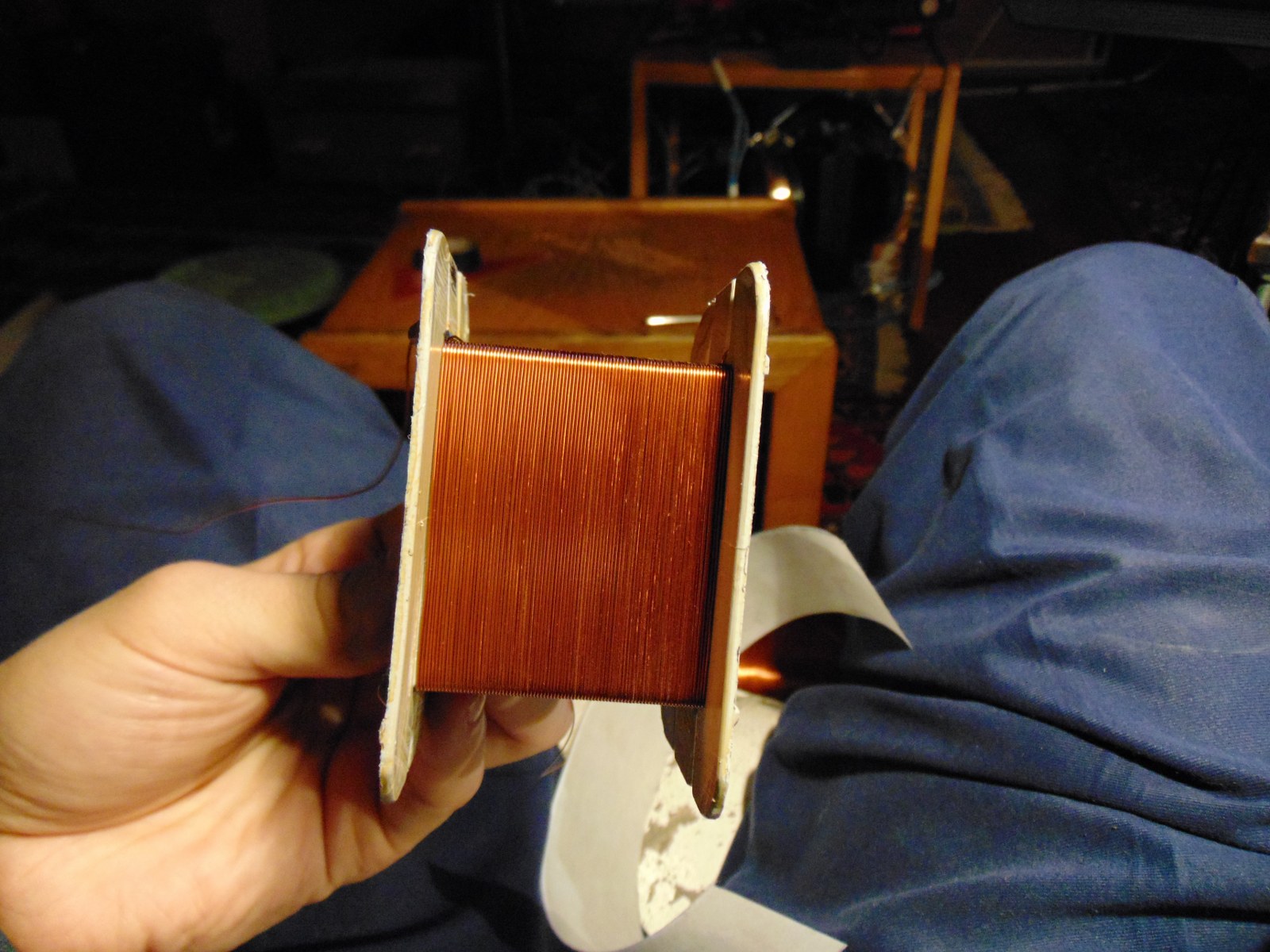

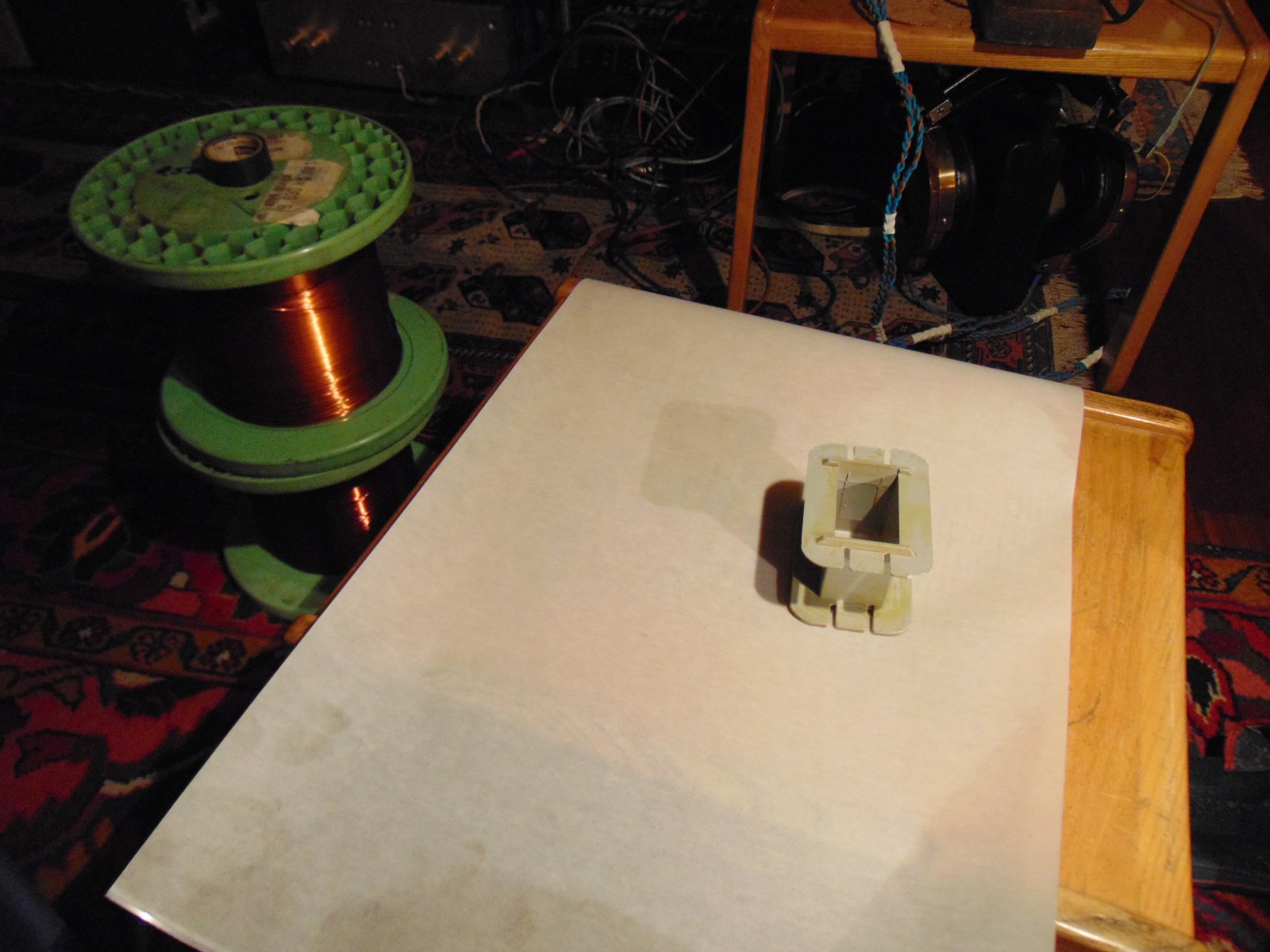

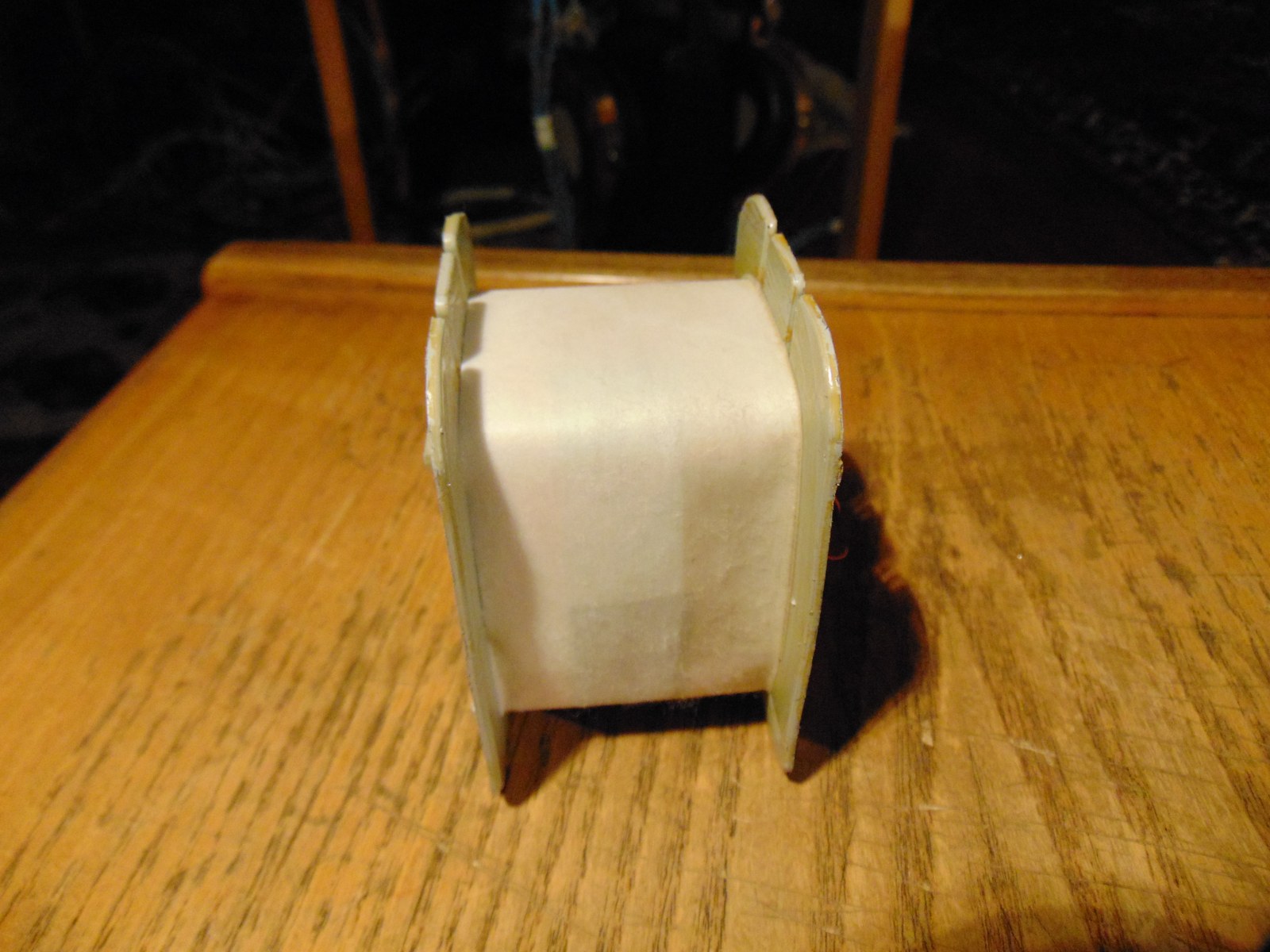

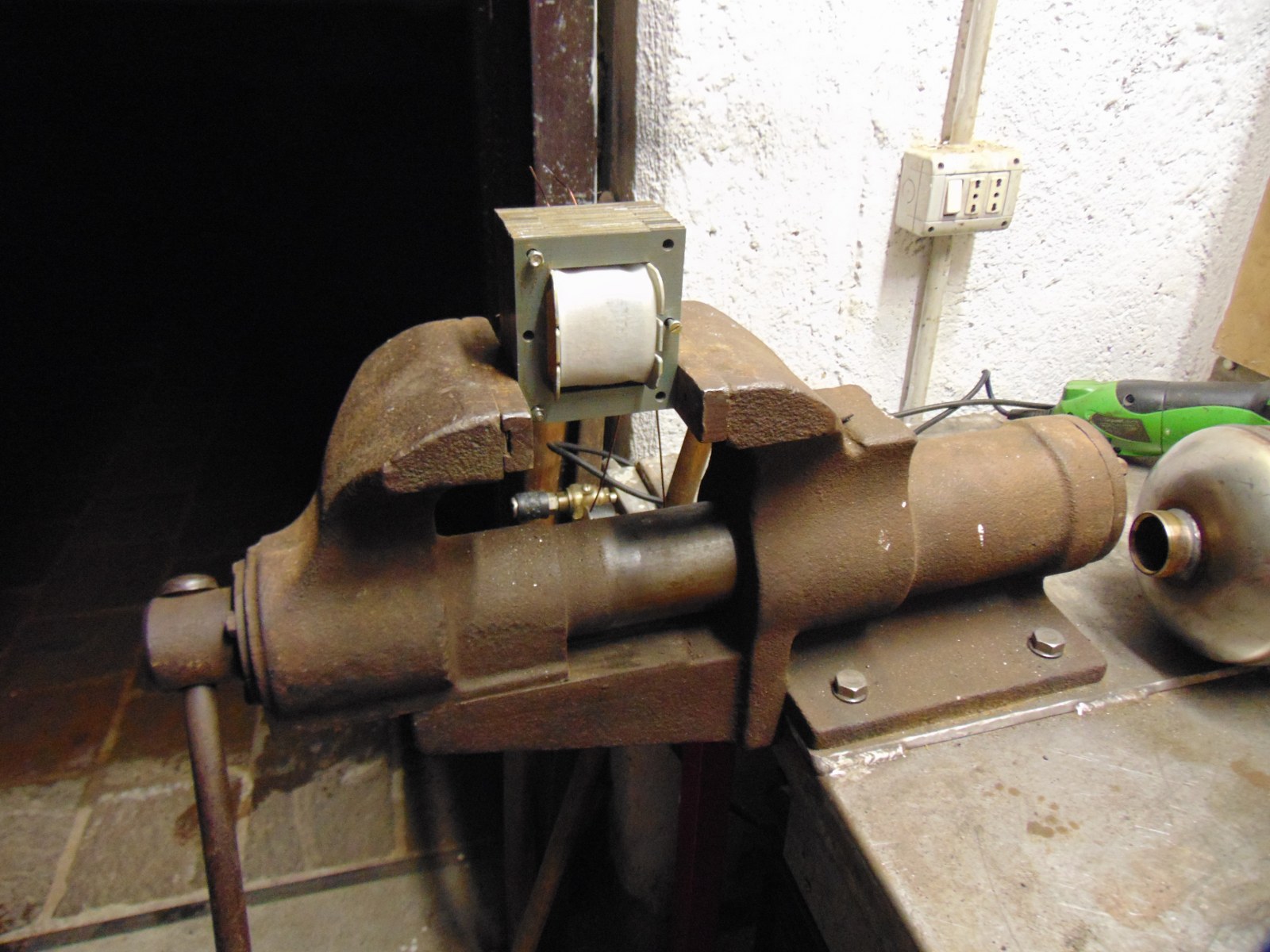

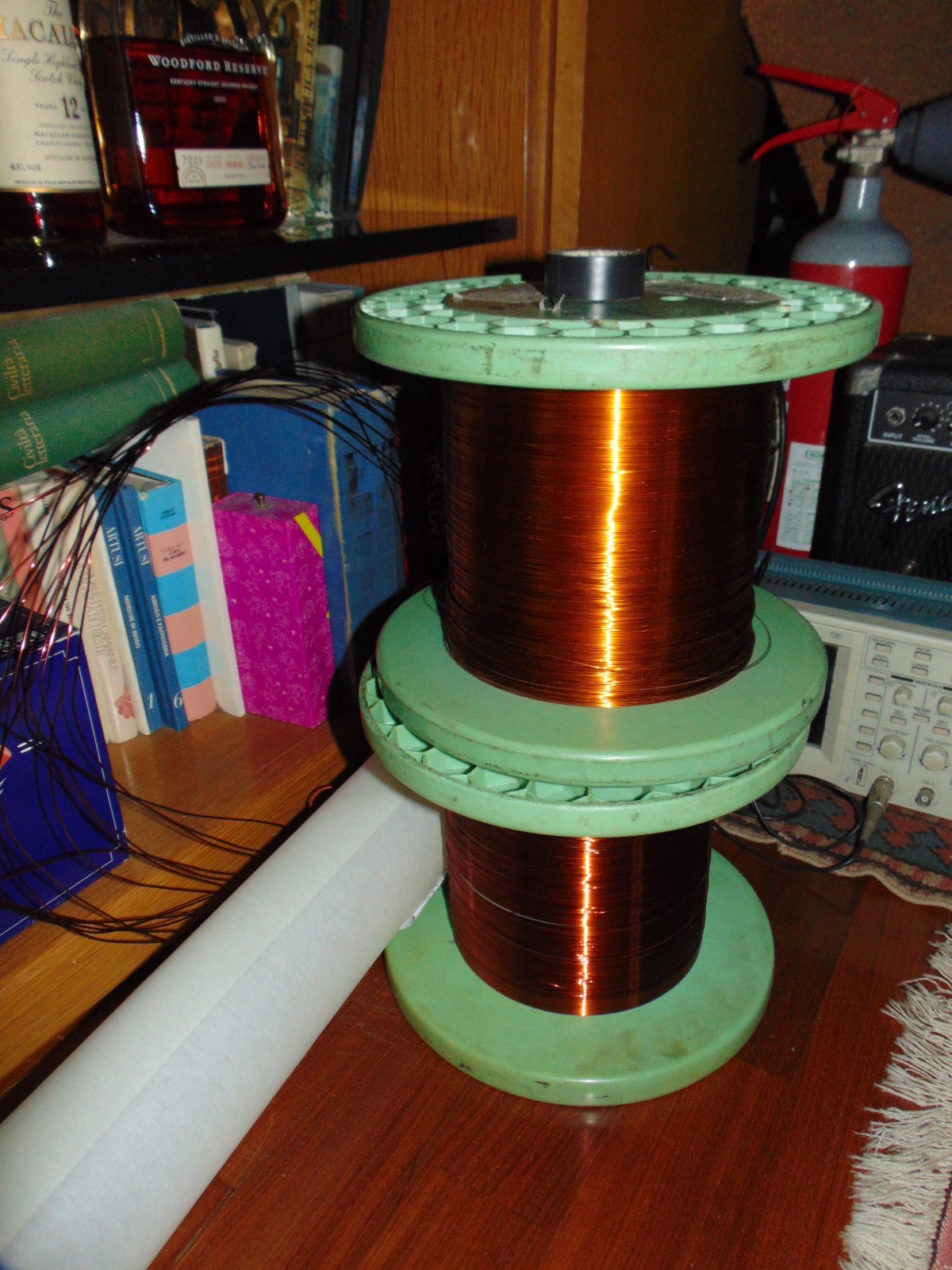

    I had a scrap transformer broken, I kept it good the core and the plastic sprocket. I used very good copper with 2 layers of enamel, high temperature, used in electric motor, as insulator a special paper with mylar.

    For convenience I used the free software available on the site of Fabrizio Giunchi, a very good tool for power and output transformers, even for custom Irons.
    I have no coiler, so I made the winding by hand.

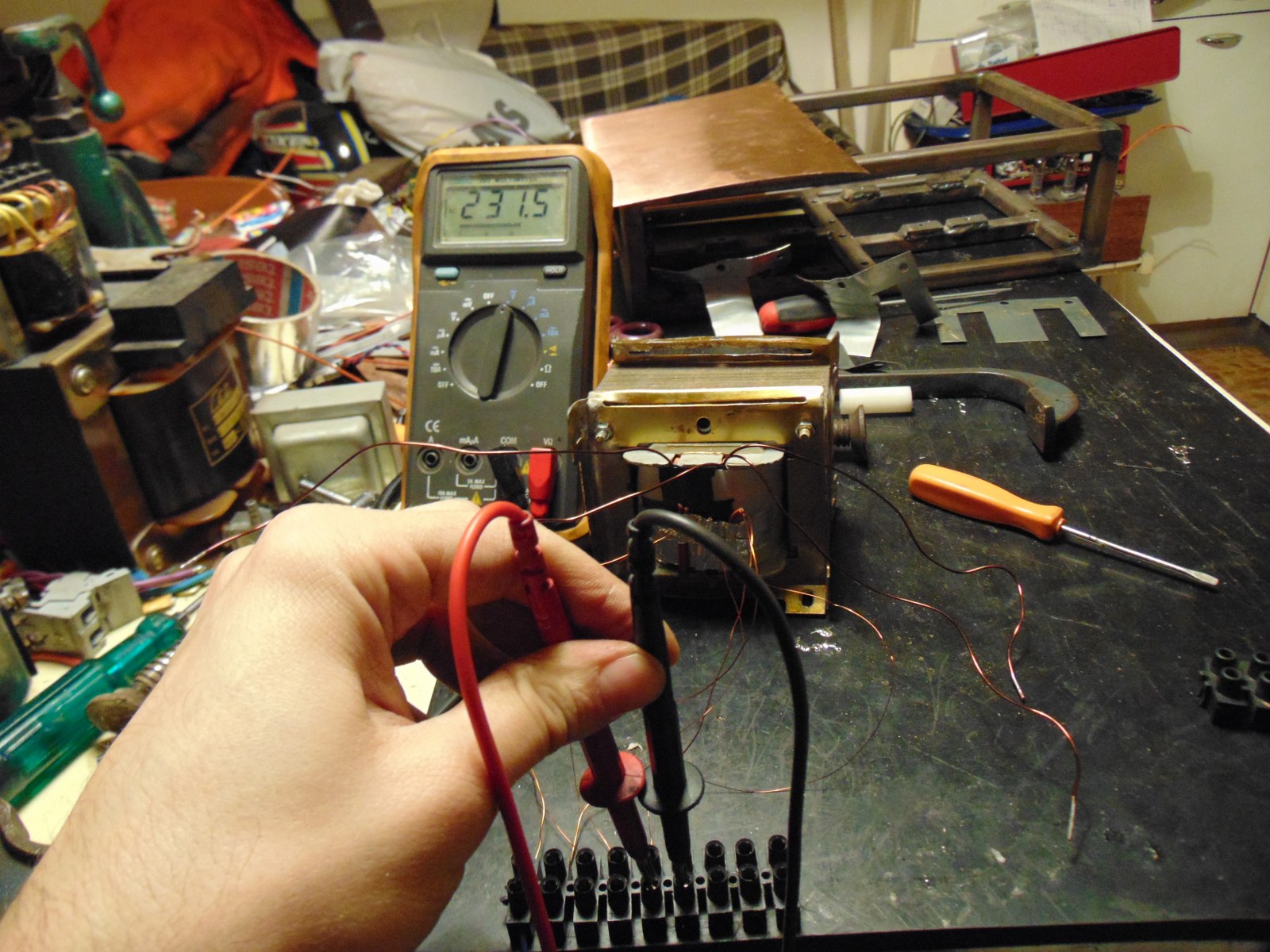

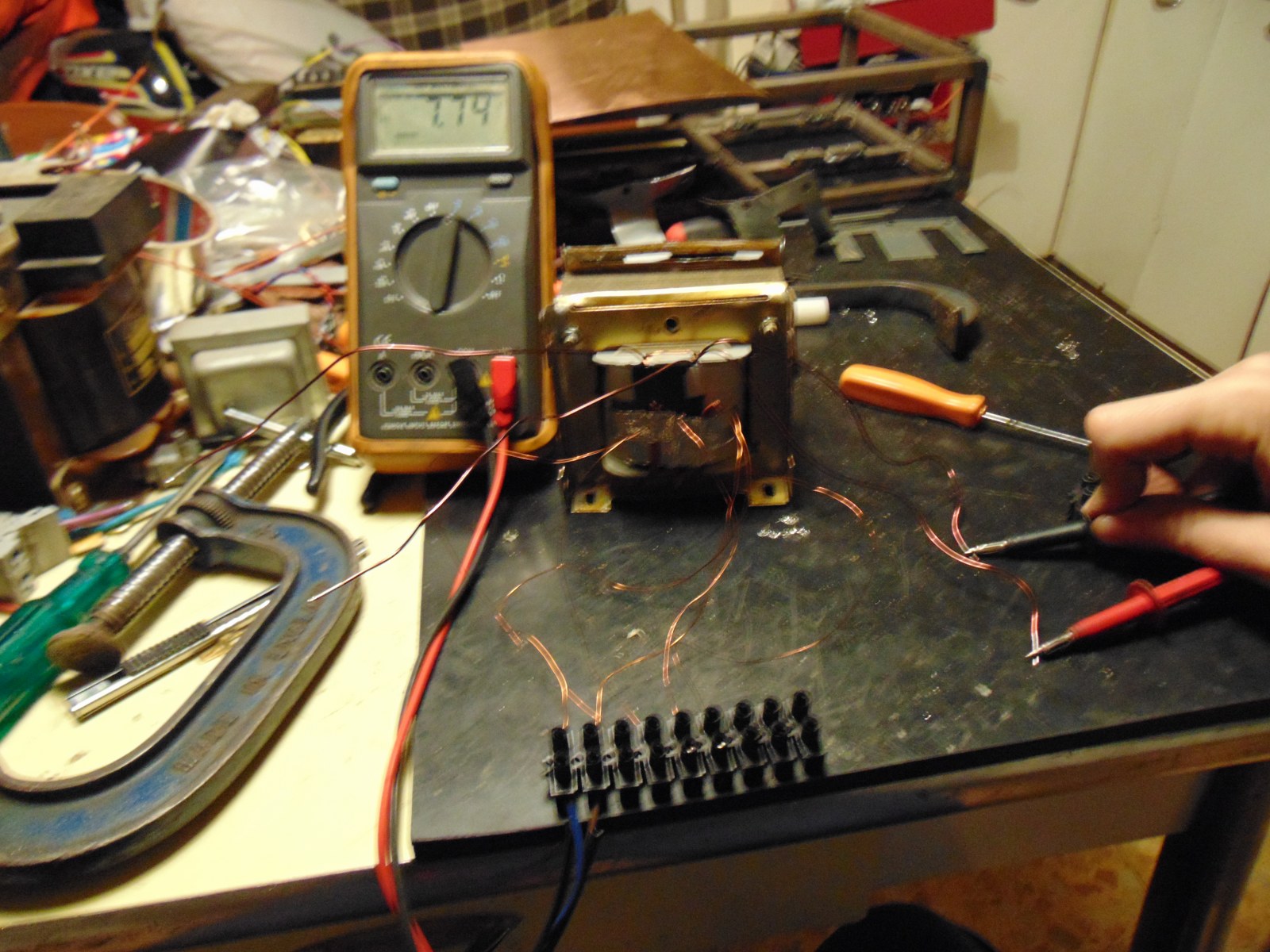

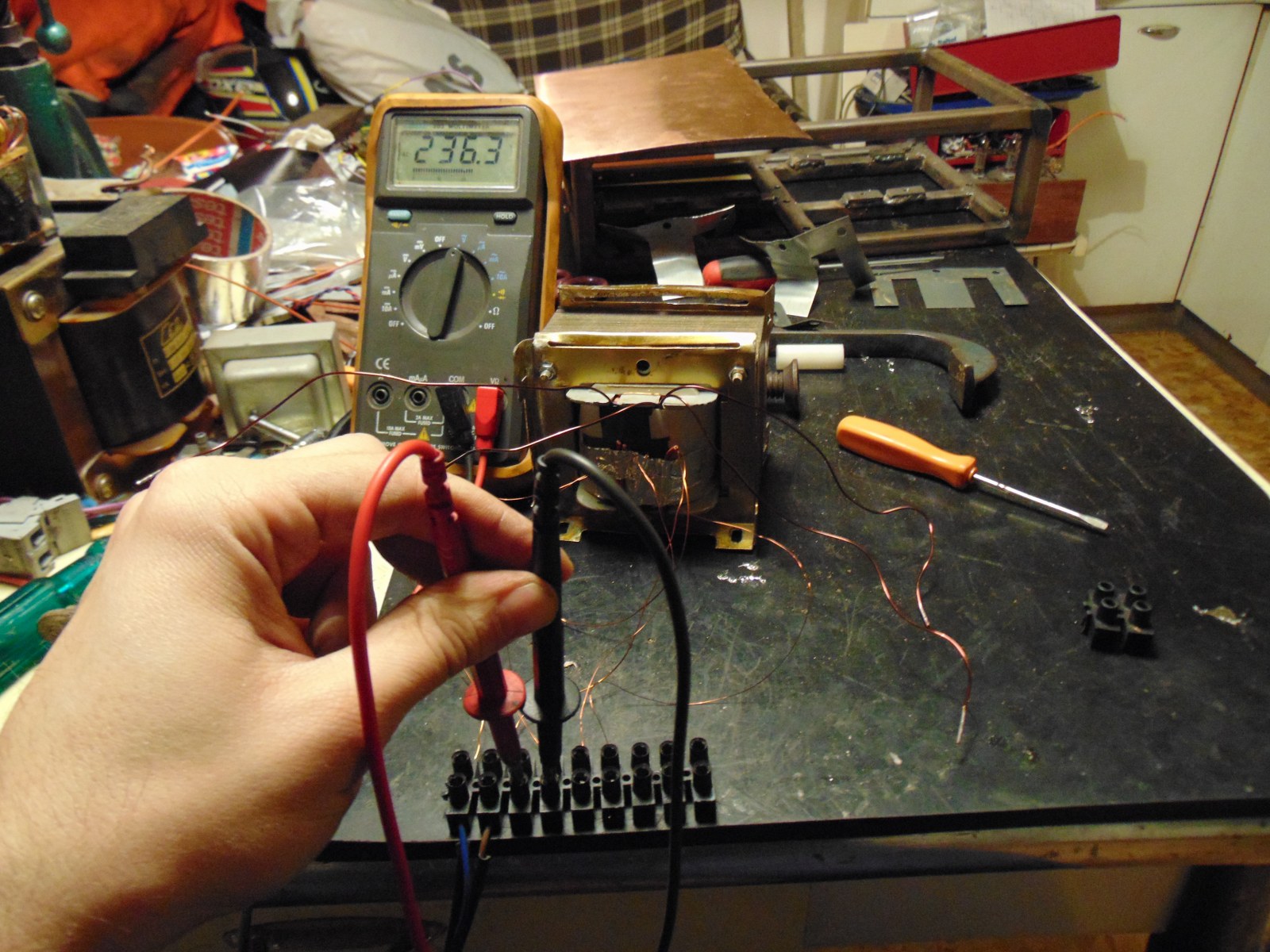

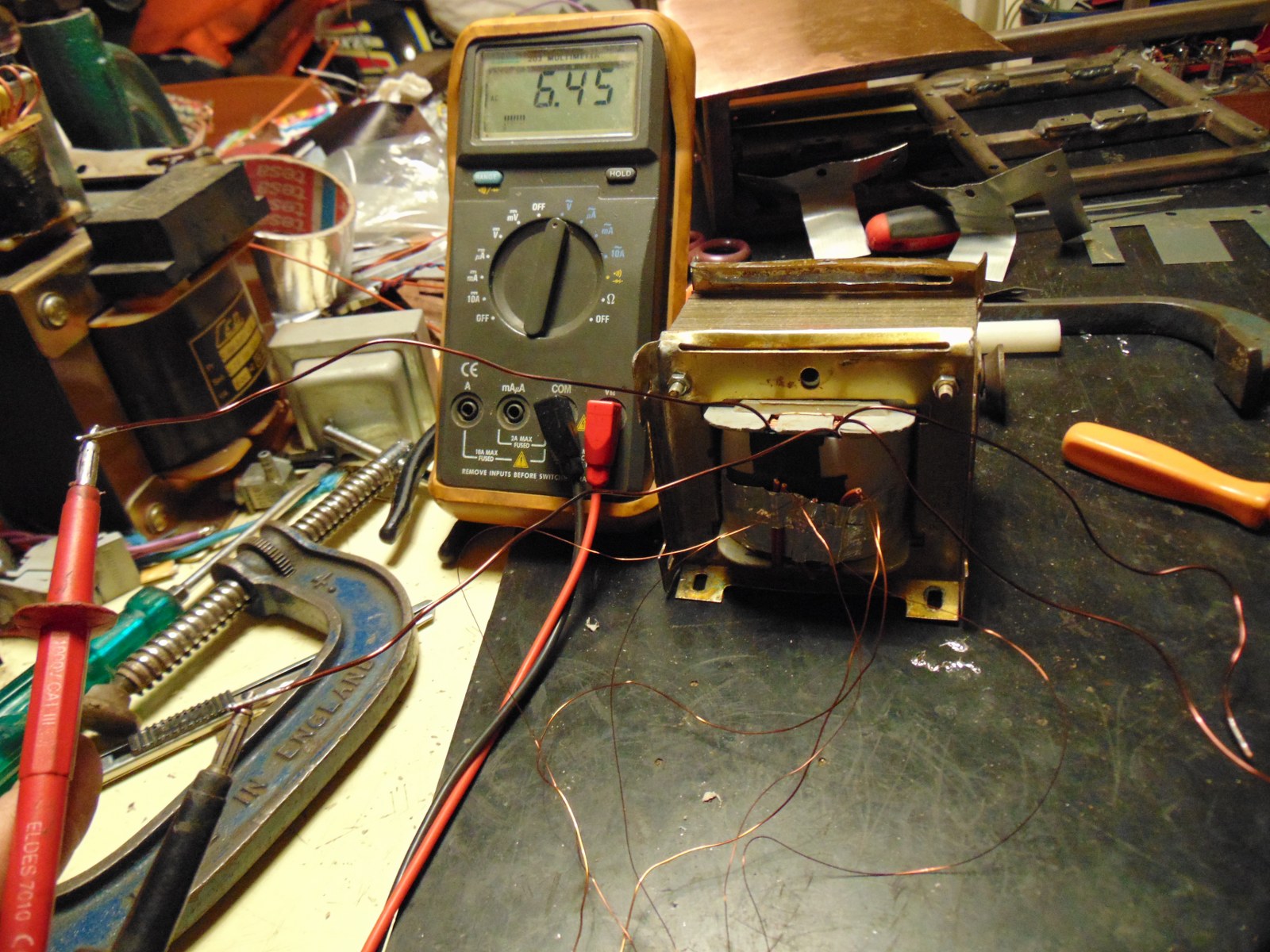

    I tested only with no load, voltages are good, 2% of difference between hv secondaries, not a big trouble.

    That's the link full of good info about transformer, it's in italian language

    Scarica

    Power transformer-dsc03729_1600x1200.jpg Power transformer-dsc03732_1600x1200.jpg Power transformer-dsc03734_1600x1200.jpg

    Power transformer-dsc03739_1600x1200.jpg Power transformer-dsc03740_1600x1200.jpg Power transformer-dsc03743_1600x1200.jpg

    Power transformer-dsc03744_1600x1200.jpg Power transformer-dsc03745_1600x1200.jpg Power transformer-dsc03746_1600x1200.jpg
