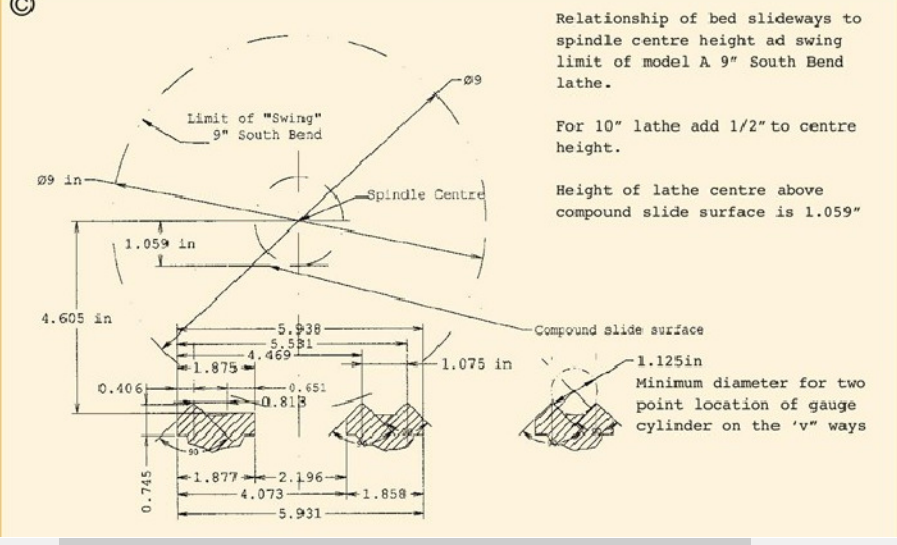

I found this on my computer the other day and thought it may be of use for someone making attachments for these machines.
I can not remember where I found it but as it was freely available I assume it is ok to share it.
Attachment 24899
Printable View
I found this on my computer the other day and thought it may be of use for someone making attachments for these machines.
I can not remember where I found it but as it was freely available I assume it is ok to share it.
Attachment 24899
<!-- BEGIN /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Thanks olderdan! We've added your South Bend Bed Dimension to our Lathes category,
as well as to your builder page: olderdan's Homemade Tools. Your receipt:
<div id="blocks"> <div class="block b1 pngfix"> <div class="bimg"> <div> <a href="http://www.homemadetools.net/homemade-south-bend-bed-dimension"> <img src="/uploads/216330/homemade-south-bend-bed-dimension.png"/> </a> </div> </div> <div class="head pngfix"></div> <div class="left pngfix"></div> <div class="right pngfix"></div> <div class="blockover b1 pngfix"> <div class="title"> <a href="http://www.homemadetools.net/homemade-south-bend-bed-dimension">South Bend Bed Dimension</a> <span> by <a href="http://www.homemadetools.net/builder/olderdan">olderdan</a></span> </div> <div class="tags">tags: <a href='http://www.homemadetools.net/tag/lathe'>lathe</a> </div> </div> </div> </div>
<!-- END /var/www/html/homemadetools/protected/modules/zeus/views/tool/postUpdate.php -->
Can barely remember last time I ran a South Bend, other than fact they are certainly enjoyable. But this drawing and dimensions I've NEVER thought to record makes me think how to prepare such a print for Big Ol' Green [<- one and same in portrait to the left].Quote:
Originally Posted by olderdan
The value is two fold, one of course in designing tools/ fixtures. The other reveals size limitations of allowable material.
