    South Bend bed dimensions

    I found this on my computer the other day and thought it may be of use for someone making attachments for these machines.
    I can not remember where I found it but as it was freely available I assume it is ok to share it.

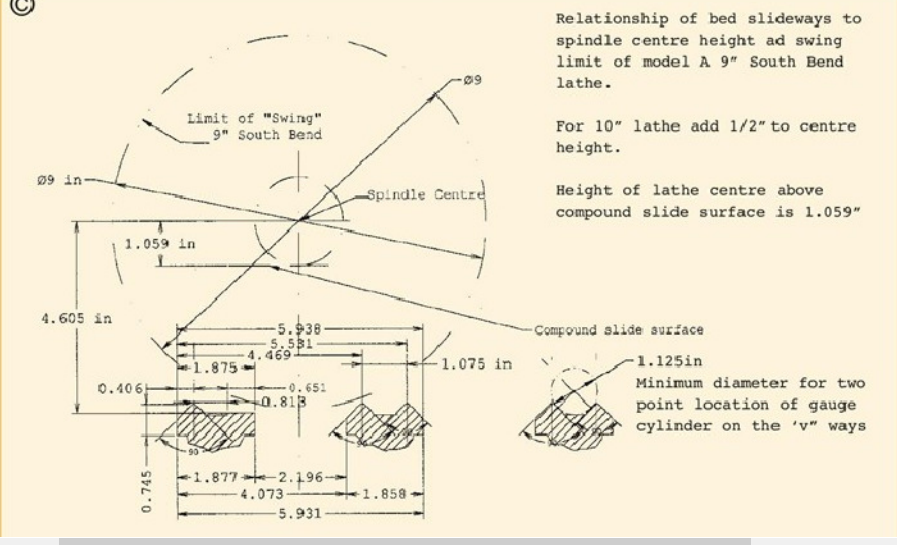

    South Bend bed dimensions-screen-shot-05-07-17-07.05-pm.png
    45 Best Harbor Freight Tool Modifications


  2. The Following User Says Thank You to olderdan For This Useful Post:

    Toolmaker51 (07-25-2018)

  3. #2
    Content Editor
    Supporting Member
    DIYer's Avatar
    Join Date
    Aug 2013
    Posts
    3,090
    Thanks
    552
    Thanked 1,314 Times in 1,185 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    500+ Homemade Tool Plans



    Thanks olderdan! We've added your South Bend Bed Dimension to our Lathes category,
    as well as to your builder page: olderdan's Homemade Tools. Your receipt:



    Forge Build Guide


  4. #3
    Supporting Member Toolmaker51's Avatar
    Join Date
    Feb 2016
    Location
    Midwest USA
    Posts
    2,538
    Thanks
    4,323
    Thanked 1,874 Times in 1,142 Posts
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Toolmaker51's Tools
    Quote Originally Posted by olderdan View Post
    Click image for larger version.

Name:	Screen Shot 05-07-17 at 07.05 PM.PNG
Views:	145
Size:	478.2 KB
ID:	24899
    Can barely remember last time I ran a South Bend, other than fact they are certainly enjoyable. But this drawing and dimensions I've NEVER thought to record makes me think how to prepare such a print for Big Ol' Green [<- one and same in portrait to the left].
    The value is two fold, one of course in designing tools/ fixtures. The other reveals size limitations of allowable material.
