    Underwater pipe and pile cutter - GIF


    186 More Best Homemade Tools eBook

  2. The Following 5 Users Say Thank You to Altair For This Useful Post:

    Andyt (Aug 19, 2020), baja (Aug 19, 2020), MeJasonT (Aug 19, 2020), mwmkravchenko (Aug 18, 2020), nova_robotics (Aug 18, 2020)

  3. #2
    Supporting Member
    Join Date
    Sep 2018
    Posts
    2,347
    Thanks
    11,136
    Thanked 1,219 Times in 664 Posts

    nova_robotics's Tools
    How does it get there? This is just the cutter attached to a much bigger system. What holds this cutter?

    2,000+ Tool Plans

  4. #3
    Supporting Member mwmkravchenko's Avatar
    Join Date
    Nov 2017
    Location
    Perth Ontario Canada
    Posts
    1,042
    Thanks
    5,246
    Thanked 394 Times in 280 Posts
    I can think of so many things to go wrong with this idea. How about jamming for one.

  5. The Following 2 Users Say Thank You to mwmkravchenko For This Useful Post:

    MeJasonT (Aug 19, 2020), nova_robotics (Aug 18, 2020)

  6. #4
    Supporting Member
    Join Date
    Sep 2018
    Posts
    2,347
    Thanks
    11,136
    Thanked 1,219 Times in 664 Posts

    nova_robotics's Tools
    Quote Originally Posted by mwmkravchenko View Post
    I can think of so many things to go wrong with this idea. How about jamming for one.
    Exactly. Like 1" from the edge. Every. Single. Time. I'm sure there's a reason that the sample video is being cut vertically.

  7. #5
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    11,623
    Thanks
    2,178
    Thanked 9,125 Times in 4,365 Posts

    Frank S's Tools
    Diver in the water. With the proper guards I would have welcomed one of those things. Having used an underwater cutting torch using hydrogen & oxygen with compressed air to create an air bubble to protect the flame, a sudden current could force you to move the torch at the wrong time changing the angle you were holding it moving you off your cut or worst yet cause you to lose the air bubble extinguishing the flame. You would know it immediately by the concussion of the flame making a boom as it went out. making you surface to relight it. lighting it under water was not a good option as the boom from the hydrogen oxygen and compressed air could bust your ear drums.
    Another bad thing is it is almost impossible to even see the flame when burning hydrogen. At least if you were cutting at a depth of 10 feet or less you could use acetylene
    Never try to tell me it can't be done
    When I have to paint I use KBS products

  8. #6
    Supporting Member MeJasonT's Avatar
    Join Date
    Jun 2016
    Location
    Lake District in UK
    Posts
    432
    Thanks
    456
    Thanked 281 Times in 163 Posts

    MeJasonT's Tools

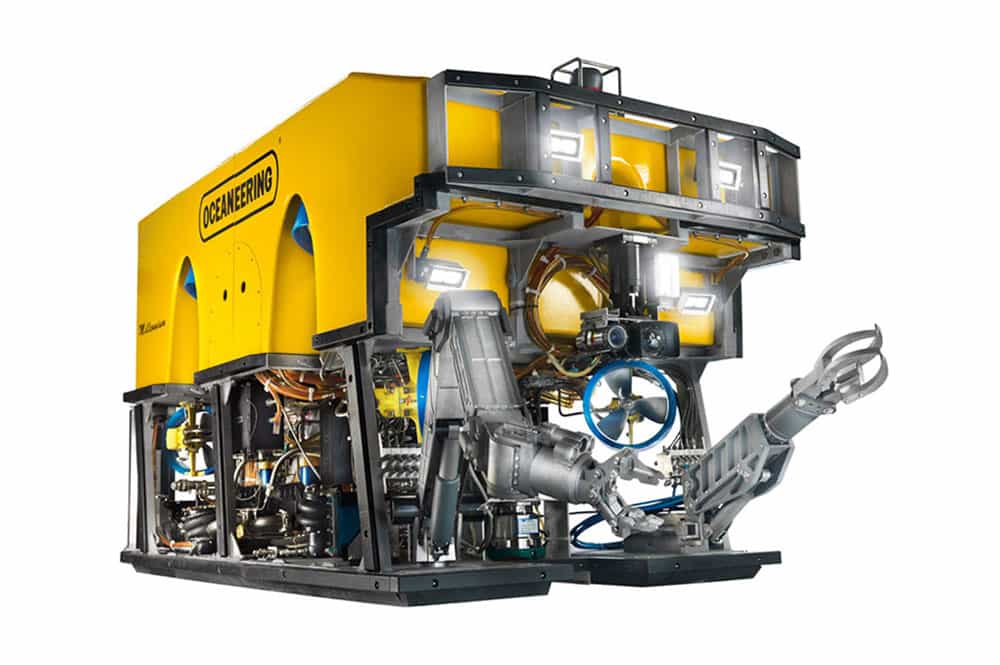

    Underwater pipe and pile cutter - GIF-millennium-right-side-low-2.jpg

    What have I never mentioned ROVs,
    You know I built one, ok I can hear you all yawning.

    Yep these vehicles are the subsea vehicle of choice, just like divers they are hard maintenance and still complain but at least with divers on board the fridge is full of ice creams/cans of goffas and the fruit bowls are full of bananas. Energy food you undrstand. Not for ROV operators, yeah right.
    Citizen of the "New democratic" Republic of Britain, liberated from the EuroNation

  9. #7
    Supporting Member MeJasonT's Avatar
    Join Date
    Jun 2016
    Location
    Lake District in UK
    Posts
    432
    Thanks
    456
    Thanked 281 Times in 163 Posts

    MeJasonT's Tools
    Frank

    what was that explosive cord, that used to make easy work of stuff. That and blowing the thing up.
    worked on a couple of projects where we removed old well structures with explosives, putting them in place with the ROV.
    sounds like fun but the vessel moved off 6 miles, where is the fun in that - we hardly saw or heard anything.

    On a side note the Berirut explosion, bloody hell. I have seen some big bangs in my time but holy crap (i do intentionally say that with biblical reference) that was like Hiroshima. Which again is also especially significant as we have just had VJ day.
    Citizen of the "New democratic" Republic of Britain, liberated from the EuroNation

  10. #8
    Supporting Member MeJasonT's Avatar
    Join Date
    Jun 2016
    Location
    Lake District in UK
    Posts
    432
    Thanks
    456
    Thanked 281 Times in 163 Posts

    MeJasonT's Tools
    Risers, the product tube extending from the seabed tend to be vertical, you can get jumpers which link well heads and manifolds which will be horizontal but they tend to be dissasembled the same way they were constructed when they were installed.
    Risers are basically a tube inside tube (to use the propper term - pipe) a well will be drilled to a depth of say 50m at 26" diameter and a casing installed. cement will be pumped into the casing forcing the cement up the outside and bonding it into the hole. A new hole is drilled down the inside of the casing say 20" it is then also pumped with cement which again fills the gap between the casings. However the second casing might be 100m long. This operation is carried out 3 or 4 times ending up with a 10" hole/pipe 300m long. punching through is when the drill bit extends beyond the casings and into the well. The demonstration is a little bit of poetic licence, as you can see there would be quite a mass of steel to cut through. Id suspect that this equipment would have been deployed in the Gulf of Mexico cleanup and Deepwater Horizon especially. They work pretty well, its just a miniture version of Smit's big saw they used to cut up and recover the Costa Concordia.

    Underwater pipe and pile cutter - GIF-soc-illustration_prod_banner_narrow.png

    Underwater pipe and pile cutter - GIF-bop-intervention.jpg

    Underwater pipe and pile cutter - GIF-subsea-valves-market-expected-grow-zion-says.jpg

    And what it really looks like - in clear water obviously

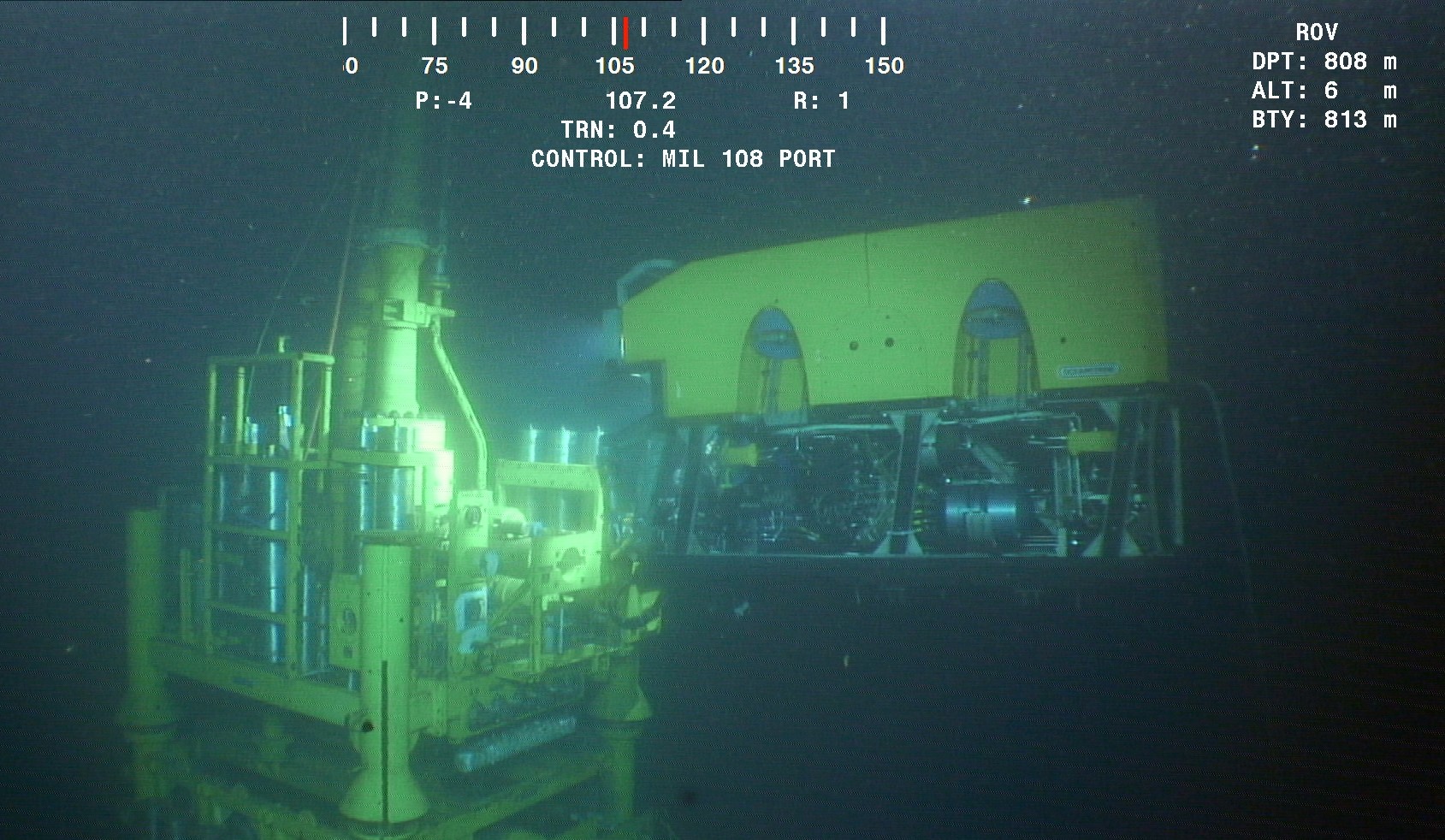

    Underwater pipe and pile cutter - GIF-photo-4.jpg
