Thread: 1880 Human-powered tractor with dreadnaught wheels - photo

  1. #1
    Jon
    Jon is online now Jon has agreed the Seller's Terms of Service
    Administrator
    Supporting Member
    Jon's Avatar
    Join Date
    Jan 2012
    Location
    Colorado, USA
    Posts
    21,062
    Thanks
    6,375
    Thanked 30,169 Times in 8,334 Posts

    1880 Human-powered tractor with dreadnaught wheels - photo


    173 Best Homemade Tools eBook

  2. The Following 8 Users Say Thank You to Jon For This Useful Post:

    greyhoundollie (Dec 31, 2019), gunsgt1863 (Mar 14, 2018), KustomsbyKent (Mar 13, 2018), Okapi (Jul 22, 2020), PJs (Mar 13, 2018), Scotsman Hosie (Mar 12, 2018), Seedtick (Mar 12, 2018), toma (Mar 13, 2018)

  3. #2
    Supporting Member toma's Avatar
    Join Date
    Mar 2017
    Location
    Serbia
    Posts
    124
    Thanks
    80
    Thanked 63 Times in 44 Posts

    toma's Tools
    Human imagination is endless....!!
    Something new for me. Thank you very much for digging for us such things ..

  4. The Following User Says Thank You to toma For This Useful Post:

    PJs (Mar 13, 2018)

  5. #3
    PJs
    PJs is offline
    Supporting Member PJs's Avatar
    Join Date
    Sep 2014
    Location
    Northern CA
    Posts
    1,841
    Thanks
    8,322
    Thanked 1,093 Times in 712 Posts

    PJs's Tools
    Fascinating Jon, Thanks. I really enjoy the ingenuity of design from these early era machines. The free wheeling slip jointed treads, suspended load - beam construction and the Ships wheel steering and of course the 4 man squirrel cage drive are mods of the time to make a "new" type machine. Also note the arc structured iron for what I assume is the front "suspension" and structural support. An Innovative second step in Dreadnaught wheel design. Very cool!
    ‘‘Always do right. This will gratify some people and astonish the rest.’’
    Mark Twain

  6. #4
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    6,898
    Thanks
    865
    Thanked 5,467 Times in 2,610 Posts

    Frank S's Tools
    Actually those are not true dreadnaught wheels nor are they pedrail wheels which is another type of pad laying wheel, Dreadnaught wheels invented by James Boydell had long pads which were inter connected to each other secured to the wheel by cables

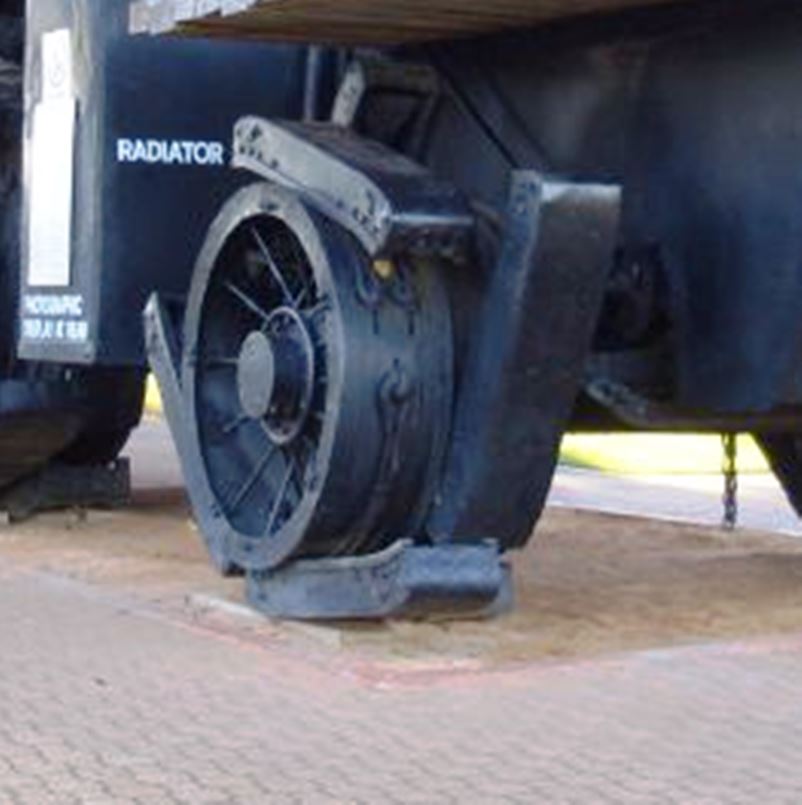

    1880 Human-powered tractor with dreadnaught wheels - photo-big_lizzie_red_cliffs_victoria.jpg21.jpg
    . Ped wheels had the pads connected tractor the wheels vie a pivot.

    The wheels on this tractor are called endless track wheels. which was an improvement to the Boydell design, and sometimes called dreadnaught wheels
    https://www.reading.ac.uk/merl/colle...rl-TR_BUR.aspx
    "Burrell joined forces with engineer, James Boydell, to produce the first practical traction engine, a self-moving road engine for pulling loads. Boydell patented a system called the 'Endless Railway', which foreshadowed the track-laying vehicles of many years later. Demonstrations of the Burrell-Boydell traction engine at Croxton near Thetford and at Brackenborough near Louth were held in 1857 and made a very favourable impression. Several Burrell-made ploughs were drawn at a time behind the engine, which also showed its prowess in hauling loads over soft uneven ground. Burrell's reputation was now established."
    1880 Human-powered tractor with dreadnaught wheels - photo-u1noity.jpg122.jpg

    1880 Human-powered tractor with dreadnaught wheels - photo-u1noity.jpg2211.jpg

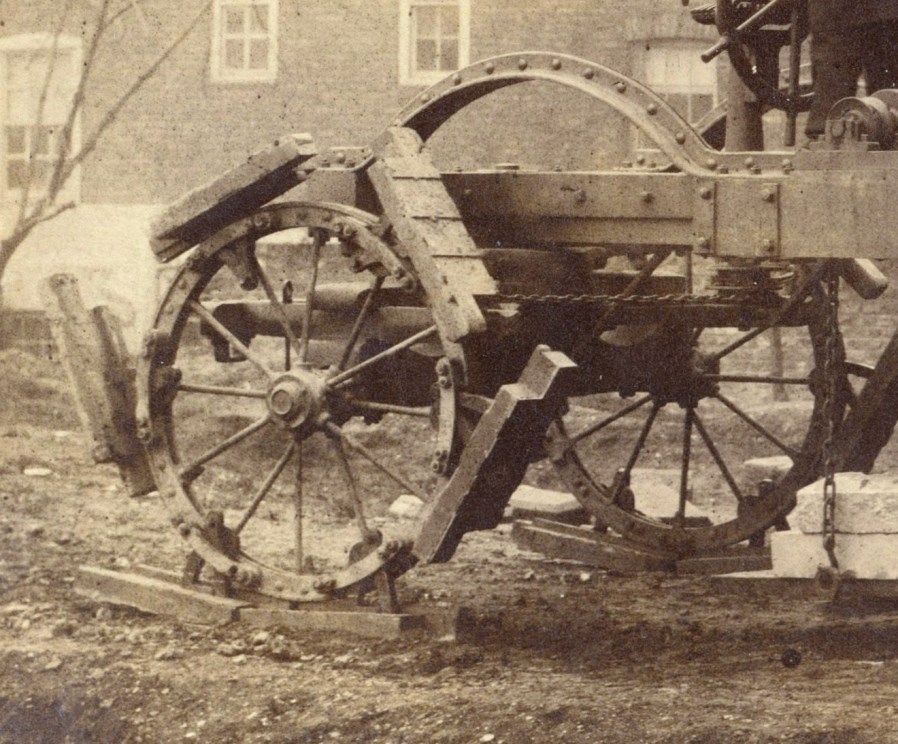

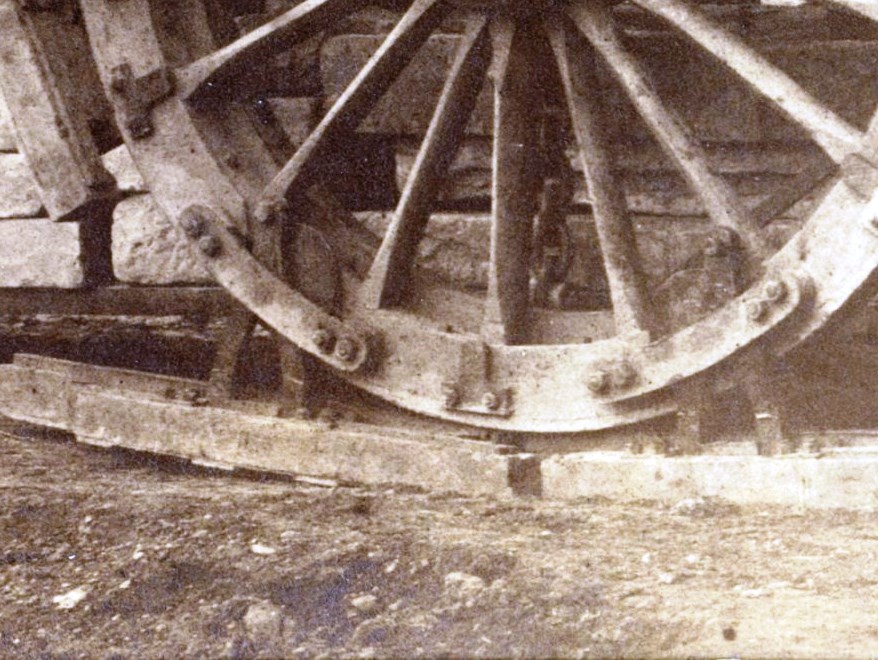

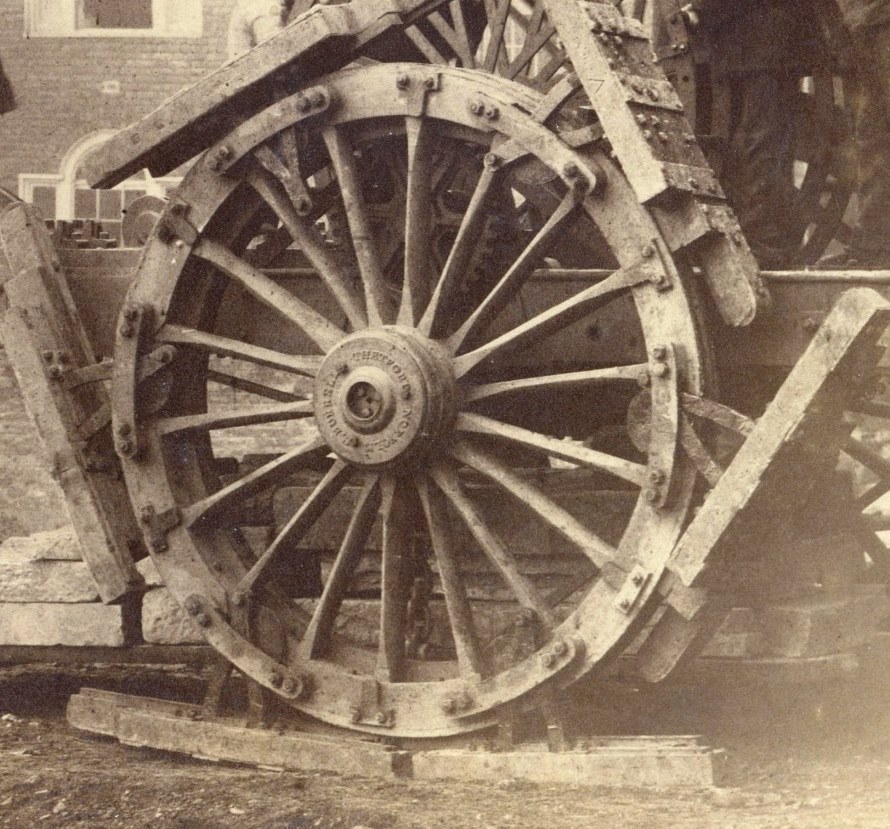

    here you can see that the track pads are neither connected together as in dreadnaught nor are they mounted to the wheel as in pedrail wheels
    1880 Human-powered tractor with dreadnaught wheels - photo-u1noity.jpg223.jpg

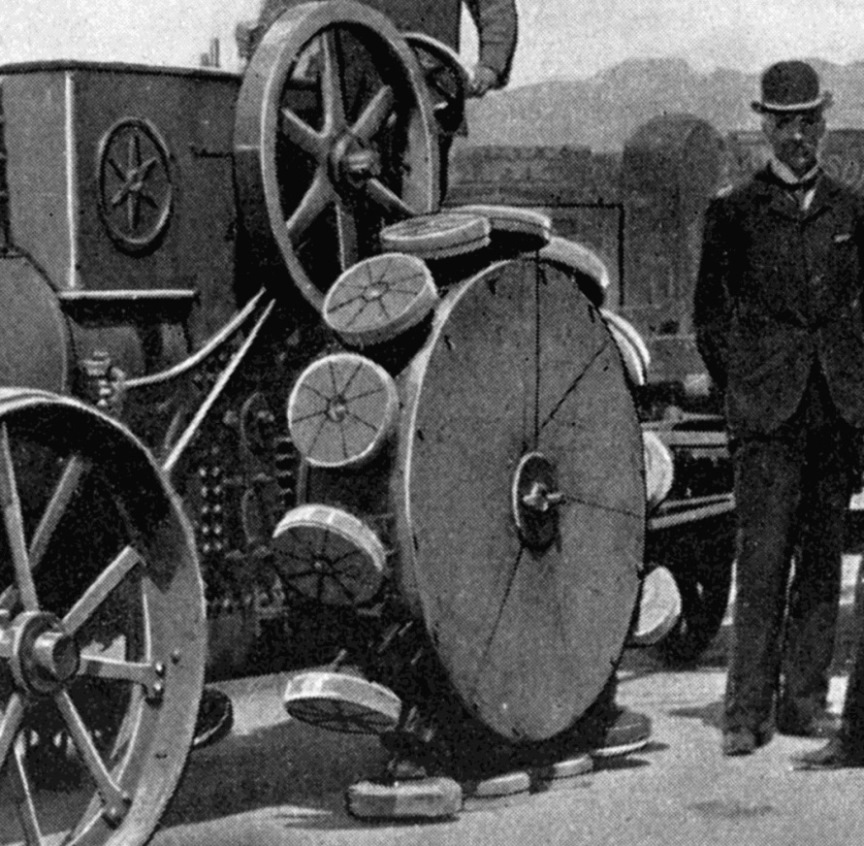

    Pedrail wheels invented by Bramah Joseph Diplock
    1880 Human-powered tractor with dreadnaught wheels - photo-romance_of_modern_mechanism_12.png234.jpg
    Last edited by Frank S; Mar 13, 2018 at 11:29 PM.
    Never try to tell me it can't be done
    When I have to paint I use http://kbs.justoldtrucks.com/

  7. The Following User Says Thank You to Frank S For This Useful Post:

    Jon (Mar 14, 2018)

  8. #5
    PJs
    PJs is offline
    Supporting Member PJs's Avatar
    Join Date
    Sep 2014
    Location
    Northern CA
    Posts
    1,841
    Thanks
    8,322
    Thanked 1,093 Times in 712 Posts

    PJs's Tools
    Considering the photograph post dates the patents of 1840 & 54 by ~40 years and steam and horse drawn locomotion machines were available prior, it is interesting that these appear to be "Dreadnaught" type wheels made in a Local Home Made type shop (HMT) manor as a Human Powered machine in the style of Burrell's original patents from 1846.

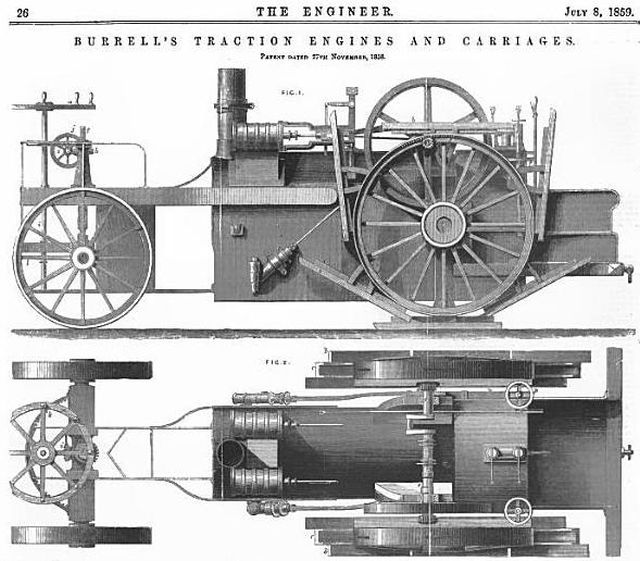

    Burrells traction engine Pat. 1858
    1880 Human-powered tractor with dreadnaught wheels - photo-burrell-boydell-tractor-dreadnaught-x640.jpg

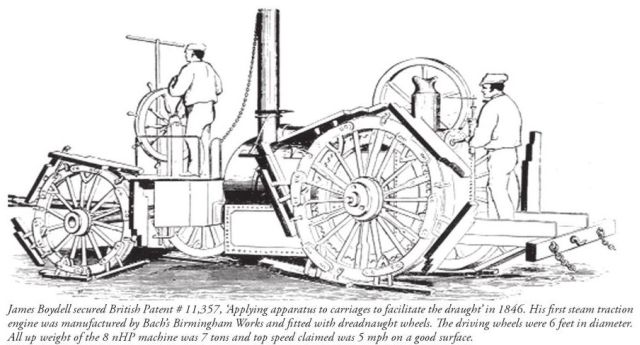

    Boydells Pat. 1846
    1880 Human-powered tractor with dreadnaught wheels - photo-boydell-tractor-dreadnaught-x640.jpg

    http://cyberneticzoo.com/walking-mac...ydell-british/

    Note the articulating wishbone for the pads in both drawings and in the posting.

    Also interesting how humans derive names like Dreadnaught (Fear Nothing ~1800) and apply them to wheels and machines to become defacto standards even though they may be incorrect as time passes yet do invoke an imaginative substance to a machine like this.

    "And as imagination bodies forth
    The forms of things unknown, the poet’s pen
    Turns them to shapes and gives to airy nothing
    A local habitation and a name.
    Such tricks hath strong imagination,.."
    Last edited by PJs; Mar 14, 2018 at 09:54 AM.
    ‘‘Always do right. This will gratify some people and astonish the rest.’’
    Mark Twain

  9. The Following 2 Users Say Thank You to PJs For This Useful Post:

    Frank S (Mar 14, 2018), Toolmaker51 (Nov 28, 2018)

  10. #6
    Supporting Member Frank S's Avatar
    Join Date
    Aug 2015
    Location
    Peacock TX
    Posts
    6,898
    Thanks
    865
    Thanked 5,467 Times in 2,610 Posts

    Frank S's Tools
    Interesting how these "tool talk" threads have a tendency to spur forgotten memories or lead to several of us to research areas of the history of mechanical evolution we may not of otherwise delved into. I cannot see how anyone who joins HMT with any interest in learning or sharing would not find these threads intriguing
    Never try to tell me it can't be done
    When I have to paint I use http://kbs.justoldtrucks.com/

  11. The Following 2 Users Say Thank You to Frank S For This Useful Post:

    PJs (Mar 14, 2018), Toolmaker51 (Nov 28, 2018)

  12. #7
    Supporting Member
    Join Date
    Oct 2018
    Posts
    110
    Thanks
    216
    Thanked 52 Times in 32 Posts
    Quote Originally Posted by PJs View Post
    Considering the photograph post dates the patents of 1840 & 54 by ~40 years and steam and horse drawn locomotion machines were available prior,...."
    It makes me wonder if they didn't figure out a way to re-use a tractor with a blown boiler. If so then it is indeed an interesting device.

  13. #8
    Supporting Member
    Join Date
    Aug 2018
    Posts
    302
    Thanks
    1,081
    Thanked 87 Times in 64 Posts
    Well said Frank S.
