4th axis for milling machine

https://www.youtube.com/watch?v=qtlehiSy63Y

Hello
In this video you see the first part of the build from my 4th axis.The plan is to use this axis not only for indexing but also for cnc turning on the mill. In addition a tool changer for turning tools is planned later which will be attached to the spindle.I have deliberately chosen a closed system because I do not want to have chips on the belt or in the motor.The construction itself gives more work, however, because there are a few more plates to mill.Who wants to rebuild the axle can do this without covers but I would then recommend a thicker base plate because without the covers is lost some stability. The height of the axis including jaw chuck is 120mm and is deliberately built so low that I can drive over it with my portal milling machine, which has a portal height of 125mm.The whole parts have cost me 250 euros where I bought on Ebay for 50 euros aluminum remnants and was lucky that matching plates were there.I also use a 100mm 3 jaw chuck, a closed loop stepper motor the JMC IHSS-60-36-31, HTD-5M belt with 25mm width and 2 pulleys with 40 and 26 teeth.The gear ratio is 1:1.54 which corresponds to 4.7Nm torque and a speed of about 2000 rpm.In the first video of this series I will show you the production of the shaft on which a bearing seat is. Then the manufacturing of the shaft coupler with the 2nd bearing seat and the nut for clamping.The CAD files for the rebuild you will find in the video description of the last video when I am sure that everything fits as planned.

Part list:
JMC IHSS-60-36--31 € 70,-
Toothbelt HTD 5M-25 - 340mm. €23,58,-
Toothed belt pulley 40 5M 25 €16,60,-
Toothed belt pulley 26 5M 25 €10,80,-
100mm 3 jaw chuck €60,-
Aluminum remnants from eBay €50,-
Sets of screws €20,-
Total: €250,98

I bought a pre-cooked version of this off of fleabay a few years ago. I put an Arduino and a little LCD display on there for setting angles. Yours is more robust.

https://www.youtube.com/watch?v=EBoLlIEZP90

Hello,

in the 2nd part you can see how I made the milled parts and then assemble the main components of the axis.

Strange!!!! I know more than posted the questions below and most of the answers showed up in the original post after this posted. Not sure how that happened, might be my cell connection. In any event thanks again for the great video. Now I realize what happened, the homemadetools link took me right past the first video. I will go back to bed now.

Nice work! Will this be stepper or servo driven? I ask because I'm wondering what the top speed will be and if it will be suitable for use as a lathe. Think wood working and other relatively higher speeds.

Quote:

---

Originally Posted by wizard69

Will this be stepper or servo driven? I ask because I'm wondering what the top speed will be and if it will be suitable for use as a lathe. Think wood working and other relatively higher speeds.

---

I have one that's stepper driven. Top speed is super slow, just a few RPM. A few years ago I tried to use it as a lathe. You can badly approximate a lathe if you have it installed on a mill. Crank the speed of your end mill and slowly rotate the workpiece. It works... kinda. It takes a long time and the result is lumpy. The problem is that end mills are not actually flat on the bottom. It doesn't replace a lathe.

Hello,

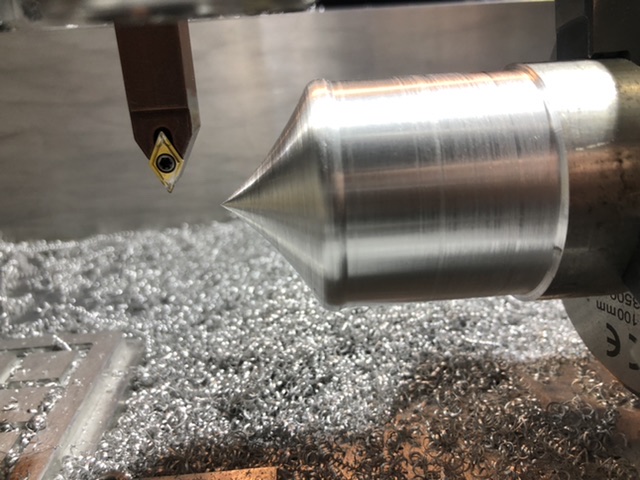

At the moment it is stepper operated because I had one lying around. The top speed is not that bad at all I think that I almost come to 2000 rpm turned aluminum for the first time yesterday and the power at higher speeds is also sufficient. Sure a servo would be better, but a stepper motor is also possible. You just can't feed several mm but 0.5mm with aluminum at about 1000rpm worked well. if you are interested you can see a short video on my instagram account (_markgyver_) or you can wait if i post the next video on youtube in about 2 weeks.
